Remote Control Cabinet Drawer Lock Fail Secure 12v Mini Electric Lock+ Remote Control + 12V Power Supply
(No reviews yet)
Write a Review
- Weight:
- 0.90 KGS
Description
Product Description
Remote Control Cabinet Drawer Lock Fail Secure 12v Mini Electric Lock+ Remote Control + 12V Power Supply

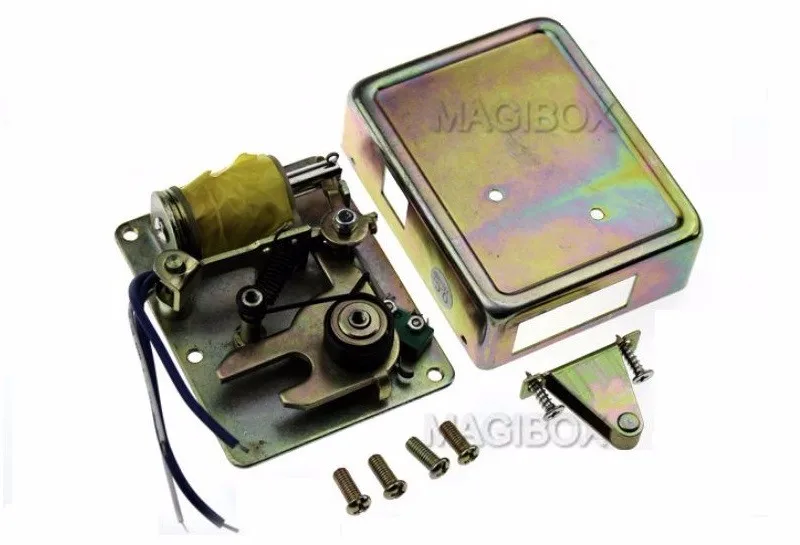

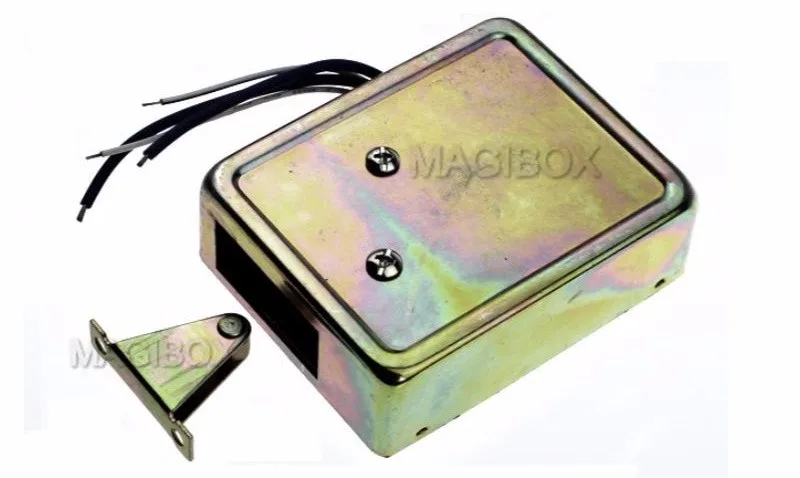

Mini Electric Lock:
Model: MG-09
Unlock Type: Fail Secure, Power on unlock the door. power off lock the door

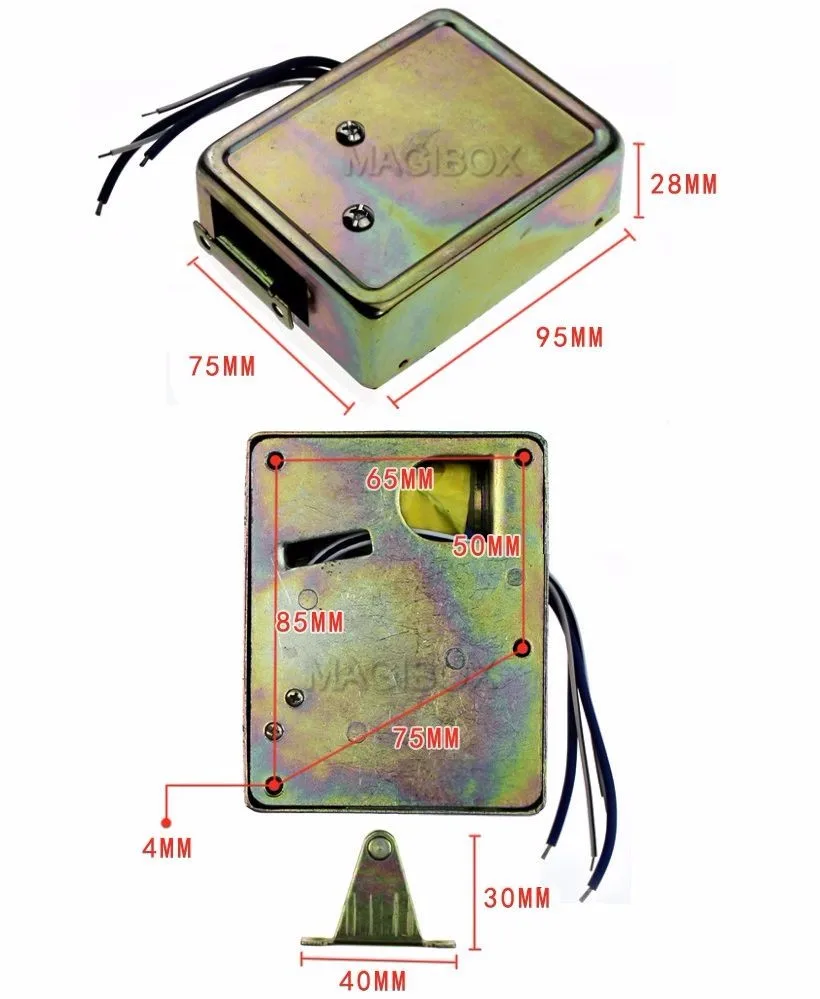

Dimensions: 95x75x28 (mm)
Voltage: 12v
Current: 1.5A
Unlock time: <1s
Signal Output: Lock status
Working temperature: -40-50c
Humidity: 10% -90%
Scope: all kinds of doors, cabinets, boxes, safes
Weight: 450g
(Two kinds of opening door method: left open / right open
Pls specify which one you need when ordering, if there is no instruction, default left open.)

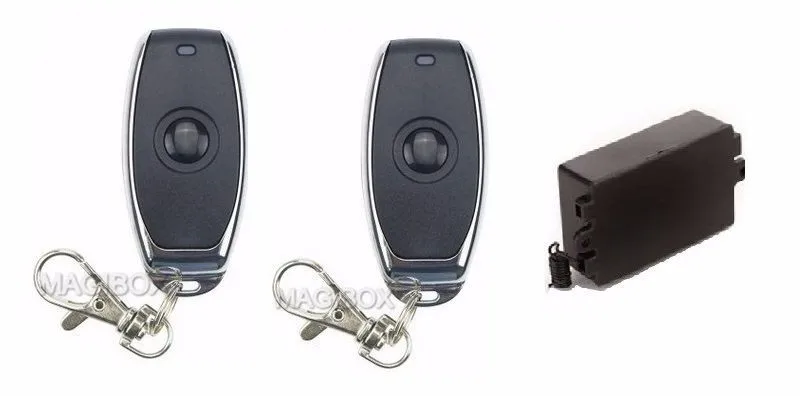

Remote Control:
The emission frequency: 315 MHZ
Working voltage: 12V (27A 12V battery)
Modulation mode: ASK
Static current: 0 uA
Working current: 10-11 mA
Coding type: Learning code
Radiation power: 8-10 mW
Transmitting distance:> 50meters
