DIY 125KHz RFID Waterproof IP68 Metal Password Keypad Door Access Control System Kit + 300LBS Waterproof Magnetic Lock
- Weight:
- 1.80 KGS
Description
DIY Complete Kit RFID Access Control System for Home / Office Use
Access Controller + Power Supply + Magnetic Lock + 10 ID Cards / Keyfob
+ Stainless Steel Exit Button
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Why use access control ?
With this access control system can set up the company, or authority of office building image standardization management, improve the management level, at the same time, standardized internal management system.
If induction card lost can immediately report the loss in the system, so that even if someone else picked up the induction card can't through the entrance guard system, is more convenient than ordinary mechanical lock, more safety.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Access control
Features:
1, Low power consumption: standby current be less than 30mA
2, Luminous Keyboard: Can be operating the machine during night.
3, Large User capacity: support for 2,000 users.
4, Independent password: Can use the password independently to open the door.
5, User Change Password: Users himself can modify the password to open the door.
6, Fast Search speed: From the credit card to open the door in less than 0.1S.
7, Output short circuit protection: when the electric lock or alarm’s output short circuit
Within 100μS, will automatically turns off output
8, Wiegand output: Wiegand interface, support Wg26, Wg34
9, Keyboard can delete the card number directly: if some card is lost, the keyboard can be used to remove the lost card, total elimination of security risks.
10, Tamper alarm: There will be special built-in buzzer alarm sounds when Illegal disassemble issued
11, Support doorbell button and interface: buttons and circuit isolation, you can add any bell.
Specifications
DC Supply Voltage:DC12V±10%
Current Consumption:≤30mA
Induction Distance:1~5cm
User Capacity:2000 users
Operating Temperature:-10°C~50°C
Operating Humidity:10%~90%
Lock Output Load:≤3A
Alarm Output Load:≤3A
Output short circuit protection time:≤100μS
Adjustable Door open time:0~10s(adjustable)
Dimensions:119 *57*20mm
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

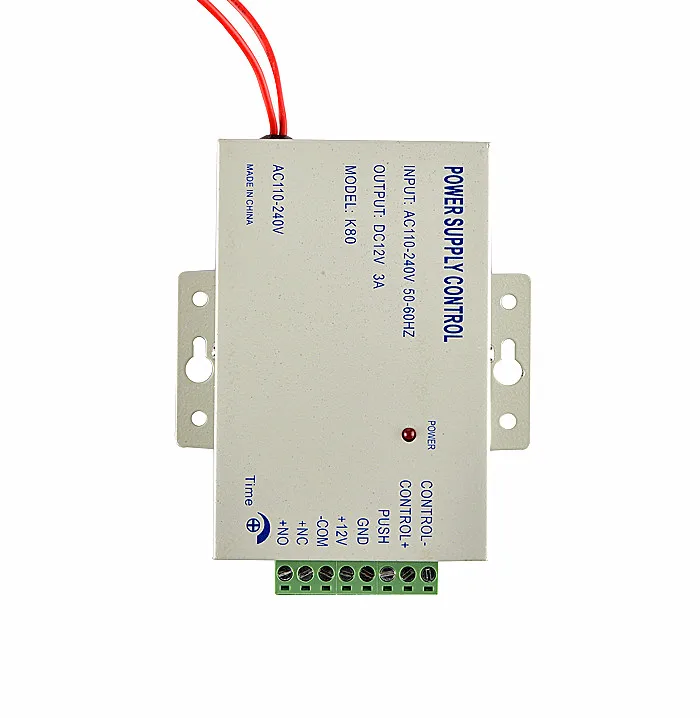

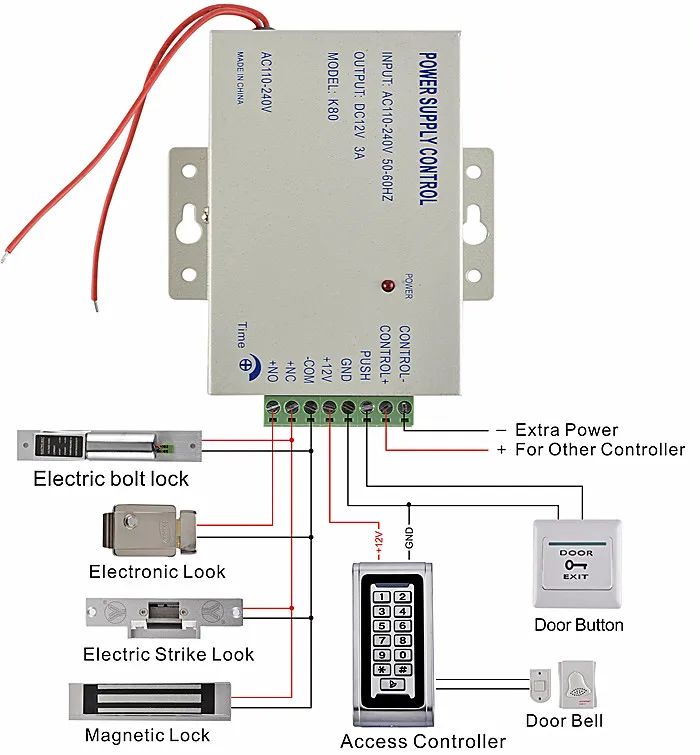

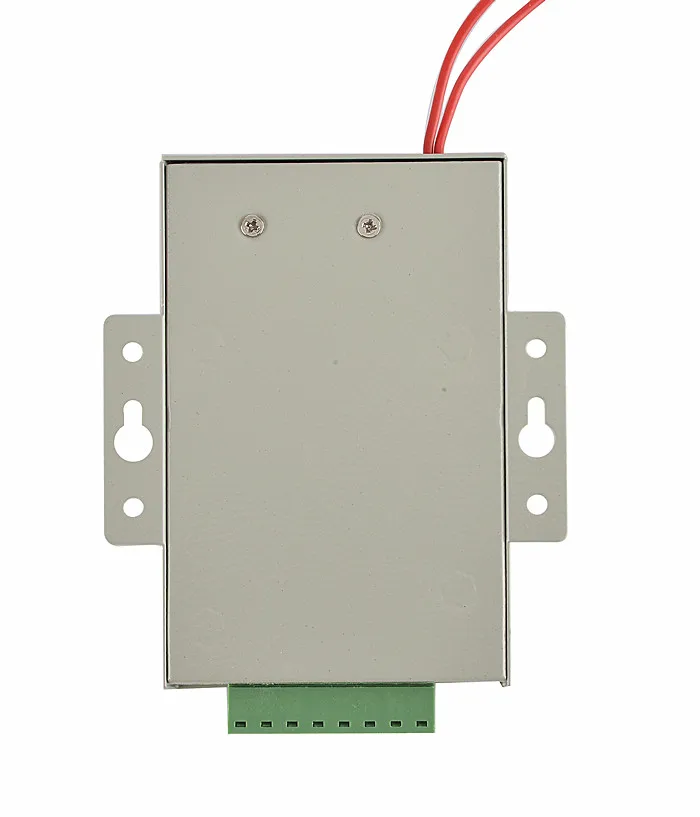

Power Supply:
This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access
controller, lock, and exit button. Can used all over the world.
Can reduce the load of access controller, save wiring to reduce the hidden trouble
Set NC / NO outputs, can control various types of electric locks
Based delay control circuit, lock time can be in 0-15 seconds
The circuit board has remote control port.

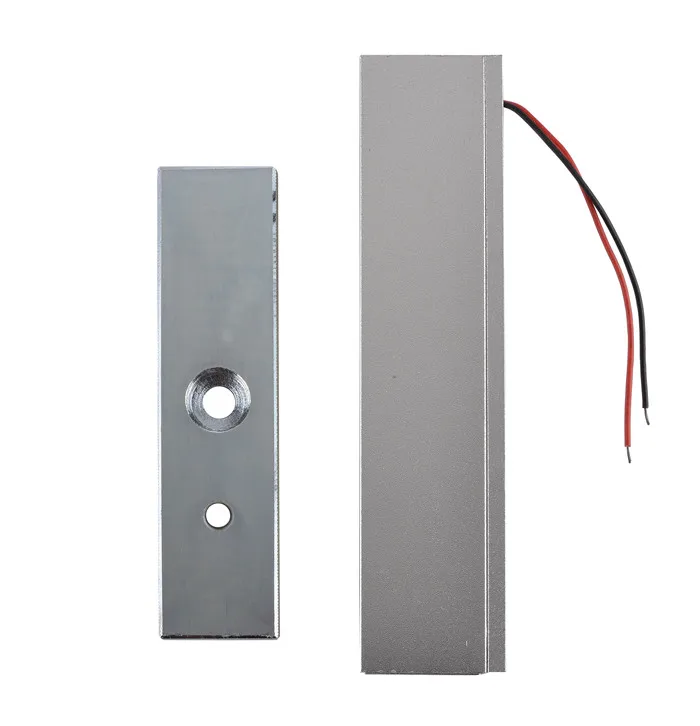

Magnetic Lock:
It is a High performance 180kg Holding Force electric magnetic lock which suits for many access control
system. This electric lock can meet your need perfectly.
NC Mode - (Locked while supplied with power) Fail Safe Mode
Performance Testing: 1000000 times aging test
Suitable For: Wooden Door, Metal Doorr, Fireproof Door, Glass Door, etc.
Safety function: Built-in voltage spike suppressor
Anti-Residual Magnesium Designed.
Specification:
Voltage: 12V DC
Current: 400mA
Mode: NC (locked whilst power supply is operating), fail safe mode
Application: wood, iron doors
Faceplate dimensions: 130 x 32 x 9.3mm
Main body dimensions: 170 x 40 x 22mm
Pack includes: electric magnetic lock, installation diagrams
Construction: stainless steel
Holding force: 180KG

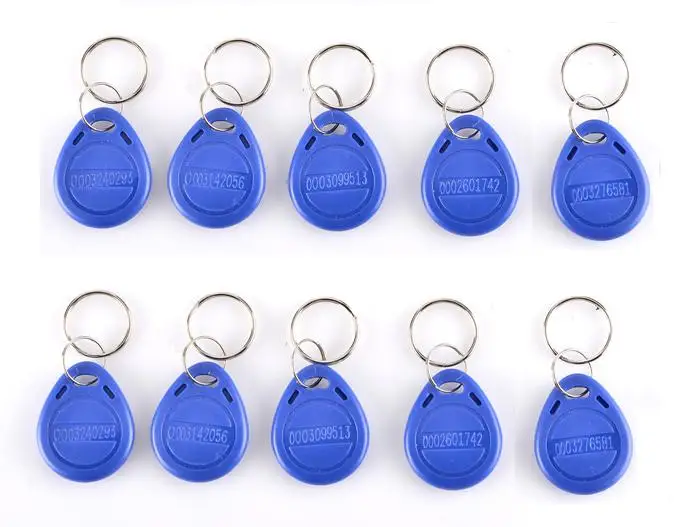

RFID Key Fobs:
This is the 125KHz RFID Proximity Card, it can work with the product which has the RFID card reader.
Water resistant
Detecting distance: 3-10cm
Operation frequency: 125Khz
Each comes with Key ring included
Compatible with all RFID ID card reader to gain access
Each token pre-programmed with unique ID which is printed on it.
This is a Metal Door Exit button, it is widely used in door access control system. If you want to go out, you just need to press this Exit Button, then you can go out
Support both NC Mode (Fail Safe Mode) and NO Mode (Fail Secure Mode);
Performance Testing: 1000000 times aging test;
Material: Hard Plastic.
Specification :
Working voltage: DC12v
Working current: 3
Faceplate Dimension: 86mmx86mm
DoorBell :
