1Pair Plastic Push Button Control Panel Double Lock switch for Automatic Door System

(No reviews yet) Write a Review
Weight:
0.30 KGS
  • 1Pair Plastic Push Button Control Panel Double Lock switch for Automatic Door System
  • 1Pair Plastic Push Button Control Panel Double Lock switch for Automatic Door System
US $55.00

Description






this product is mainly used in automatic door of VIP room, personal office, and otherdifferent private occassion, for door opening and locked.

One inner panel and one outer panel for a set, hand touch or induct for door opening, also can be realized the double lock function by induct the inner panel for 3 seconds. So that avoid being disturbed when in private situations.

A similar door opening switch is also available in the M-253 Wifi Access Switch, can replace the access control door opening button, fixed to the inside of the door. Besides this switch panel, when entering, also can use the mobile phone to open the autodoor.

Also it is compatible with any brands gate motors; All products will pass the quality test when they leave the factory and have one-year free warranty.

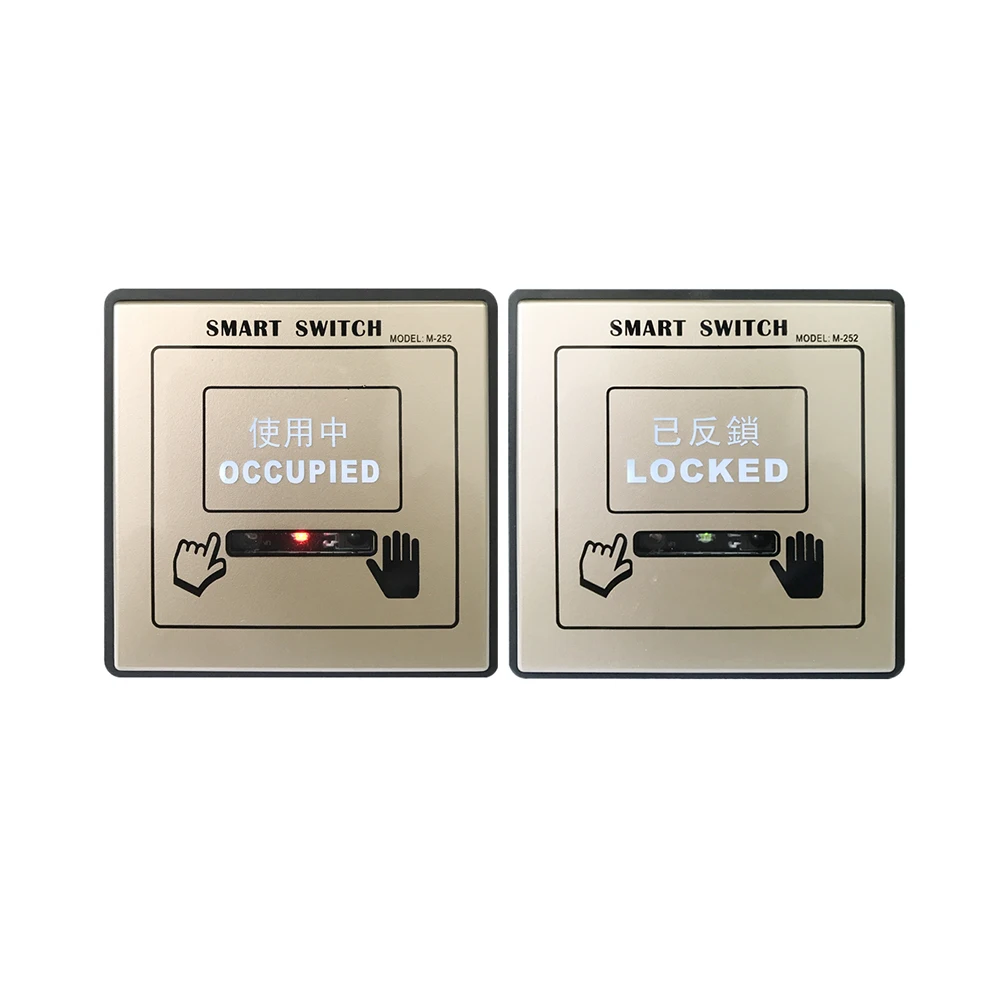

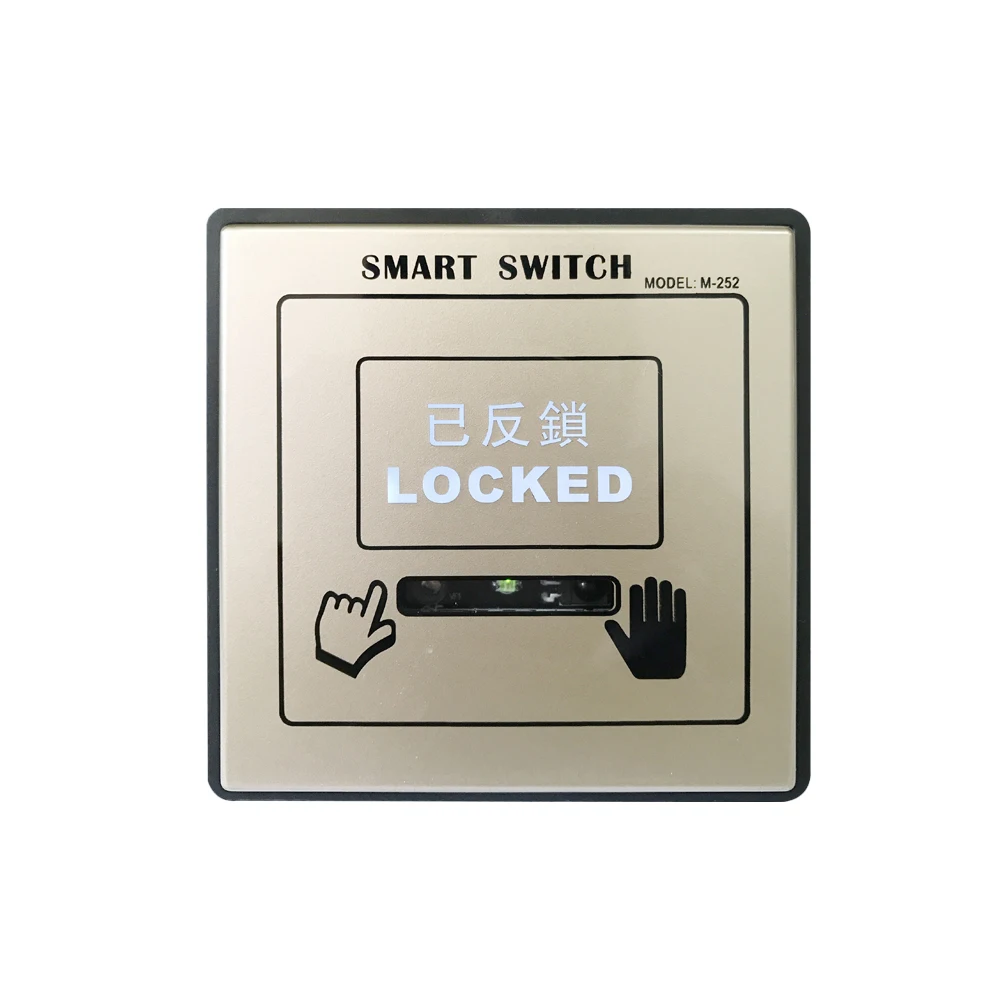

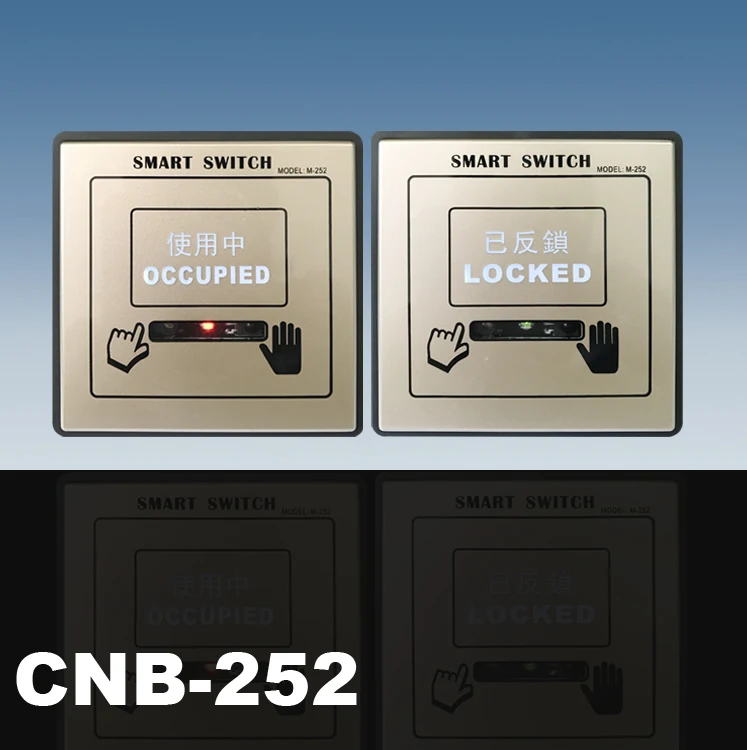

M-252  DOUBLE LOCK SWITCH FOR AUTODOOR
1, Adopt 86x86mm panel design, with surface mounting, full panel can be touched or sensing.

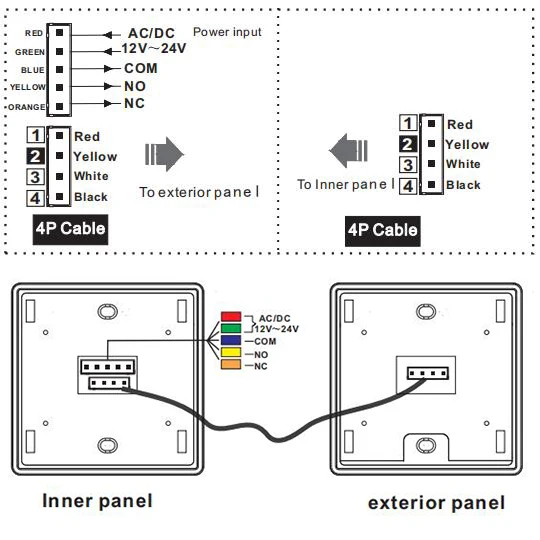

2, Panel with laser engraved technology, cooperated with backlight screen display, exquisite and fashinable. 3,Inside and outside double panels, simple wiring.
4, Operating method: Press or Induction

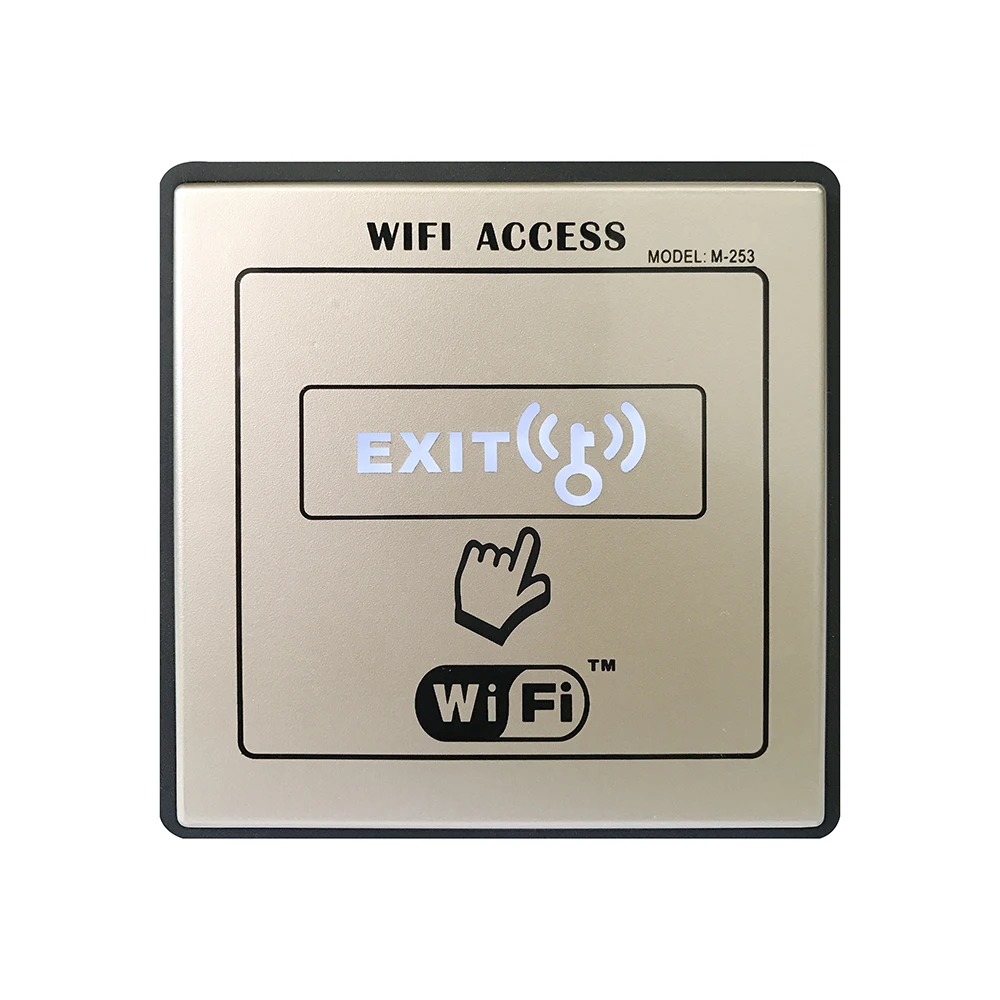

M-253  WIFI ACCESS SWITCH

1, Adopt 86x86mm panel design, with surface mounting, full panel can be touched or sensing.
2, Panel with laser engraved technology, cooperated with backlight screen display, exquisite and fashinable.
3,Operating method: hand press or remote door opening is realized through mobile APP

Specification
Item
Double lock switch for autodoor
WIFI access switch
Model
M-252
M-253
Brand
CANBO
CANBO
Power
AC/DC 12-24V
AC/DC 12-24V
Static current

85mA (DC 12V power)
Action current
48mA (DC 12V power)
115mA (DC 12V power)
Standby current
20mA (DC 12V power)

Operating method
Press / induction
Press / APP
Induction distance
1-20cm adjustable

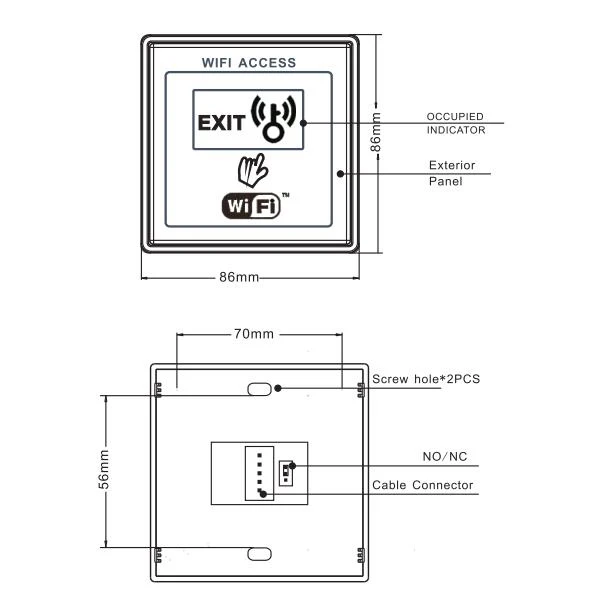

Panel size
86(L)x86(W)x14(D)mm
86(L)x86(W)x14(D)mm
