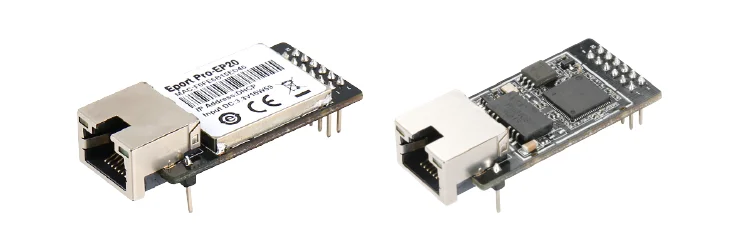

TTL Serial To Ethernet TCP/IP/Telnet/Modbus Module

(No reviews yet) Write a Review
Weight:
0.10 KGS
On Sale
MSRP: US $22.00
Now: US $14.00
Was: US $22.00
— You save US $8.00

Description

Product Description

Overview of Characteristic

²  MIPS MCU with 16MB Flash and 32MB SRAM

²  Use Linux Operation System

²  Support TCP/IP/Telnet/Modbus TCPProtocol

²  Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 460800 bps

²  Support 10/100M Ethernet Auto-Negotiation

²  Support Easy Configuration Through a WebInterface

²  Support Security Protocol Such AsSSL/AES/DES3

²  Support  Web OTA Wirelss Upgrade

²  Single +3.3V Power Supply

²  Size: 50 x 23x 11 mm(L x W x H)





System Information
Processor/Frequency MIPS/320MHz
Flash/SDRAM 16MB/32MB
Operating System Linux
Ethernet
Port Number 1 RJ45 with LED
Interface Standard 10/100 Base-T Auto-Negotiation
Protection 2KV Isolation
Network Transformer Integrated
Network Protocol IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP
Security Protocol SSL v3(2048). AES 128Bit.3DES. SHA-1.MD5.Base-64.RSA.ECC
IPV6 Support Support
Serial
Port Number 1 + 1 debug
Interface Standard 3.3V TTL: 2 wire(TX,RX)
Data Bits 7,8
Stop Bit 1,2
Check Bit None,Even,Odd,Space,Mark
Baud Rate TTL: 600 bps~460800bps
Flow Control No Flow control Hardware RTS/CTS.DSR/DTR Software Xon/ Xoffflow control
Software
Web Pages Http Web Configuration Customization of HTTP Web Pages
Log Remote Realtime Log
Configuration Web CLI XML import Telnet IOTManager PC Software
PC Config Tools IOTManager PC Software
SDK For Dev. Support
Basic Parameter
Size 50x 23x 11mm
Operating Temp. -45 ~ 70°C
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH(no condensation)
Input Voltage 3.3V
Working Current ~200mA
Power <700mW
Certificate CE, FCC, RoHS
