Automatic door wireless hand pressure switch automatic door wireless openers wireless remote control switch

(No reviews yet) Write a Review
Weight:
0.60 KGS
US $68.00

Description

Product Description

new-product description
Features
1. SAW resonator frequency stabilization technology, frequency consistency, high stability wireless transceiver.
2. DIP to match the transceiver, operate simplely and conveniently. Using self-learning code, enable customers to add hand pressure switch any time.
3. Hand pressure machine uses Pu varnish curing shell and thick film labeling, the shell is beautiful and wear resistance; anti-shedding screw design. wireless receiver housing is made of
industrial-grade ABS plastic.
4.Operating frequency 315M, stability better than 10-5. Wide voltage input ,12-36V AC and DC power input are valid.
5.Trigger all using built-in copper antenna, long wireless transmission distance, strong anti-interference ability.
6. Hand pressure machine uses  low power consumption transmiting technology, long transmission distance, low power consumption, long battery life.
7.Three pressure trigger design to ensure the pressing  effective, lightweight and reliable triggering.
8. With two group contact signal output of large and small capacity , can supplied to external automatic doors and electric lock access.
9. After wireless receive, trigger action time is adjustable within1-9 seconds  to facilitate a variety gating requirements.
10. When swith by remote control,there is an audible alert , while the red light will turn green, it can confirm the switch  valid or not.


Technical Parameters
Power supply: AC/DC12-36V; Quiescent Current:15mA; operating current: 80mA (wireless receiver)
Main contact capacity:20A 14VDC Vice Contact capacity: 1A 24VDC (wireless receiver)
Contact pull retention time: 2 seconds (wireless receiver)
Power supply: 6V (two 3V button battery); emission current: 3.9mA (hand pressure switch)
Battery life:press average  500 times daily, high-quality battery can withstand 300 days (hand pressure switch)
Transceivers distance: depending on the actual site electrical shielding environment, under normal conditions up to 5 meters.
Working temperature: -42 C -45 C Operating humidity: 10-90% RH
Dimensions: 203mm (L) * 40mm (W) * 13mm (H) (hand pressure switch)
                     123mm (L) * 50mm (W) * 32mm (H) (wireless receiver)

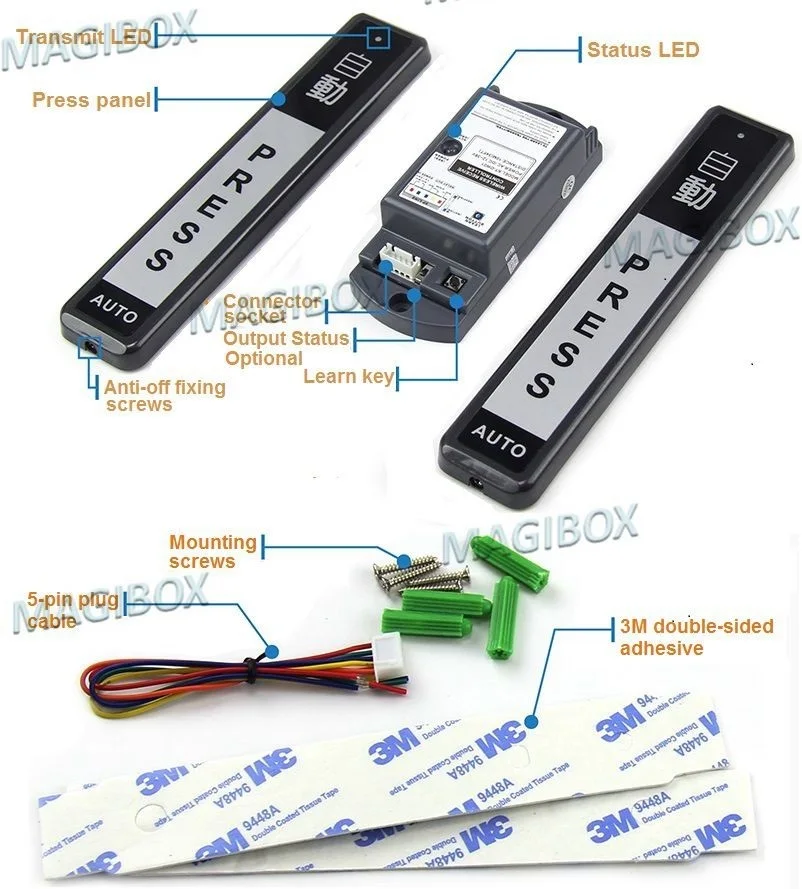

new-product details

HTB1rcx_KpXXXXbyXFXXq6xXFXXXh (1)
HTB1GEBSKpXXXXXBaXXXq6xXFXXXdHTB1GPikKpXXXXcYXXXXq6xXFXXXP

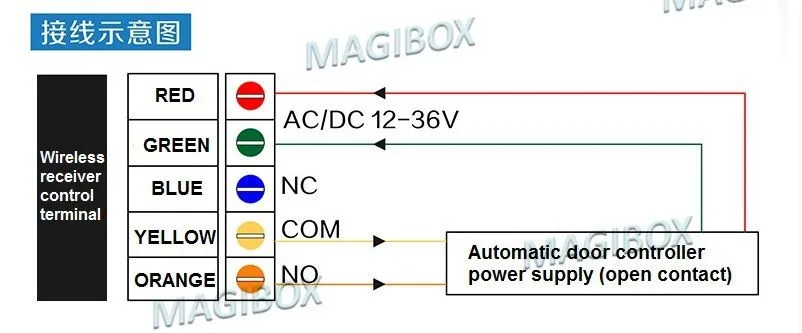

new-wiring diagram
