Access control power supply control relay board support Battery discharge protection

(No reviews yet) Write a Review
SKU:
9JAJ-H983-FSKV
MPN:
PW-B01
Weight:
0.50 KGS
US $18.00

Description

Product Description

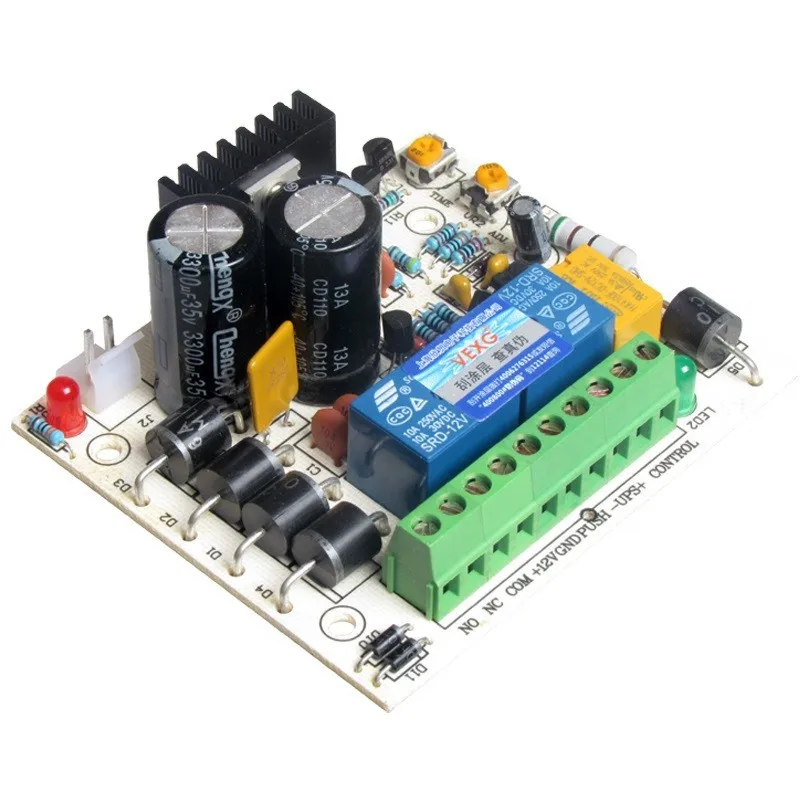

Access control power supply control relay board support Battery discharge protection

Advantages:
With battery discharge protection power output (9-14V) adjustable with automatic protection function
I. Introduction:
An input AC220V50Hz
2 Output DC12V
5 Ambient temperature -20 C-55 C
6 30% -90% relative humidity
The power controller is designed for all types of access control system, building intercom systems and a variety of electronically controlled lock design, selection of high-end and imported components, using international advanced technology and manufacturing processes, appearance, safe, reliable, durable .
Second, the functional characteristics:

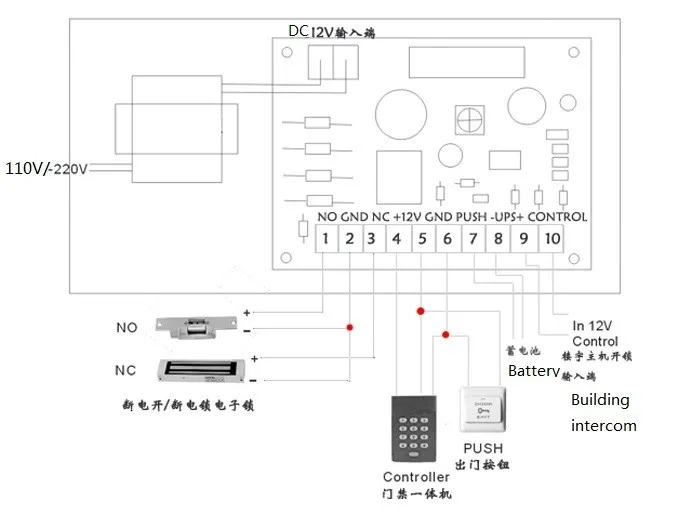

Direct control electric locks: saving wiring works to reduce the load and install hidden controllers can add a variety of normally open (N0) or often (NC) electronically controlled lock; has a delay adjustment function to set the lock time (0 -15S), and can be directly connected to the button to open the electric door lock.
Interface with UPS: battery installed, even after a power outage, but also continue to supply; really belt battery discharge protection function, when the mains power, battery power automatically when the discharge voltage is below 11 volts, the relay automatically cut off the control panel to stop working, determined not over discharge the battery scrap, while avoiding the reader does not open the door because the voltage is too low.
Automatic protection function: When the power short circuit accident occurs, the power is automatically disconnected temporarily or blown fuse.
