13.56Mhz Card Reader
Type C Universal NFC Reader for Android Phone 13.56MHz IC Card Reader ISO14443A
Availability:
964 in stock
$22.07 – $23.27
- Type: ic
- Interface: USB
- Model Number: R65C
- Origin: Mainland China
- Certification: CE
Out format
|
Support Chip Type |
Serial number |
8H10D Reader Output |
16Hex Reader Output |
|
4bit UID S50,S70,FM1108,ISO14443A |
87:80:72:99 |
2574418055 Convert to hexadecimal |
87807299 |
|
7bit UID Chip NT**213,NT**215,NT**216,DES***,Ultr**** |
04:CA:2E:82:5D:5A:80 |
2184104452 Convert to hexadecimal |
04CA2E825D5A80 |

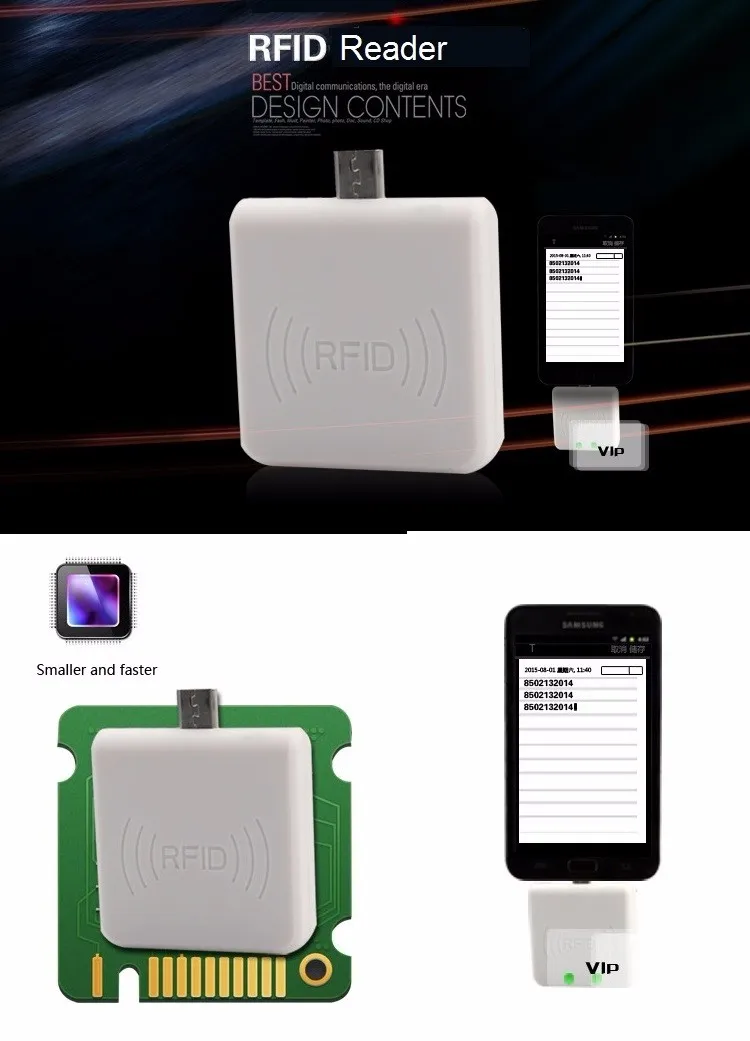

This product is a RFID reader which can directly collecting data from RFID card via Mobile phone. This reader do not
need any driver and other media.The frenquency is 13.56MHz, using microelectronics RF receiver
module and embedded micro controller, combined with an efficient decoding algorithm and advanced data processing
technolog.
need any driver and other media.The frenquency is 13.56MHz, using microelectronics RF receiver
module and embedded micro controller, combined with an efficient decoding algorithm and advanced data processing
technolog.
Product specifications:
Name: Mobile phone RFID Reader(13.56mhz)
Model: R65C
Operating frequency: 13.56MHz
Support card:
ISO14443A
S50,13.56mhz ETC
ISO14443A
S50,13.56mhz ETC
Operating system: Android (need to support OTG),windows.
Size (without interfaces): 35mm × 35mm × 7mm
Package size: 71mm × 71mm × 19mm
Reading distance: 0-30mm (front / rear reading); 0-10mm (side reading)
Reading Time: <0.5s
Reading interval: 0.3S
Communication Interface: Mini USB Interface
Operating Voltage: 5V
Operating Current: 100mA
Weight: 20G
Working temperature: -10
°C
~ 60
°C
°C
~ 60
°C
Humidity: 5% ~ 95%
Status Indicator: dual LED ( "blue" — power indicator, "green" — status indicator)
Application: Attendance member management etc.
notice: read only.
Package List:
1*13.56MHz Mini RFID Reader Mobile Phone IC Card Reader mirco usb Interface Support Android System
1* S50 Card
1* mirco to USB adapter
