13.56mhz ISO15693 RFID Card Reader Writer Module TTL Wiegand RS485 Interface Compatible with icode2 HI TAG TI-TAG

Voltage: 3.3 V to 5 V
Current: 45 mA
Frequency: 13. 56 MHZ
Protocol: IS015693
Support: ICODE2, TI2048, etc
Functions: inventory tags, reading and writing data, etc
TTL or RS485 interface: a serial port (UART) and two way IO output

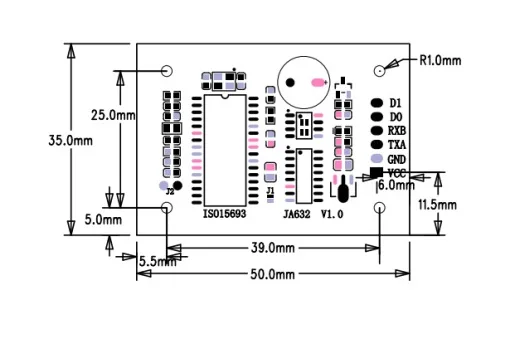

SIZE: 50 mm (long) x35mm (wide)
Distance: read and write from 80-150 – mm (depending on the label size and performance)
Tip: can control the LED or buzzer (optional) communication or read card
Other: board contains PCB coil, small size, convenient to embed

Technical support:
Provide secondary development data:
PC test Demo examples, c + +, c # example, DLL library file
