Raspberry Pi Pico 2 RP2350 2 inch LCD Capacitive TouchScreen Development Board 240×320 Display QMI8658 6-Axis /OV5640 Camera /SD
11 in stock
$19.56 – $23.66
- Hign-concerned Chemical: None
- Compatible With: Raspberry Pi
- Accessory Type: LCD Screen
- Brand Name: spotpear
- Origin: Mainland China
RP2350 Touch LCD Development Board
Designed based on Raspberry Pi RP2350
Version selection

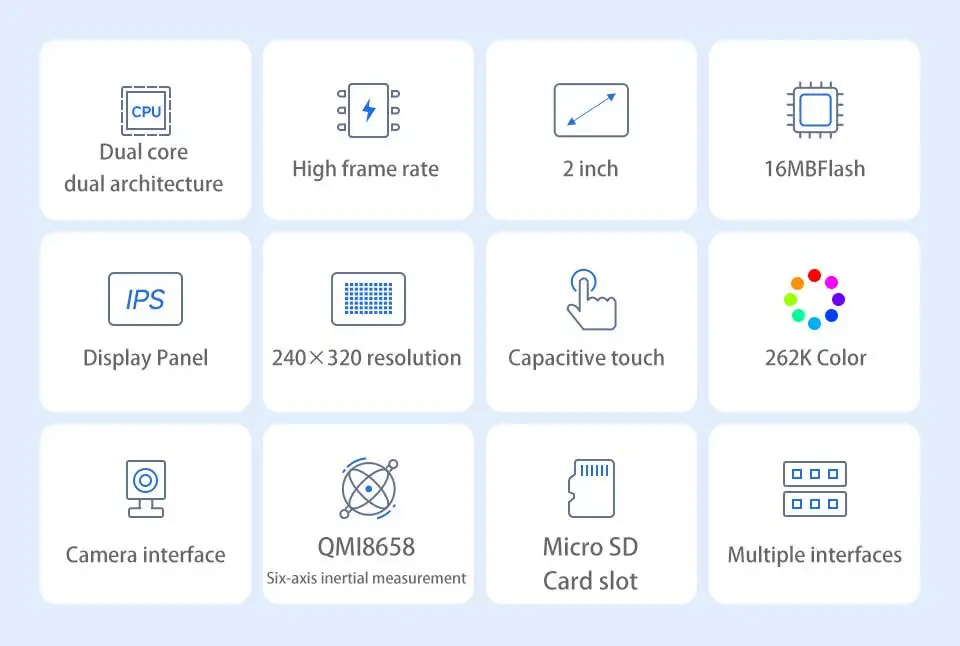

Product Features
This product is a low-cost, high-performance microcontroller development board. In a small form factor, it has a 2-inch capacitive touch LCD screen, camera interface, Micro SD card slot, lithium battery charging chip, and six-axis sensor (three-axis accelerometer and three-axis gyroscope) and other peripherals on board, making it easy to develop and integrate into products.
-
RP2350 microcontroller chip designed with Raspberry Pi
-
Unique dual-core, dual-architecture, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both running at clock frequencies up to 150MHz
-
Built-in 520KB SRAM and 16MB on-chip Flash
-
Uses Type-C interface, no need to worry about plugging it in the right or wrong direction
-
Onboard 2-inch capacitive touch LCD screen, 240 × 320 resolution, 262K colors
-
Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640, suitable for image and video acquisition
-
Onboard lithium battery charging and discharging interface, suitable for mobile scenarios
-
USB1.1 host and device support
-
Supports low power sleep and hibernation modes
-
USB can be recognized as mass storage for drag-and-drop program downloading
-
Bring out 22 multi-function GPIO pins
-
2 SPI, 2 I2C, 2 UART, 2 12-bit ADC, and 14 controllable PWM channels
-
Precise on-chip clocks and timers
-
Onboard temperature sensor
-
12 Programmable I/O (PIO) state machines for custom peripheral support

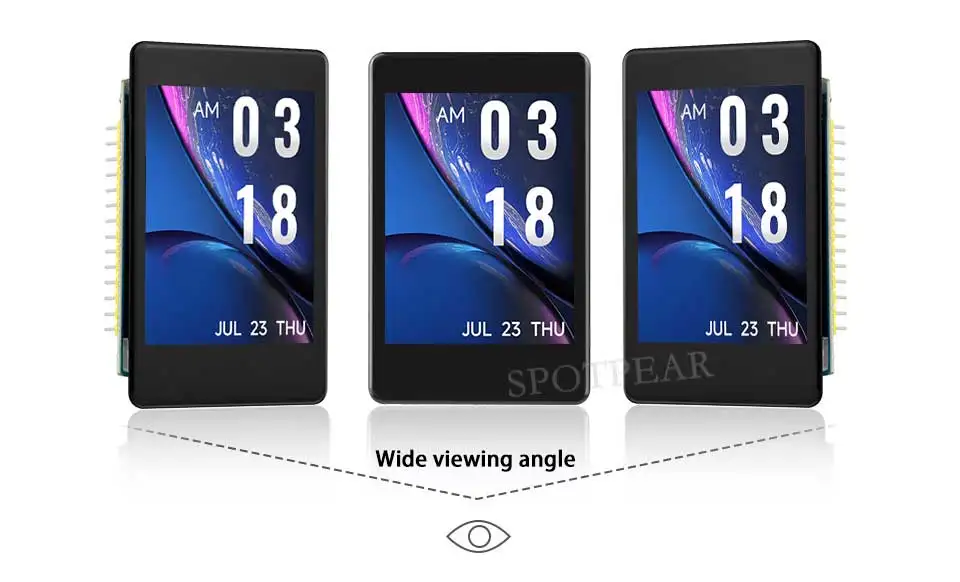

IPS display panel
Excellent display performance, 262K color, wide viewing angle

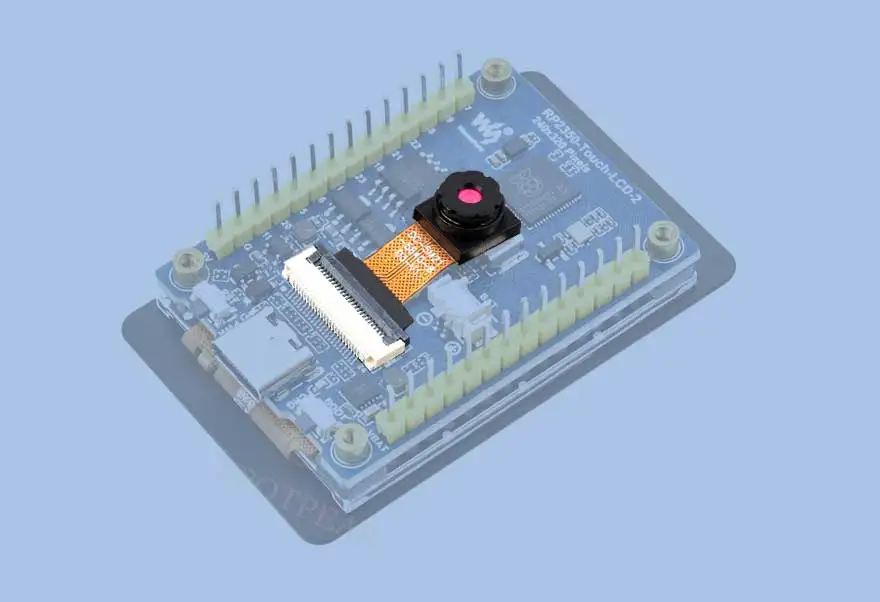

Support OV2640 / OV5640 etc.
Mainstream cameras
The version with OV5640 camera is optional. The OV5640 camera supports 5 million pixels and is suitable for image acquisition, video surveillance and other application scenarios to meet diverse needs.

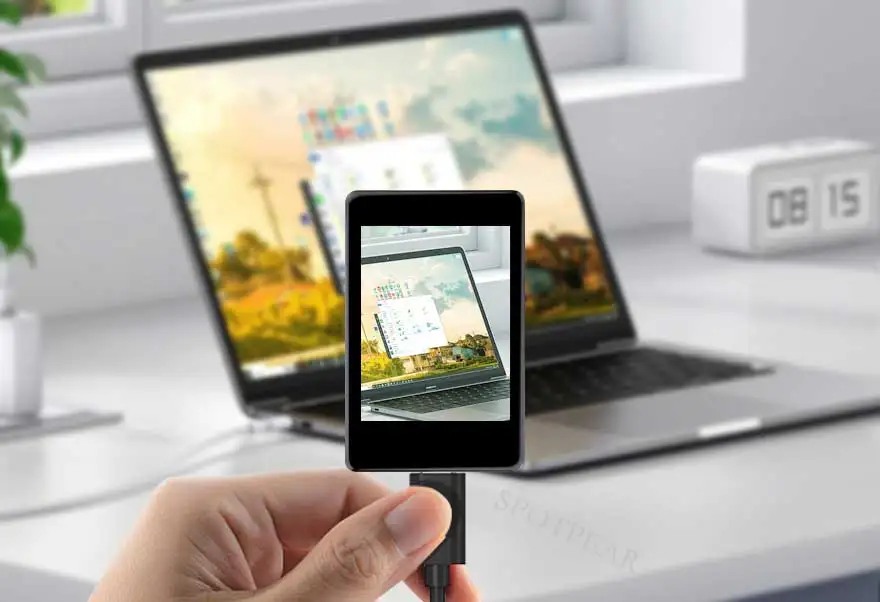

Usage Examples

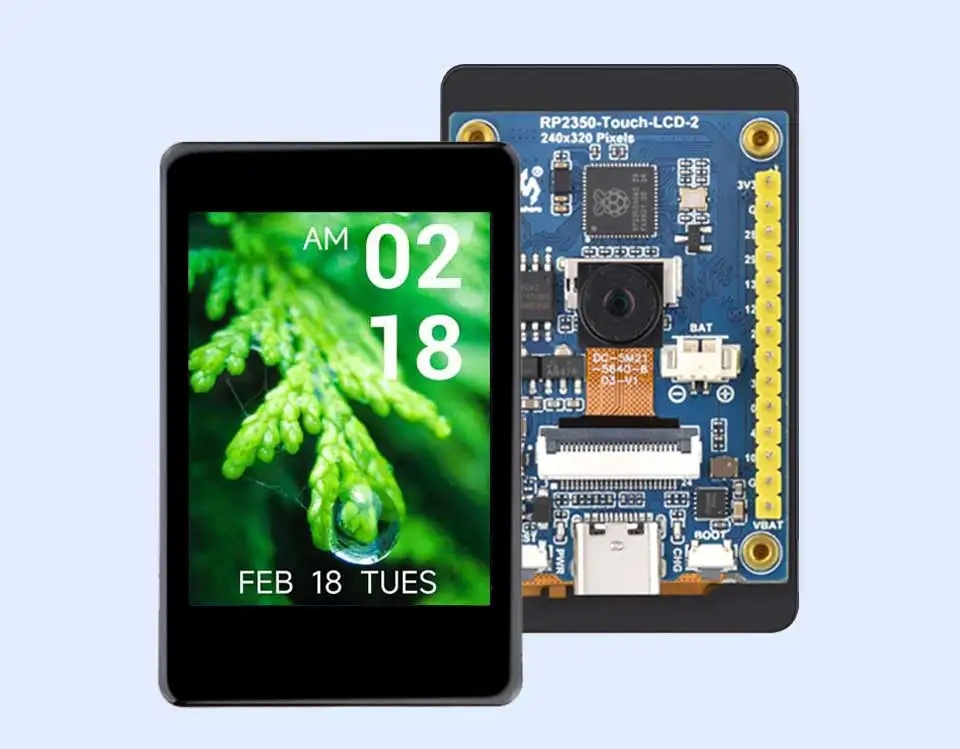

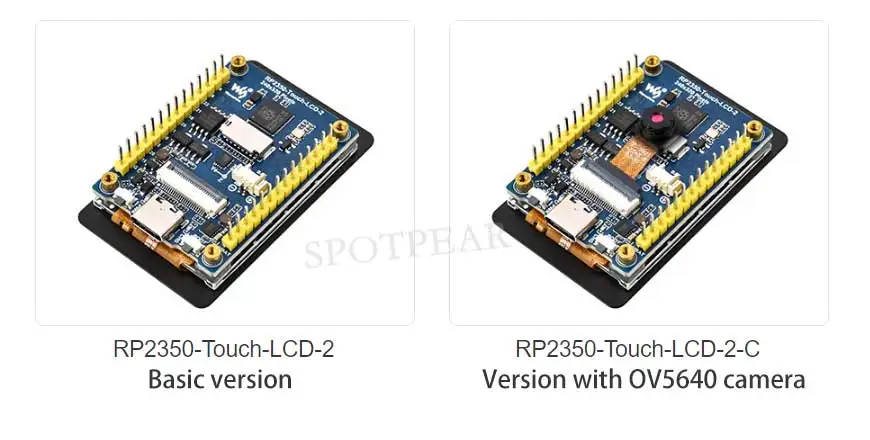

The basic version does not include a camera, and a version with an OV5640 camera is available as an option.
Unique dual-core, dual-architecture
The unique dual-core, dual-architecture capability of the RP2350 allows users to switch between a pair of industry-standard Arm Cortex-M33 cores and a pair of open hardware Hazard3 cores, giving developers the opportunity to experiment with the RISC-V architecture in a stable, well-supported environment.
Support C/C++, MicroPython, Arduino
Equipped with a complete SDK and open source tutorials, it is easy to get started and can be quickly embedded into the application

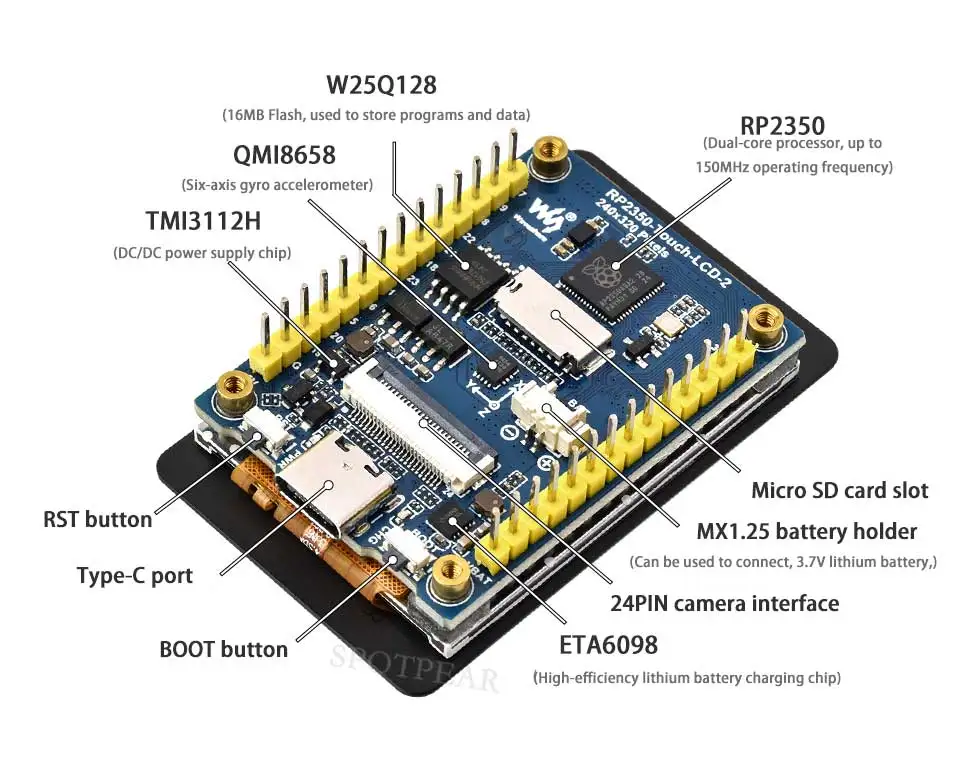

Resource Overview

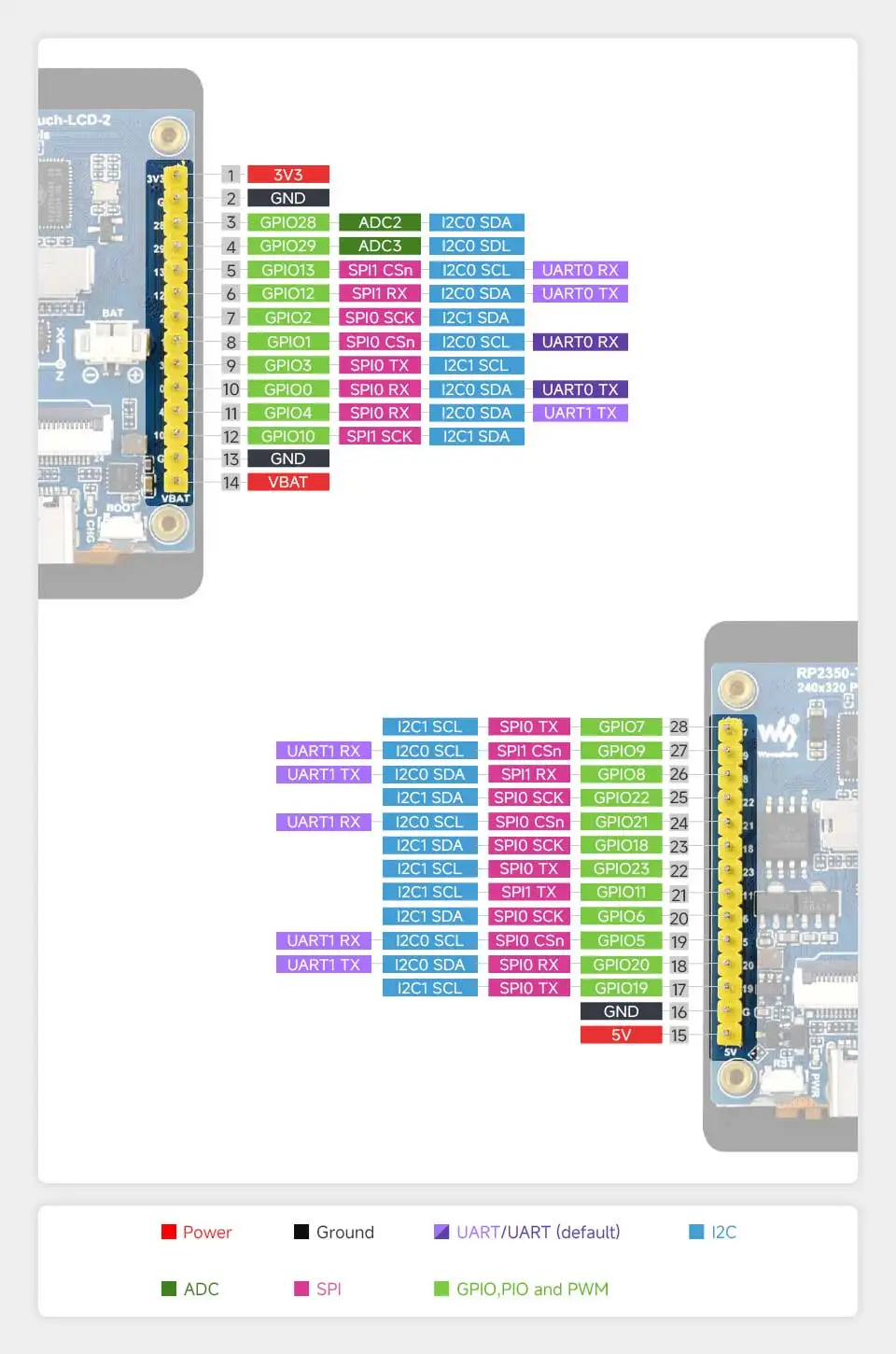

Pin Definition

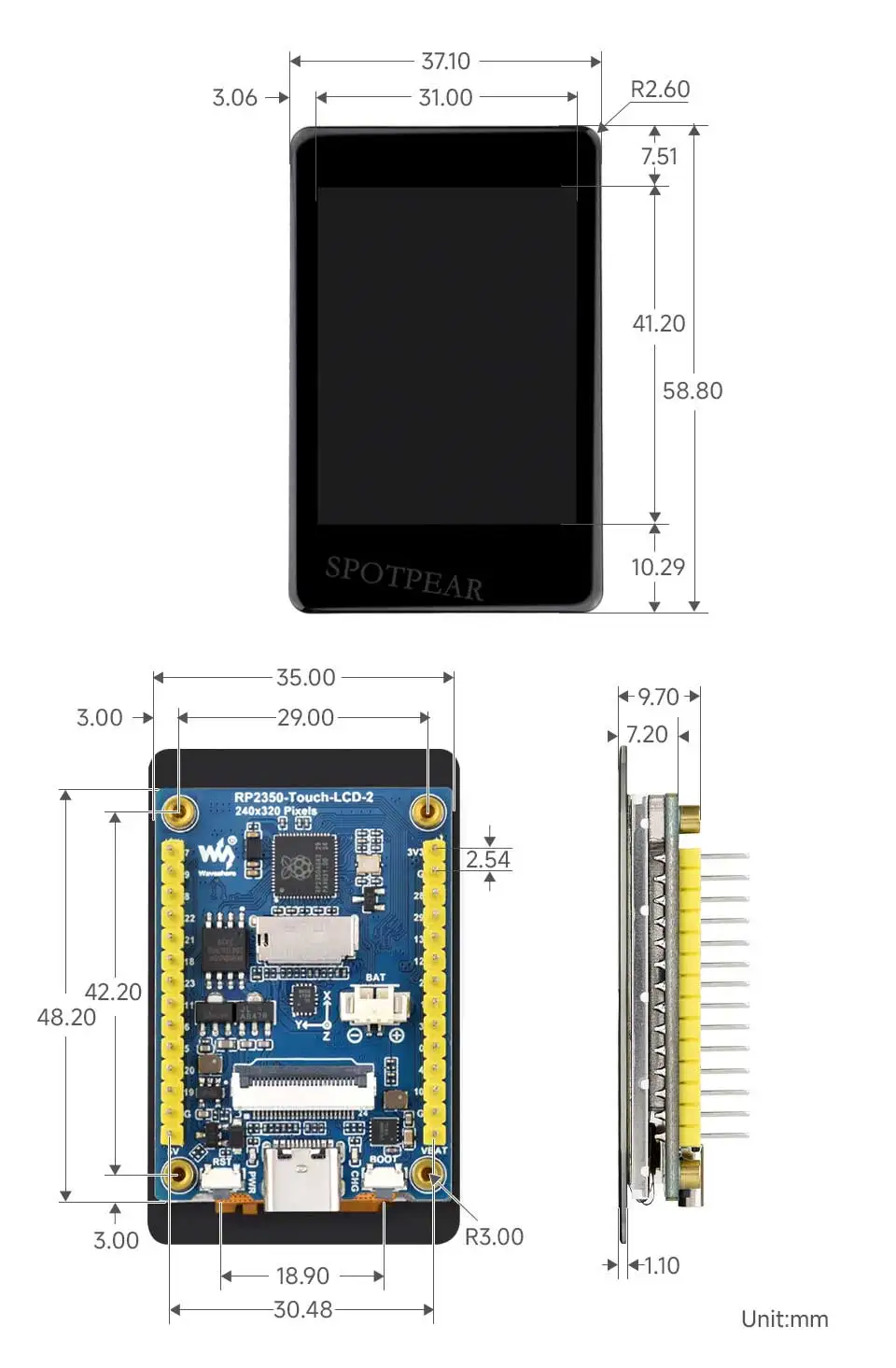

Product size
[] RP2350-Touch-LCD-2 x1
[] RP2350-Touch-LCD-2-C x1
