Waveshare SIM7600G-H-M.2 SIMCom Original 4G LTE Cat-4 Module, Global Coverage, With GNSS Support, M.2 B KEY Connector, LTE-TDD
Waveshare SIM7600G-H-M.2 SIMCom Original 4G LTE Cat-4 Module, Global Coverage, With GNSS Support, M.2 B KEY Connector, LTE-TDD - Image 2
Waveshare SIM7600G-H-M.2 SIMCom Original 4G LTE Cat-4 Module, Global Coverage, With GNSS Support, M.2 B KEY Connector, LTE-TDD - Image 3
Waveshare SIM7600G-H-M.2 SIMCom Original 4G LTE Cat-4 Module, Global Coverage, With GNSS Support, M.2 B KEY Connector, LTE-TDD - Image 4
Waveshare SIM7600G-H-M.2 SIMCom Original 4G LTE Cat-4 Module, Global Coverage, With GNSS Support, M.2 B KEY Connector, LTE-TDD - Image 5
Waveshare SIM7600G-H-M.2 SIMCom Original 4G LTE Cat-4 Module, Global Coverage, With GNSS Support, M.2 B KEY Connector, LTE-TDD - Image 6

Waveshare SIM7600G-H-M.2 SIMCom Original 4G LTE Cat-4 Module, Global Coverage, With GNSS Support, M.2 B KEY Connector, LTE-TDD

Availability:

685 in stock
Compare

$48.99

  • Hign-concerned Chemical: None
  • Model Number: SIM7600G-H-M.2
  • Demo Board Type: ARM
  • Brand Name: Waveshare
  • Certification: None
  • Origin: Mainland China
  • Feature 1: M.2 interface with strong compatibility
  • Feature 2: Multi-constellation GNSS receiver support
  • Feature 3: Suitable for LTE, UMTS and GSM networks with global coverage
  • Feature 4: Abundant software functions: FOTA, LBS, TLS

DESCRIPTION

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
SIM7600G-H-M.2 SIMCom Original 4G LTE Cat-4 Module, Global Coverage, With GNSS Support, M.2 B KEY Connector, LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS, EDGE

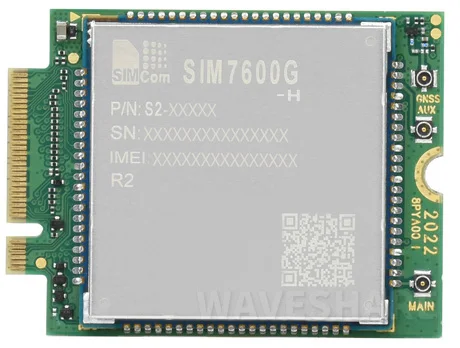

SIM7600G-H-M.2

LTE Cat-4 Module, M.2 B KEY

The SIM7600G-H-M.2 series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

The SIM7600G-H-M.2 series adopts M.2 form factor and consists of a SIM7600-H series module and a M.2 adapter board. It is easy for customers to integrate.

The SIM7600G-H-M.2 series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.

Meanwhile the SIM7600G-H-M.2 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.


Product Advantages

  • M.2 interface with strong compatibility

  • Multi-constellation GNSS receiver support

  • Suitable for LTE, UMTS and GSM networks with global coverage

  • Abundant software functions: FOTA, LBS, TLS

  • AT commands of the SIM7600-H-M2 series are compatible with the SIM7500/SIM7600 series modules

Specifications

Frequency Band

LTE-FDD

B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66

LTE-TDD

B34, B38, B39, B40, B41

WCDMA

B1, B2, B4, B5, B6, B8, B19

GSM

850, 900, 1800, 1900MHz

GNSS

GPS, Beidou, GLONASS, GALILEO, QZSS

Data Transfer

LTE

150 Mbps (DL)  /  50 Mbps (UL)

HSPA+

42 Mbps (DL)  /  5.76 Mbps (UL)

WCDMA

384 Kbps (DL)  /  384 Kbps (UL)

EDGE

236.8 Kbps (DL)  /  236.8 Kbps (UL)

GPRS

85.6 Kbps (DL)  /  85.6 Kbps (UL)

Software Features

Operating system

Windows/Linux/Android

Protocol

TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS

SMS

Supports MT, MO, CB, Text, PDU

Firmware upgrade

USB/FOTA

Hardware Specifications

SIM card

1.8V/3.0V

Antenna interface

IPEX-4 connector (LTE main antenna + LTE diversity antenna + GNSS antenna)

Power supply

3V ~ 4.2V

Form factor

M.2 B KEY

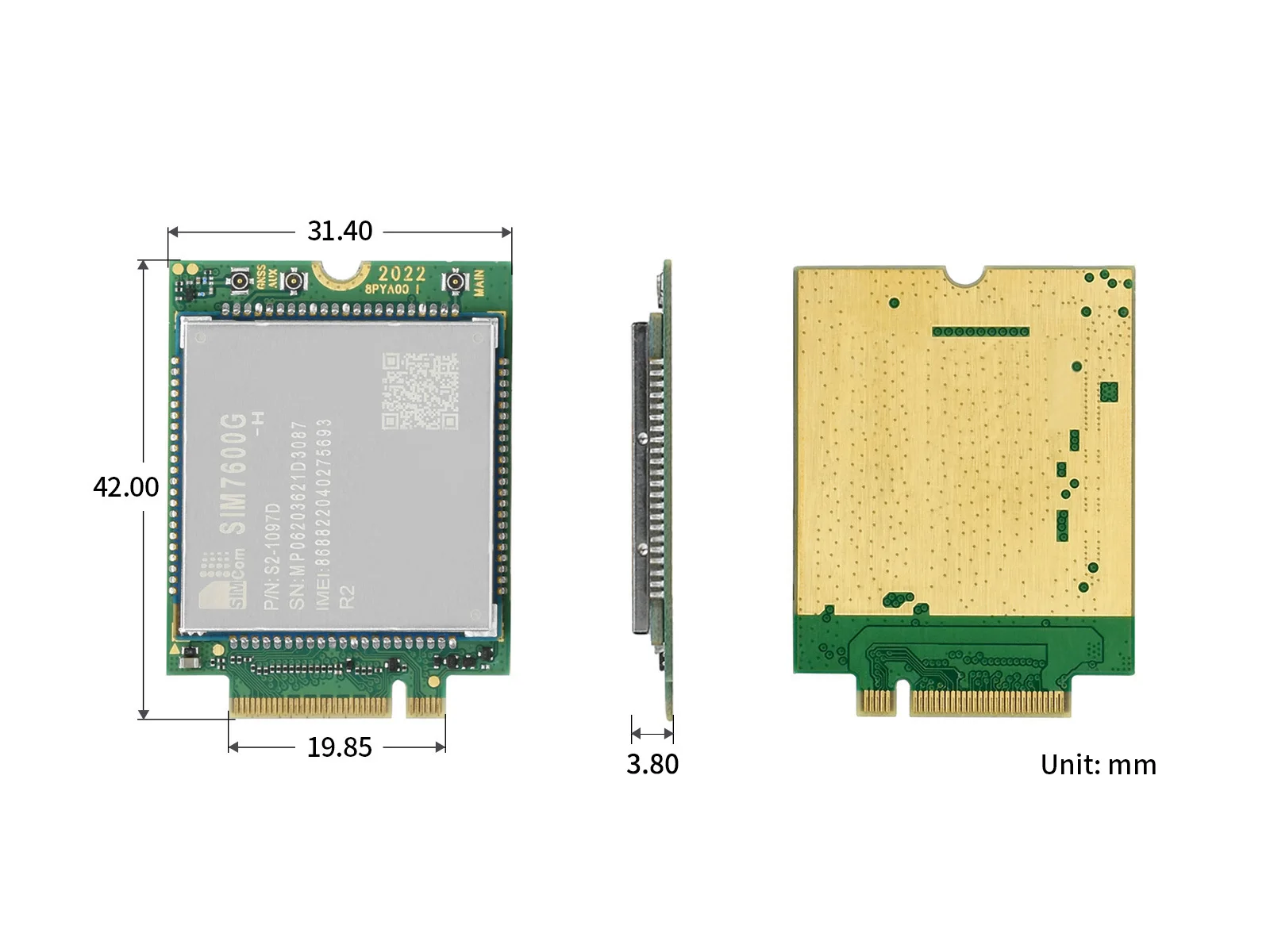

Dimensions

42.0 × 31.4 × 3.8mm

Operating temperature

-40℃ ~ +85℃

Applications

Applicable regions

global coverage

Examples

Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc.
Resources & Services
Wiki: www.waveshare.com/wiki/SIM7600G-H-M.2

PACKAGE CONTENT

Weight: 0.01 kg

  1. SIM7600G-H-M.2 x1
