Raspberry Pi5 PCIe TO M.2 MINI Support Gen2 and Gen3 SSD Compatible 2230 2242

【Overview】

[] Mini PCIe TO M.2 adapter for Raspberry Pi 5, supports NVMe Protocol M.2 solid state drive with high-speed reading/writing, compatible with M.2 solid state drive in 2230 / 2242 size, supports Gen2 and Gen3 modes, and supports booting PI5 from SSD.

【Features】

[] Support NVMe protocol and M.2 solid state drive protocol, high-speed read/write, with high work efficiency.

[] Support PCI-E×1 Gen2 or Gen3 modes.

[] Only supports PI5B.

[] Compatible with M.2 solid state drive of 2230/2242 sizes.

[] Onboard working indicator lights, with PWR on continuously when powered, and ACT blinking during read/write.

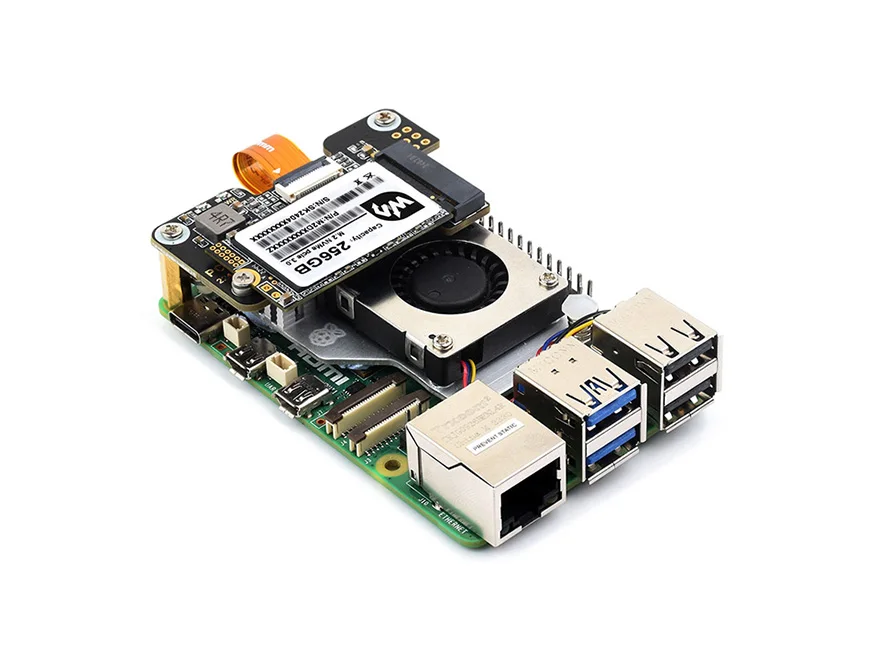

【Connecting To PI5 Via 16PIN Cable】

[] Based On 16PIN PCIe Interface Of Raspberry Pi 5

[] For reference only, the Raspberry Pi 5 and cooling fan are NOT included, please refer to the Package Content for detailed part list

【Compact Size Design】

[] Practical And Compact, Easily Embedded Into Your Projects

[]For reference only, please refer to the Package Content for detailed part list

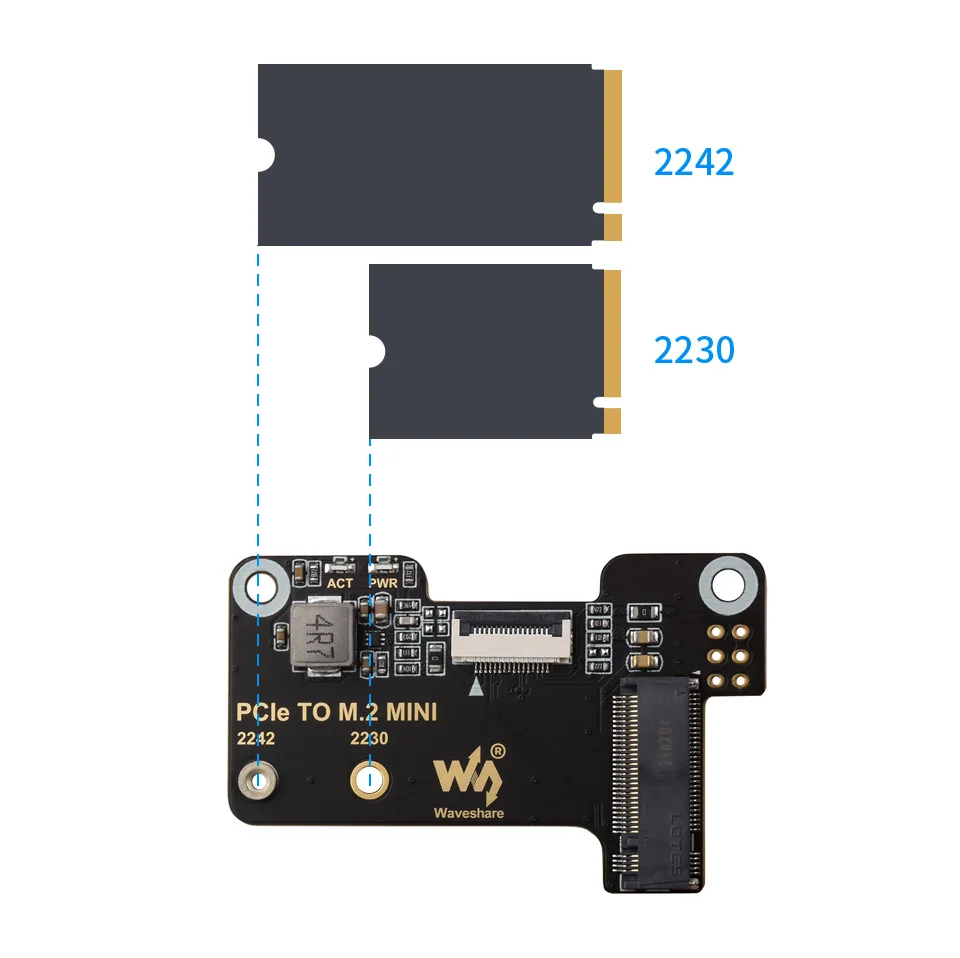

【NVMe Drive Protocol Support】

[] Compatible With 2230/2242 Size M.2 Solid State Drive

[] Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive

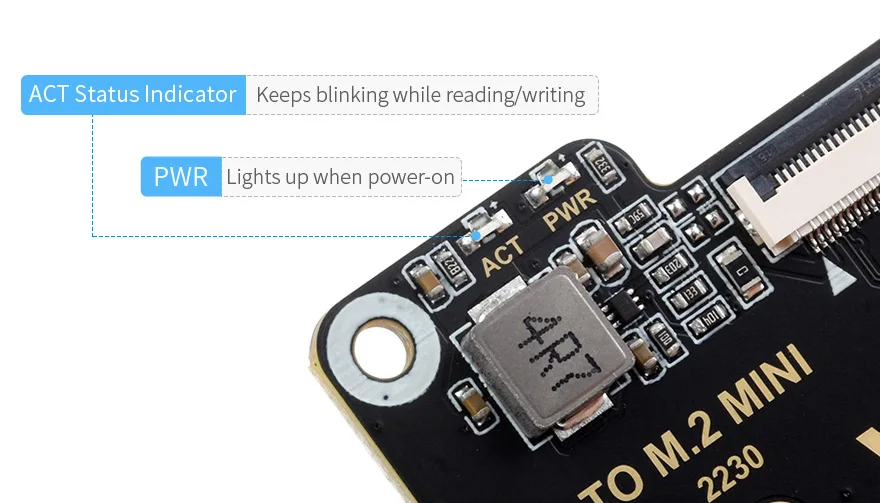

【Onboard Dual LED Indicators】

[] Easy To Monitor The Working Status

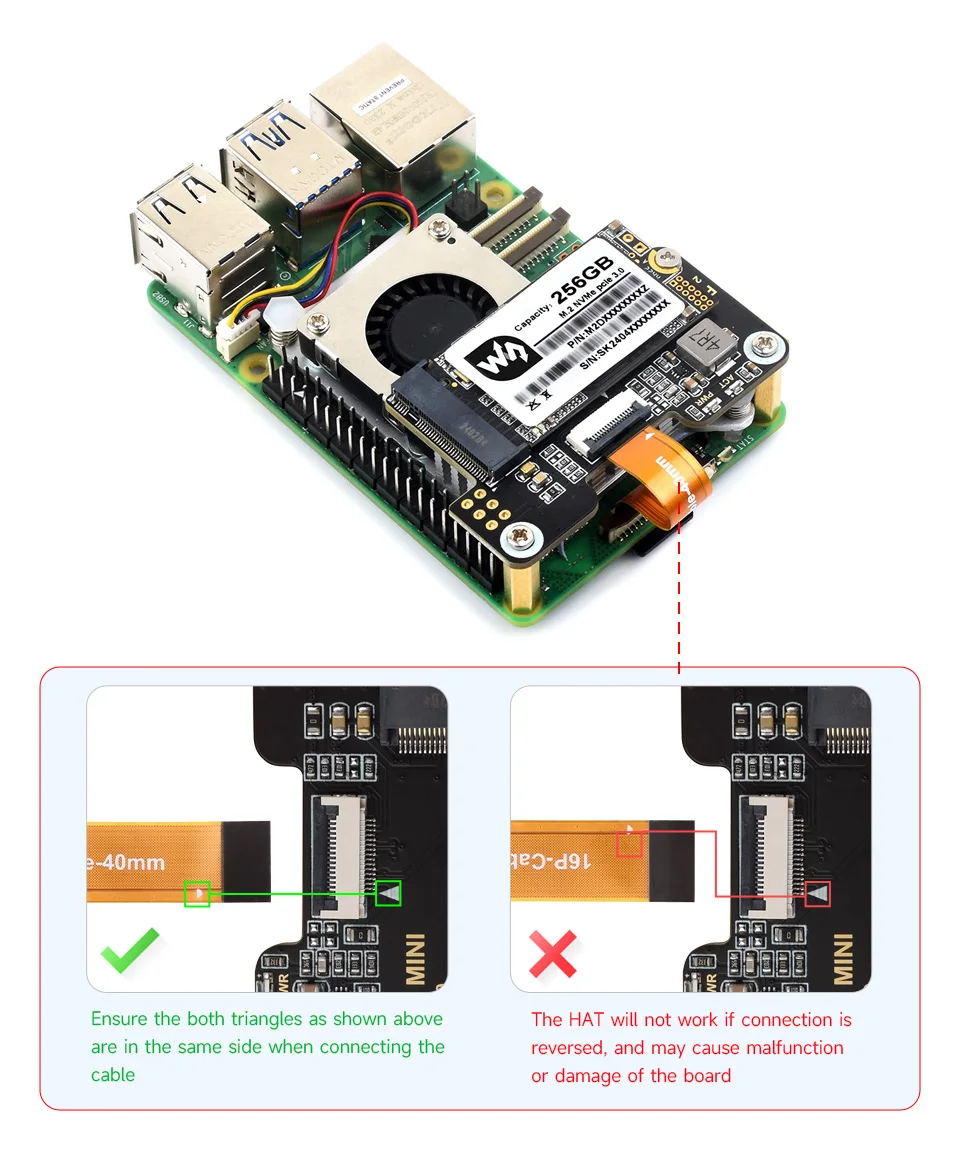

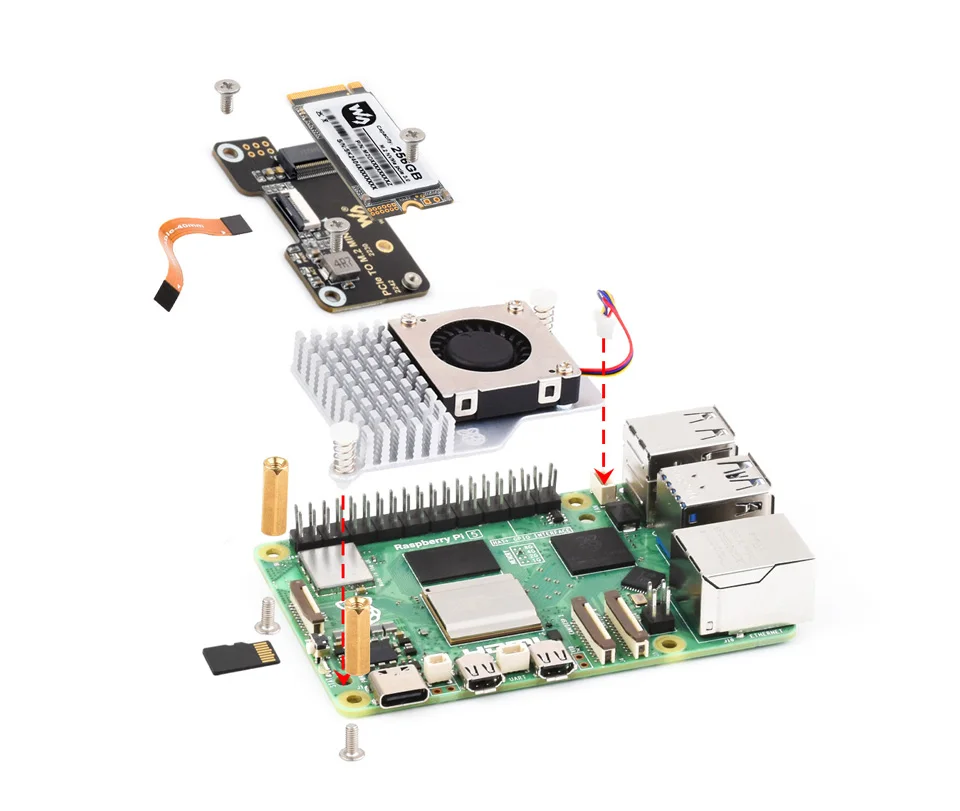

【How To Install】

[] For reference only, please refer to the Package Content for detailed part list

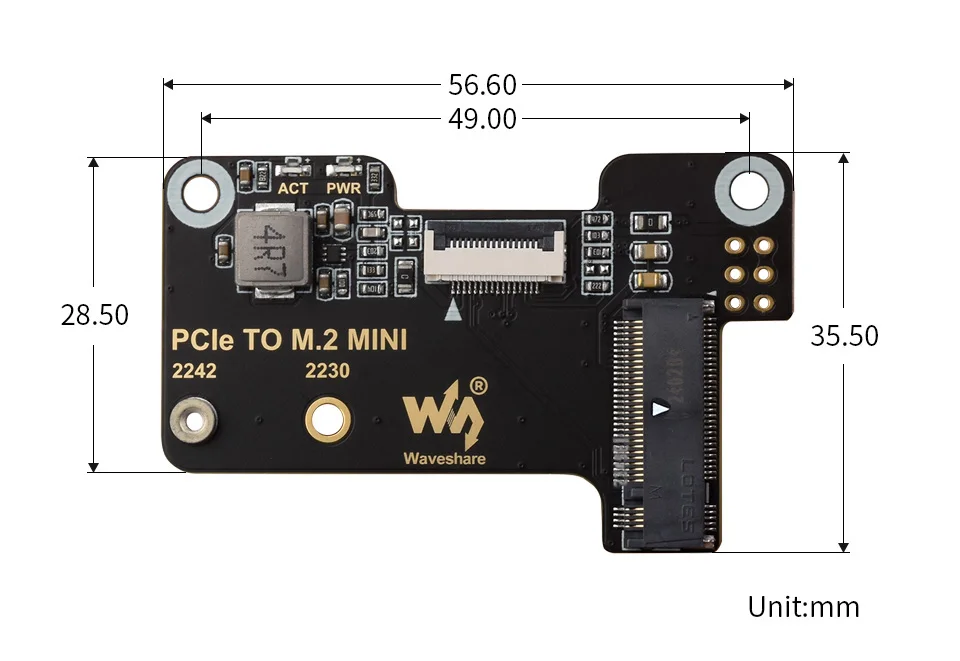

【Outline Dimensions】

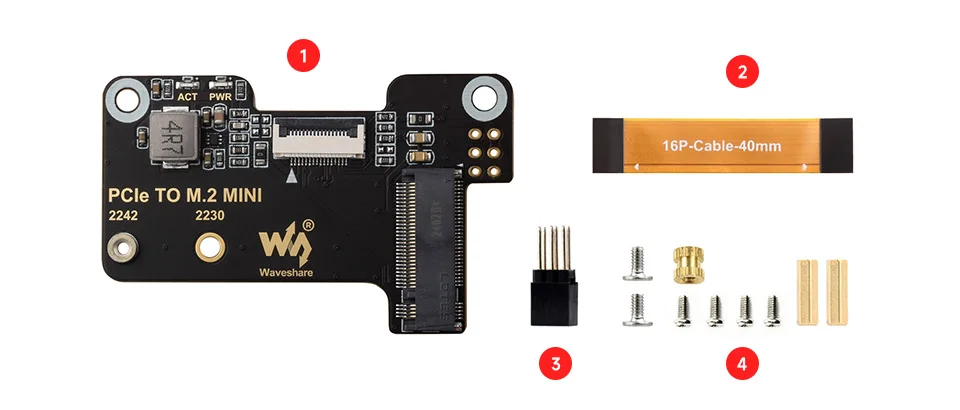

[] PCIe TO M.2 MINI x1

[] 16P-Cable-40mm x1

[] 2*3 Pin header x1

[] Screws pack x1

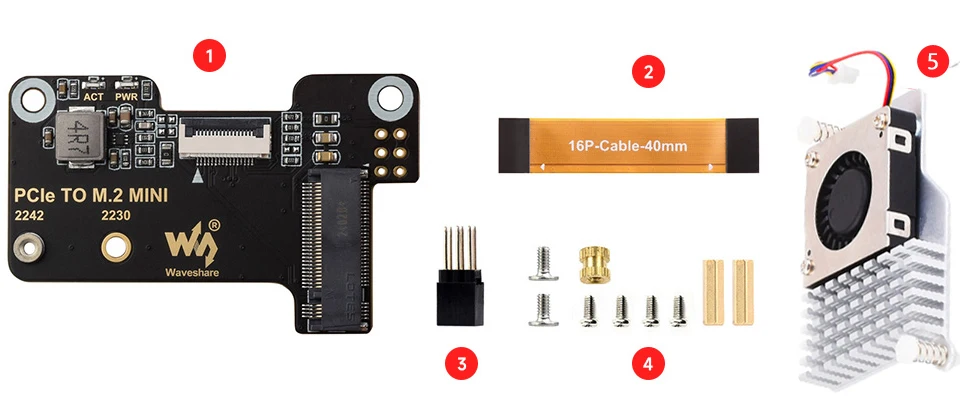

[] PCIe TO M.2 MINI x1

[]16P-Cable-40mm x1

[]2*3 Pin header x1

[]Screws pack x1

[] Alu-Active-Cooler-Silver-for-PI5 x1
