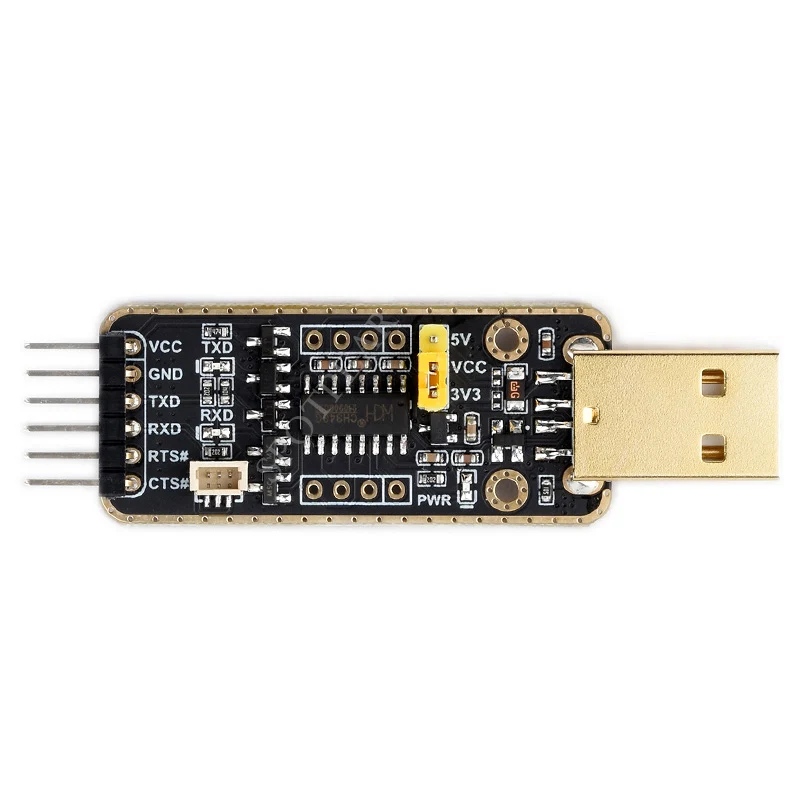

Raspberry Pi5 USB To UART Debugger Module Onboard UART Connector Type-A Port for Pi 5
Availability:
56 in stock
$8.15
- Demo Board Type: ARM
- Brand Name: Waveshare
- Origin: Mainland China
- Certification: CE
【Note】
[] Do not include Raspberry Pi
【Overview】
[] UART PI5 Serial Debug Module: Specifically designed for Raspberry Pi 5. Stable transmission, suitable for multiple devices, and compatible with multiple systems.
【Features】
[] Supports Mac, Linux, Android, Windows 7/8/8.1/10/11
[] Onboard resettable fuse and transient suppression diode for overcurrent and overvoltage protection, surge protection, electrostatic discharge (ESD) protection, improving shock resistance, ensuring stable and safe communication
[] Onboard IO protection circuit for surge and ESD protection, ensuring stable and safe communication
[] Onboard TTL serial port with 3.3V and 5V level conversion pins, switchable TTL communication level
[] Supports output of 3.3V/5V (module powered by USB, jumper cap needs to be set to 3.3V/5V)
[] Utilizes double-sided black gold immersion technology, durable and aesthetically pleasing
【PI5 Serial Debug】

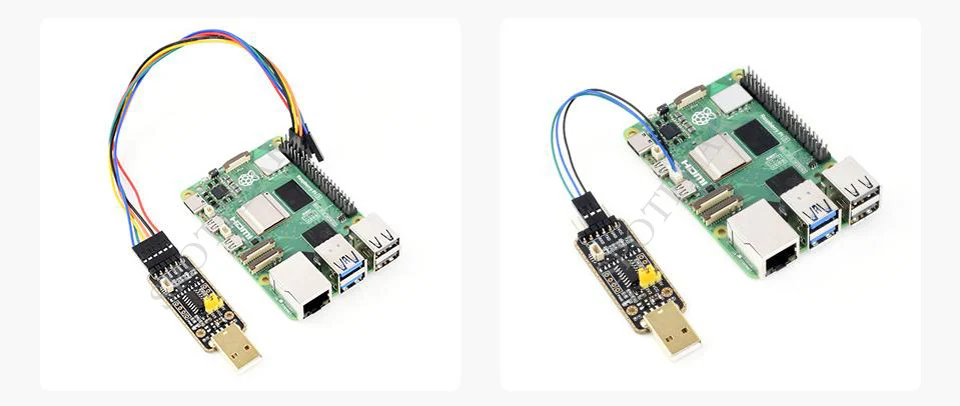

[] Suitable for Raspberry Pi 5, supports various wiring methods

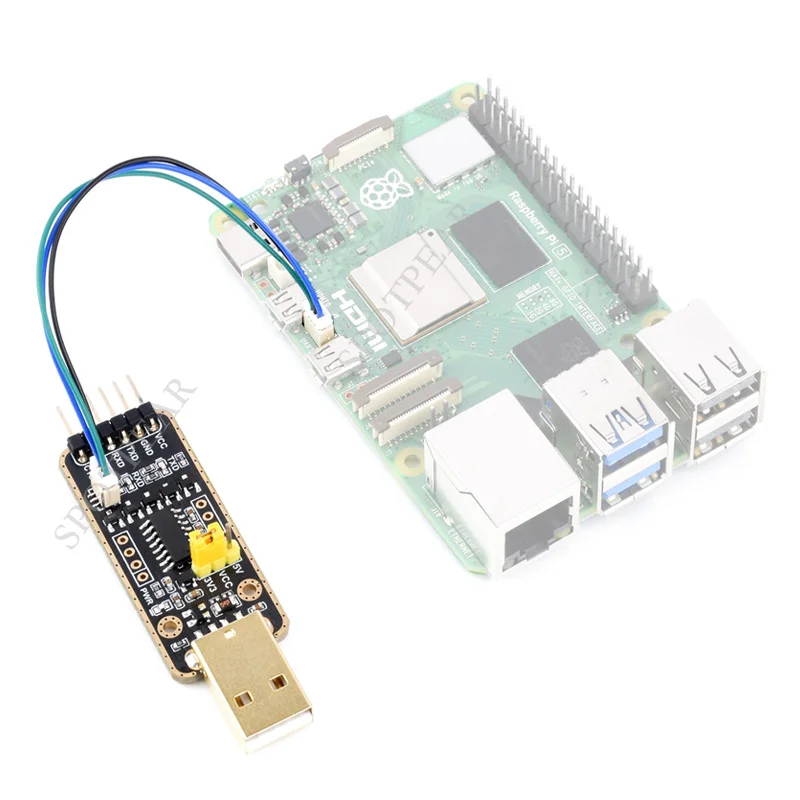

Connect to the PI5 Debug interface via SH1.0 3PIN cable
Connect to the PI5 40PIN UART via a 6PIN to custom cable
Connect to the PI5 Debug interface via SH1.0 to 3PIN custom cable
【Multiple Protection Circuits, Safe and Stable】
[] Onboard resettable fuse and transient suppression diode for overcurrent and overvoltage protection, improving shock resistance
[] Onboard IO protection circuit for surge and ESD protection, ensuring stable and safe communication

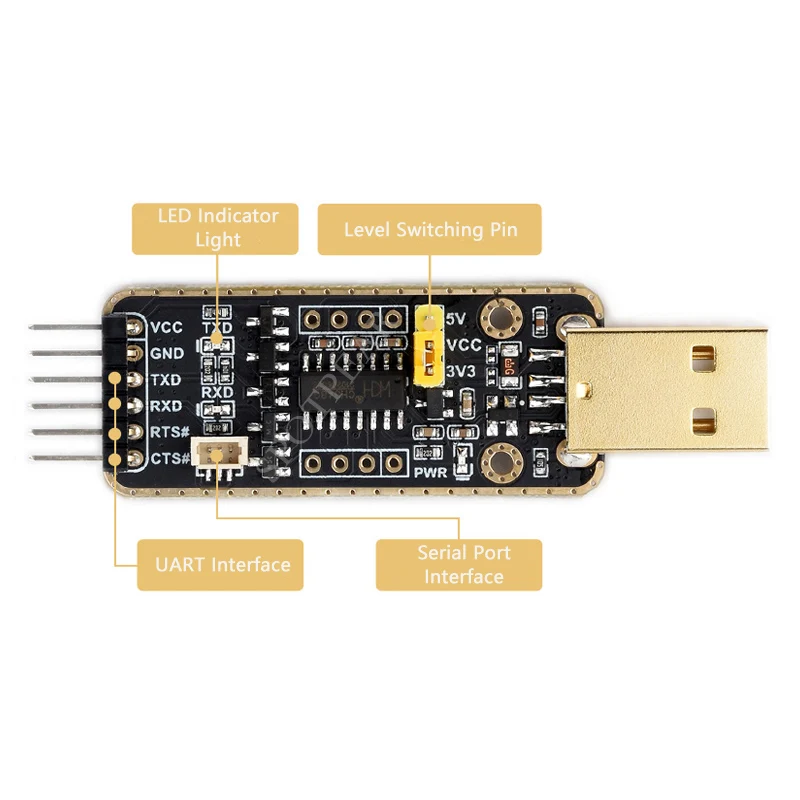

【Interface Introduction】
Indicator light introduction:
[] PWR: Power indicator light, lights up when voltage is detected from the USB
[] RXD: Receive indicator light, lights up when data is received from the device interface
[] TXD: Transmit indicator light, lights up when data is sent from the USB port
【Pin Descriptions】
[] VCC: Provides 5V or 3.3V voltage to external devices (set via jumper cap)
[] GND: Connect to GND
[] TXD: Connect to MCU.RXD
[] RXD: Connect to MCU.TXD
[] RTS#: Connect to MCU.CTS
[] CTS#: Connect to MCU.RTS

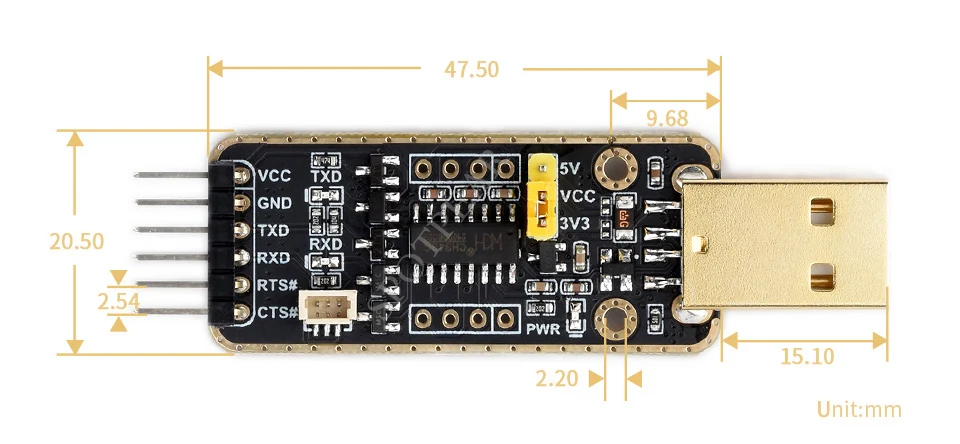

【Dimensions】

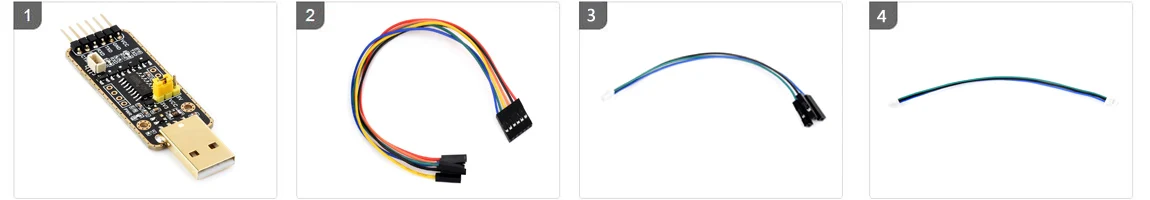

Package Contains
1. Pi UART Debugger x1
2. 6-pin squid cable x1
3. SH1.0 connector to 3PIN cable ~100mm x1
4. Dual SH1.0 connector 3PIN cable ~100mm x1
