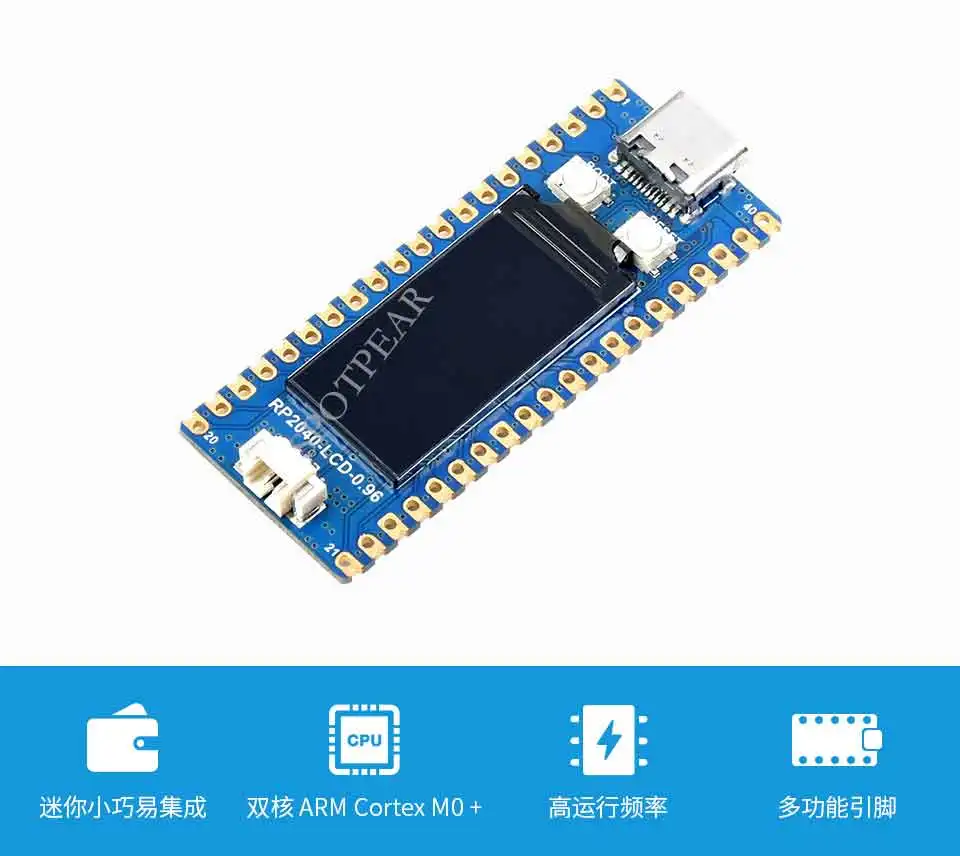

RP2040 board compatible for Raspberry Pi Pico updated with 0.96inch LCD Display Module RP2040-LCD-0.96

RP2040-LCD-0.96 is a low-cost and high-performance microcontroller development board designed based on the Raspberry Pi RP2040, with a flexible digital interface. Like Raspberry Pi Pico, the hardware uses Raspberry Pi's official self-developed RP2040 microcontroller chip, and the software can choose the C/C++ SDK provided by the Raspberry Pi, or use MicroPython for development, which is convenient for quick start development and embedding Apply to the product. Not only that, it also has a 0.96-inch IPS display, a lithium battery charge and discharge interface, and a high-efficiency DC-DC buck-boost chip.

• Using Raspberry Pi's official self-designed RP2040 microcontroller chip

• Equipped with dual-core ARM Cortex M0 + processor, running frequency up to 133MHz flexible clock

• Built-in 264KB of SRAM and 2MB of on-chip Flash

• Adopt Type-C interface, keep up with the trend of the times, no need to entangle the positive and negative plug

• Onboard 0.96 inch 160×80 pixel 65K color IPS LCD display

• The onboard lithium battery charge and discharge interface is conducive to the use of this product in some mobile scenarios

• Onboard DC-DC chip TPS63000, 1.8A current switching high-efficiency DC-DC buck-boost chip

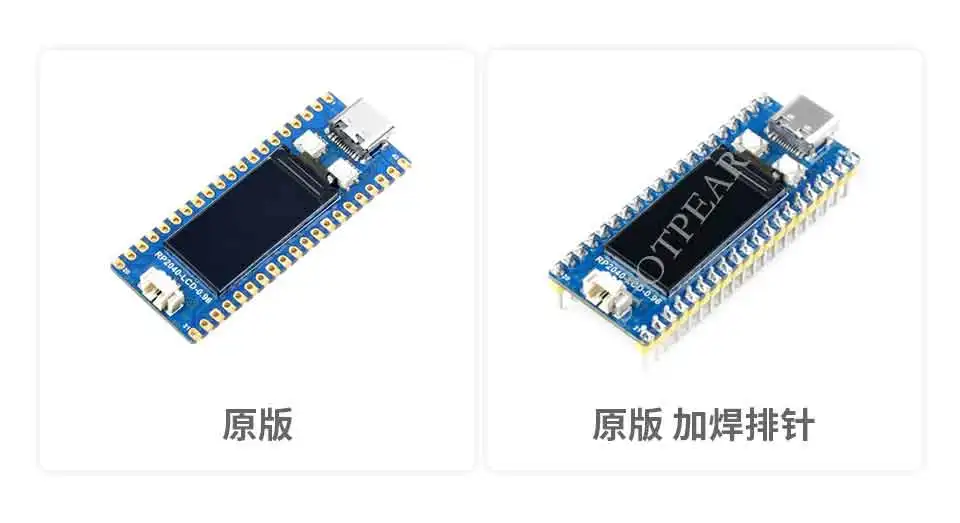

• Stamp hole design, which can be directly welded and integrated into the bottom plate designed by the user

• USB1.1 host and device support

• Support low-power sleep and hibernation modes

• Can be identified as mass storage via USB for drag-and-drop download of programs

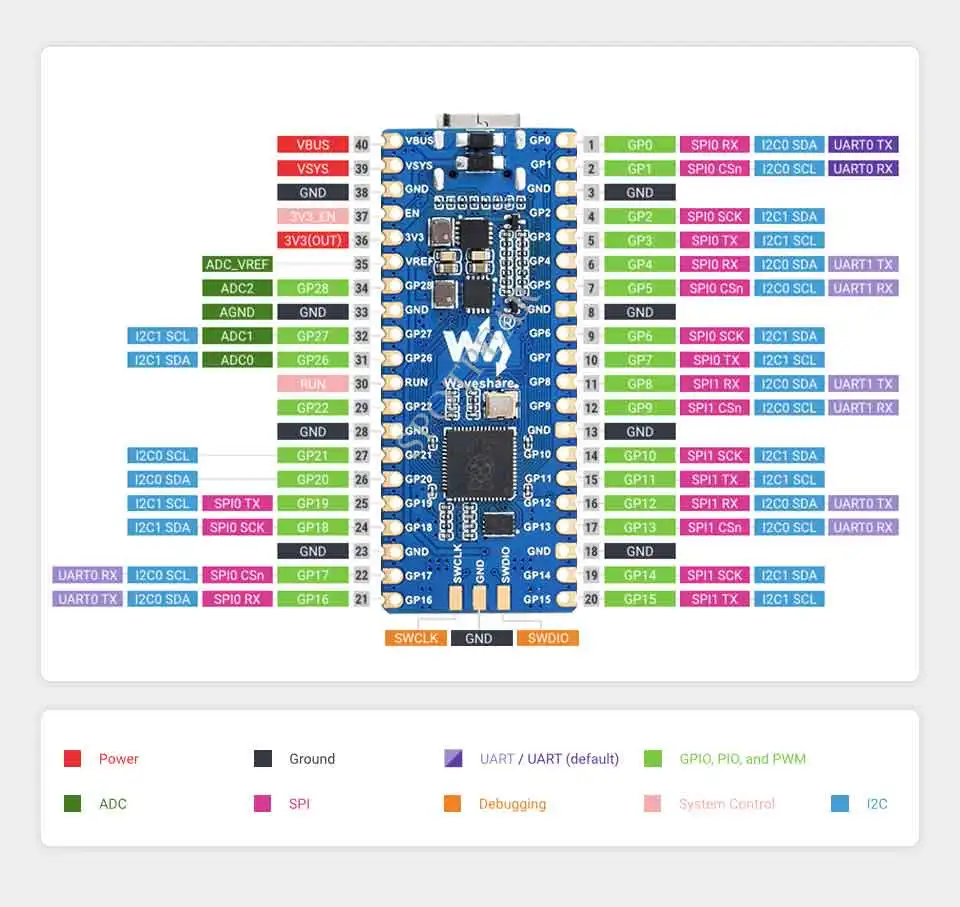

• Up to 26 multi-function GPIO pins

• 2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, 16 controllable PWM channels

• Accurate on-chip clock and timer

• Temperature Sensor

• On-chip accelerated floating point library

• 8 programmable I/O (PIO) state machines for custom peripheral support
