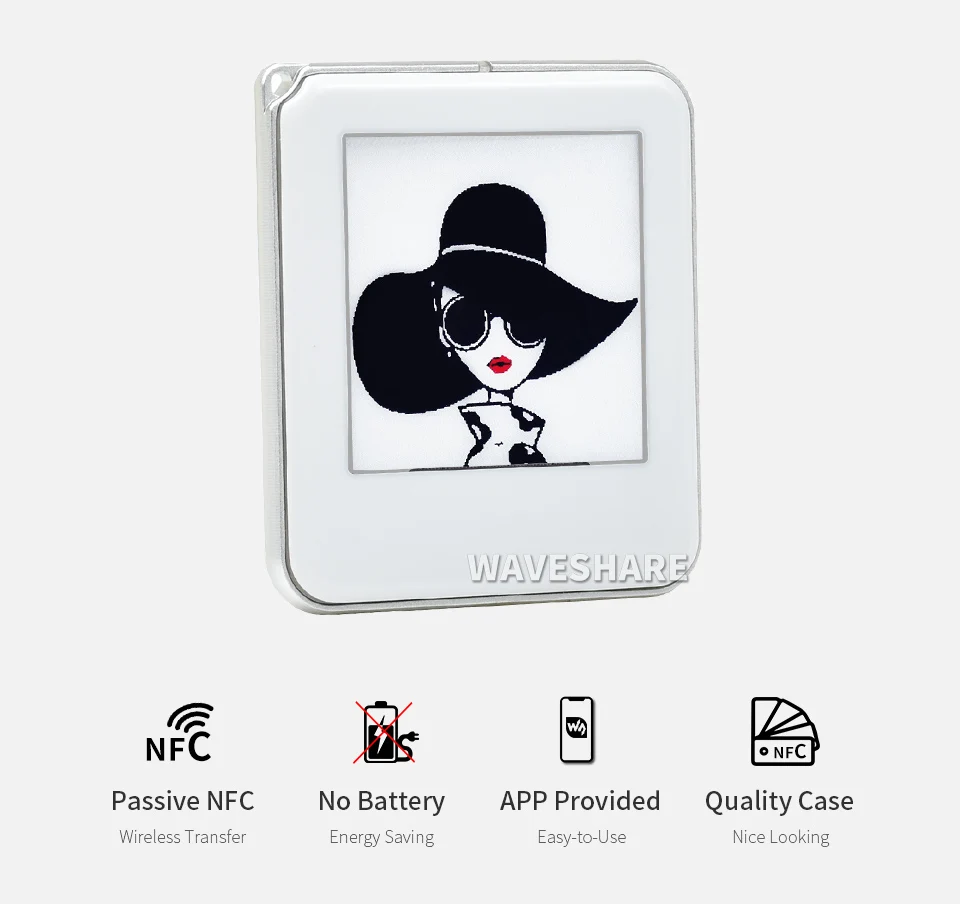

1.54 inch Passive NFC e-Paper BW Display E-ink Screen No Need Battery Wireless Powered Data Transfer

【Overview】

[] This is an NFC-powered 1.54inch e-Paper Module, with 200 x 200 resolution. Users can transmit data from a smartphone or NFC reader to e-Paper and refresh by NFC.

【Features】

[] No backlight required, e-Paper keeps displaying the last content for a long time without power.

[] It does not contain a power supply such as the battery itself, which is suitable for application environments with a limited power supply.

[] You can modify the display content by smartphone.

[] It is suitable to use as equipment labels, shelf labels, information storage, etc.

[] Equipped with ABS plastic shell with good strength and toughness.

[] App is provided, and users can edit and manage the display content of the ink screen.

[] Provide information and manual.

[] Suitable for mobile phone key ornaments, business cards, decorations, and other applications.

【Specifications】

[] POWER SUPPLY : Wireless

[] GREY SCALE : 2

[] DISPLAY COLOR : Red / Black / White

[] REFRESH TIME : 8s (data transfer time is not included)

[] DOT PITCH : 0.138 × 0.138

[] DISPLAY SIZE : 27.60mm × 27.60mm

[] RESOLUTION : 200× 200

[] OUTLINE DIMENSION : 47.84mm × 41.28mm

[] VIEWING ANGLE : >170°

【Wireless NFC-Powered Display Refreshing】

[] Passive NFC Solution, No Battery Required, No Messy Wiring

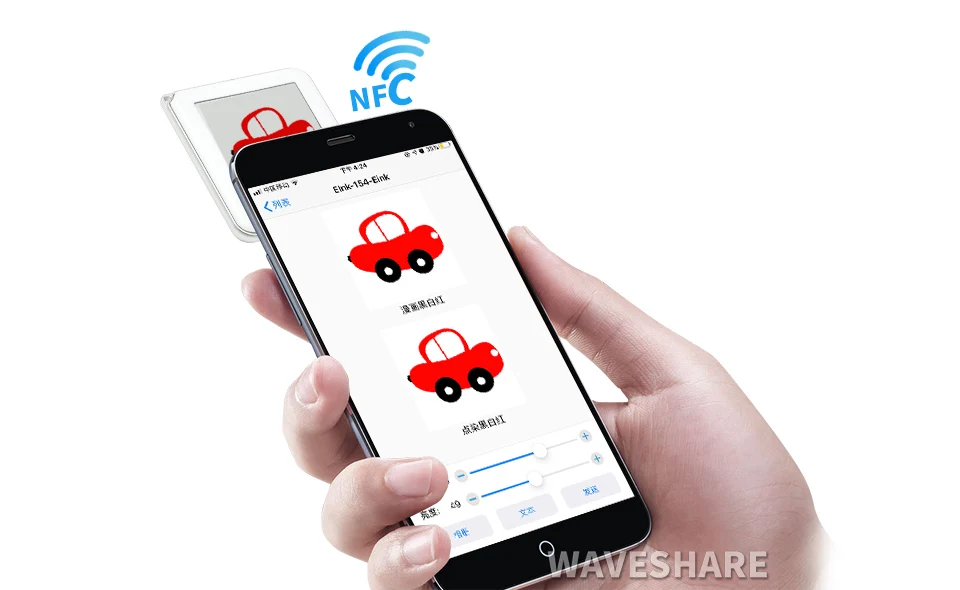

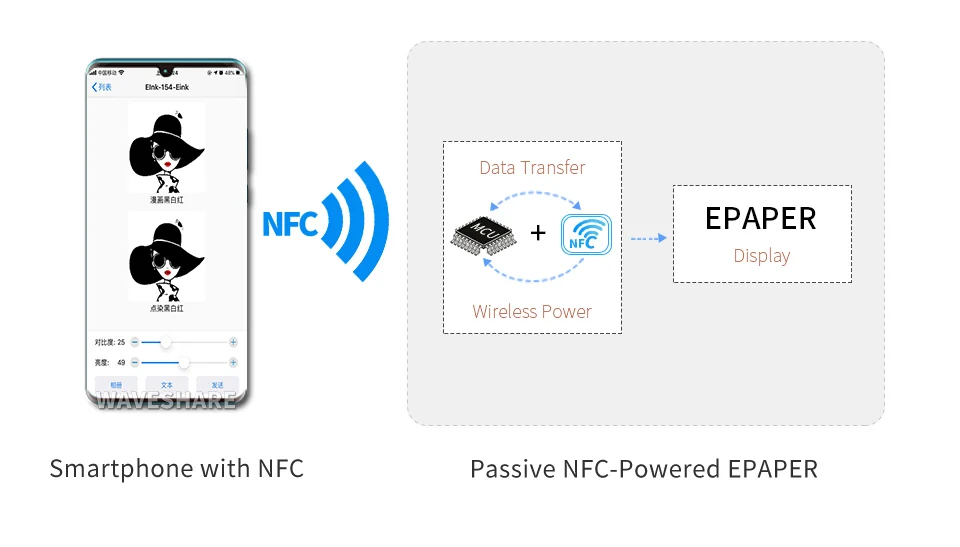

【How It Works】

[] Wireless Powering & Data Transfer To Refresh The Display Content, Use A Smart Phone With NFC Function, Or An NFC Reader, Close To The E-Paper, It'll Be Done In A Few Seconds

[]This product is not compatible with Samsung smartphones

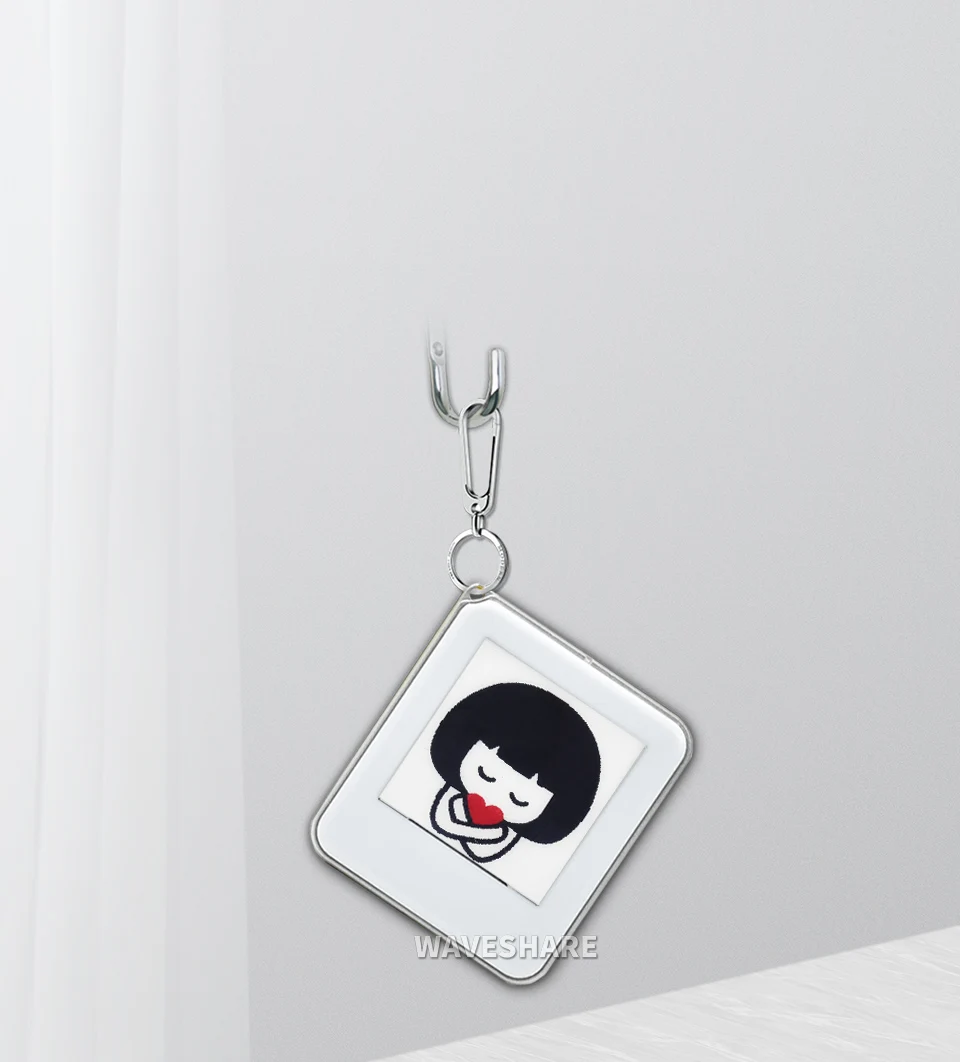

【A Born Hanging Ornament】

[] Features Corner Hang Hole, Ideal For Handbag Decoration, Key Fob, Etc.

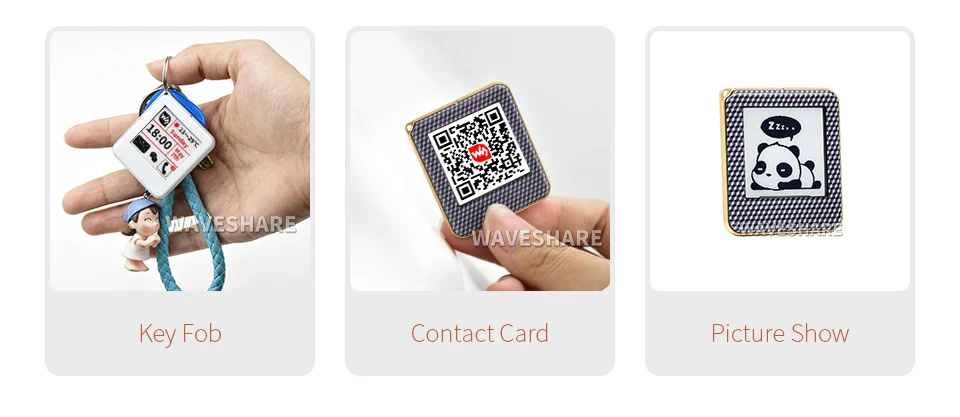

【Application Examples】

[] Suitable For Smartphone / Key Fob, Contact Card QR Code, Hanging Ornament…

【Rounded Metal Border】

[] Metal Border, Stunning Quality, More Durable

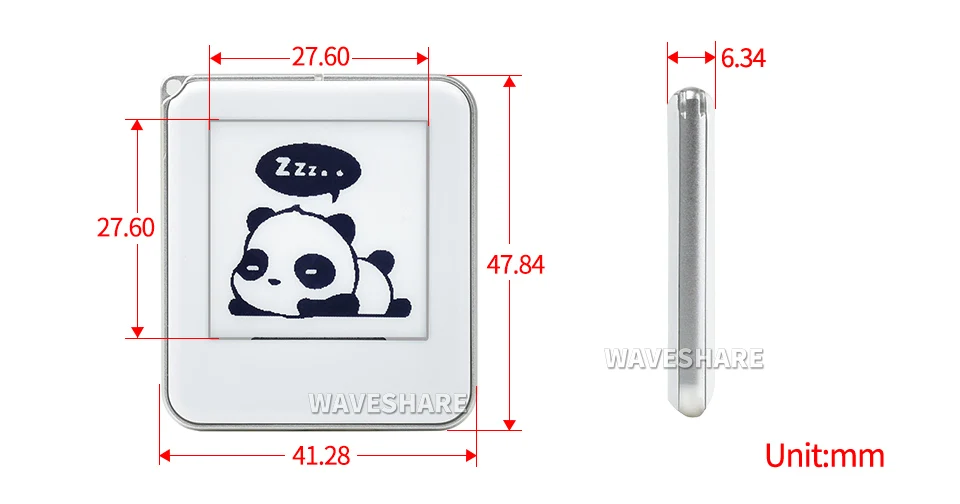

【Outline Dimensions】

[] 1.54inch-NFC-Powered-e-Paper-(BW) ×1
