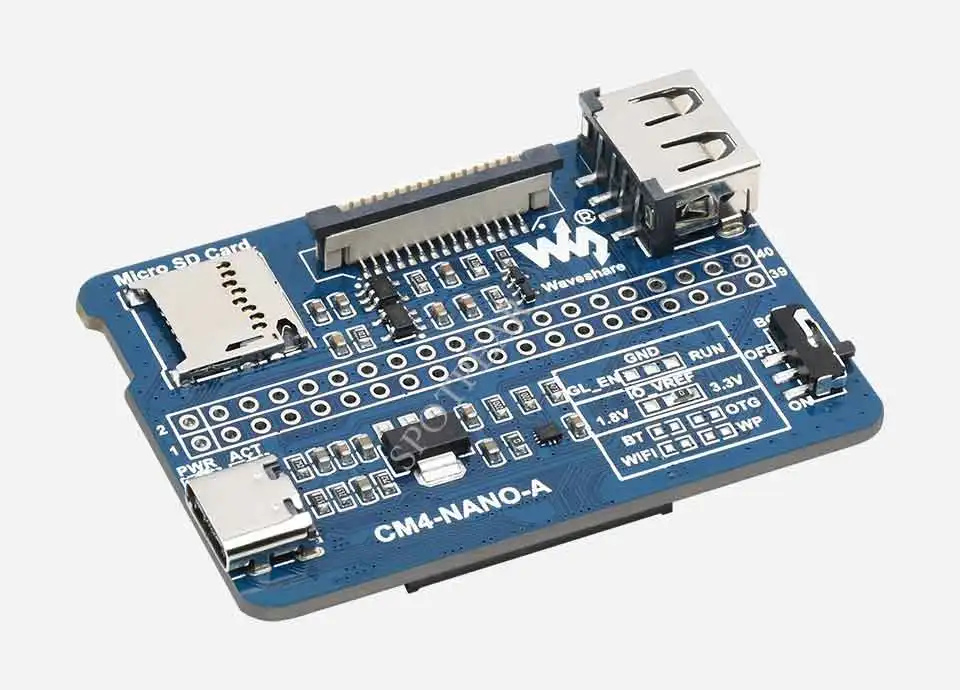

Raspberry Pi CM4 Compute module 4 CM4-NANO-A Mini Expander board
36 in stock
$20.88
- Hign-concerned Chemical: None
- Demo Board Type: ARM
- Brand Name: spotpear
- Origin: Mainland China
- Certification: CE
Do not include Raspberry Pi CM4
Pin color random delivery
|
CM4 SOCKET |
suitable for all variants of Compute Module 4 |
|
CONNECTOR |
Raspberry Pi 40PIN GPIO header |
|
USB |
USB 2.0 Type A port × 1 |
|
CAMERA |
MIPI CSI-2 interface × 1 (15pin 1.0mm FPC connector) |
|
STORAGE |
MicroSD card socket for Compute Module 4 Lite (without eMMC) variants |
|
POWER INPUT |
5V |
|

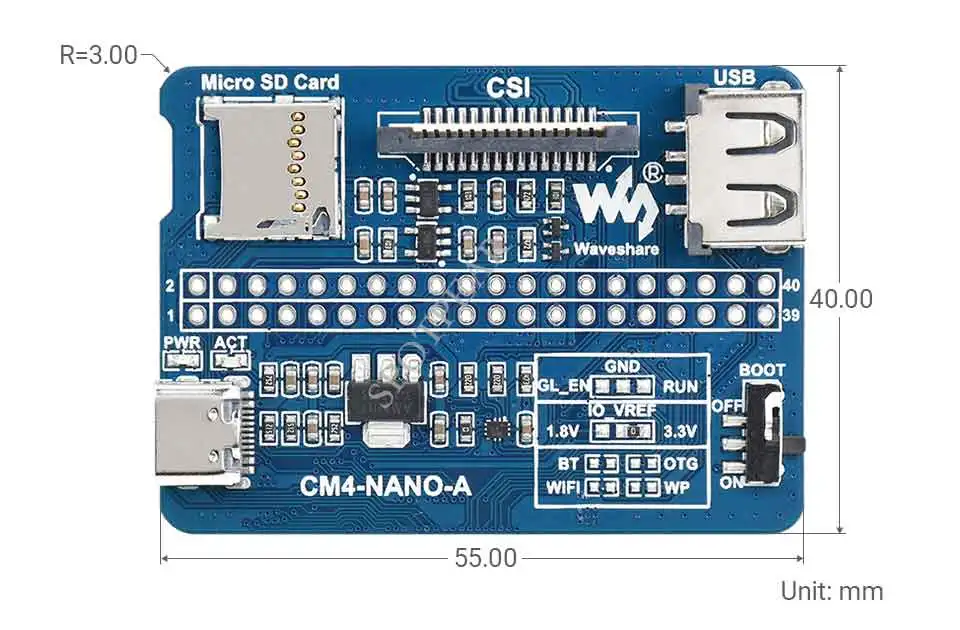

DIMENSIONS |
55 × 40mm |
-

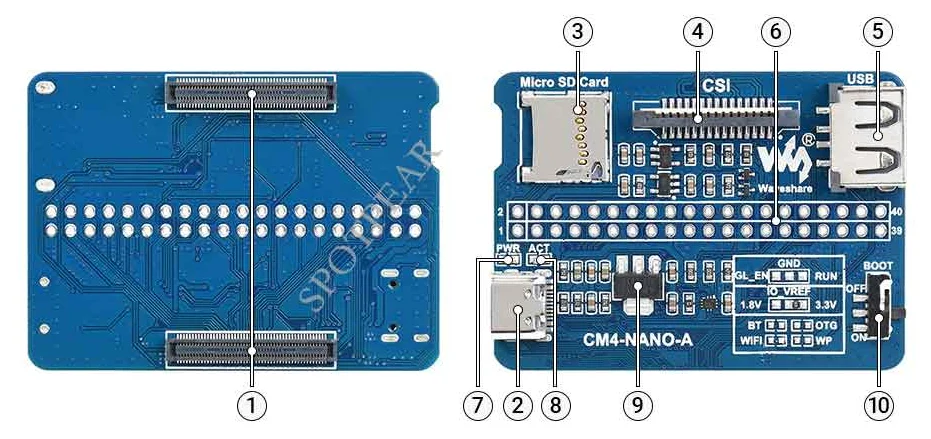

CM4 socket
suitable for all variants of Compute Module 4 -
Power input/Programming
5V power supply, or used for eMMC burning -
Micro SD card slot
for connecting a Micro SD card with pre-burnt image (Lite variant ONLY) -
CSI
Single MIPI CSI camera interface -
USB2.0
For connecting sorts of USB devices -
40PIN GPIO header
-
PWR indicator
indicating the status of CM4 power supply -
ACT indicator
indicating the operating status of CM4 -
AMS1117-3.3
-
BOOT selection
ON: switch USB to Type C interface, enter download mode when powered on (configured as a large-capacity disk through RPI boot)
OFF: Switch the USB to Type A interface, it will not enter the download when power on (boot from eMMC or SD card)
-

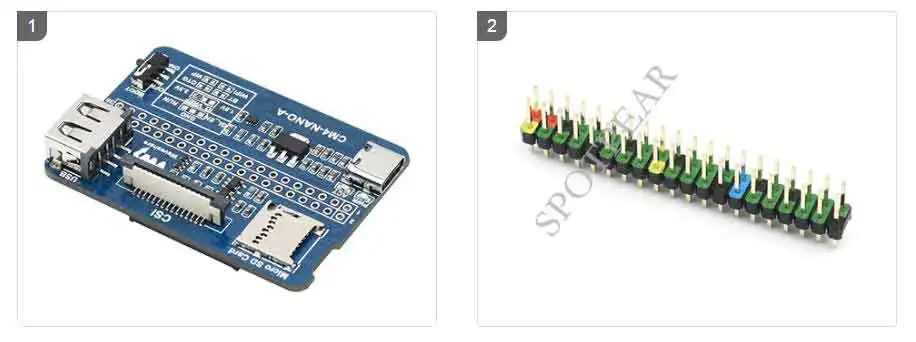

CM4-NANO-A x1
-
2*20PIN Color pin header x1
