Waveshare PCIe To M.2 Adapter Board (E) For Raspberry Pi 5, Cooling Fan, Compatible With 2242/2230 Size NVMe Protocol M.2 SSD
527 in stock
$19.73
- Hign-concerned Chemical: None
- Model Number: PCIe TO M.2 Board (E)
- Origin: Mainland China
- Brand Name: Waveshare
- FAN Input voltage: 5V DC (supplied via four-pin fan header on Raspberry Pi 5)
- M.2 interface: Supports NVMe Solid State Drives (PCIe Gen2/3)
- Solid State Drive size support: 2242, 2230
- Fan speed control: Pulse width modulation control with tachometer
- Maximum airflow: 1.39 CFM
- Fan speed: 8000±10%RPM
- Material: Anodised aluminium
Description
|
FAN Input voltage |
5V DC (supplied via four-pin fan header on Raspberry Pi 5) |
|
M.2 interface |
Supports NVMe Solid State Drives (PCIe Gen2/3) |
|
Solid State Drive size support |
2242, 2230 |
|
Fan speed control |
Pulse width modulation control with tachometer |
|
Maximum airflow |
1.39 CFM |
|
Fan speed |
8000±10%RPM |
|
Material |
Anodised aluminium |

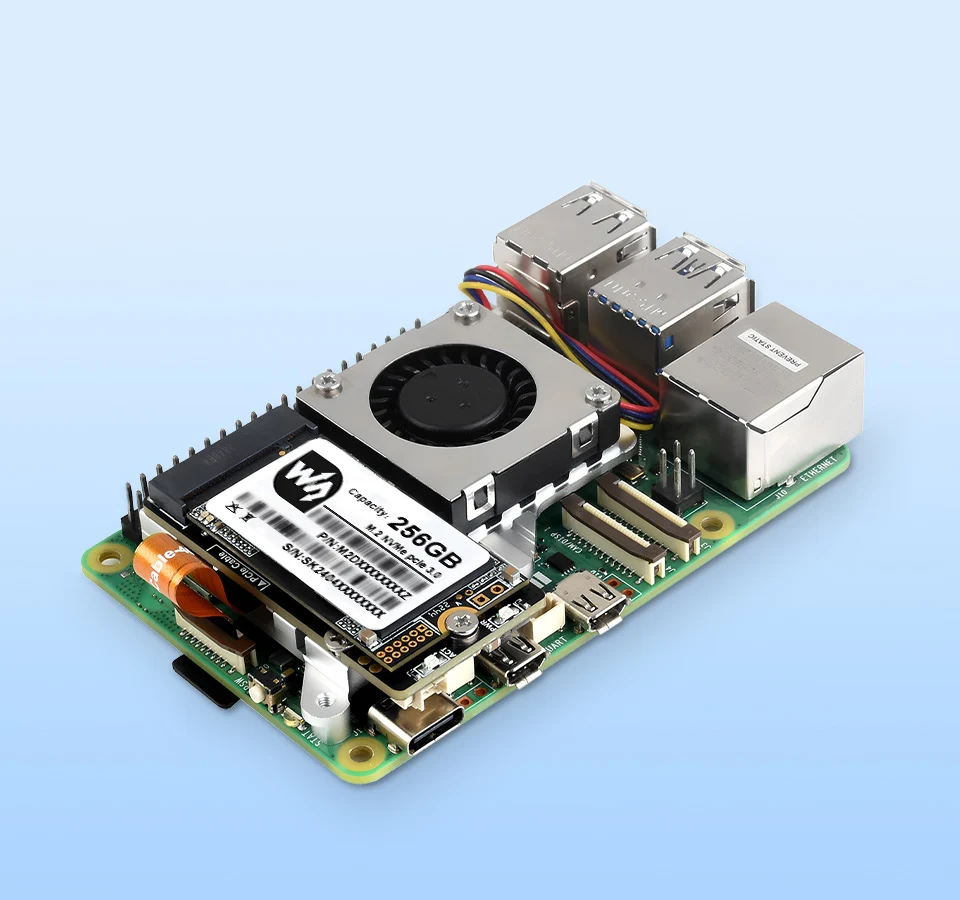

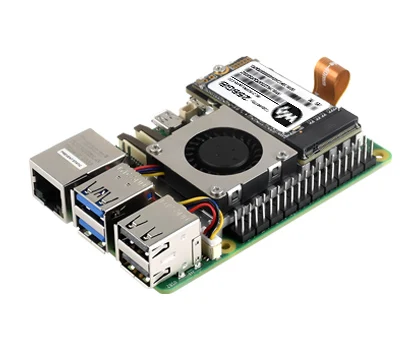

Connecting with NVME Solid State Drive

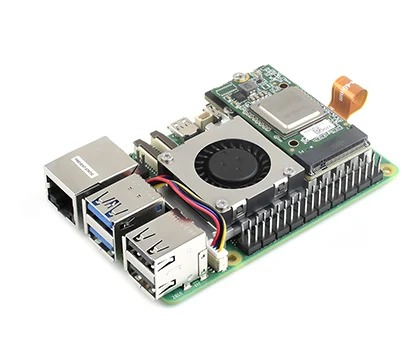

Connecting with Hailo-8 AI Accelerator Module
* for reference only, please refer to the Package Content for detailed part list

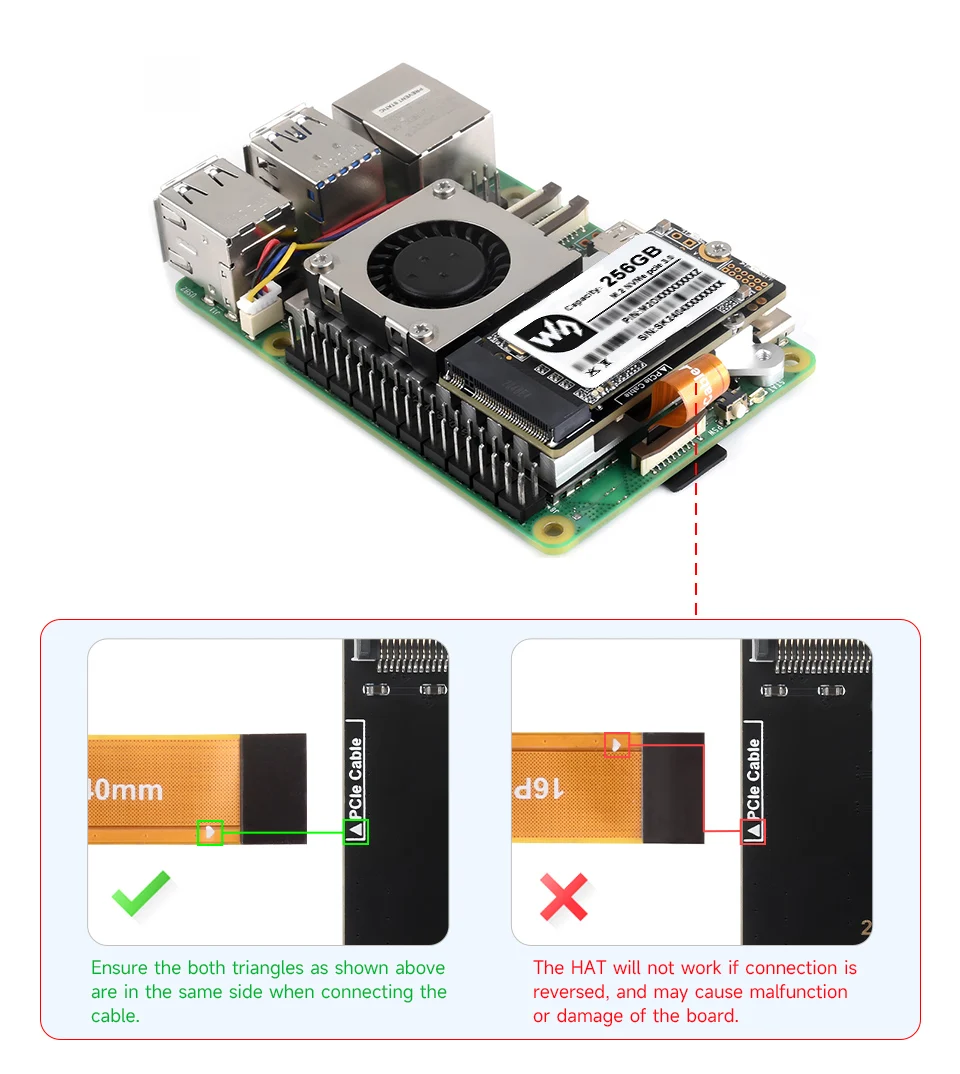

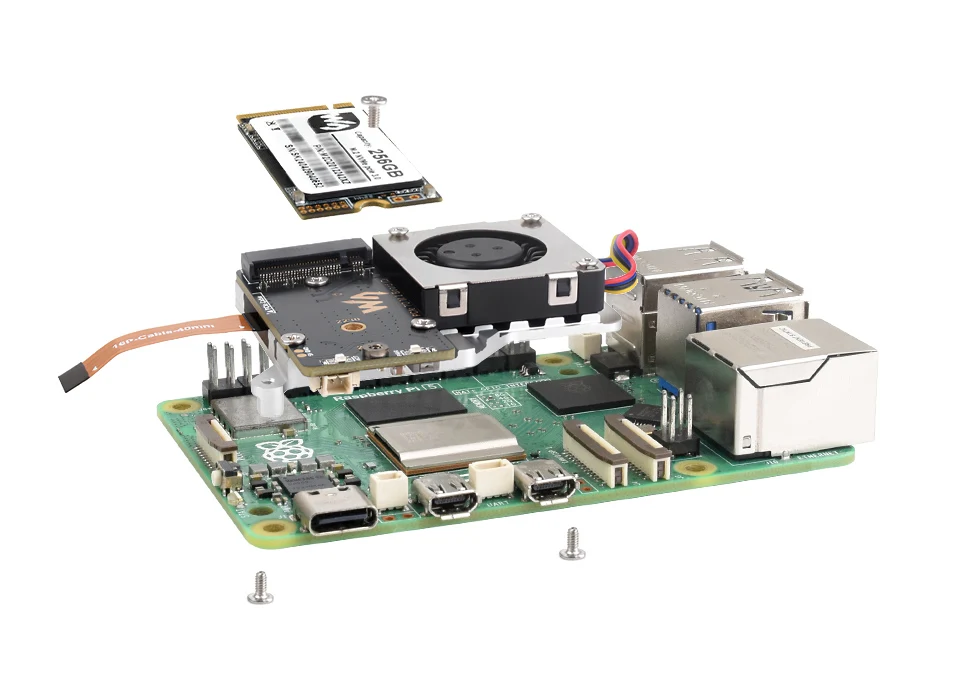

Based on 16PIN PCIe Interface of Raspberry Pi 5
* for reference only, please refer to the Package Content for detailed part list

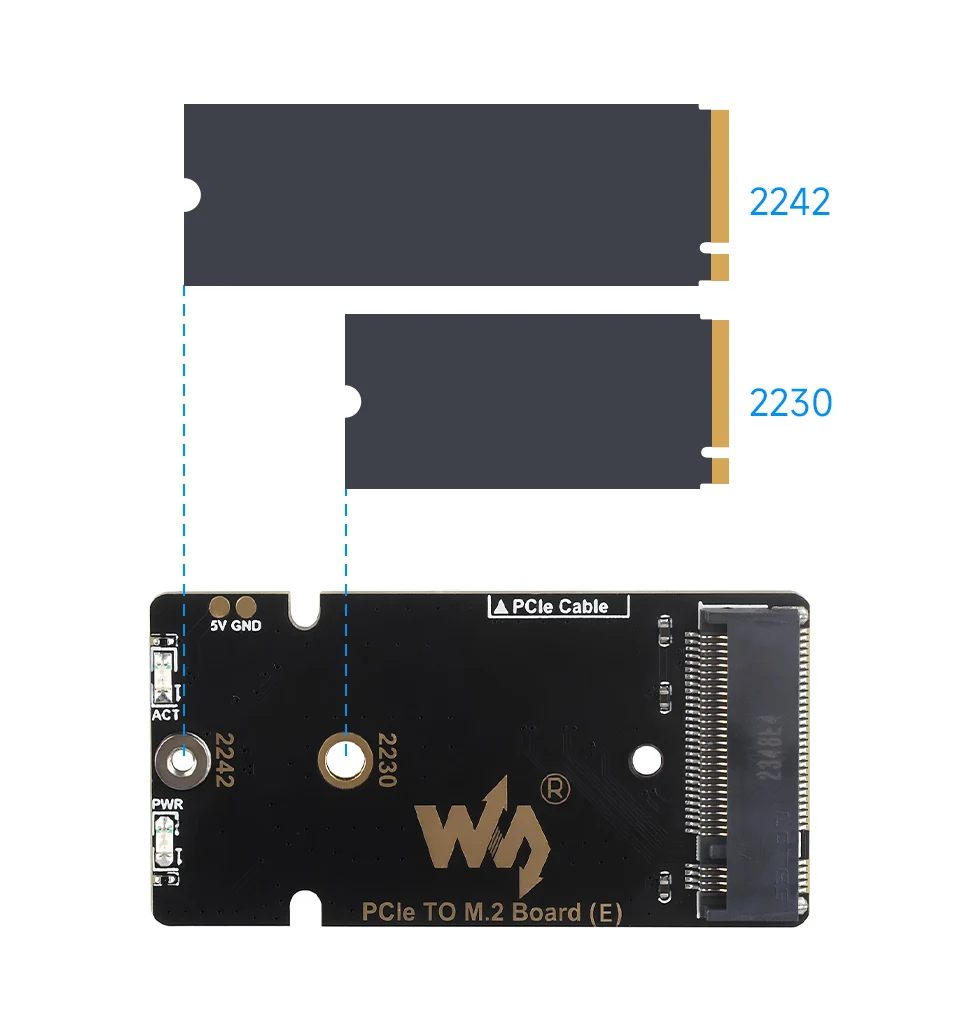

Compatible With 2242 / 2230 Size M.2 Solid State Drives

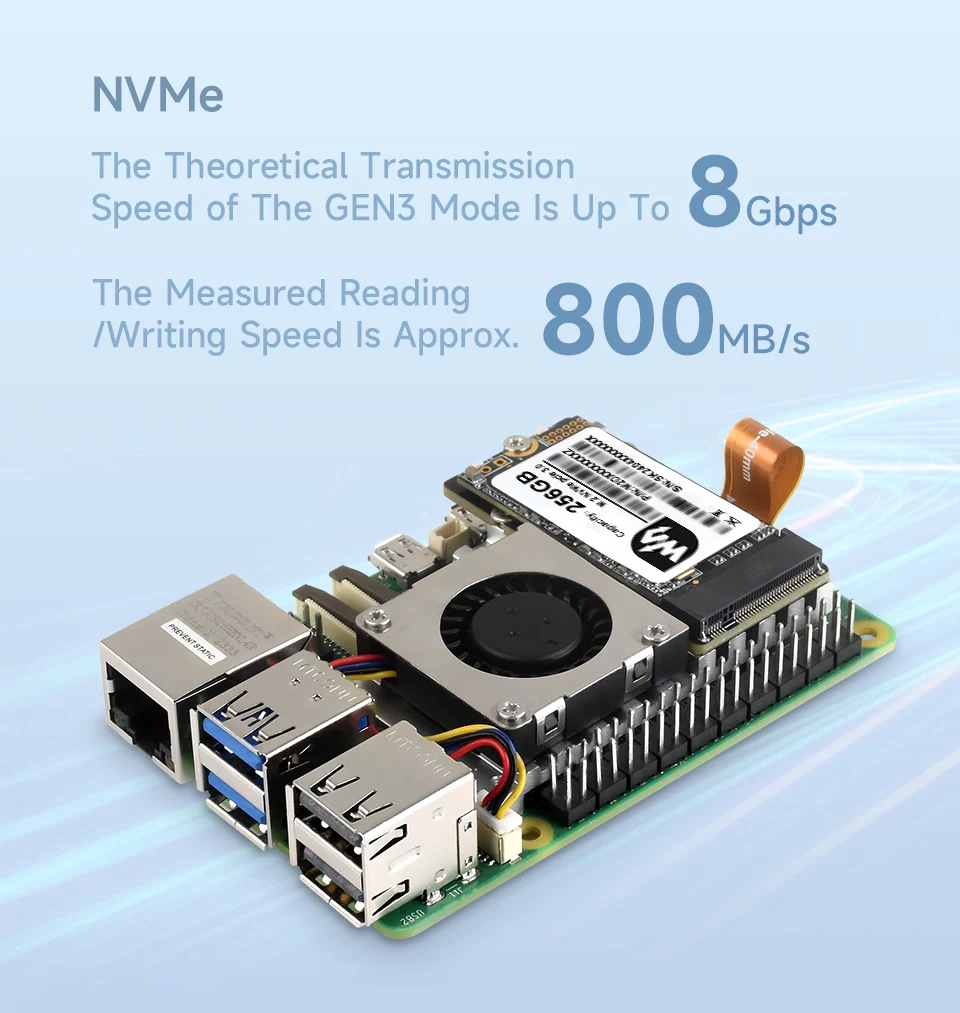

Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive

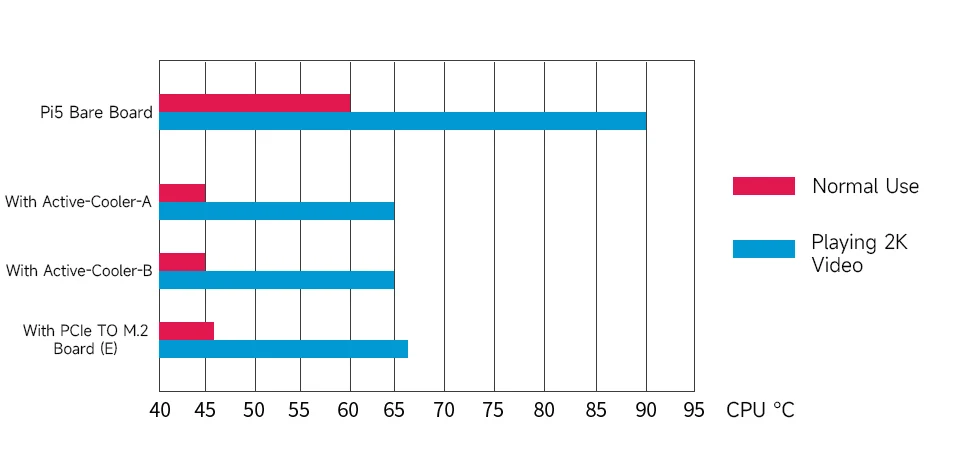

With Active-Cooler-A
With Active-Cooler-B

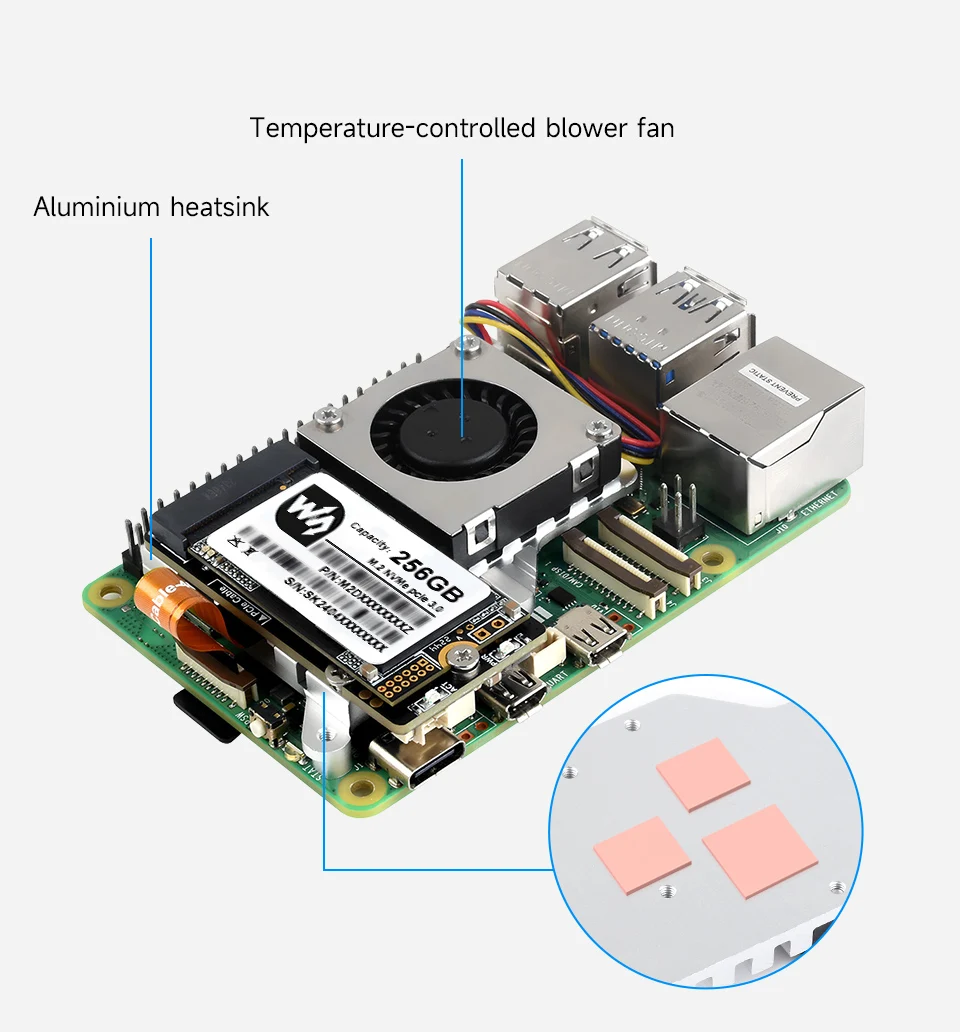

With PCIe TO M.2 Board (E)
* for reference only, please refer to the Package Content for detailed part list
Package Content
Weight: 0.037 kg
-
PCIe TO M.2 Board (E) x1
-
MX1.25 2PIN cable x1
-
Thermal pad (3PCS) x1
-
Screws pack x1
