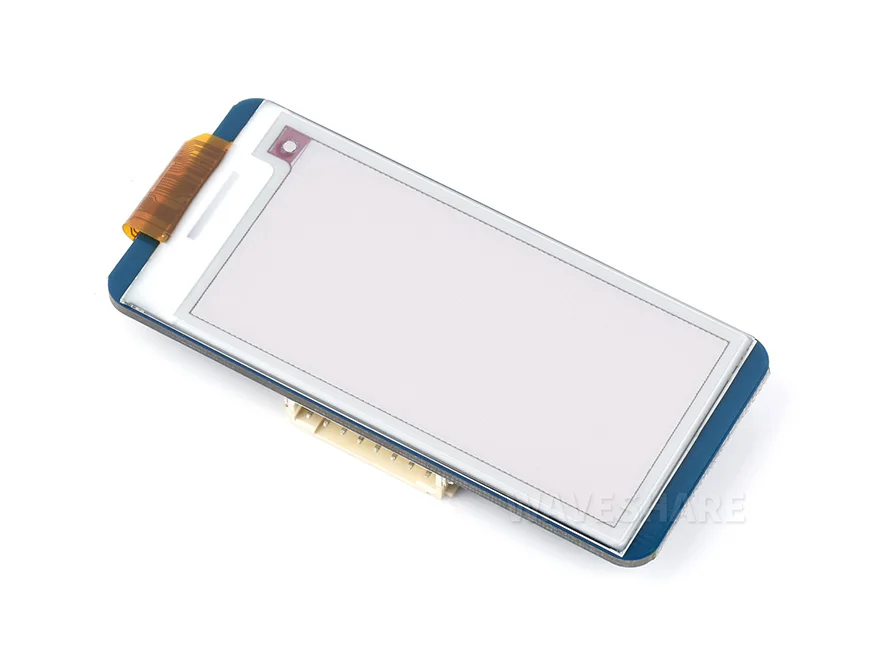

Waveshare 2.13inch E-Ink display HAT Red/black/white e-paper for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+ SPI interface
380 in stock
$20.99
- Hign-concerned Chemical: None
- Model Number: 2.13inch e-Paper HAT (B)
- Demo Board Type: ARM
- Brand Name: Waveshare
- Origin: Mainland China
- Resolution: 250×122
- Size: 2.13inch
- displaying: 2 grey level
- Power: 3.3V/5V
- Interface: SPI
- Supports: Raspberry Pi, Arduino, STM32, etc.

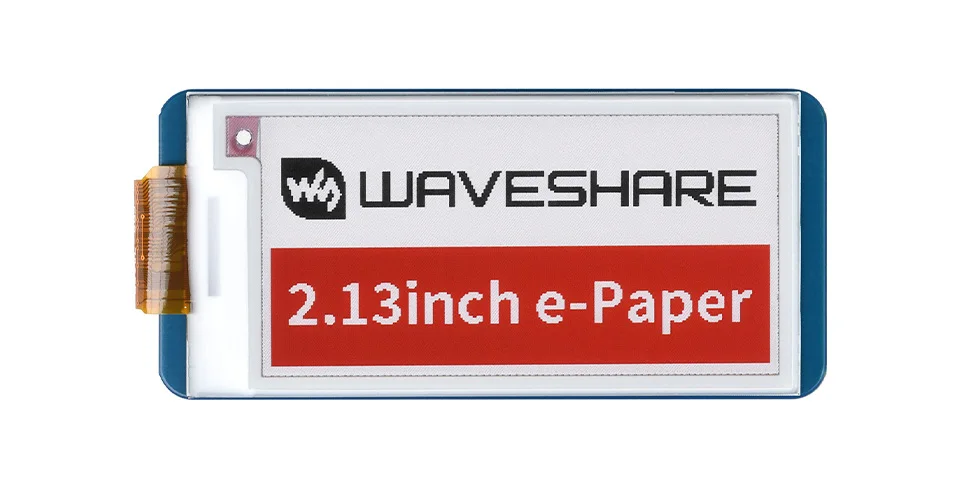

- Display color: Red, black, white
- Full refresh time: 15s
Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity
Ideal for price tags, shelf labels, industrial instruments…
-
No backlight, keeps displaying last content for a long time even when power down
-
Ultra low power consumption, basically power is only required for refreshing
-

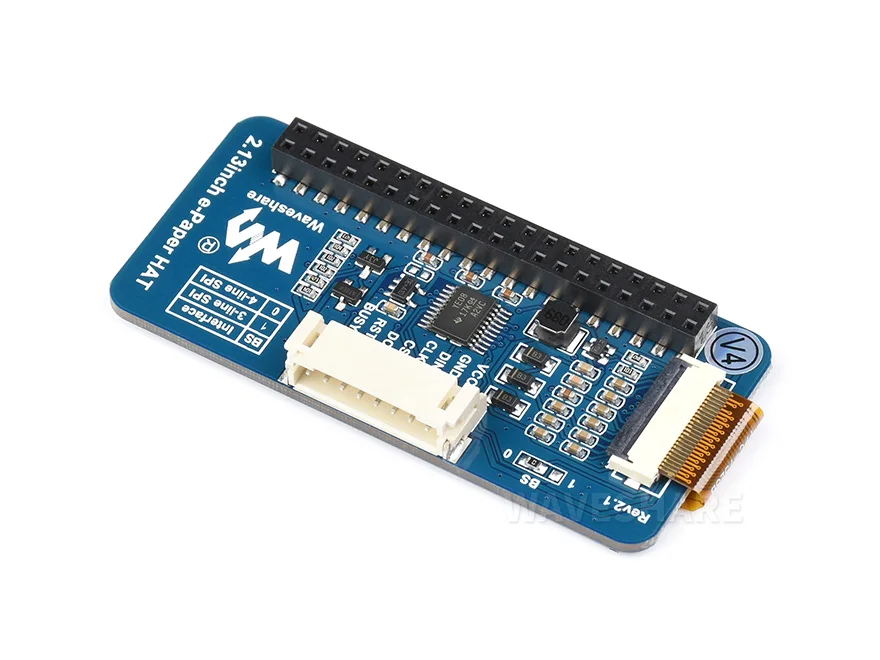

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
-
SPI interface, for connecting with other controller boards like Arduino/STM32, etc.
-

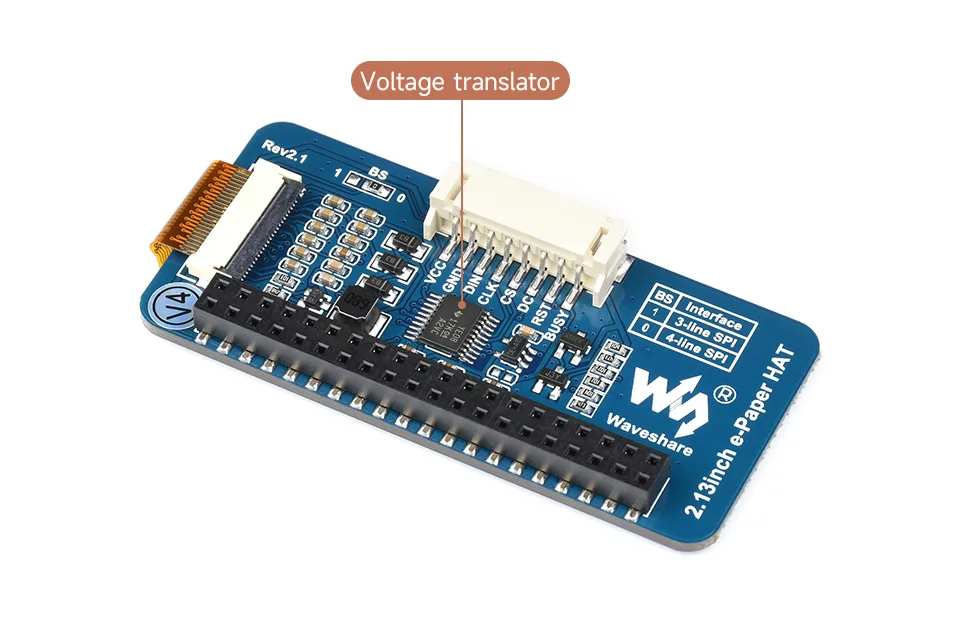

Onboard voltage translator, compatible with 3.3V/5V MCUs
-
Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
|
OPERATING VOLTAGE |
3.3V/5V |
DISPLAY COLOR |
Red/Black/White |
|
INTERFACE |
3-wire SPI, 4-wire SPI |
GREY SCALE |
2 |
|

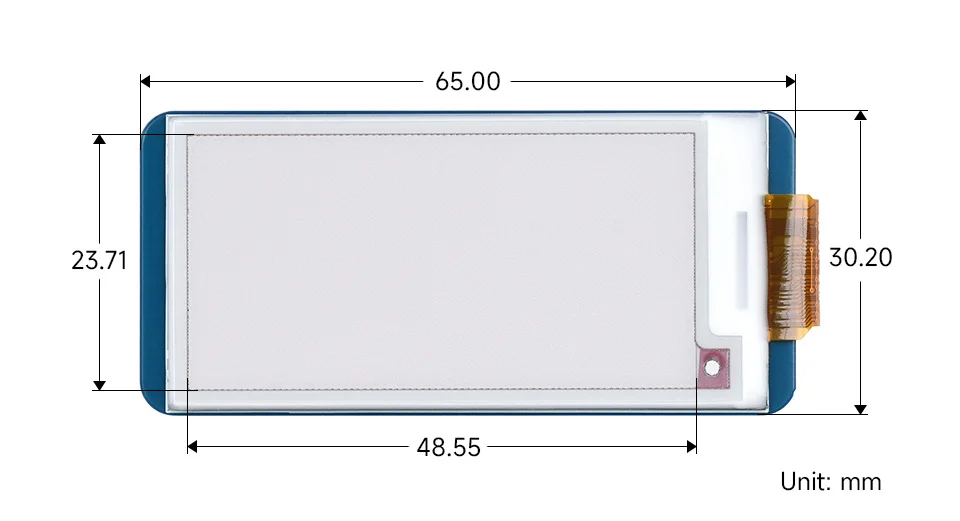

OUTLINE DIMENSIONS |
65 × 30.2mm |
FULL REFRESH TIME |
15s |
|
DISPLAY SIZE |
48.55 × 23.71mm |
REFRESH POWER |
26.4mW(typ.) |
|
DOT PITCH |
0.229 × 0.228mm |
STANDBY CURRENT |
<0.01uA (almost none) |
|
RESOLUTION |
250 × 122pixels |
VIEWING ANGLE |
>170° |
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

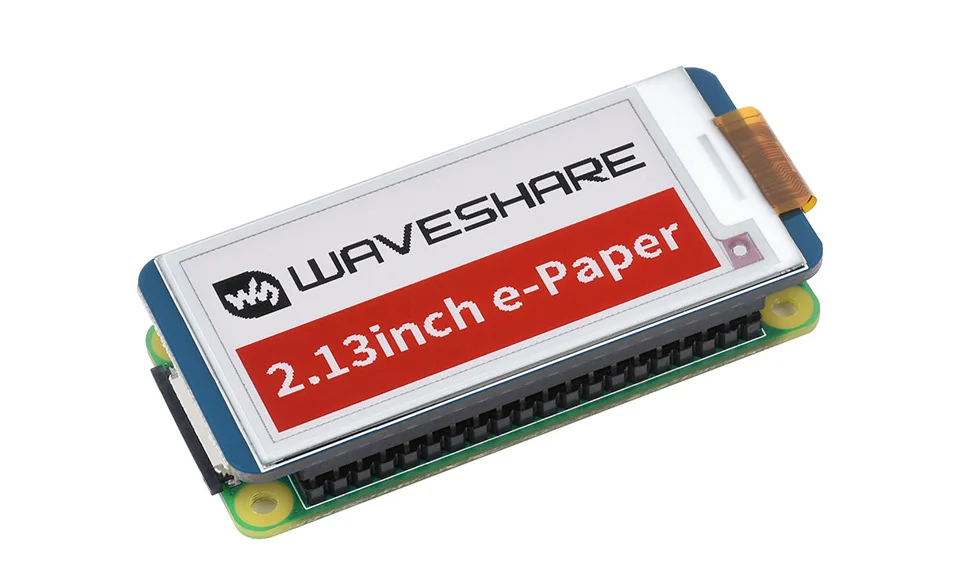

Compatible With Raspberry Pi Series Boards, Jetson Nano
For Use With Controller Boards Like STM32/Arduino
|

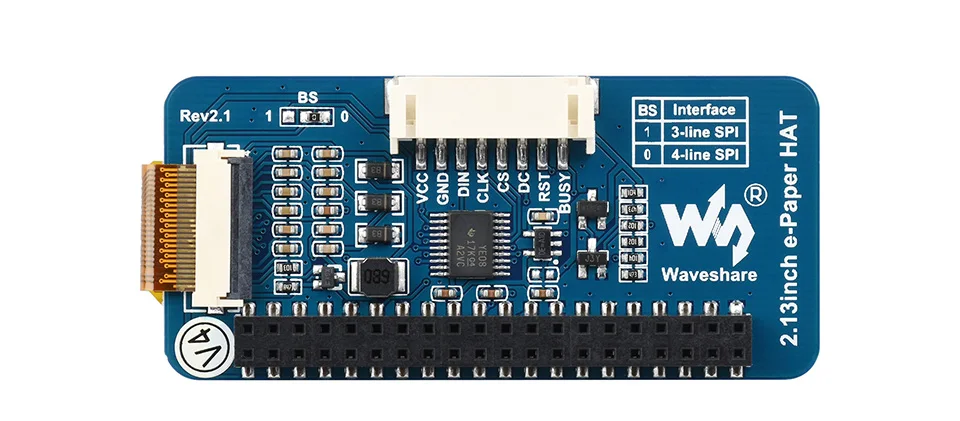

VCC |
Power (3.3V / 5V input) |
|
GND |
Ground |
|
DIN |
SPI MOSI pin |
|
CLK |
SPI SCK pin |
|
CS |
SPI chip selection, low active |
|
DC |
Data/Command selection (high for data, low for command) |
|
RST |
External reset, low active |
|
BUSY |
Busy status output pin |
Compatible With 3.3V / 5V MCUs
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags…
www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(B)
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
PACKAGE CONTENT
Weight: 0.021 kg
-
2.13inch e-Paper HAT (B) x1
-
RPi screws pack (2pcs) x1
-
