Waveshare CN/US/EU Power Supply Adapter, 45W, 19V/2.73A, OD 5.5mm, ID 2.5mm, DC Plug Short circuit/Overvoltage/Overcurrent
Availability:
1500 in stock
$23.99
- Hign-concerned Chemical: None
- Model Number: PSU-19V2.37A-5.5-2.5
- Demo Board Type: FPGA
- Brand Name: Waveshare
- Certification: None
- Origin: Mainland China
DESCRIPTION

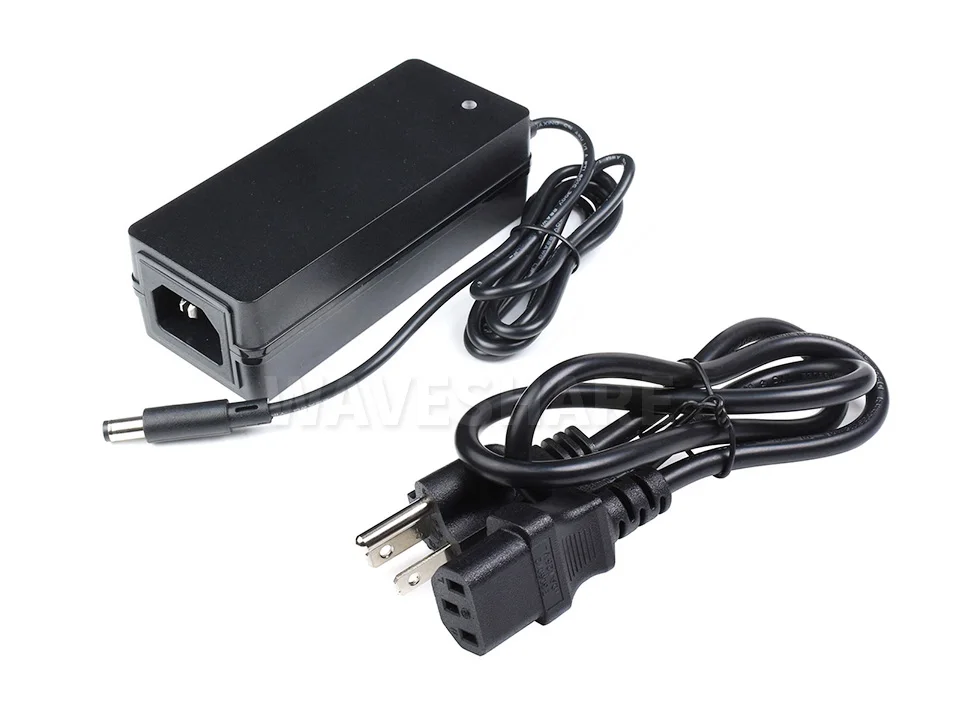

CN/US/EU Power Supply Adapter, 45W, 19V/2.73A, OD 5.5mm, ID 2.5mm, DC Plug
19V, 2.73A Power Supply Adapter
DC Plug, OD 5.5mm, ID 2.5mm

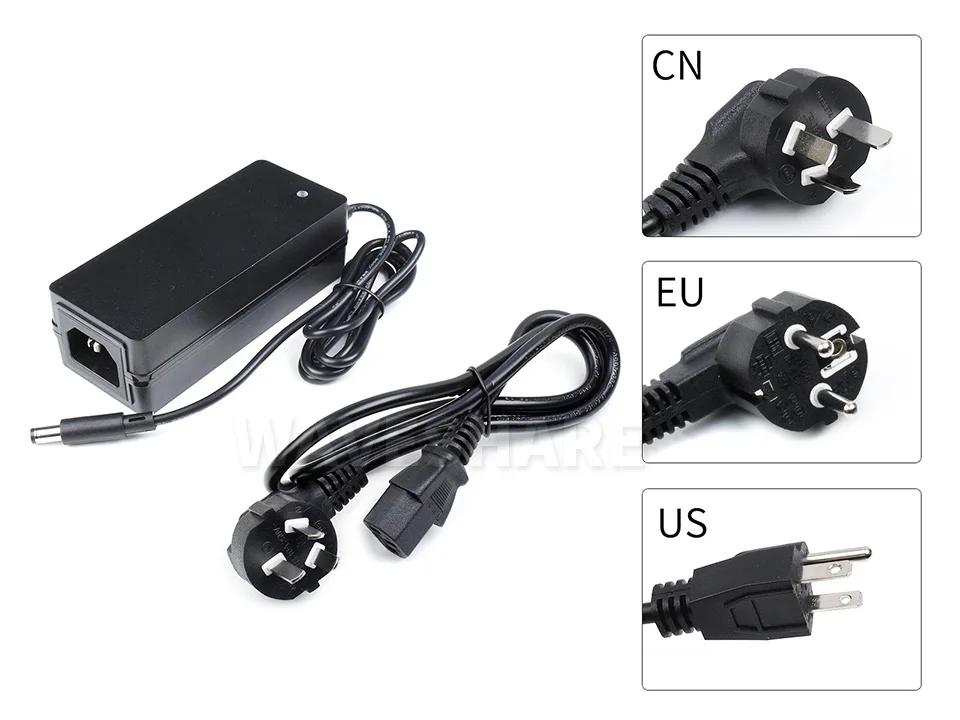

Three Plug Options
Specifications
|
PLUG |
CN/EU/US |
|
POWER SUPPLY |
Cable Length: 0.8m, Outer diameter: 5.5mm, Inner diameter: 2.5mm, DC plug |
|
PROTECTION CIRCUIT |
Short circuit/Overvoltage/Overcurrent protection |
|
INPUT |
AC 100~240V 50/60Hz 1.2A Max, low idle standby power consumption |
|
OUTPUT |
DC 19V 2.37A, low ripple |
|
SAFETY CERTIFICATE |
UL/CUL, FCC, 3C, CE, TUV, SAA, GS |

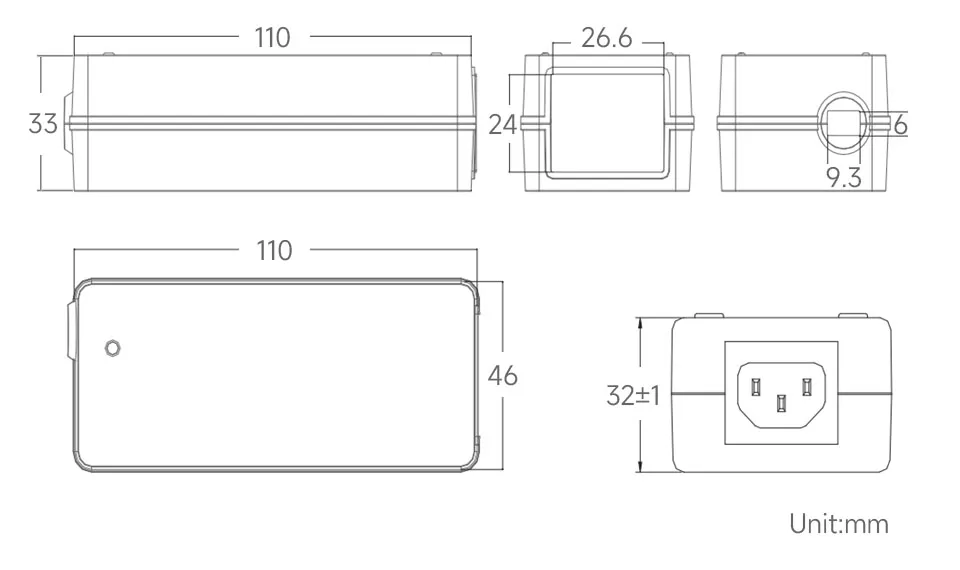

Dimensions
PACKAGE CONTENT
Weight: 0.309 kg
-
OPTIONS PSU-19V2.37A-5.5-2.5 x1
