Original ST STM32F746G-DISCO 32F746GDISCOVERY Discovery kit with STM32F746NG MCU STM32 Development Board
46 in stock
$104.99
- Hign-concerned Chemical: None
- Model Number: STM32F746G-DISCO
- Demo Board Type: ARM
- Brand Name: Waveshare
- Origin: Mainland China
- STM32F746NGH6 microcontroller: 1 Mbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package
- On-board ST-LINK/V2-1: supporting USB re-enumeration capability
- Mbed-enabled: mbed.org
- USB functions: virtual COM port, mass storage, debug port
- 4.3-inch 480×272 color LCD-TFT: with capacitive touch screen
- Two pushbuttons: user and reset
- 128-Mbit SDRAM: 64 Mbits accessible
- Power supply output: 3.3 V or 5 V
- Arduino Uno V3 connectors: Yes
- Model Name: STM32F746G-DISCO
Description
The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontollers based on ARM® Cortex®-M7 core.
The discovery kit enables a wide diversity of applications taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features.
The Arduino connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

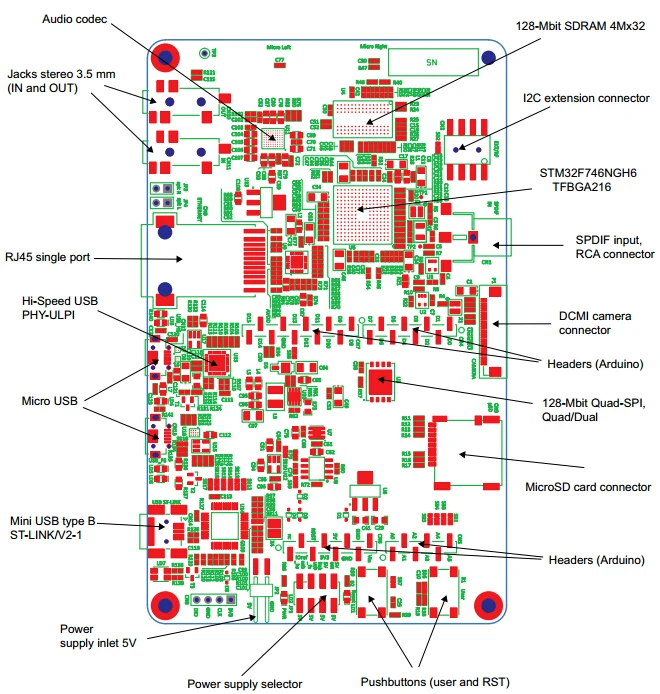

Key Features
-
STM32F746NGH6 microcontroller featuring 1 Mbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package
-
On-board ST-LINK/V2-1 supporting USB re-enumeration capability
-
Mbed-enabled (mbed.org)
-
USB functions: virtual COM port, mass storage, debug port
-

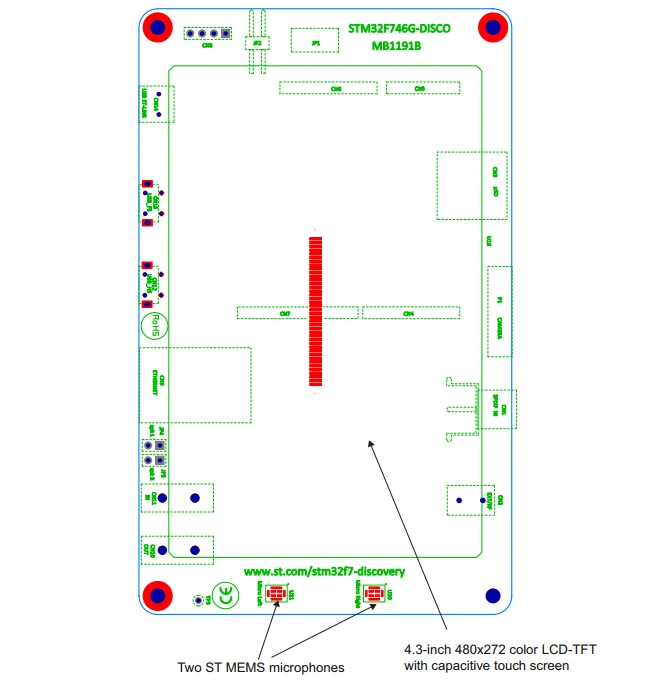

4.3-inch 480×272 color LCD-TFT with capacitive touch screen
-
Camera connector
-
SAI audio codec
-
Audio line in and line out jack
-
Stereo speaker outputs
-
Two ST MEMS microphones
-
SPDIF RCA input connector
-
Two pushbuttons (user and reset)
-
128-Mbit Quad-SPI Flash memory
-
128-Mbit SDRAM (64 Mbits accessible)
-
Connector for microSD card
-
RF-EEPROM daughterboard connector
-
USB OTG HS with Micro-AB connectors
-
USB OTG FS with Micro-AB connectors
-
Ethernet connector compliant with IEEE-802.3-2002
-
Five power supply options:
-
ST LINK/V2-1
-
USB FS connector
-
USB HS connector
-
VIN from Arduino connector
-
External 5 V from connector
-
-
Power supply output for external applications: 3.3 V or 5 V
-
Arduino Uno V3 connectors
-
Comprehensive free software including a variety of examples, part of STM32Cube package
-
Supported by a wide choice of integrated development environments

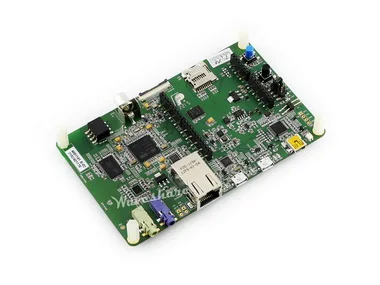

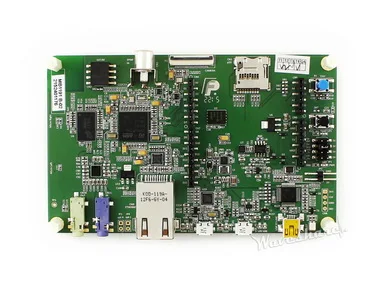

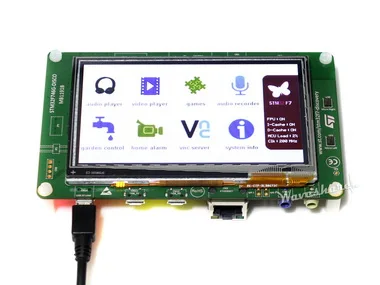

Photos

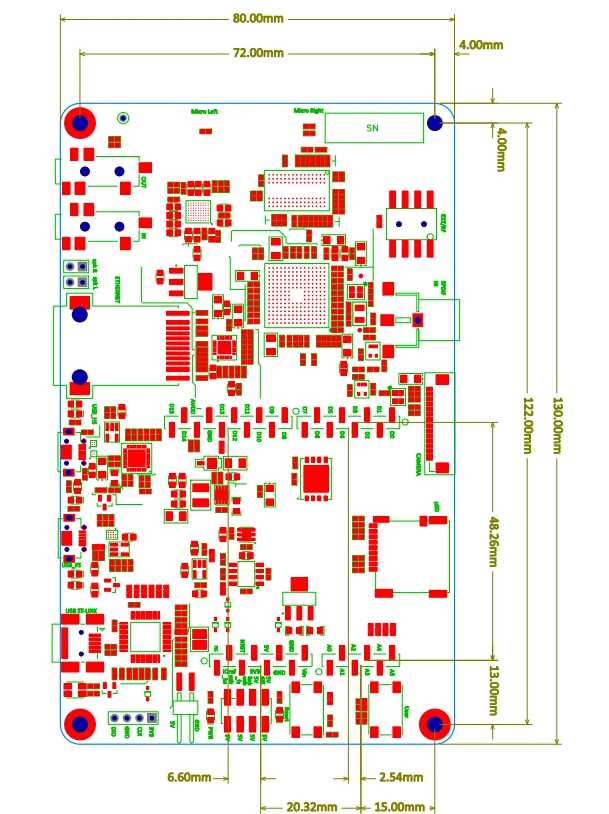

Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/STM32F746G-DISCO
PACKAGE CONTENT
Weight: 0.189 kg
Note: you may receive a green OR blue version, which is delivered randomly.
-
STM32F746G-DISCO × 1
