Wireless 315Mhz Remote Control Magnetic lock Kit with Remote Handle Exit Button Power Supply 180Kg 350Lbs
984 in stock
$46.66
- Security Mode: Fail Safe
- Model Number: R-11
- Brand Name: Jedrek
- Direction: None
Jog Mode: click "unlock Key" to open the lock, release the "unlock Key" to Lock the door.
NO/NC Mode: click "unlock Key" to open the lock,click "lock Key" to lock the door.
Wireless Controller
Working voltage: DC12V
Working current: 10mAh
Delay time: 0-60s(Adjustable)
Output mode: NC/NO
Receiving sensitivity: -95DB
Receiving frequency: 315Mhz
Coding type: learning type
Working temperature: -30°c-70°c

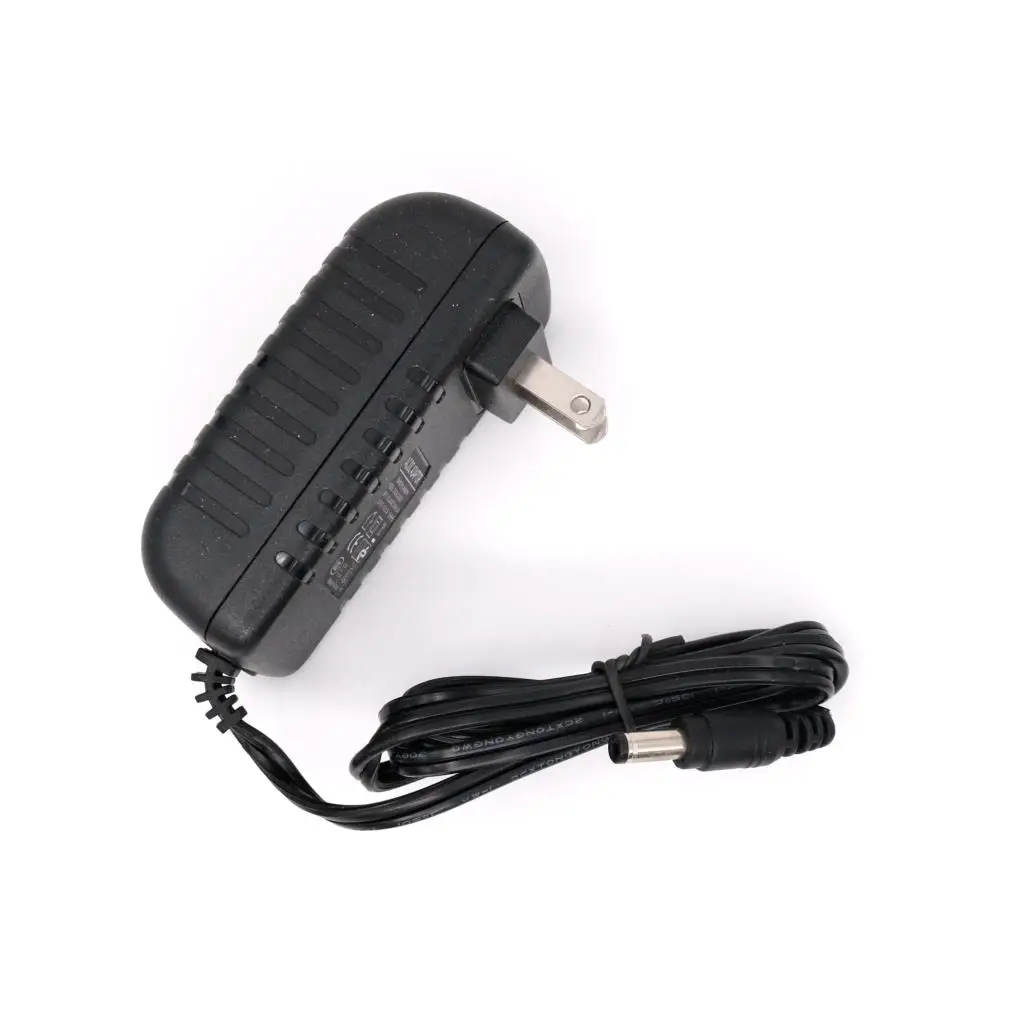

The power adapter
Input power: 100-240V
Output voltage: DC12V
Current: 3mA
Interface: EU/US/UK
180Kg 350Lbs
Specification
Voltage: 12V DC
Current: 480mA
Mode: NC (locked whilst power supply is operating), fail safe mode
Waterproof and can work at outside.
Application: wood, iron doors
Faceplate dimensions: 180 x 38 x 11mm
Main body dimensions: 250 x 50 x 25mm
Pack includes: electric magnetic lock, installation diagrams
Construction: stainless steel
Holding force: 180KG
Package List:
1* Wireless controller
1* 180kg Magnetic lock
2* Remote Handle
1* 3A power supply adapter
1* Exit Button
