Automatic Door Anti-pinch Sensors Automatic Door Infrared Sensor Side Against The Probe
Availability:
974 in stock
$45.60
974 in stock
- Hign-concerned Chemical: None
- Model Number: KT-DM07
- Brand Name: Jedrek
- Origin: Mainland China
Feature
1. Integral surface cover design, beautiful appearance, waterproof, dustproof, convenient fixing, simple wiring
2. can be used with all types of automatic doors, electric door . Can effectively prevent various kinds of clamp to the human body and goods
3. Long sensor scanning distance. Unilateral up to 2 m
4. Using intelligent background learning system that can automatically adapt to different backgrounds reflective material, which is suitable for the installation of various occasions
5. Automatically make real-time compensation to time drift, produce self-correcting according to a variety of external changes (such as vibration, deformation, brightness, sunlight, etc.)
6. Transmit and receive integrated,can be installed only on one side, thus greatly facilitating the construction site.
1. Integral surface cover design, beautiful appearance, waterproof, dustproof, convenient fixing, simple wiring
2. can be used with all types of automatic doors, electric door . Can effectively prevent various kinds of clamp to the human body and goods
3. Long sensor scanning distance. Unilateral up to 2 m
4. Using intelligent background learning system that can automatically adapt to different backgrounds reflective material, which is suitable for the installation of various occasions
5. Automatically make real-time compensation to time drift, produce self-correcting according to a variety of external changes (such as vibration, deformation, brightness, sunlight, etc.)
6. Transmit and receive integrated,can be installed only on one side, thus greatly facilitating the construction site.
Parameters
Operating voltage: AC / DC12-30V
Quiescent Current: 22mA
Action Current: 60mA
Sensing distance (MAX): 2000mm
Induction way: infrared scanning
Scanning beam diameter: 40mm
Working temperature: -20 ° C ~ 60 ° C
Fixation: Concealed screws

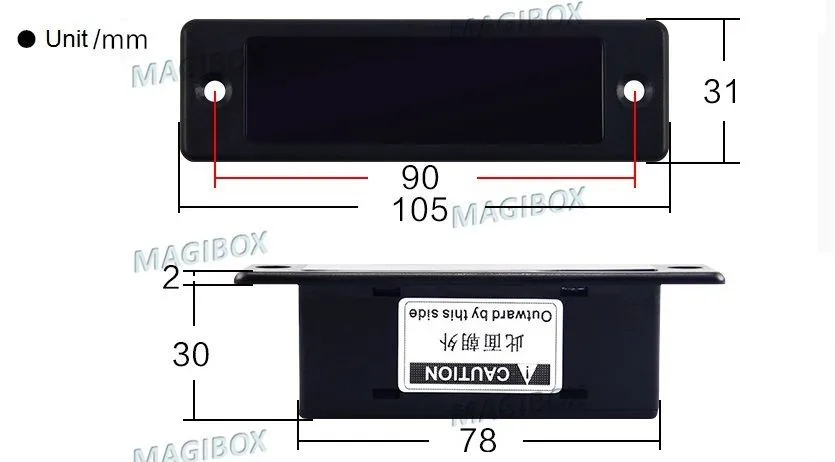

Dimensions: 105 (L) * 31 (W) * 32 (H) mm
Hole Size: 78 (L) * 24 (W) * 30 (H) mm
Operating voltage: AC / DC12-30V
Quiescent Current: 22mA
Action Current: 60mA
Sensing distance (MAX): 2000mm
Induction way: infrared scanning
Scanning beam diameter: 40mm
Working temperature: -20 ° C ~ 60 ° C
Fixation: Concealed screws
Dimensions: 105 (L) * 31 (W) * 32 (H) mm
Hole Size: 78 (L) * 24 (W) * 30 (H) mm
