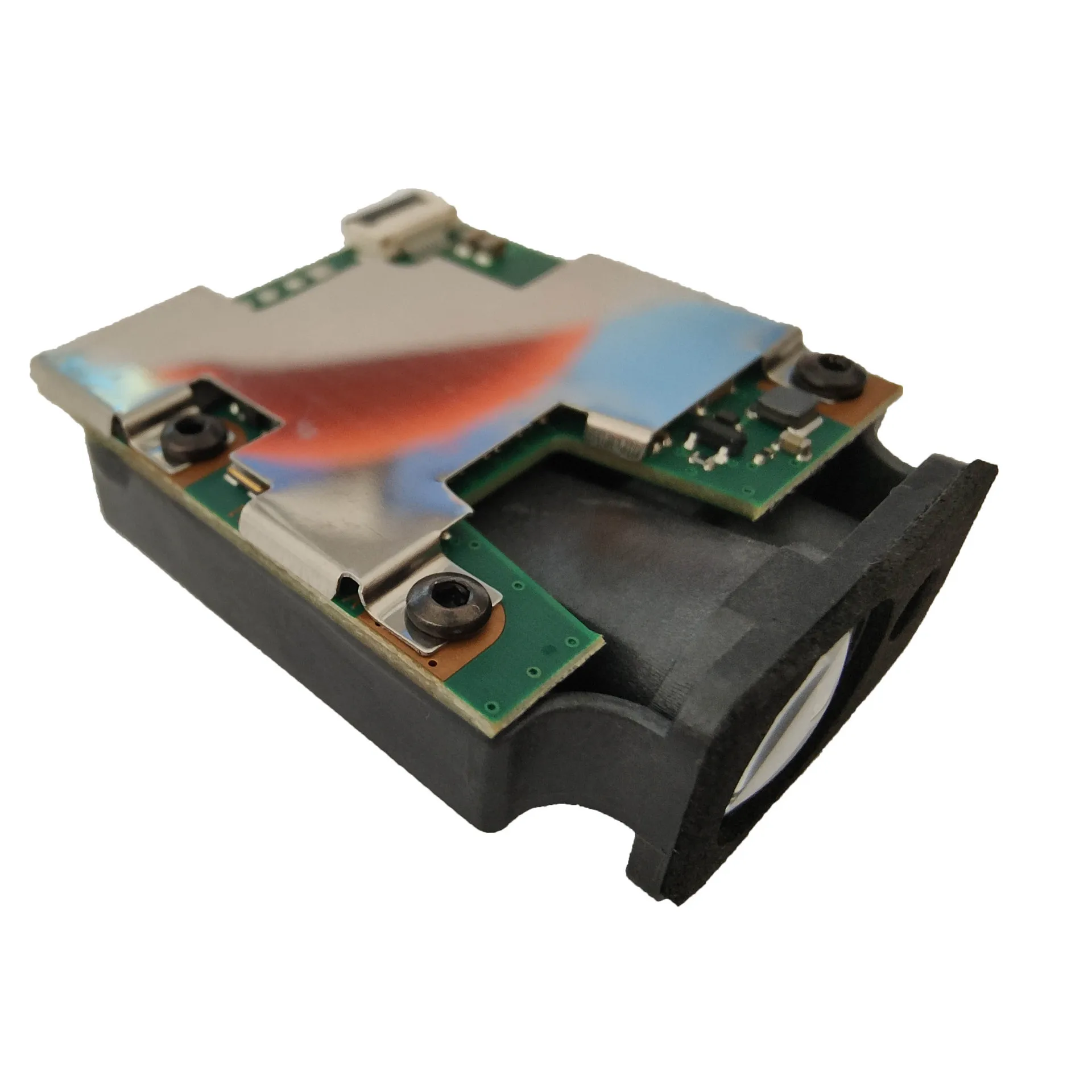

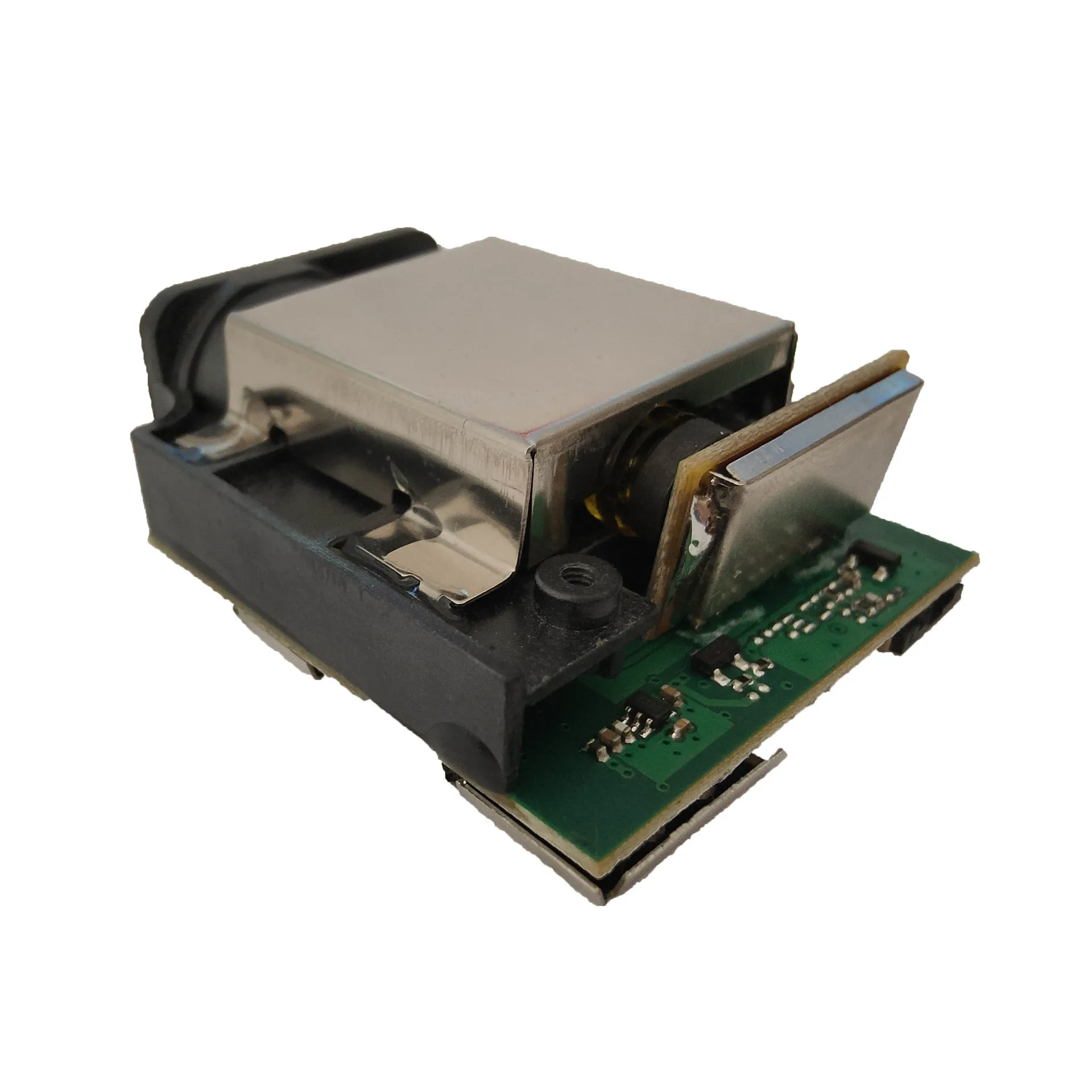

150m 20hz Laser Sensor Range Finder Distance Measuring Module TTL Ardunio
701 in stock
$65.00 $102.00
701 in stock
- Model Number: L150
- Brand Name: Jedrek
- Origin: Mainland China
Scope of supply: the VCC: DC3 ~ 5V
Current: 100 mA
Technical parameters
|
Measuring range |
From 143 to 0.05 m (not sun) indoor or night See the sunshine outside interference |
|
Measure precision (standard deviation) |
0.1 mm / 1.0 mm |
|
The output |
UART serial digital output |
|
From the unit |
m |
|
Laser type |
620 ~ 690 nm |
|
Laser level |
Ⅱ level, |
|
In the spot diameter from m |
6 mm @ 10 m, 30 mm @ 50 m |
|
Measure the frequency |
1-20 hz |
|
Protection grade |
IP40 |
|
Working temperature |
– 20 ~ 70 ℃ up to 70 ℃ |
|
Storage temperature |
– 20 ~ + 80 ℃ |
|
The weight of the |
About 60 g |
|
Size (length x width x height) |
48 x 38 by 18 mm |
|
|
Remark:
For different goals and measurement environment, due to the large environmental light intensity, environmental temperature is too high or too low, target reflection too weak or too strong, or target rough surface, can cause measuring process shorten or produce large error to measurement results.
