3/5 Port 1000M Mini Ethernet Switch Hub Module 5V 12V

Technical parameters
Provide three 10/100/1000 m adaptive RJ45 port, all ports all can achieve wire-speed forwarding;

In their port support MDI/MDIX automatic flip and duplex/rate since the negotiation;
Support the IEEE 802.3 x full duplex flow control and Backpressure half duplex flow control;
All ports are support wire-speed forwarding MDI/MDIX automatic loading function, plug and play.

Network standard :IEEE 802.3, IEEE 802.3 u, IEE ab, IEEE 802.3 x 802.3
Port : 3/5 10/100/1000 MBPS RJ45 port or 2.0 spacing row seat
Port has a Link/Ack indicator
Their equipment have a Power indicator light
Performance: store-and-forward, support 2K of the depth of the MAC address table
Working temperature: – 40 ° C to 70 ° C
Mio temperature: – 40 ° C to 70 ° C
Working humidity: 10% ~ 90% RH, no condensation
Save mio humidity: 5% ~ 90% RH, no condensation
5-18 v dc voltage input

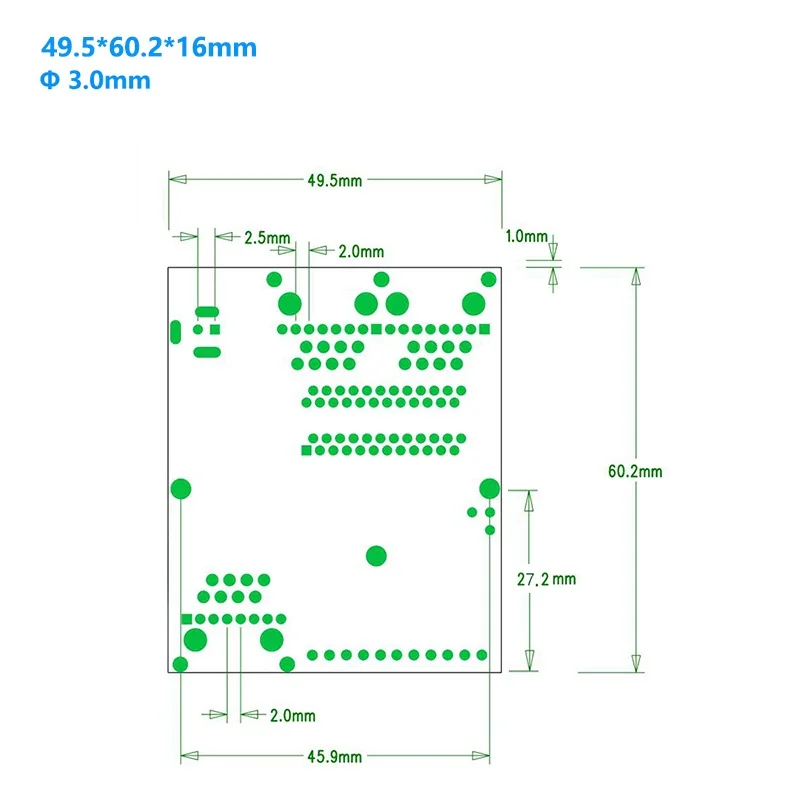

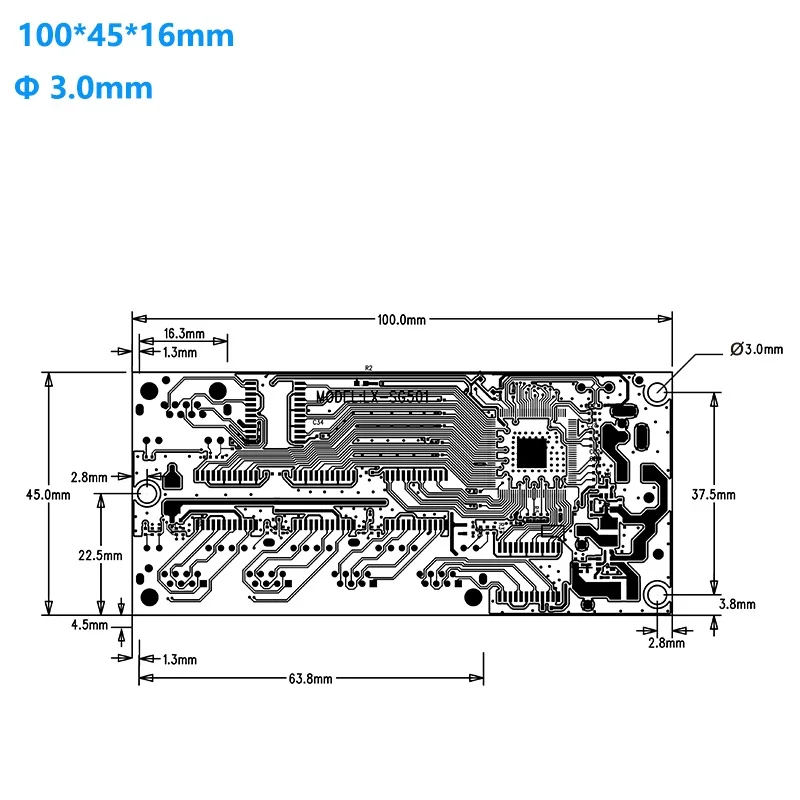

Overall dimensions LxWxH

60 mmx50mmx15mm

100 mmx48. 5 mmx15mm
