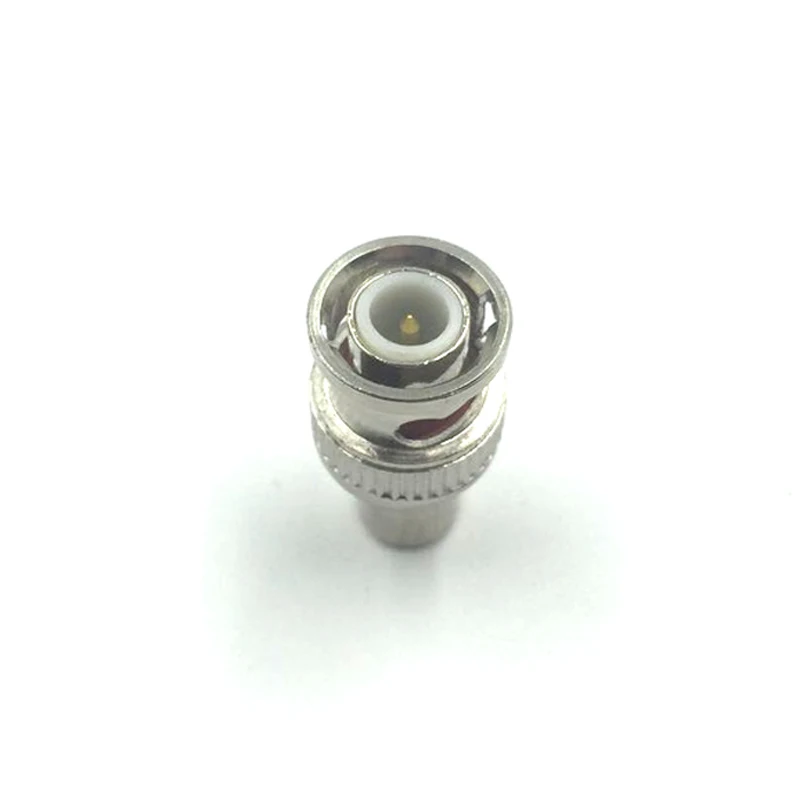

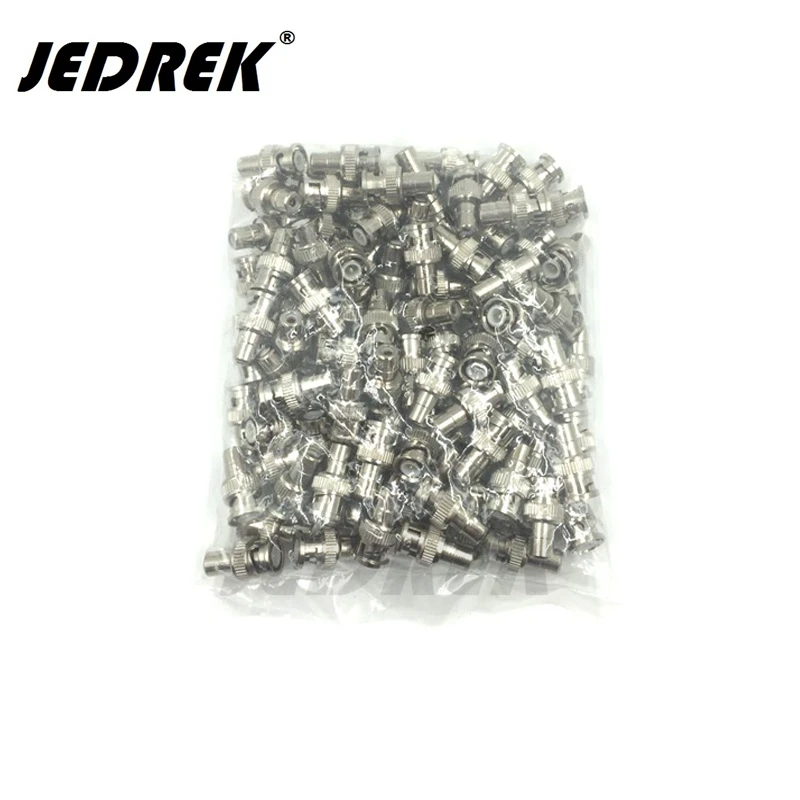

100PCS BNC Male to AV RCA Female Coaxial Cable AV Connector BNC Q9 AV

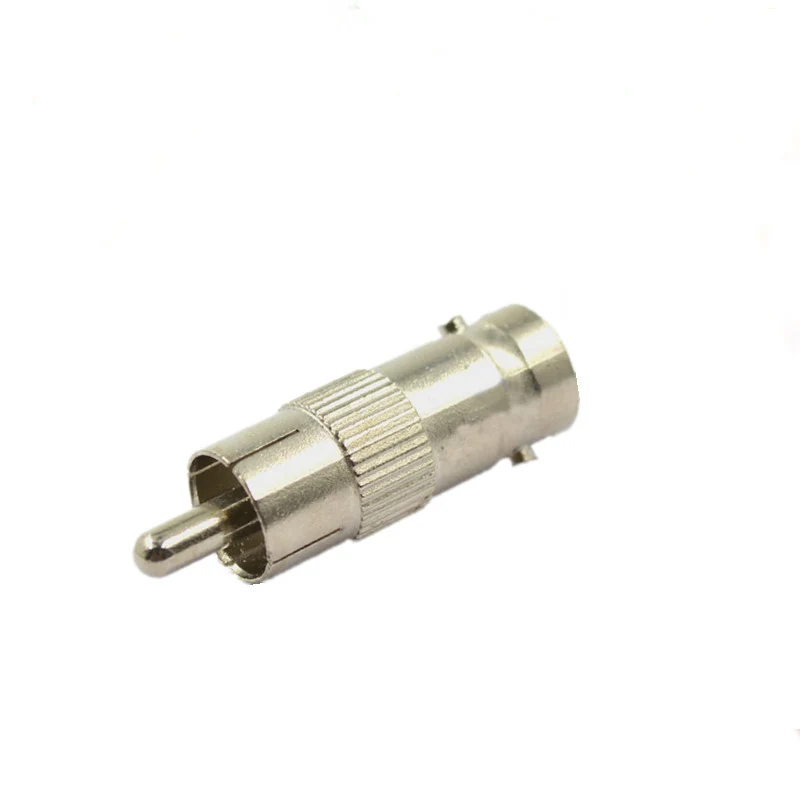

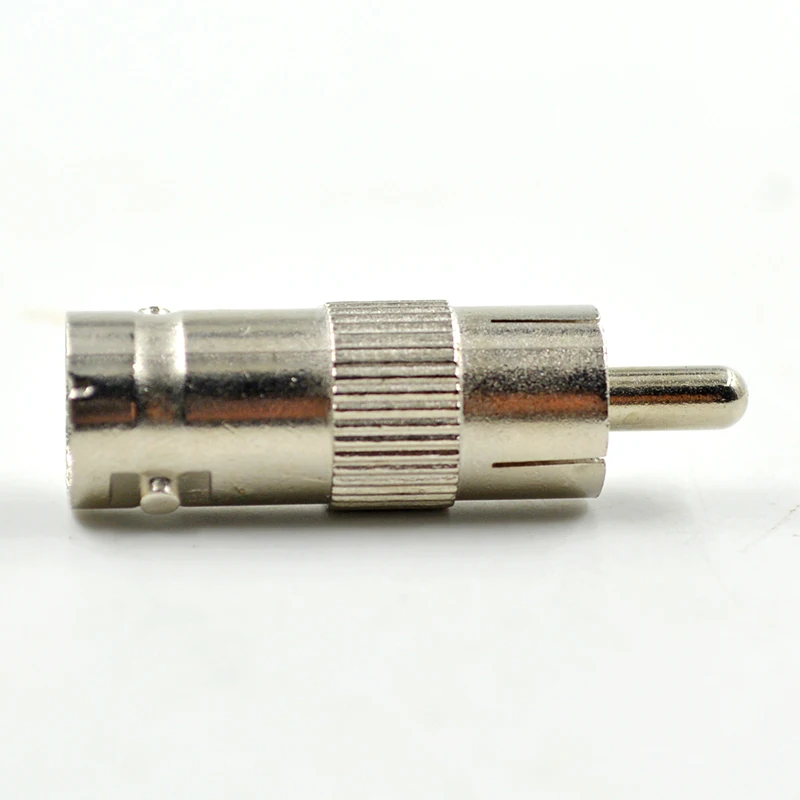

BNC Female to AV RCA Male Coaxial Cable AV Connector BNC Q9 AV

Product specifications

Operating temperature -50 ° C -68 ° C

Wiring method: inline

Joint material: zinc alloy

Metal characteristics: environmentally friendly new metal

Metal features: rust and flame retardant

Functional use: Widely used for monitoring video and other joints between connectors, connections

Temperature range -55~+155°C (PE Cable-40~+85°C)

Characteristic impedance: 75Ω

Frequency range: DC~4GHz

Working voltage: 500Vr.m.s

Connector withstand voltage: 1500Vr.m.s

Contact resistance: ≤15.mΩ between inner conductors

Between outer conductors: ≤1mΩ

Insulation resistance: ≥5000MΩ

Inner conductor retention: ≥0.57N

Insertion loss: 0.20dB/3GHz

Voltage standing wave ratio: straight ≤1.22/3GHz

Straight strike standing wave: ≤1.30/3GHz

Pull back and forth life: ≥ 2000 times
