134.2Khz Long Distance Animal Card Reader FDX HDX ISO 11784/5

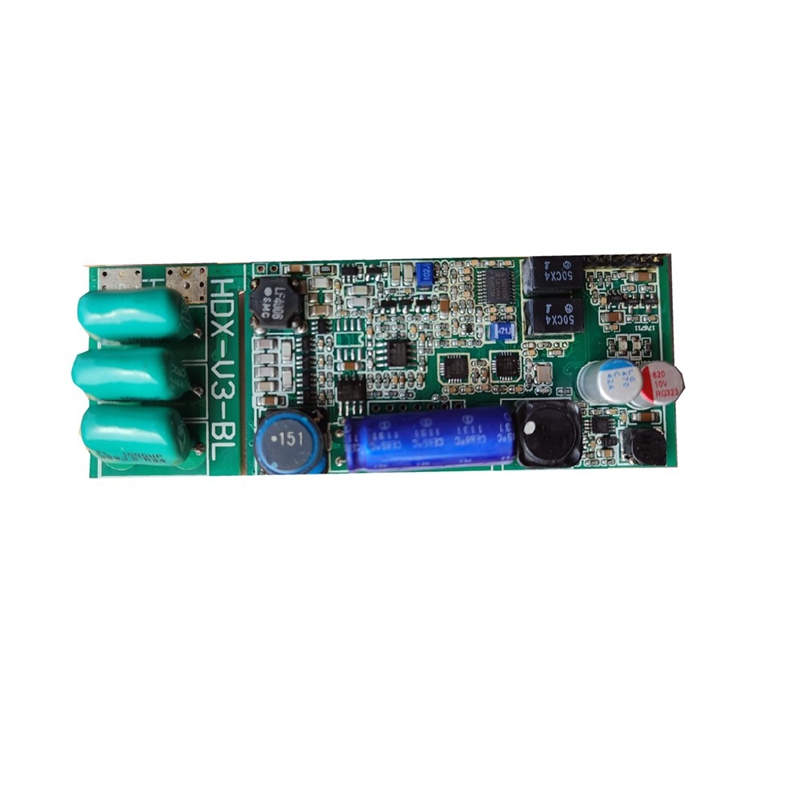

This is a low frequency card reader module based on rfid technology, 11784/5 support ISO international standard protocol, can identify all over a long distance of HDX and FDX – B format label, read the HDX ear tag farthest of up to 80 cm, read labels as far as underground pipes up to 220 cm.

Module through the UART communication, users only need to sent via UART simple commands to complete the electronic tag read operations, without having to understand complex rf communication protocols, ancillary equipment manufacturers read card for industry use, widely used in urban underground pipeline inspection system, entrance guard control system, animal management, slaughterhouses, packaging plant and industrial automation applications.

Module has the following features:

Working frequency of 134.2 kHz, strong penetrability;

Mixer module support of HDX and FDX – B format tags;

Mixer ISO11784/85 international standard agreement;

Animal ear tag pieces read 10 cm – 80 cm, underground pipeline tag read 100 cm – 220 cm (distance depend on the label and antenna);

UART communication interface, the operation is simple;

3.5-5.5 V power supply, baud rate 115200 BPS.

Module size: 40 mm * 80 mm * 15 mm;

Pieces to support multiple read card module used at the same time around the neighborhood, not influence the reading card.
