8DI 8DO 8A 8 Way I/O Remote Controller Ethernet/RS485 8CH Remote Relay Ethernet/GPRS/WIFI Network Relay
999 in stock
$175.20
- Hign-concerned Chemical: None
- Power Source: DC
- Theory: Other
- is_customized: Yes
- Contact Load: Low Power
- Model Number: HF6508
- Voltage: 12V
- Origin: Mainland China
- Use: General Purpose
- Protect Feature: Sealed

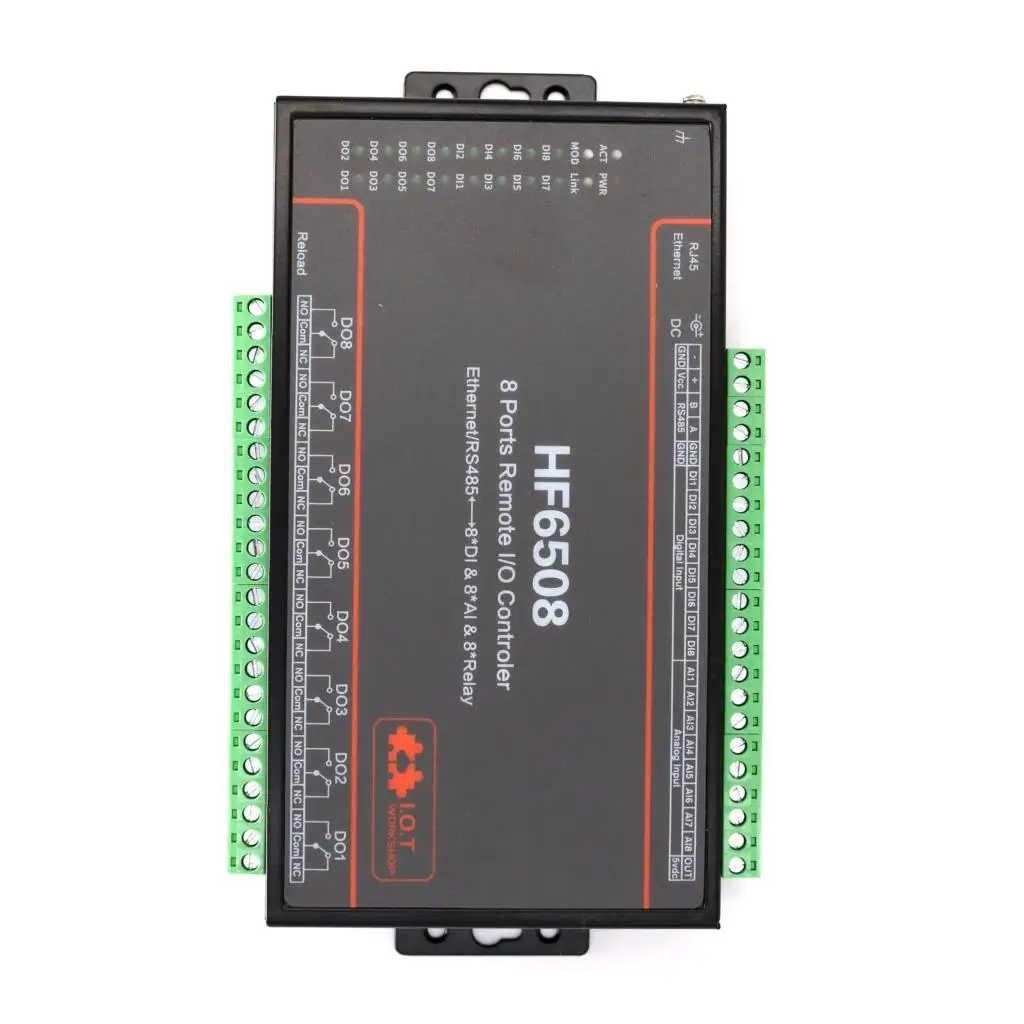

8 Way Remote I/O Controller Ethernet/RS485 8*DI 8AI 8 Rlay Remote Relay
MODBUS TCP/MODBUS RTU
AI Input:
Current input: 4-20mA
Voltage input: 0-5V, 0-10V
Resistance input: 0-10K (resistance type temperature and humidity sensor)
Operating temperature: -40-85C
Storage temperature: -45-165c
Humidity: 5-95%
Overview of Characteristic
.Support TCP/IP/Telnet /Modbus TCP Protocol
.Support RS485 transmission Use Modus protocol to control 8 DIs, 8 AI interfaces and control 8 DOsSupport STA/AP/AP+STA Mode
.Support Modbus RTU and Modbus TCP protocol
.Support 10 / 100M Ethernet adaptation ( HF6508)
.Support web page, IOTService PC software easy configuration (HF6508)
.Support Industrial Operating Temperature Support Industrial Operating Temperature: -40 to + 85˚C
.Support web page, PC software IOTService configuration (HF6508)
.Support web OTA wireless upgrade (HF6508)
.DI input voltage range 3 ~ 30V, AI input voltage range 0 ~ 5V, input current range 0 ~ 25mA
.Wide voltage 5 ~ 40V DC power supply
.-M3 MCU (128KB SRAM) and 2MB Flash
.Size: 95 x 65 x 25 mm
