24G Automatic Sliding Door Gate Infrared Motion Sensor Alarm Detector

Technical data:

1. microwave sensor with frequency of 24.125GHz;

2. Sending Power: less than 20 dBM EIRP; and signal density: less than 5 mW per square meter;

3. mounting height: 4 meters; mounting angle: 0 to 90 degree (vertically) or -30 to +30 degree (horizontally);

4. detection model: motion detection;

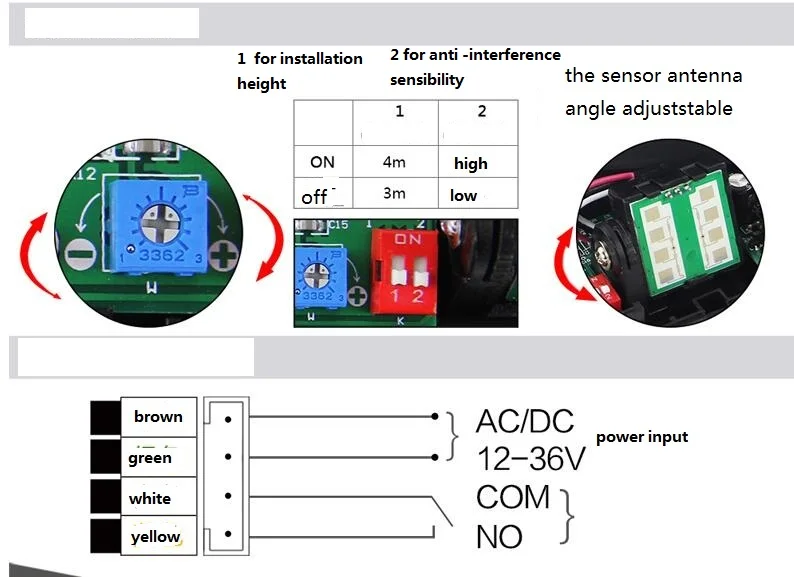

5. connection voltage: AC42V tp DC60V;

6. current: 2W,

7. detetion time: 0.5seconds;

8. IP54;

9. Standard voltage: DC12V to 36V;

10. Material: ABS;

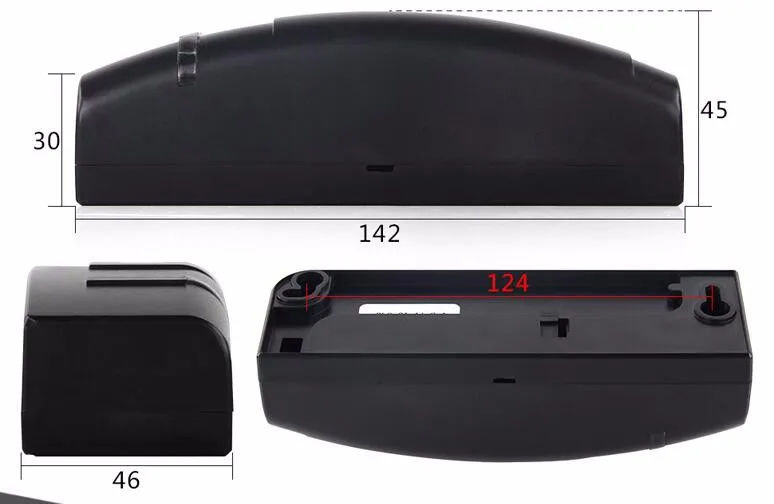

11. dimesion: 12*8*5cm

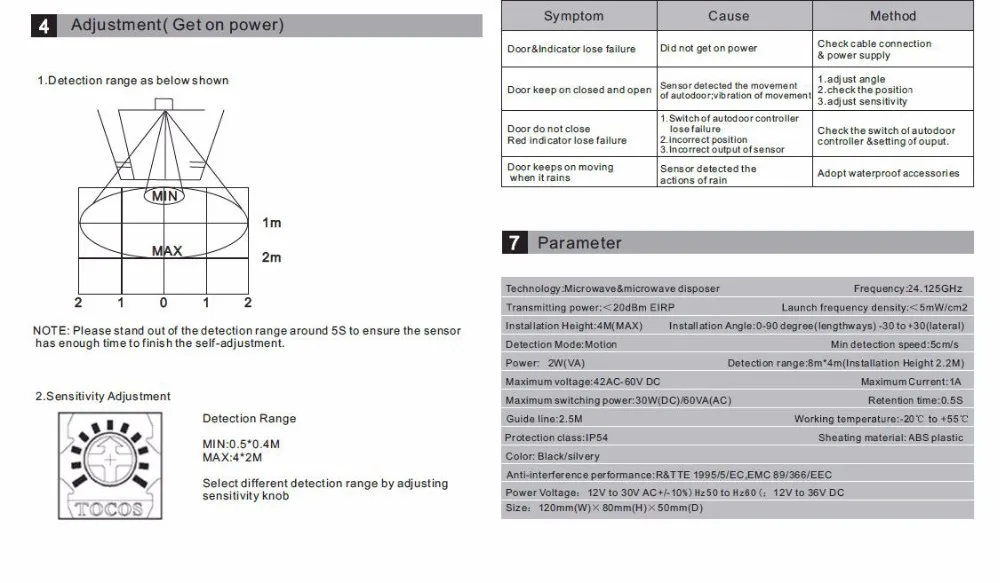

Detection range:
