Single Loop Vehicle Detector Module For Barrier Gate Parking System TTL Output
Availability:
990 in stock
$20.27
990 in stock
- Hign-concerned Chemical: None
- Model Number: VD108B
- Origin: Mainland China
|
Technical parameters:

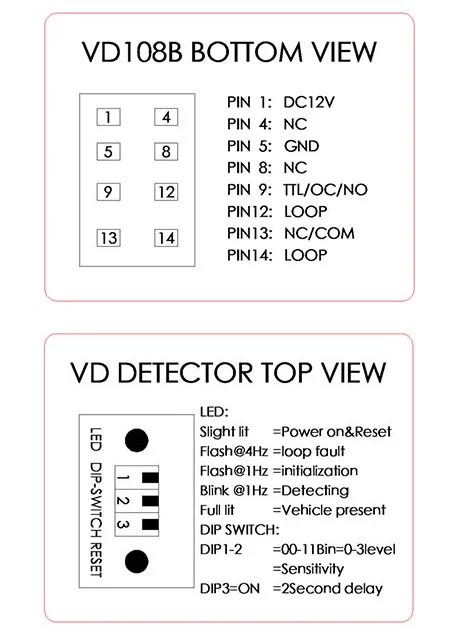

Vehicle detector is a ring for single induction coil buried digital intelligent metal detector is mainly used to detect vehicles and metal objects. Using SMT technology , including high-performance microprocessors, adaptive and complete with a frequency environmental tracking coil transformer isolation , high brightness panel light-emitting LED instructions multipurpose variety of working conditions , DIP switch can set the sensitivity level and output delay with reset button , the output is TTL mode ( customers may OCL customize the relay signal and the signal output ) of the product-based company developed excellent performance. stable , reasonable price , widely used in parking management, highway toll station signal control and monitoring systems such as bayonet . compatible Pa nasonic vehicle detector. Technical parameters: Working power:7-12VDC @ 20mA Frequency range: 29KHz-90KHz Sensitivity: 0.02% -0.2 % four adjustable Reaction time: 100 ms Output Delay: two seconds ( optional ) Environmental compensation: Automatic drift compensation Coil inductance: 80uH-300uH ( cable included ) , the optimum value 150uH (41KHz) Wire length: coil cable up to 5 meters twisted at least 20 times per meter Storage temperature: -40 ºC to +85 ºC Working temperature: -20 ºC to +55 ºC Output mode: TTL level, high level for no car, low level for car.
Relative Humidity: Max 95% Pack: Standard relay package Dimensions: 27 × 21 × 37mm Installation Guide: Loop detector must be installed away from the detection coil as close as possible . Waterproof environment. Loop detector depends largely on whether the good work it is connected to an induction coil. Coil several important parameters include: coil materials, coil shape and embedded correctly. |
