12V 5A Universal Power Supply Module for Door Entry Access Control System Support Backup Power Supply Not Include Backup Battery

Note:not included battery and remote module

Overview:

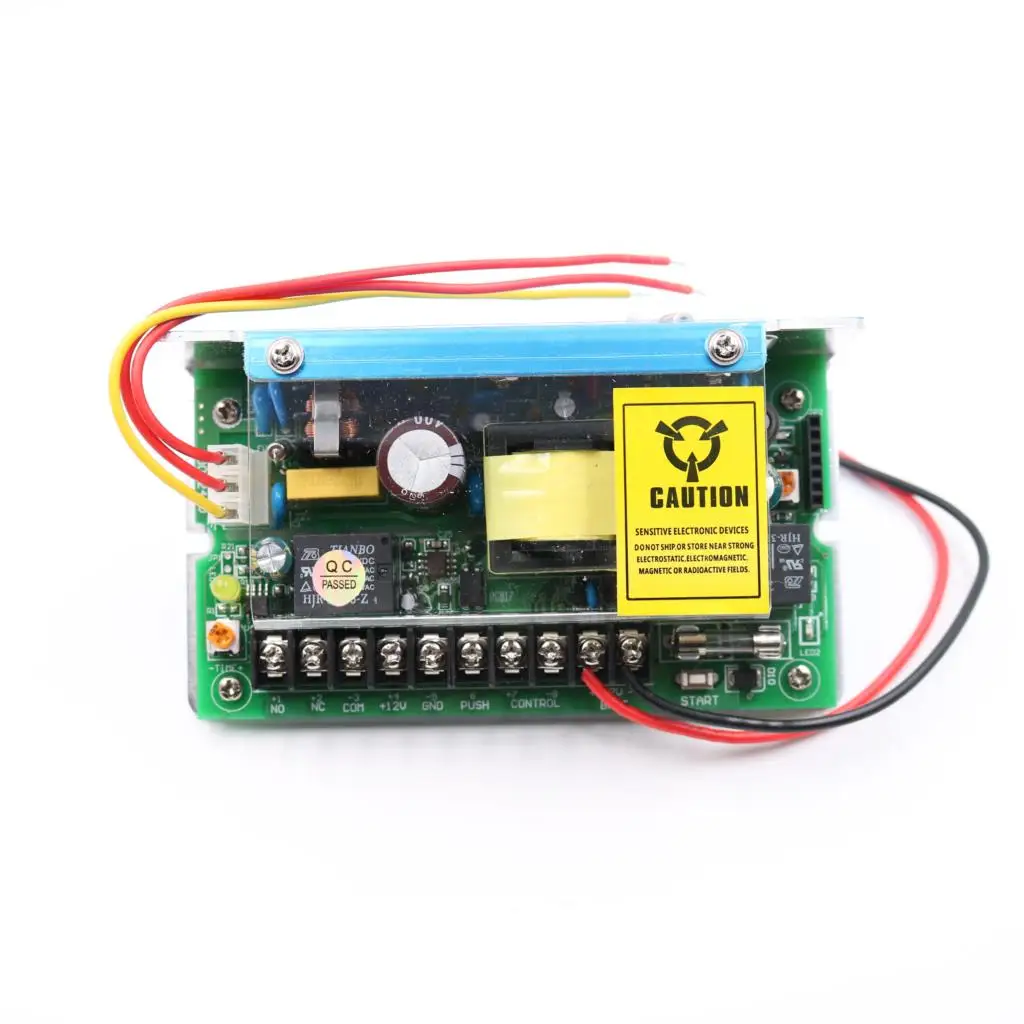

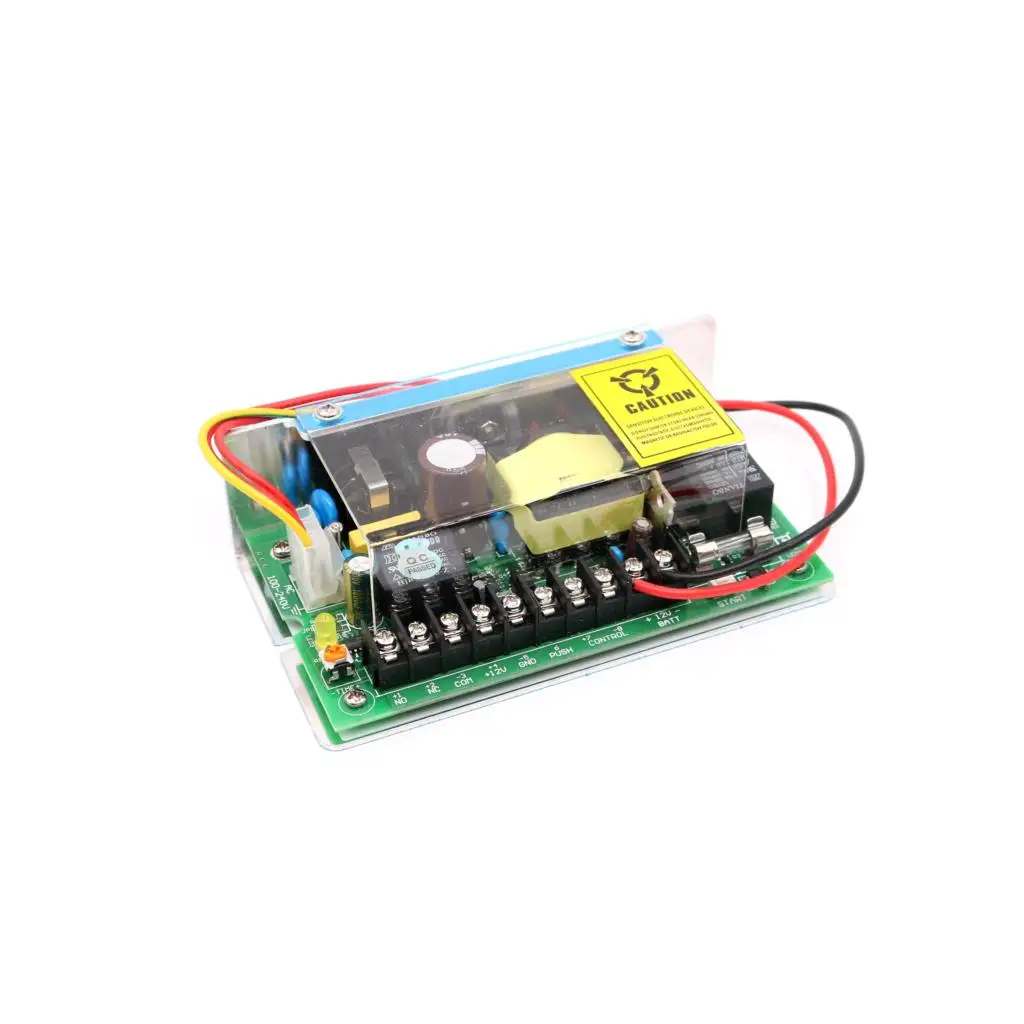

This item is an access control power supply, with features of AC100-240V wide input, 12V/5A stable output, 0-15s lock delay setting and 12V backup storage battery port, also support remote controller mode, which is widely used for door entry access control system.

Features:
*AC 100-240V wide input, DC 12V/5A stable output
*0-15s lock delay setting, the door can be delayed to lock after 15s
*Support 12V backup storage battery input, for emergency power supply when power off
*Support lock/unlock by remote controller, control distance up to 50m
*Suitable for door entry access control system power supply

Specifications:
Input Voltage: AC100-240V
Input frequency: 50-60Hz
Output Voltage: DC12V
Output Current: 5A
Output Voltage Accuracy: ±1
Output Power: 50W
Lock Delay: 0-15s
Backup Battery: 12V storage battery, recommend 12V 7AH battery
Remote Control Distance: 50m
Dimensions: Approx. 5.28*2.95*1.65in / 13.4*7.5*4.2cm

Package Information:
Package Size: Approx. 6.69*3.34*1.97in / 17*8.5*5cm
Package Weight: Approx. 11.64oz / 330g

Package List:
1 * Power Supply module
1 * User Manual(english)
