Animal Tag Reader
Embedded AVG 125Khz 134.2Khz Animal Tag Card Reader Module ISO11784/5 FDXB
Availability:
999 in stock
$72.00
- Hign-concerned Chemical: None
- Model Number: L69
- Origin: Mainland China
Standard protocol: IS01 1784/5
Working frequency: 125 kHz, 134.2 kHz
Supports tags: EMID, FDX – B
Card read distance: 0-21 cm (read animal ear tag more than 21 cm) card read time:
Recognition rate: 2 m/s
Working voltage: 5 v
Communication interface: UART
Communication protocol: Standard protocol or Modbus Rtu protocol
Mechanical size: 37 mm * 34 6 mm * 9.5 mm

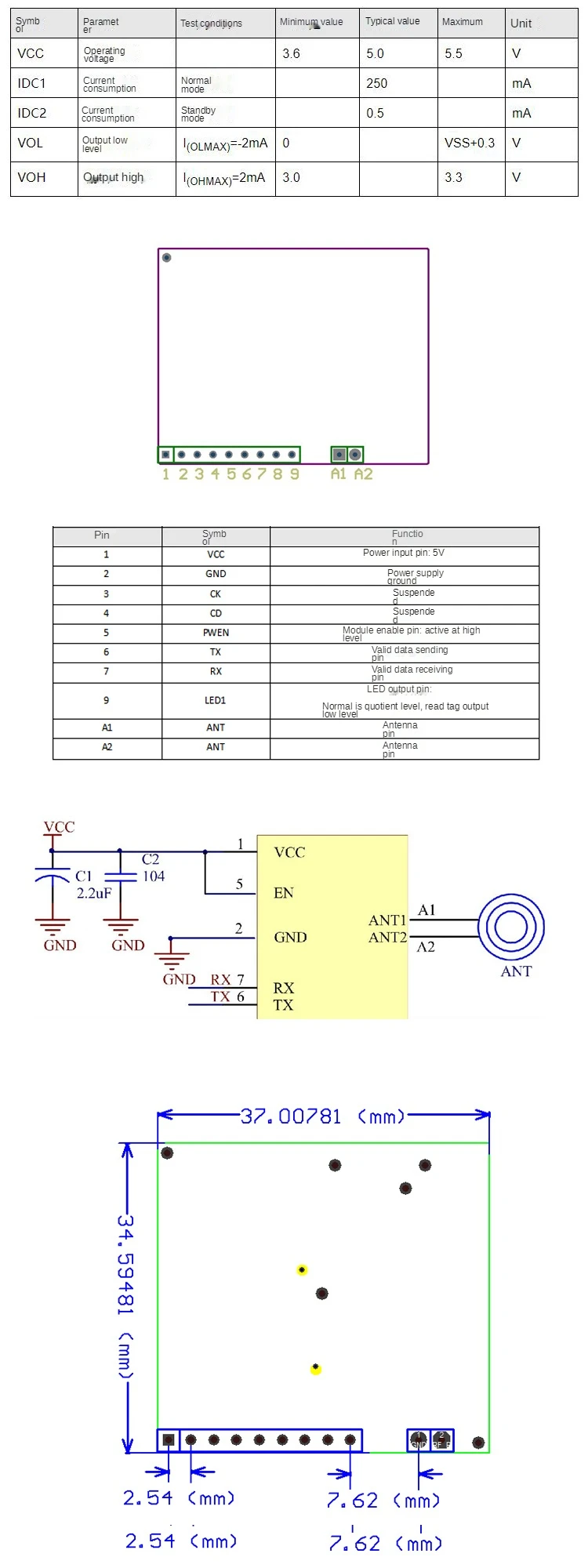

Electrical parameters
Working temperature: – 20 ° C to + 85 ° C
Storage temperature: – 40 ° C to + 125 ° C
Limit of voltage (VCC to VSS) : 0.3 V to + 5.5 V power supply pin to ground voltage: 0.3 V ~ + 5.8 V
Signal pin to ground voltage: 0.3 V to + 3.5 V each pin biggest IOL: 2 ma
Relative humidity: 5% ~ 95%
Note: the above “absolute maximum rating” under the condition of work will cause permanent damage to the device.Not covered above devices in these conditions or beyond these functions under the condition of operation.Device can’t work long time under the condition of the absolute maximum rating, otherwise it will affect its reliability.
Working frequency: 125 kHz, 134.2 kHz
Supports tags: EMID, FDX – B
Card read distance: 0-21 cm (read animal ear tag more than 21 cm) card read time:
Recognition rate: 2 m/s
Working voltage: 5 v
Communication interface: UART
Communication protocol: Standard protocol or Modbus Rtu protocol
Mechanical size: 37 mm * 34 6 mm * 9.5 mm
Electrical parameters
Working temperature: – 20 ° C to + 85 ° C
Storage temperature: – 40 ° C to + 125 ° C
Limit of voltage (VCC to VSS) : 0.3 V to + 5.5 V power supply pin to ground voltage: 0.3 V ~ + 5.8 V
Signal pin to ground voltage: 0.3 V to + 3.5 V each pin biggest IOL: 2 ma
Relative humidity: 5% ~ 95%
Note: the above “absolute maximum rating” under the condition of work will cause permanent damage to the device.Not covered above devices in these conditions or beyond these functions under the condition of operation.Device can’t work long time under the condition of the absolute maximum rating, otherwise it will affect its reliability.
