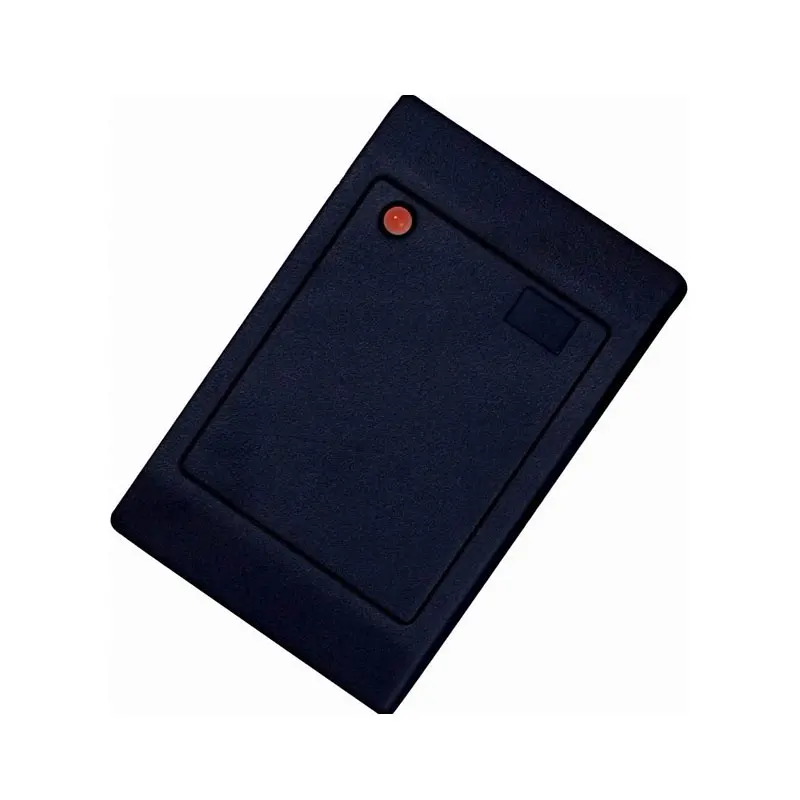

RFID reader, EM ID reader with 125K, black colour ,wiegand 26/34, suit for Access Control sn:A2D

Wiegand 26/34bits Standard Format Data Output

*Less than 0.2 second Response Speed

*5-10cm Proximity Range

*Ambient Temperature:-25c to 75c

*Ambient Humidity: 10%-90%

*Built-in Antenna

*Built-in LED (Double Color LED)

*Built-in Loud Speaker (Buzzer)

*DC 9V-16V Working Voltage. Standard 12V, 70mA Working Current

*100 Meters Communication Distance

*Real Time Data Transfer

*PVC Case Material

*With Outdoor Water-Proof Function

*Audiovisual indication: When a registered card is presented to the reader, the red LED flashes green and the beep sounds.

*114*76*16(mm)

*Package: 100pcs per carton. Carton Size: 43.5*56*23(cm)

Wire Connection

WG26/34

Red:DC 9V-16V

Black:GND

Green:D0

White:D1

Blue: LED

Yellow:BEEP

gray :ring

purple:ring
