S6R IP68 Waterproof Metal Access Control LED Indicators 125KHz RFID/EM/13.56MHz IC/Wiegand 26-34 Card Reader
Availability:
3 in stock
$51.36 – $54.93
- Hign-concerned Chemical: None
- Security Mode: Fail Safe with Signal
- Model Number: S6R-EM /s6r-MF Reader
- Brand Name: LUCKING DOOR
- Origin: Mainland China
- Direction: None
- Certification: None
- IP Rate: IP66
- Card Reading Range: 2~6cm
- Card Type: 125Khz EM 13.56MHz MF Card
- Working Temperature: -20°c ~ 60 °c
- Dimension: 103 x 48 x 19mm
S6R IP68 Waterproof Metal Access Control LED Indicators 125KHz RFID/EM/13.56MHz IC/Wiegand 26-34 Card Reader

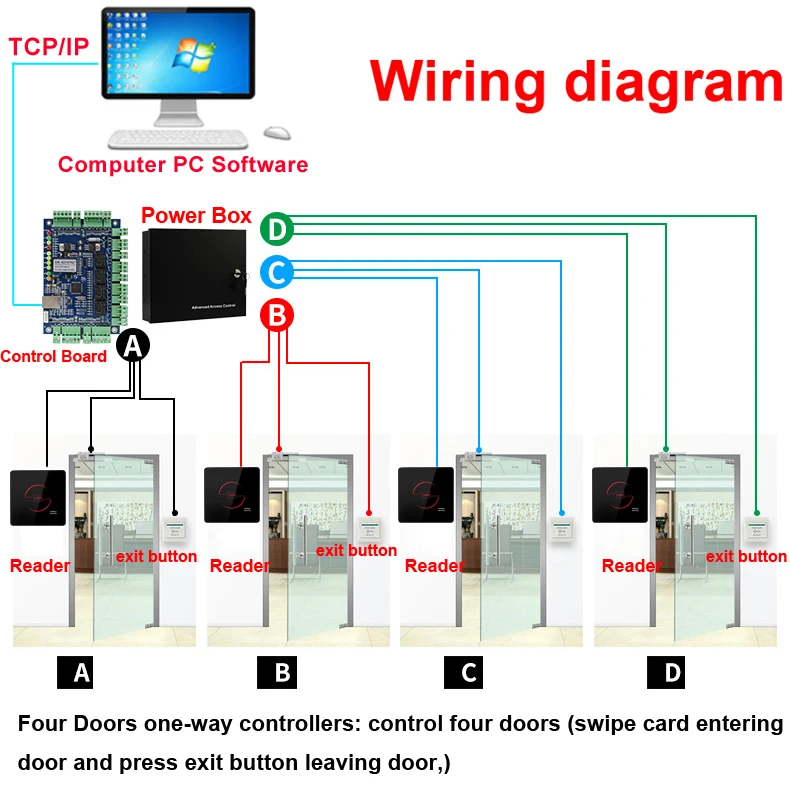

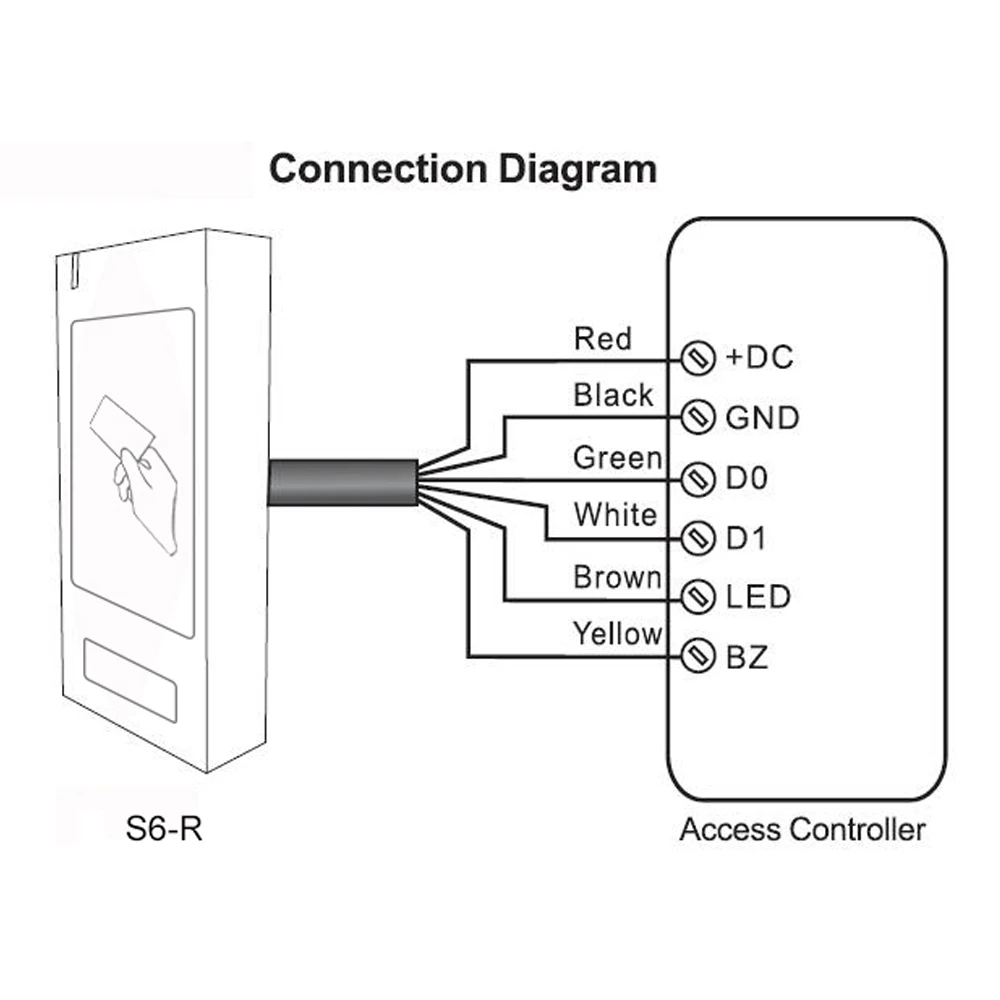

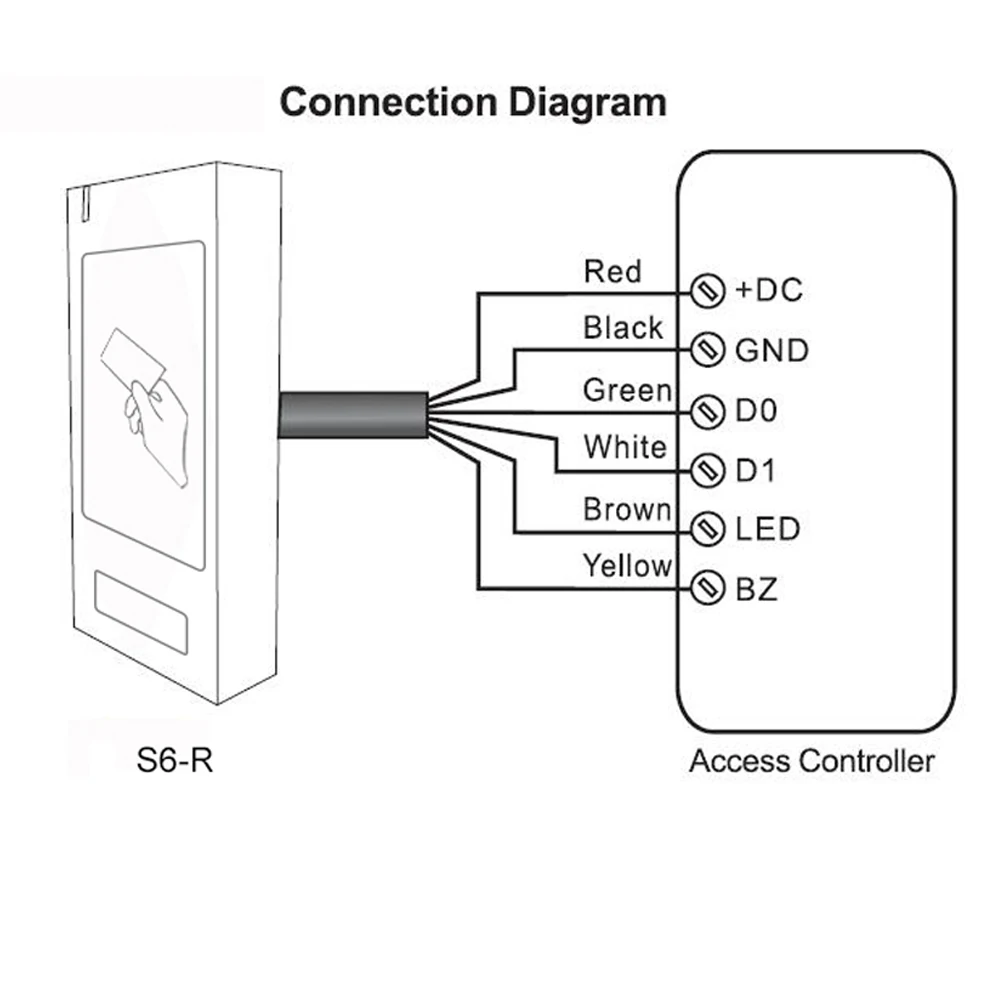

this item S6-R is a Wiegand slave reader ，not a all-in-one (Standalone) machine ，it required a controller to manage it by wiegand protocol (D0 D1) 26~37

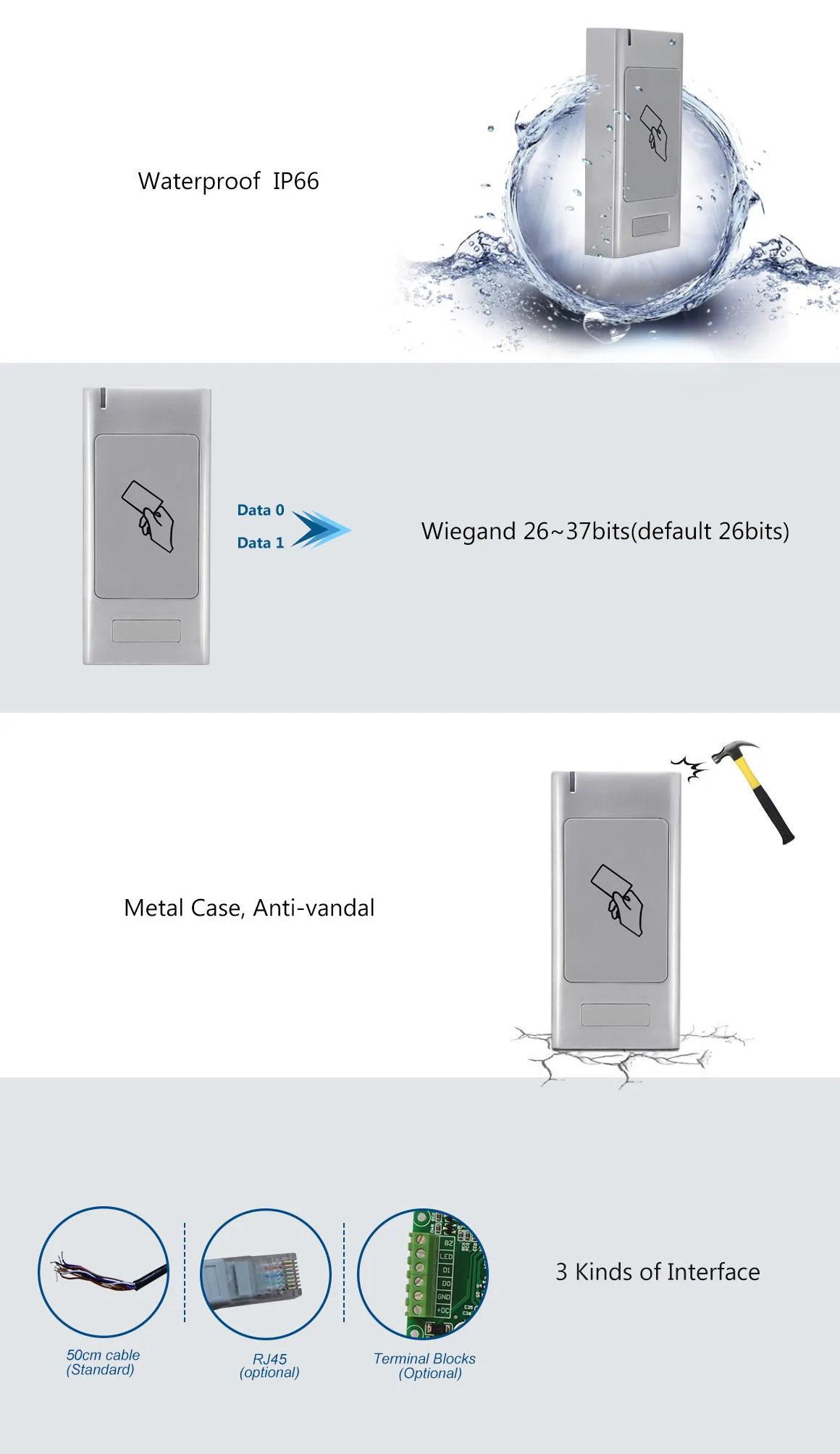

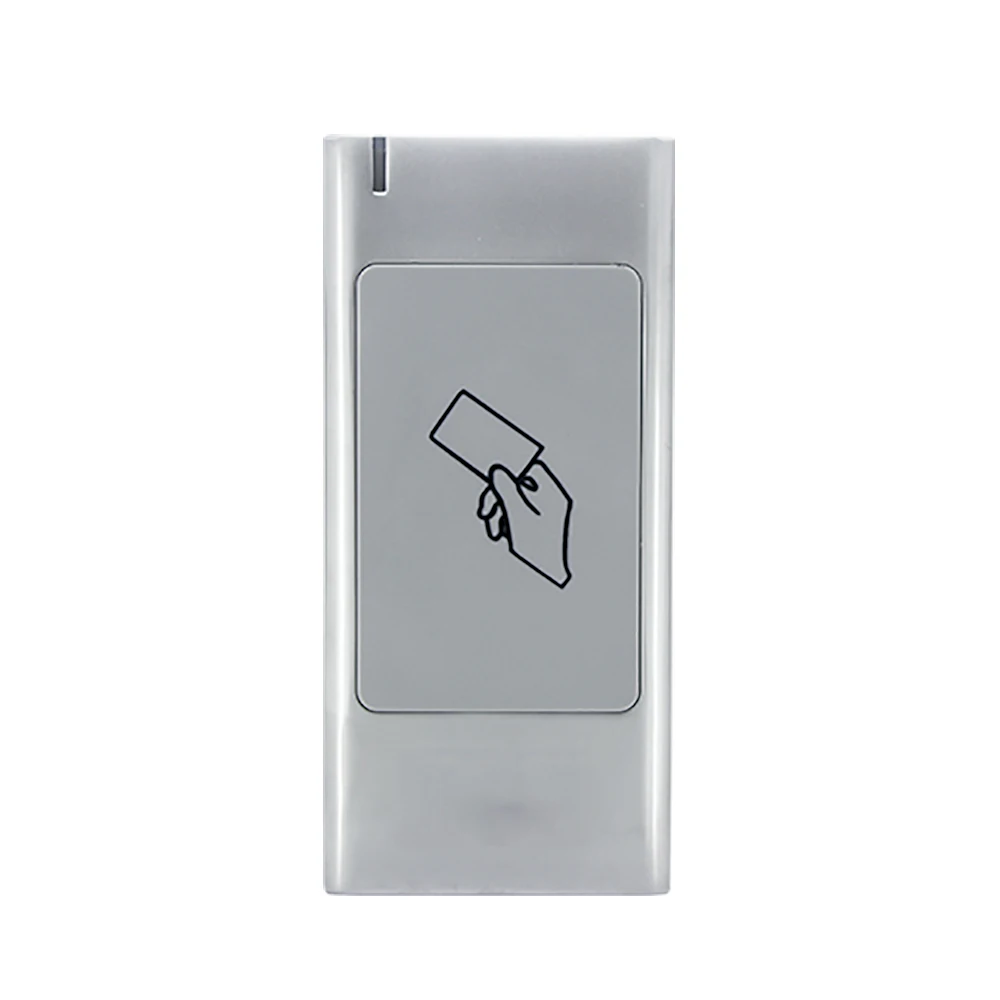

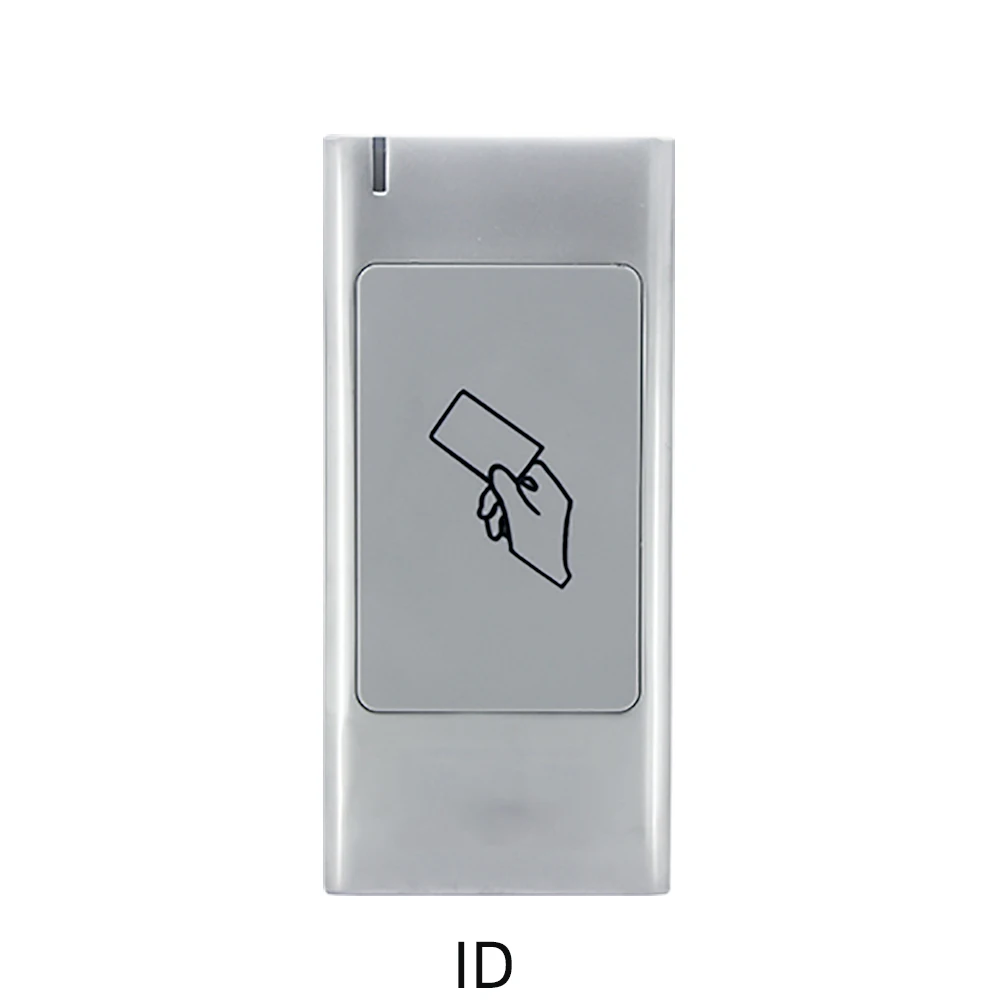

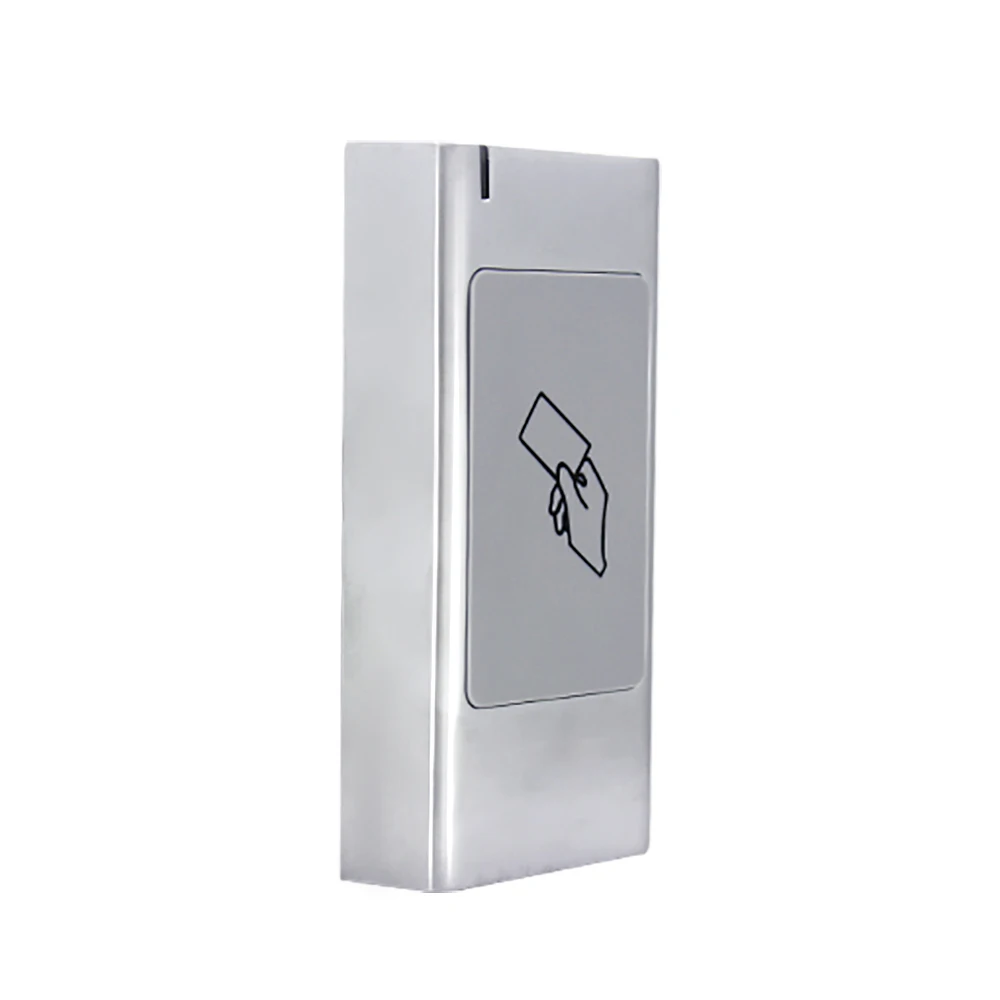

The S6-R (MF) reader is a metal case anti-vandal proximity reader.
Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.

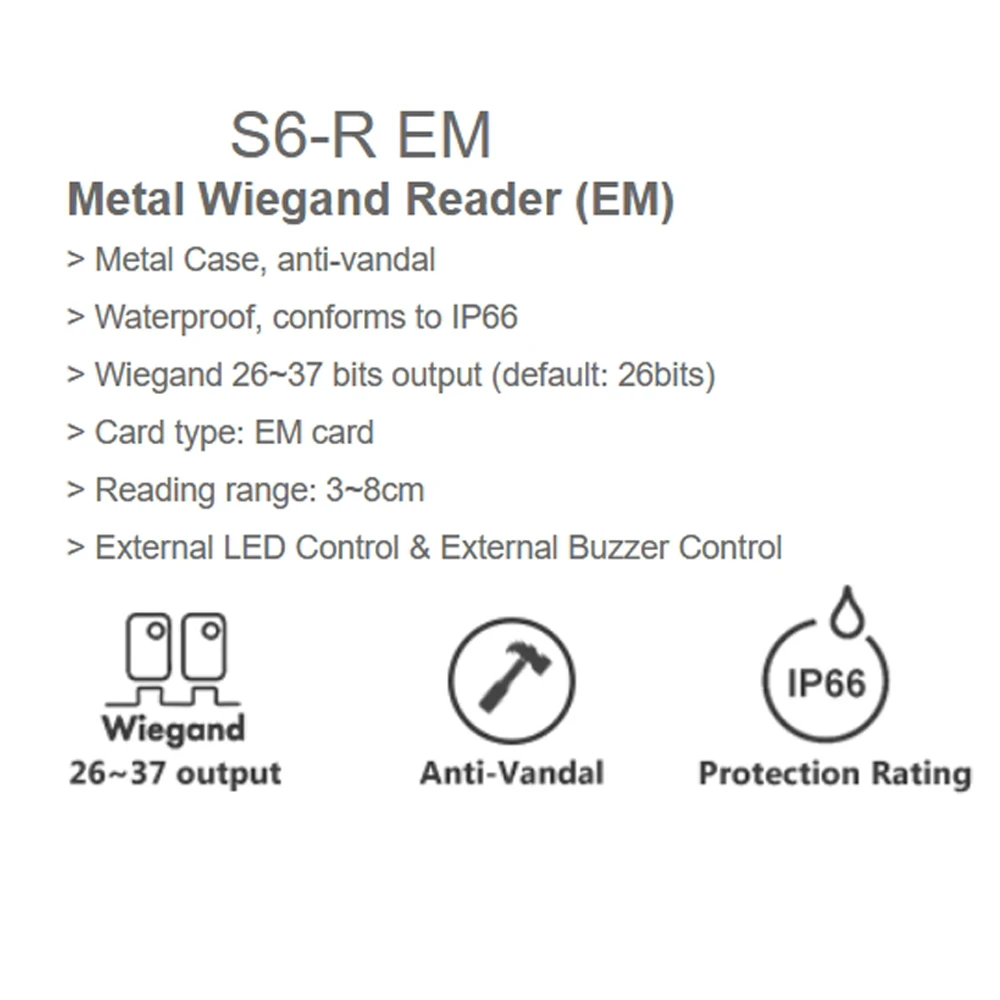

Metal Wiegand Reader (EM/Mifare)
> Metal Case, anti-vandal
>Waterproof, conforms to IP66
>Wiegand 26~37 bits output (default: 26bits)
>Card type: Mifare card
>Reading range: 3~8cm
>Wiegand 26~37 bits output (default: 26bits)
>Card type: Mifare card
>Reading range: 3~8cm
>External LED Control & External Buzzer Control
|
Operating Voltage
|
9~24V DC
|
|
Frequency
|
13.56MHz
|
|
Card Type
|
13.56MHz – Mifare Card (ISO 14443A Compatible)
|
|
Reading Distance
|
3~8 CM
|
|
Output Format
|
Wiegand 26 bits
|
|
(26~37 bits available upon request)
|
|
|
Operating Temperature
|
-40 oC ~ 60 oC (-40 oF ~ 140 oF)
|
|
Standby Current
|
< 25mA
|
|
Operating Humidity
|
10%~98% RH
|
|
Index of Protection
|
IP66
|
|
Dimensions
|
L103L x W48W x H19 (mm)
|
