A1D 125KHz Access Controller RFID Keypad Rainproof Cover EM Reader Door Entry Access Control System Electric Lock Opener
99 in stock
$20.39 – $31.36
- Hign-concerned Chemical: None
- Model Number: A1D
- Brand Name: LUCKING DOOR
- Origin: Mainland China
- Certification: CE,FCC
- Smart home platform: None
- Operating voltage: DC 12V±10%
- Operating current: < 100mA
- Operating temperature: 0℃-60℃
- Authentication Mode: Card or Password(PIN)
- Unlocking Duration: 5S
- Storage: 1000 users
- Card type: EM(standard)/MF(optional)
- Reading distance: 1-5CM
125KHz Access Controller RFID Keypad Rainproof Cover 10pcs EM keys Reader Door Entry Access Control System Electric Lock Opener

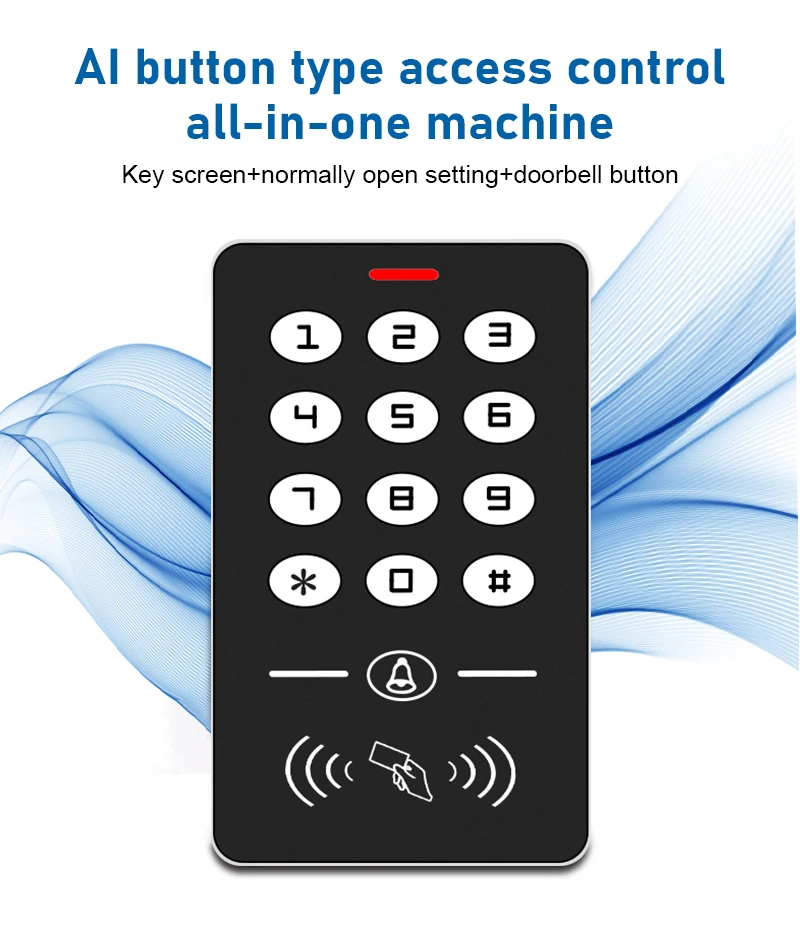

125KHz RFID Standalone Access Control Keypad
High quality / 1000 users capacity / 3 unlock methods
Product Description
High quality and high security.
Sensitively and response quickly.
1000 standard users .
Support card, password, password plus card to open the door.
With door bell button.
Classical Appearance with useful function.
Doesn’t need to connect to the computer, can works alone.
Application: Home/ hotel/ office/ department / apartment etc.

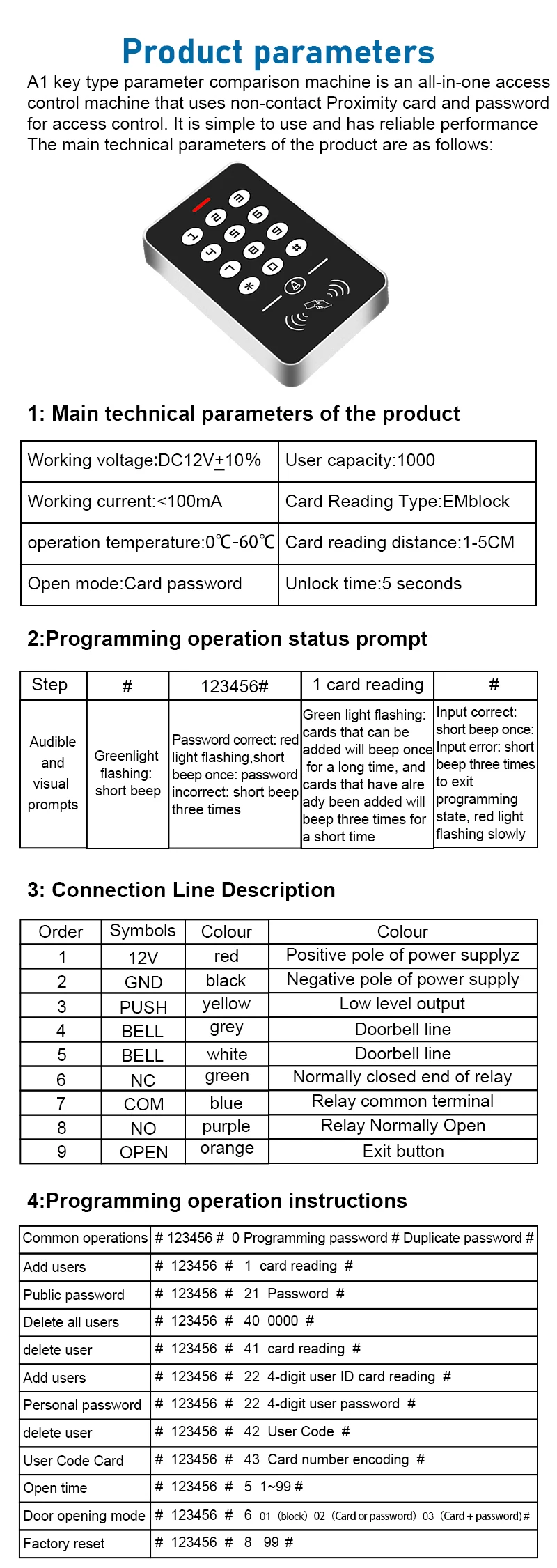

Product Specification
User capacity: 1000
Card reading type: EM card
Card reading distance: 0-5CM
Identification method: RFID card, password, RFID card + password
Programming password: 123456
Unlocking time: 5 seconds
Open the door input: all the way to open the button input
Doorbell output: one way wired doorbell output
Can be connected to automatic door or gate
Working voltage: DC 12V ±10%
Working power supply: 100mA
Size : 113*70*20mm

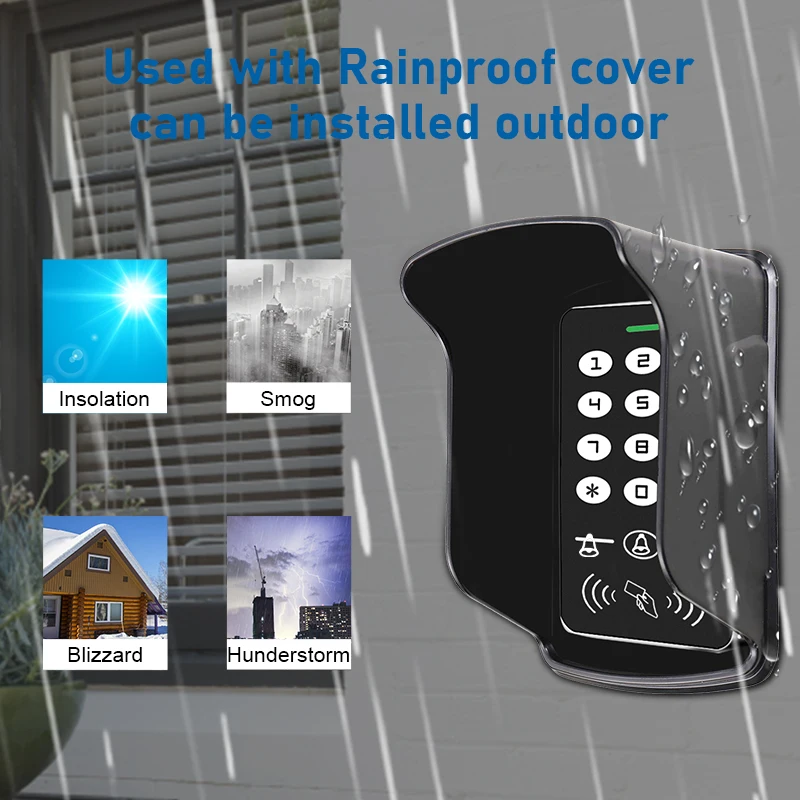

This Keypad is Not IP65 waterproof, can not be used under the rain directly
|

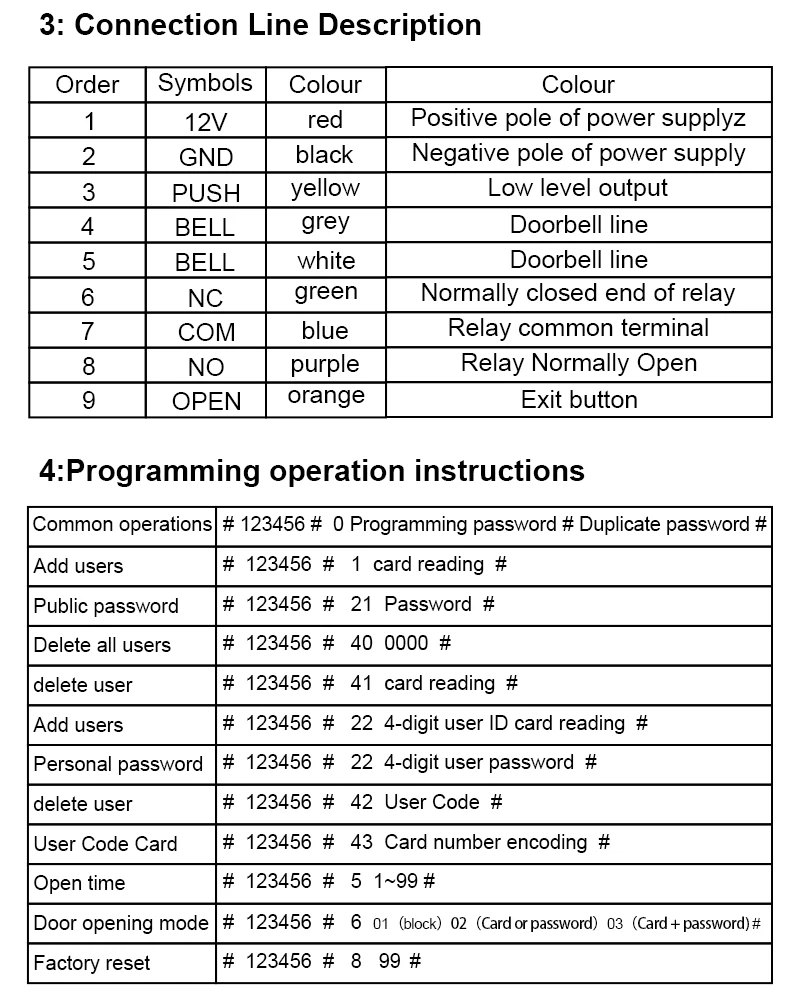

NO |
Mark |
Color |
Function |
|
1 |
+12V |
Red |
Power+ |
|
2 |
GND |
Black |
Power- |
|
3 |
PUSH |
BLUE |
Low level output |
|
4 |
OPEN |
Yellow |
Door Release |
|
5 |
BEL+ |
Grey |
High level Input |
|
6 |
BEL- |
White |
Voltage output |
