Cost-effective QR Code Scanner Mini Scanning Module USB UART RS232 1D 2D QR Code
Availability:
33 in stock
$15.00
- Hign-concerned Chemical: None
- Signal Connection Type: None
- Scan Breadth: A4
- Type: Barcode Scanner
- Interface Type: USB
- Scan Element Type: CMOS
- Scan Speed: 200 scans/second
- Optical Resolution: 600*1200
- Brand Name: ZYXRZYL
- Origin: Mainland China
|
Physical parameter
|
||
|
Trigger mode
|
Level trigger
|
|
|
Communication interface
|
12pin 0.5mm Flexible cable socket
|
|
|
Setting mode
|
Manually scan the setting codes one by one
|
|
|
Dimensions of appearance
|
22.47mm×10.89mm×9.1mm
|
|
|
Weight
|
1.7g
|
|
|
Performance parameter
|
||
|
Sensor
|
300000 CMOS
|
|
|
Resolution
|
640*480
|
|
|
Light source
|
White LED
|
|
|
Scanning Angle
|
±60°,±60°,360°（Elevation, Declination, Dorner,）
|
|
|
Scanning rate
|
30 frames per second
|
|
|
Field Angle
|
48° (H) x 30° (V)
|
|
|
Printing contrast
|
Minimum 15%
|
|
|
Decoding type
|
1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11,
CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, GS1 Composite 2D: QR Code, Data Matrix (DM), PDF417, Micro QRCode, MaxiCode, Aztec Code，Support mobile phone screen reading code |
|
|
Minimum resolution
|
1D 3.5MIL；2D 10MIL
|
|
|
Depth of view
|
QR（15mil） 30~210mm
QR Payment Code 80~550mm Data Matrix（10mil） 30- 140mm PDF 417（6.7mil） 50- 120mm |
EAN-13（13mil） 50~280mm
Code 39（8mil） 30- 190mm Code 128（15mil） 80~320mm |
|
Electrical parameter
|
||
|
Input voltage
|
DC 3.3V±10%
|
|
|
Electric current
|
200mA
|
|
|
Environmental parameter
|
||
|
Temperature
|
0°C-50°C (working); -40℃~+60℃ (storage)
|
|
|
Humidity
|
5%-95% no condensation
|
|
Feature
1. Can easily read all kinds of mainstream one-dimensional barcodes and two-dimensional barcodes.
2. Mini size, can be embedded in
various wireless machines, self-service terminals, etc., widely used in various industries.
3. High-brightness LED auxiliary lighting, you can scan the code even in dark conditions.
4. Support a variety of systems, which can be customized according to customer needs.
various wireless machines, self-service terminals, etc., widely used in various industries.
3. High-brightness LED auxiliary lighting, you can scan the code even in dark conditions.
4. Support a variety of systems, which can be customized according to customer needs.

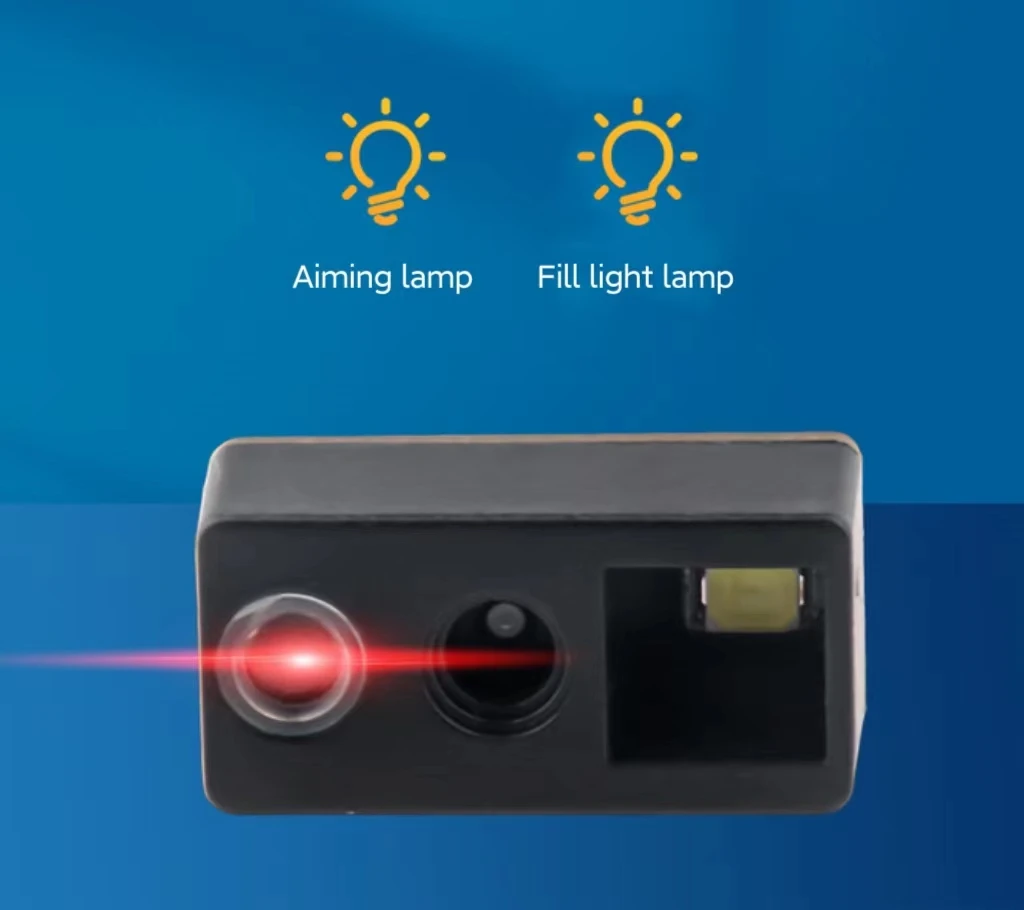

Auxiliary lighting and aiming
R25 uses high-brightness LEDs to provide exposure-assist illumination for fast barcode reading, even in complete darkness.
The lighting function can be turned on or off through the settings. The R25 uses a red aiming light to provide a single-character
aiming indication pattern, which is used to assist the user to aim at the target, facilitate barcode reading and improve reading efficiency. Aiming can be turned on or off by setting.
The lighting function can be turned on or off through the settings. The R25 uses a red aiming light to provide a single-character
aiming indication pattern, which is used to assist the user to aim at the target, facilitate barcode reading and improve reading efficiency. Aiming can be turned on or off by setting.
The R25 supports scanning a variety of barcodes.
Exquisite size design
Exquisite size design, can be easily embedded into various machines and equipment.
Meet a variety of application scenarios
