5GBase-T 1 Port 5000Mbps M.2 b key M key to PCIe 5gb Ethernet Card RTL8126 RJ45 LAN Controller Card
69 in stock
$49.55
69 in stock
- Frequency: None
- Heat dissipation: No support
- Wireless Communication Standard: None
- Frequency Band Class: None
- Bluetooth Protocol: No support
- Wired socket: NGFF
- Wireless socket: None
- Wired transmission rate: 5G
- Wired Interfaces: RJ45
- Model Name: IO-M2F8126-GLAN
- Wireless transmission rate: None
- Hign-concerned Chemical: None
- Lan Transmission Rate: 1000M Ethernet
- Applicable Network Type: Gigabit Ethernet
- Certification: None
- Package: Yes
- Model Number: IO-M2F8126-GLAN
- Application: Desktop
- Interface Type: NGFF
- Adapter Socket: RJ45
- Kind: Internal
- Transmission Rate: 5000Mbps
- Type: Wired
- Brand Name: Mmui
- Origin: Mainland China
- Color: Black
- Chipset: RTL8126
- Port: 1 RJ45
- Interface: M.2(B+M)Key
- Speed: 5Gbps

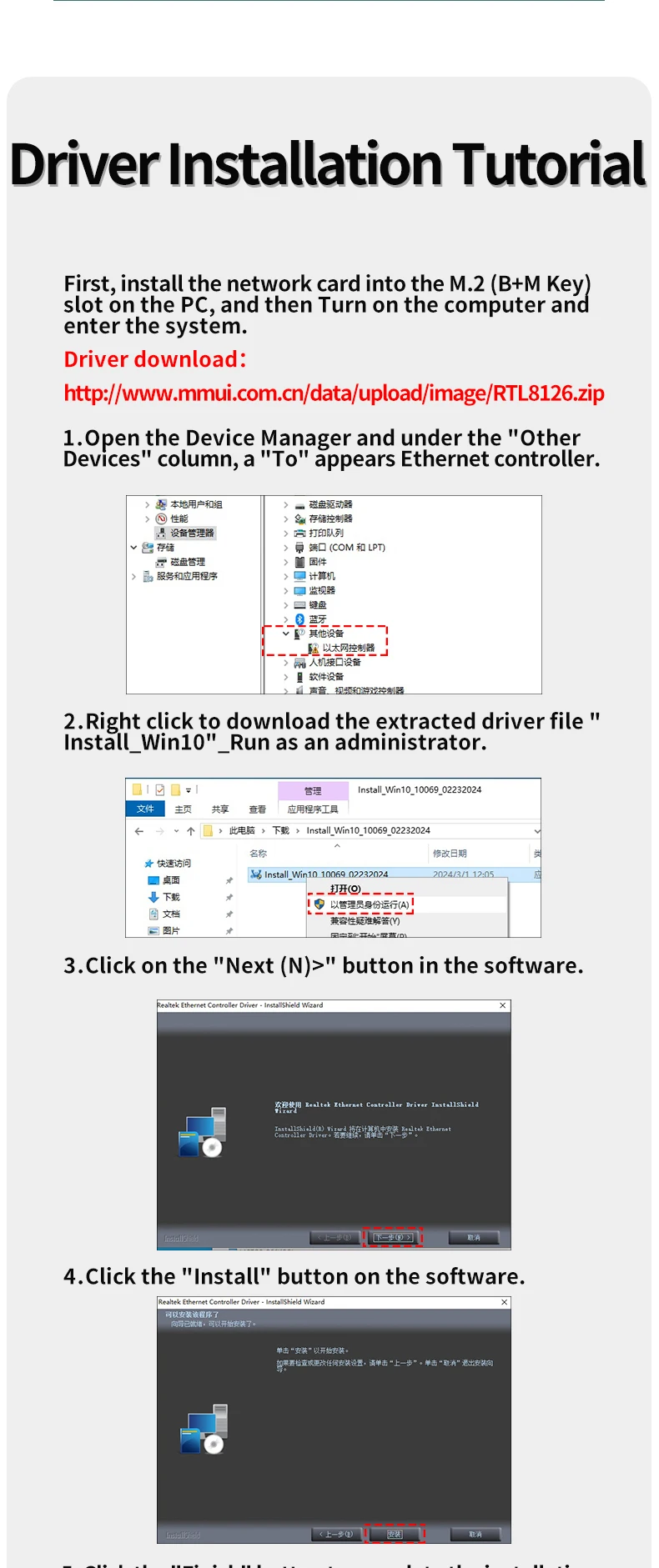

Driver Download
Features
• Supports PCI Express revision 3.1
• Compliant with M.2 Key B+M NGFF card Electromechanical Specification
• Compatible with M.2 key B/M (2280) Card Electromechanical specification
• Supports 1-Lane 2.5/5/8Gbps PCI Express Bus
• Supports 5G Lite (2.5G data rate) mode, 2.5G Lite (1G data rate) and GIGA Lite (500M data rate) mode
• Auto-Negotiation with Extended Next Page capability (XNP)
• Compatible with NBASE-T TM Alliance PHY Specification
• Supports pair swap/polarity/skew correction
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Supports power down/link down power saving/PHY disable mode
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
• Supports PXE
IEEE
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE802.3ab
• Supports IEEE 802.1Qav credit-based shaper algorithm
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.1ad Double VLAN
• Supports IEEE 802.3az (Energy Efficient Ethernet)•
• Supports IEEE 802.3bz
• Supports IEEE 802.3bz
• Supports jumbo frame to 16K bytes
• Ambient Operating Temperature TA：0~70°C
• Storage Temperature:-55~+125°C
System Requirements:
• Windows
• Linux
• MacOS 10.7 or Later
Package Contents
• 1 x M.2 B+M Key RTL8126 Gigabit network adapter-main card
• 1 x RJ45 Network Connector card-daughter board
• 1 x 12-Pin Network cable
• 1 x User Manual
• 1 x Low-profile bracket
Note: Contents may vary depending on country/market
Driver Download
Features
• Supports PCI Express revision 3.1
• Compliant with M.2 Key B+M NGFF card Electromechanical Specification
• Compatible with M.2 key B/M (2280) Card Electromechanical specification
• Supports 1-Lane 2.5/5/8Gbps PCI Express Bus
• Supports 5G Lite (2.5G data rate) mode, 2.5G Lite (1G data rate) and GIGA Lite (500M data rate) mode
• Auto-Negotiation with Extended Next Page capability (XNP)
• Compatible with NBASE-T TM Alliance PHY Specification
• Supports pair swap/polarity/skew correction
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Supports power down/link down power saving/PHY disable mode
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
• Supports PXE
IEEE
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE802.3ab
• Supports IEEE 802.1Qav credit-based shaper algorithm
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.1ad Double VLAN
• Supports IEEE 802.3az (Energy Efficient Ethernet)•
• Supports IEEE 802.3bz
• Supports IEEE 802.3bz
• Supports jumbo frame to 16K bytes
• Ambient Operating Temperature TA：0~70°C
• Storage Temperature:-55~+125°C
System Requirements:
• Windows
• Linux
• MacOS 10.7 or Later
Package Contents
• 1 x M.2 B+M Key RTL8126 Gigabit network adapter-main card
• 1 x RJ45 Network Connector card-daughter board
• 1 x 12-Pin Network cable
• 1 x User Manual
• 1 x Low-profile bracket
Note: Contents may vary depending on country/market
