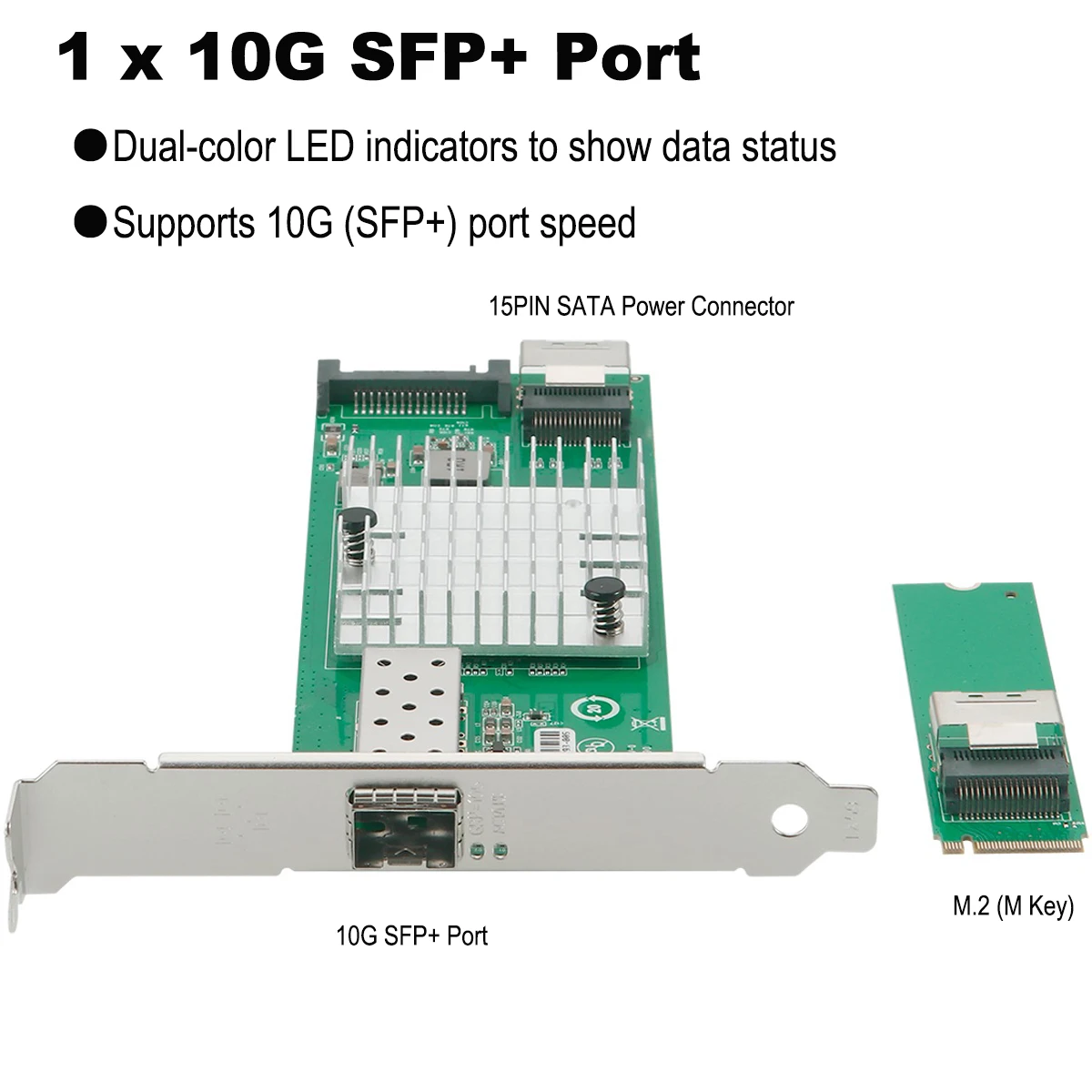

M.2 to Single Port 10G SFP+ Fiber Optic Network Card JL82599EN Chip X520-DA1 M key10GbE Ethernet Adapter for Server Workstation
99 in stock
$61.29
99 in stock
- Frequency: None
- Heat dissipation: Support
- Wireless Communication Standard: None
- Frequency Band Class: None
- Bluetooth Protocol: No support
- Wired socket: NGFF
- Wireless socket: None
- Wired transmission rate: 10G
- Wired Interfaces: Optical fiber
- Model Name: MI29F11
- Wireless transmission rate: 10000M
- Hign-concerned Chemical: None
- Length: 50cm
- Lan Transmission Rate: 10000M Ethernet
- Applicable Network Type: 10-Gigabit Ethernet
- Certification: None
- Package: Yes
- Model Number: MI29F11
- Application: Server
- Interface Type: NGFF
- Adapter Socket: RJ45
- Kind: Internal
- Transmission Rate: 10000Mbps
- Type: Wired
- Brand Name: Mmui
- Origin: Mainland China
- Interface Type: M.2 M key
- Number of Ports: 1
- Port Type: SFP+
- Data Rate: 10Gbps
- Power Supply: 15-pin SATA
- Operating Temperature:: 0℃ to 55℃ (32℉ to 131 F)
- Storage Temperature: -40℃ to 70℃ (-40℉ to 158F)
- Compatibility: Windows, Linux, VMware
Driver Download:
http://www.mmui.com.cn/data/upload/image/intel82599.zip
Features
• Speed/port: 10Gbps (fiber for servers and workstations)
• Ethernet controller: Intel 82599ES
• Connector and cable medium: LC fiber optic
• Cabling type: MMF 62.5/50µm, up to 300m
• Maximum bus speed and slot width: PCI Express 2.0/5.0GT/s x 4 lane
• Ports: one SFP+ slots for SFP+ SR, SFP+ LR modules and direct attach SFP+ cables
• Bus type: PCI express 2.0 (5 GT/s)
• Data rate supported per port: optical: 1GbE/10GbE direct attach: 10GbE
• Network standards: IEEE 802.3
• Interrupt levels: INTA, MSI, MSI-X
• Supported slot height(s): low profile and full height
• Intel VT for connectivity1: virtual machine device queues (VMDq), virtual machine
direct connect (VMDc)
• Security features: IPSEC/LinkSec
• IWARP/RDMA: NA
• Typical power consumption: maximum power 10.7W, typical power: 10.0W
• LED indicators: LINK (solid) and ACTIVITY (blinking), LINK SPEED (green =
• Working Temperature: 0℃ to 55℃ (32℉ to 131℉)
• Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉)
• Storage Humidity: 5% to 90% non-condensing relative humidity at 35℃
System Requirements
• Windows* Vista* SP1
• Windows Server* 2003 SP2
• Windows* Unified Storage Solution 2003
• Windows Server* 2008
• Linux* Stable Kernel version 2.6
• Linux* RHEL 4,Linux* RHEL 5
• Linux* SLES 9,Linux* SLES 10
• FreeBSD* 7.0,UEFI* 1.1
• VMware ESX* 3.x
Package Contents
• 1 x M.2(M key) to 10G SFP+ Lan Card
• 1 x Low Profile Bracket
Driver Download:
http://www.mmui.com.cn/data/upload/image/intel82599.zip
Features
• Speed/port: 10Gbps (fiber for servers and workstations)
• Ethernet controller: Intel 82599ES
• Connector and cable medium: LC fiber optic
• Cabling type: MMF 62.5/50µm, up to 300m
• Maximum bus speed and slot width: PCI Express 2.0/5.0GT/s x 4 lane
• Ports: one SFP+ slots for SFP+ SR, SFP+ LR modules and direct attach SFP+ cables
• Bus type: PCI express 2.0 (5 GT/s)
• Data rate supported per port: optical: 1GbE/10GbE direct attach: 10GbE
• Network standards: IEEE 802.3
• Interrupt levels: INTA, MSI, MSI-X
• Supported slot height(s): low profile and full height
• Intel VT for connectivity1: virtual machine device queues (VMDq), virtual machine
direct connect (VMDc)
• Security features: IPSEC/LinkSec
• IWARP/RDMA: NA
• Typical power consumption: maximum power 10.7W, typical power: 10.0W
• LED indicators: LINK (solid) and ACTIVITY (blinking), LINK SPEED (green =
• Working Temperature: 0℃ to 55℃ (32℉ to 131℉)
• Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉)
• Storage Humidity: 5% to 90% non-condensing relative humidity at 35℃
System Requirements
• Windows* Vista* SP1
• Windows Server* 2003 SP2
• Windows* Unified Storage Solution 2003
• Windows Server* 2008
• Linux* Stable Kernel version 2.6
• Linux* RHEL 4,Linux* RHEL 5
• Linux* SLES 9,Linux* SLES 10
• FreeBSD* 7.0,UEFI* 1.1
• VMware ESX* 3.x
Package Contents
• 1 x M.2(M key) to 10G SFP+ Lan Card
• 1 x Low Profile Bracket
