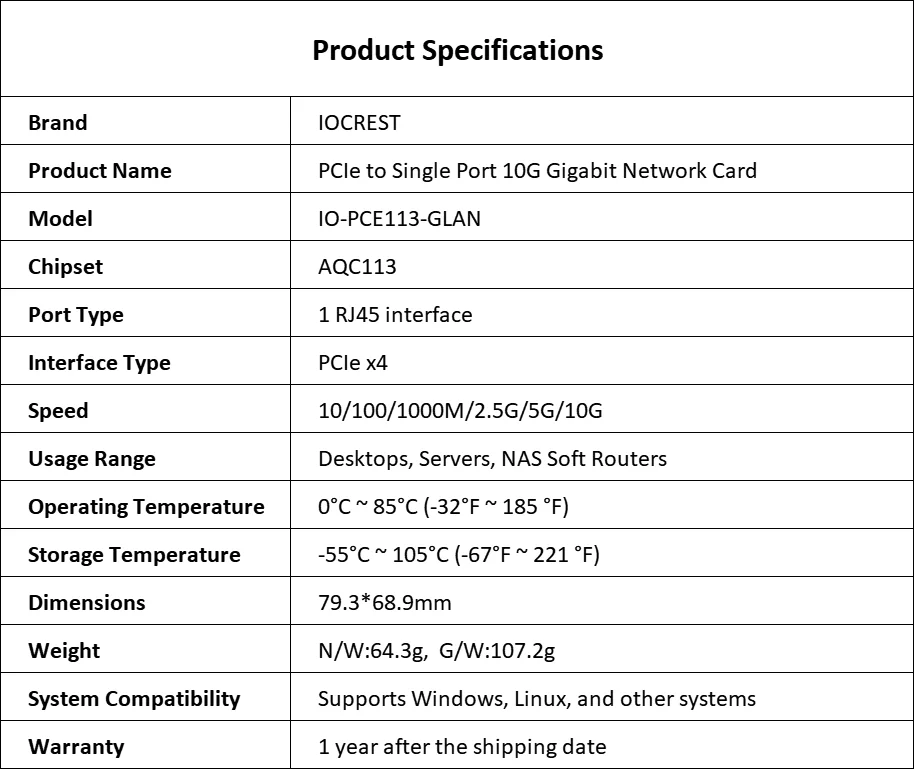

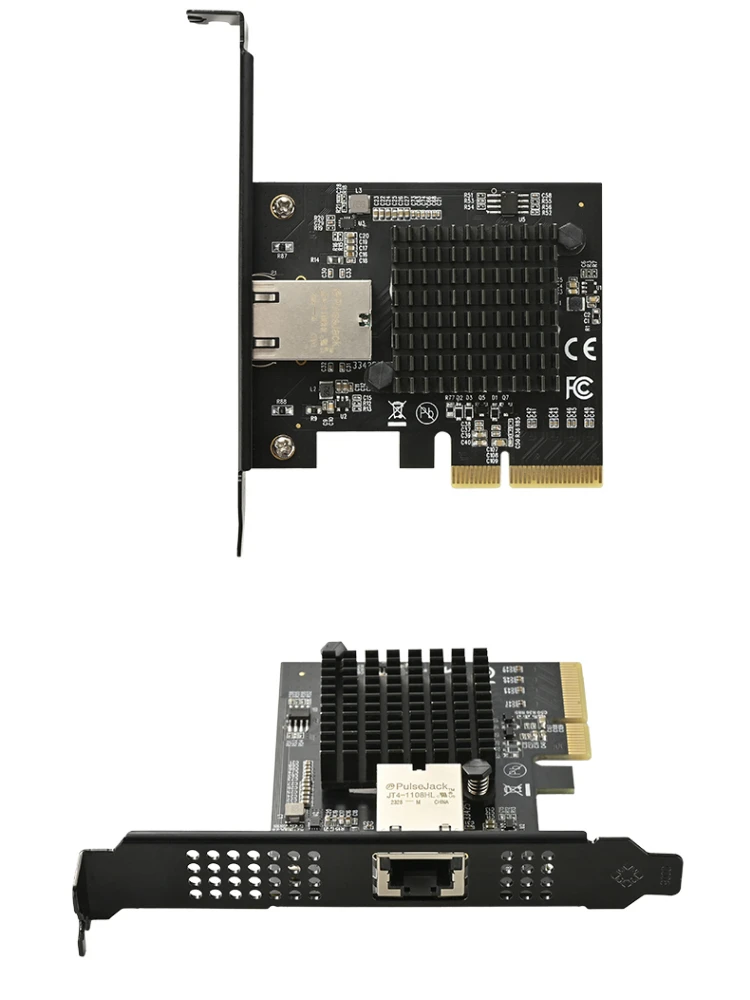

10Gbps AQC113 PCIE To Single Port RJ45 Network Card 1G/2.5G/5G/10Gbps PCIex4 Interface Ethernet Wired LAN Win10/11
100 in stock
$142.52 – $157.52
- Frequency: None
- Heat dissipation: Support
- Wireless Communication Standard: None
- Frequency Band Class: None
- Bluetooth Protocol: No support
- Wired socket: PCI-E
- Wireless socket: None
- Wired transmission rate: 10G
- Wired Interfaces: RJ45
- Model Name: IO-PCE113-GLAN
- Wireless transmission rate: None
- Hign-concerned Chemical: None
- Lan Transmission Rate: 10000M Ethernet
- Transmission Speed: 1200 Mbps
- Applicable Network Type: 10-Gigabit Ethernet
- Wireless Protocol: 802.11n
- Package: Yes
- Model Number: IO-PCE113-GLAN
- Application: Server
- Interface Type: PCI Express
- Adapter Socket: RJ45
- Kind: Internal
- Transmission Rate: 10000Mbps
- Type: Wired
- Brand Name: Mmui
- Origin: Mainland China
- Product Status: stock
- Bus Type: PCI Express x4
- Compatible Slot: PCI Express x4 ,x8,x16
- Chipset: AQTION AQC113 Chipset
- Color: Red
- Speed: 10Gbps

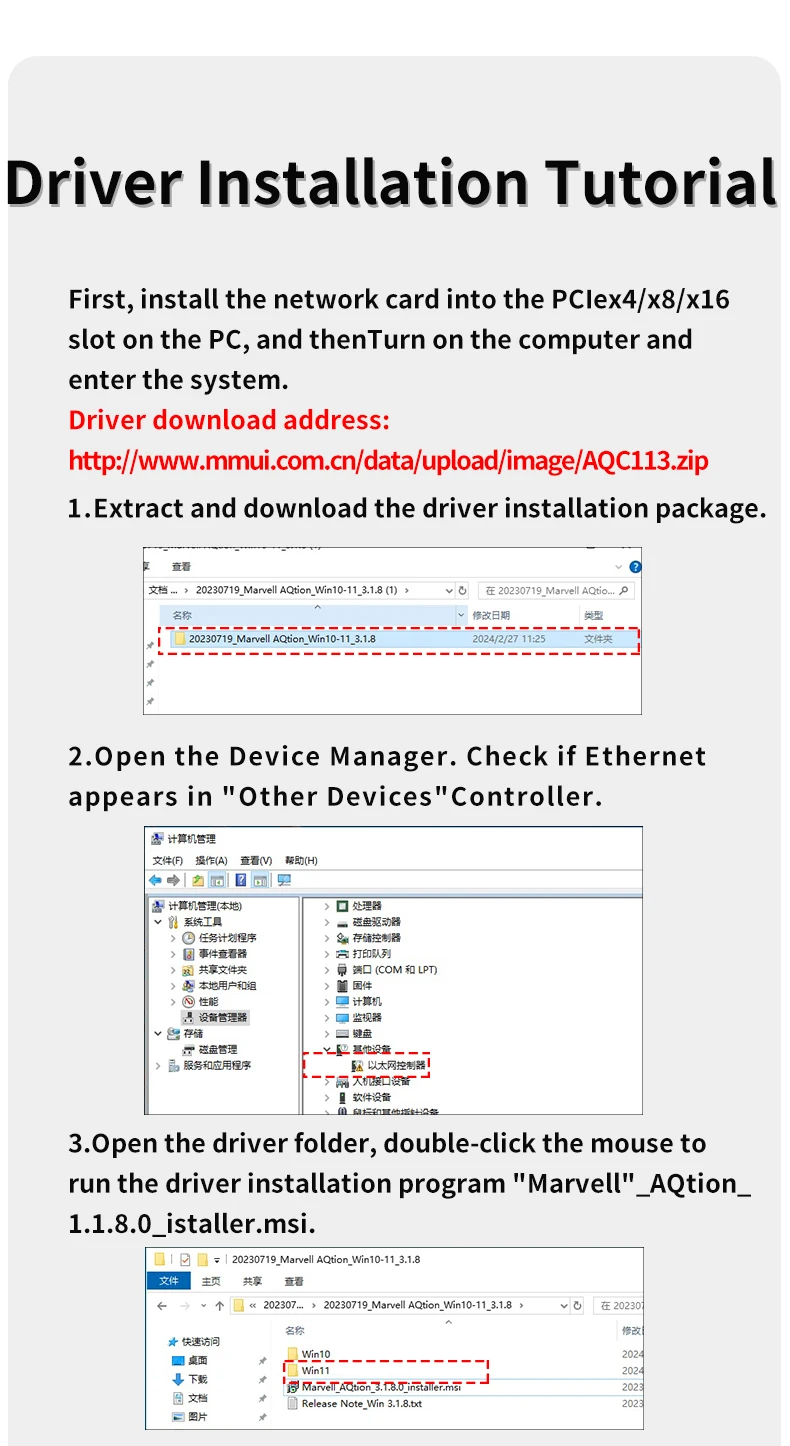

Driver Download
http://www.mmui.com.cn/data/upload/image/AQC113.zip
Features
• Supports bus widths: Gen4 x1, Gen3 x4, x2, x1
• Support PCI Express Gen-III x4
• Supports line rates up to 16.0 GT/s, 8.0 GT/s, and 5.0 GT/s per lane
• Jumbo frame support up to 16 KB
• Support 10G/5G/2.5G/1000M/100M LAN speed
• 2.5W typical 10GBASE-T operating power per port: 100 meters of Cat 6A
• 1.5W typical 5GBASE-T operating power per port
• 1W typical 1GBASE-T operating power per port
• Audio Video Bridging (AVB) and PTP/1588v2
• Synchronous Ethernet (Sync-E), ITU-T standard in accordance with IEEE
• Supports Message-Signaled Interrupts (MSI and MSI-X), and legacy INTx PCIe interrupts
• Support for the Network Controller Sideband Interface (NC-SI)
• Management Component Transport Protocol(MCTP)
• IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair
• IEEE 802.3bz 2.5/5GBASE-T
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.1Q VLANs
• IEEE 802.3x Full Duplex and flow contro
• IEEE 802.3az – Energy Efficient Ethernet (EEE)
• Support Preboot Execution Environment (PXE)
• FCoE No
• Operation Temperature :0°C to +108°C
• Storage Temperature-40°C to +110°C
System Requirements:
• Microsoft® Windows®, 10/11 ,Server 2022
• RHEL/Centros7.3/7.6/7.9/8.2/8.3
• Deepin 15.11/20/20/20.6
• Ubuntu 16.04.3/18.04.5 and later releases
Package Contents
• 1 × PCIe x4 to single 10G Ethernet network Card
• 1 × User Manual
• 1 x Low Profile Bracket
