Resettable Fire Emergency Glass Emergency Release Exit Fire Alarm switch Door Release Urgent Button Release Switch With Cover
34 in stock
$12.66 – $21.25
- Hign-concerned Chemical: None
- Model Number: E20-2S
- Size: 86*86*50(mm)
- Item Type: Exit Button
- Origin: Mainland China
- Input: DC12V
- Contact Rating: 3A@36VDC Max

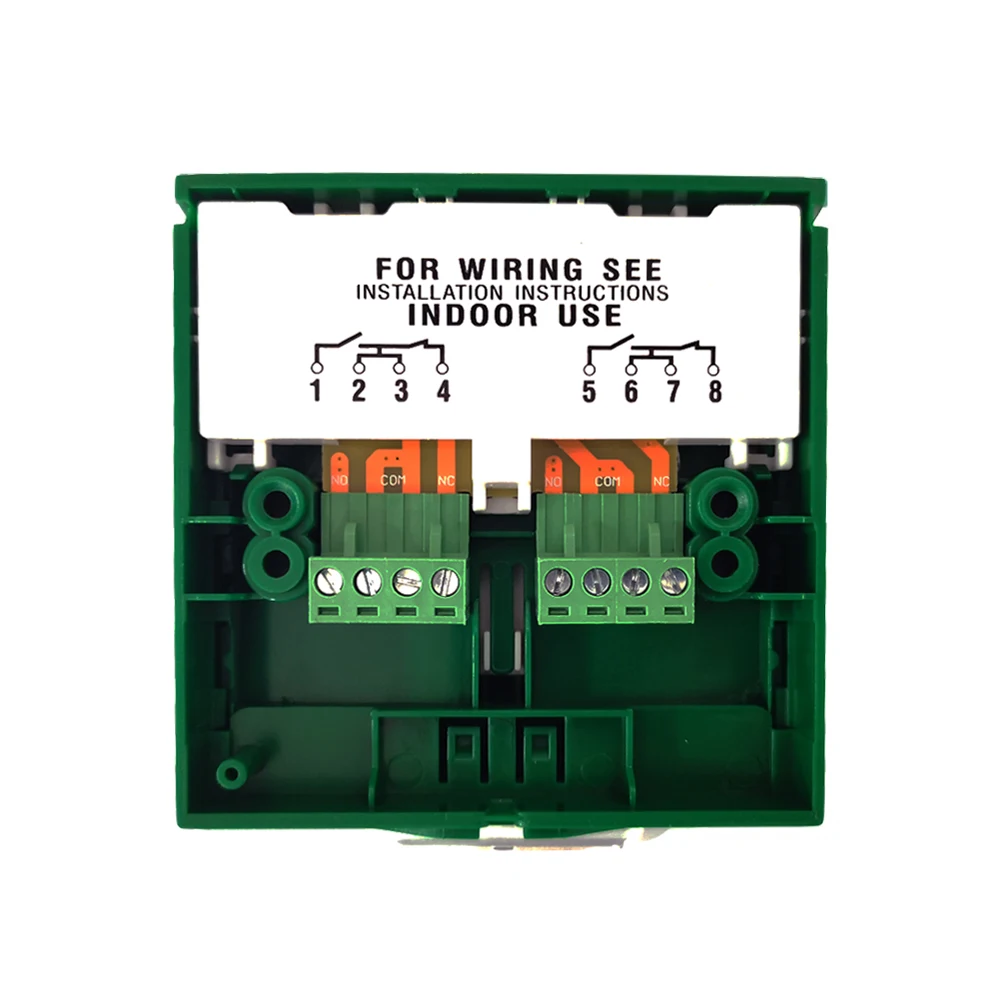

- Output Contact: NO/NC/COM
- is_customized: Yes
- Color: White/Red/Green
Resettable Emergency Exit Release(With cover),also called the emergency push button, it is a series in the electric lock loop, to prevent the entrance guard system of card reader, push button or controller hardware failure inside personnel dozen don't open the door. Locked in the room, when faced with the above situation to press the emergency push button and the lock power will be disconnected, the door is opened.
Use the Fireproof Material, Accord with the Safe Request
Sandblast Panel with Elegant Style
Different colours (Green,red,white) options for different occasions
Specification:
Standard Structure:Fireproof Material, Easy to install
Current Rating:3A 36VDC Max

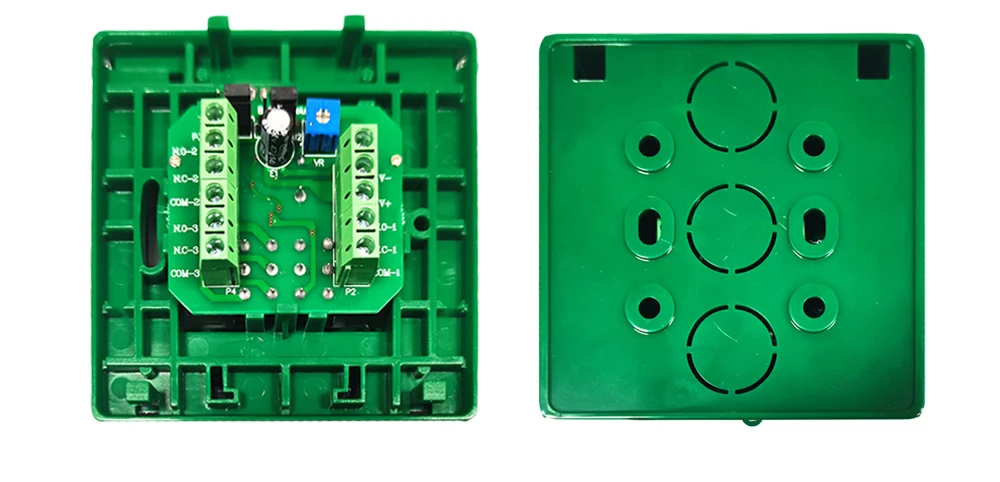

Output Contact:2NONCCOM;3NO/NC/COM(LED)
Suitable for Door:Exit Door, Emergence Door
Operating temp:10°C~+55°C(14-131F)
Operating Humidity:0-95% (non- condensing)
Material Selection:Fireproof Material, Sandblast Finished
Weight:0.2kg
