20R Optical Fingerprint Scanner Usb Reader Biometric Fingerprint Sensor Support Windows, Android,Linux Free SDK For PC

Note:

1.The fingerprint device cannot be directly connected to the computer for use, so it needs to develop SDK to use it. We will provide free SDK. If the fingerprint device cannot be used because you do not know how to develop SDK, please bear the loss caused by it, thank you.
2.You can contact customer service before purchase, we will provide SDK, please make sure you can develop SDK before purchase, thank you.
3.If you are just using fingerprint registration in ZKTeco software, you can purchase it directly, it works with ZKTeco software, no need to re-develop the SDK.

Introduction:

SLK20R is a leading fingerprint scanner designed by USA laboratory which adopts the advanced optical design. It has a superior

ability to do live fingerprint detection and capture high-quality fingerprint images by 2 Megapixel camera. It can be the most

comfortable and affordable desktop enrollment and identification device.

Features:

• Stable operation under strong light

• Support live fingerprinter detection function

• Large fingerprint capture area and high image performance

• Quick recognition of dry, wet and rough fingers

• High Speed USB 2.0

• Low Power Idle Mode

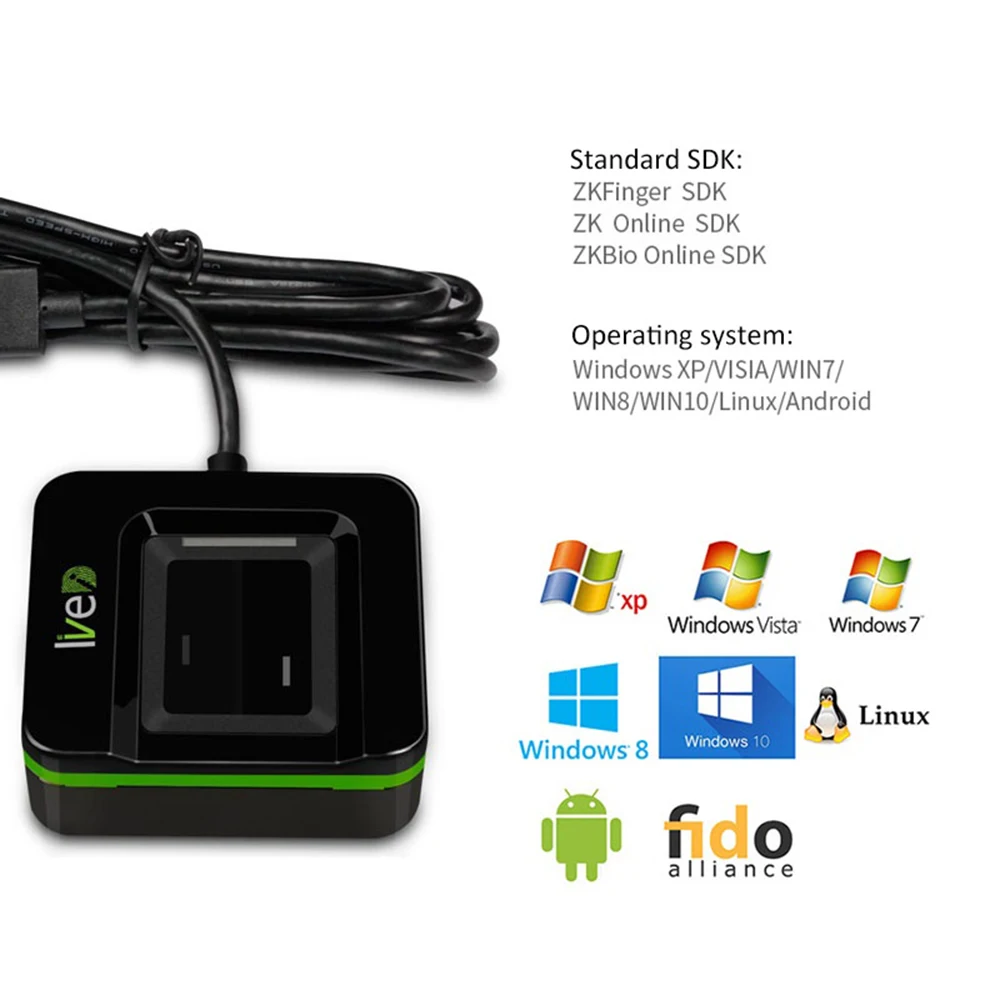

• Available SDK for development

Specifications:

Model Name:Live 2OR

Material:Optical

CPU :280MHz DSP

Flash:32 MB

SoC:RTOS[image out only]

Image Quality:2 million pixels CMOS

Encrypted Fingerprint Data:YES

Sunlight Operation:Yes, Dark field and Automatic Gain/ Exposure

Water Splash:YES

Dry, Wet, or Rough Fingerprints:Work well

Power Consumption:5V:200mA Scanning;5V:60mA idle (waiting for finger)

Live Fingerprint Detection:YES

LED:White

Product Certifications:FCC, CE, RoHS, PIV

Power Voltage:5V (USB)

Power Current:200mA

Communication:USB 2.0/USB1.1

Interface Socket:USB Type A

lmage Resolution:500~1000 dpi

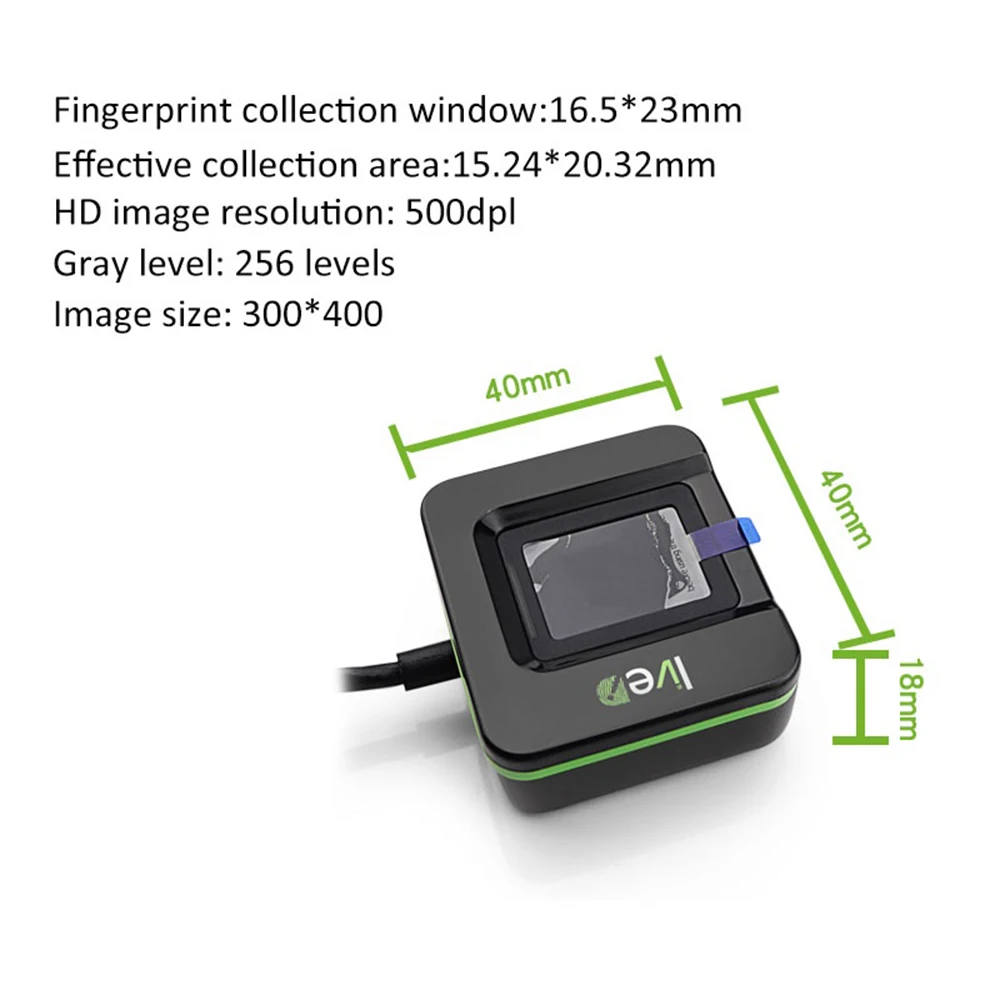

Effective Collecting Area:15.24 * 20.32 mm (FAP20)

Collecting Area:16.5 * 23 mm

lmage Size:300 * 400 pixel (FAP20 )

Dimension:49 * 44 * 20.1mm (L*W*H)

lmage Format:RAW, BMP, JPG

Template:ZKFinger V10.0; ISO19794-2 ; ANSI-378

Template Size：1- 4KB (ZKFingerV10.0);1568 B (ISO 19794-2)

Gray Leve:256
