DC12V electric control lock small electronic lock mini electric bolt lock solenoid door lock stroke mortise lock
Availability:
20 in stock
$22.13
- Hign-concerned Chemical: None
- Model Number: ASM-80
- Origin: Mainland China
- Certification: None
- Fail secure: Power to open(NO)
- Voltage: 12VDC

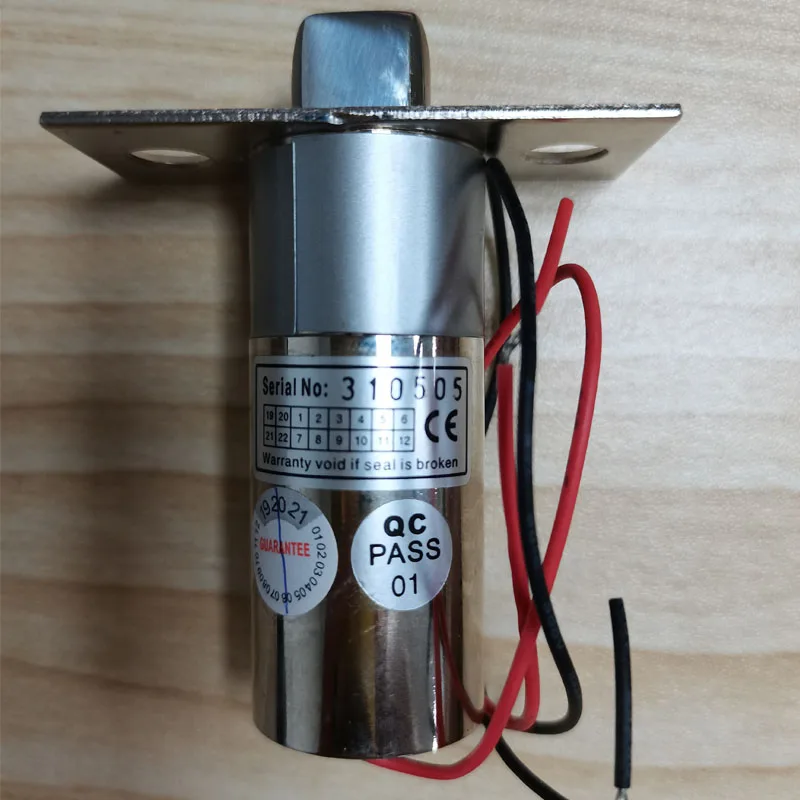

XM-80 is an all-metal structure slanting tongue electric lock. The bolt is designed with 304 stainless steel casting. The linkage parts are precision-crafted by CNC lathes. The design is designed to withstand the impact of 300KG. It can be used normally in the harsh environment of 60℃ high temperature and minus 40℃ severe cold, durable solenoid valve design. It can work continuously for 1 million times and pass the test. The XM-80 straight cylinder type circular lock body design is convenient for on-site opening and installation. The inclined tongue design can meet the installation and use of various light narrow cabinet doors, glass doors, wooden doors, PVC doors, aluminum cabinet doors, partition doors, etc.
Function:
Material: Stainless steel

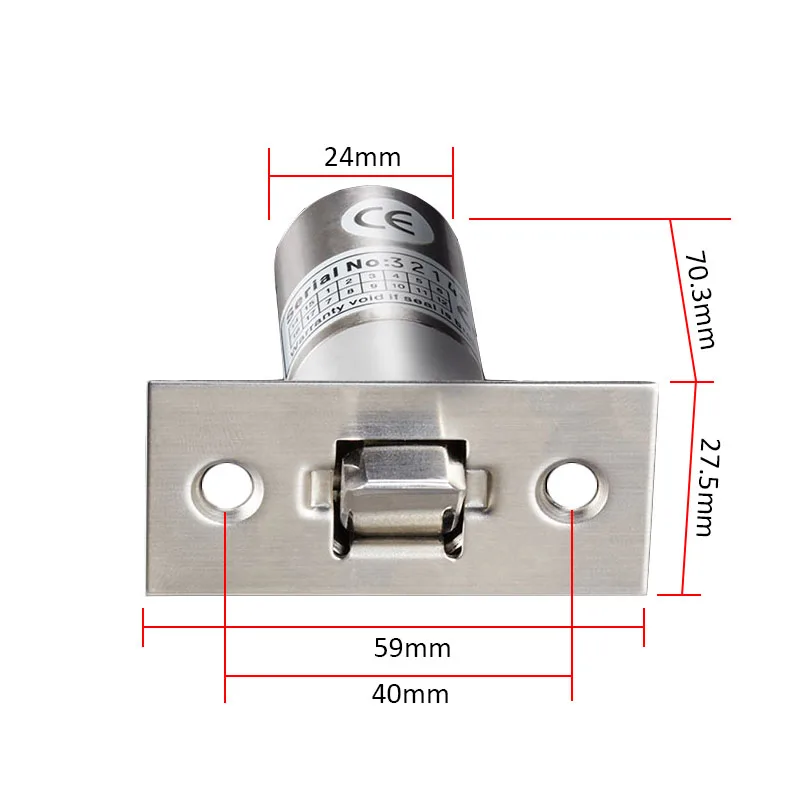

Lock body size: 70.3x59x27.5(mm)
Working voltage: DC12V
Working current: 100mA
Security type: power-off locked (NO)

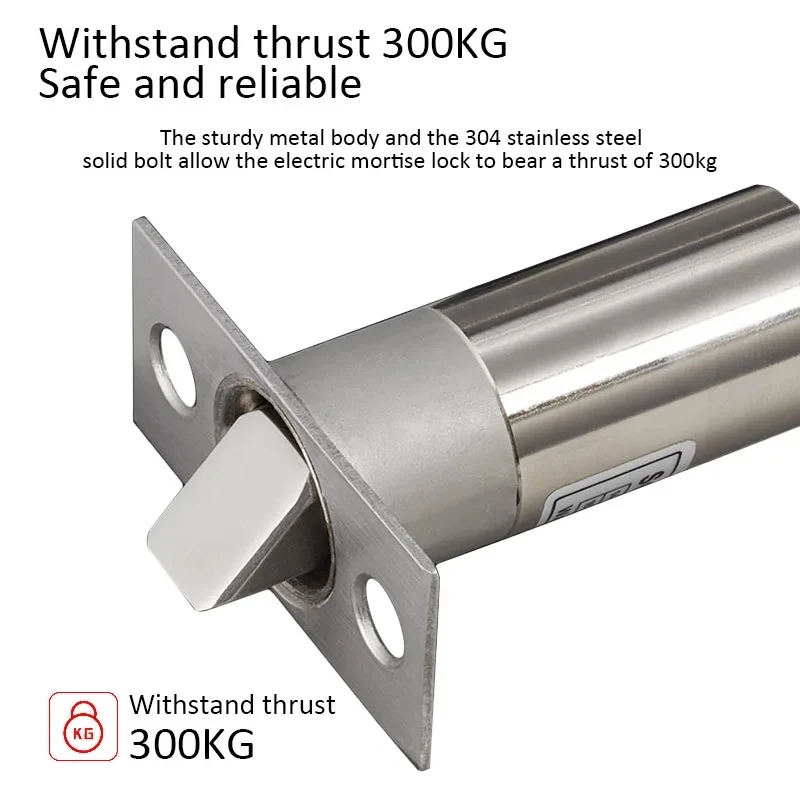

Withstand thrust: 300Kg

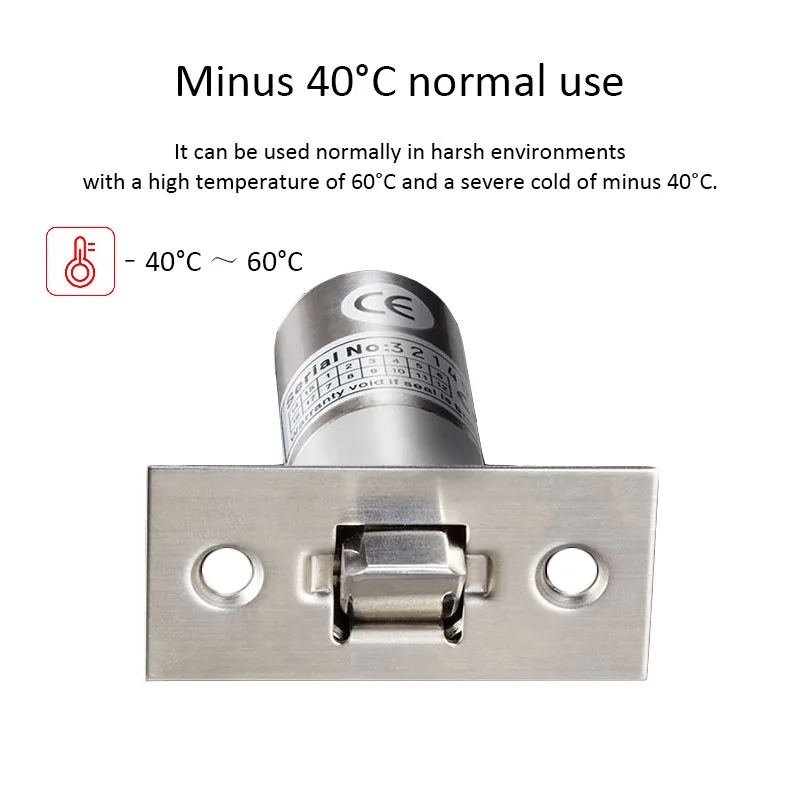

Applicable temperature: -40℃～60℃

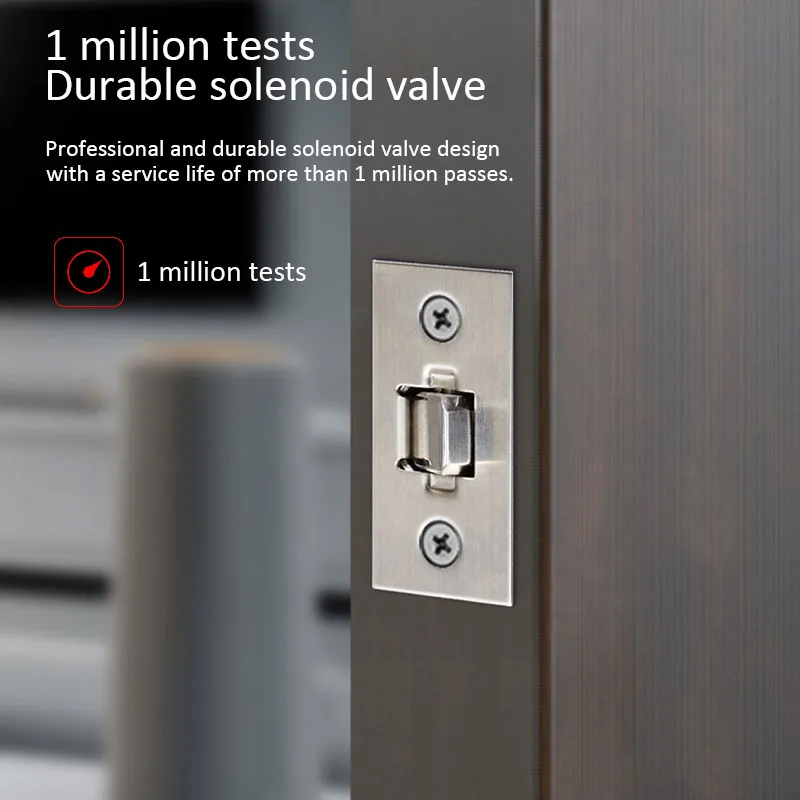

Durable solenoid valve: 1 million tests

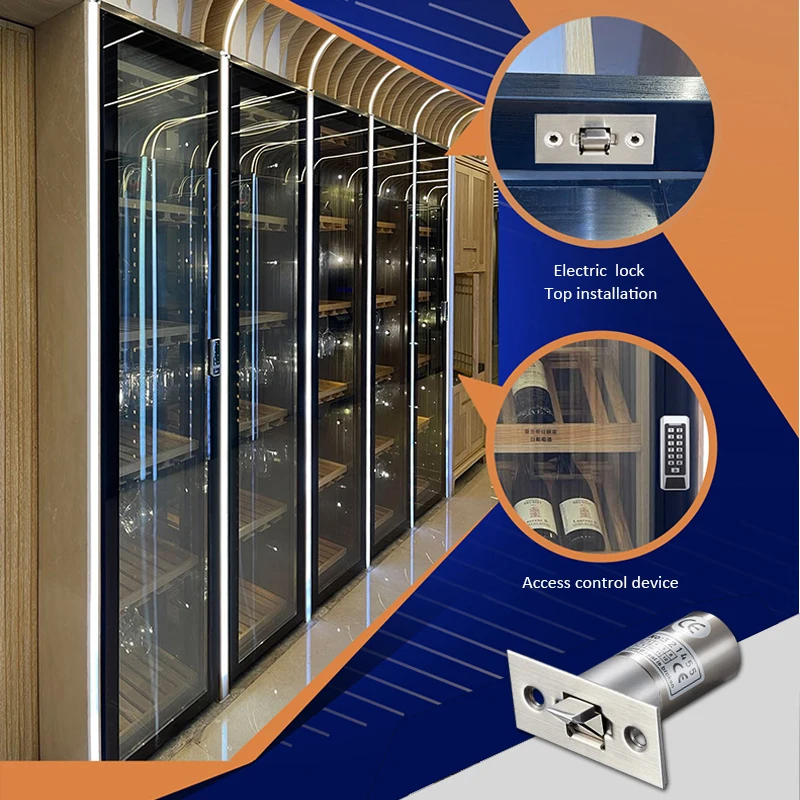

Applicable door type: cabinet doors, glass doors, wooden doors, PVC doors, aluminum cabinet doors, partition doors.
Product weight: 0.2kg
