SX1268 RJ45 Ethernet New LoRa Wireless Modem 230MHz Ethernet Transparent Transmission Module CDEBYTE E90-DTU(230SL22-ETH)

No

Item

Specification

1

Power supply

8V~28VDC,will burn over 28V,12V or 24V is recommended

2

Ethernet specification

RJ45,support 10/100Mbps

3

Network protocol

IP, TCP/UDP, ARP, ICMP, IPV4

4

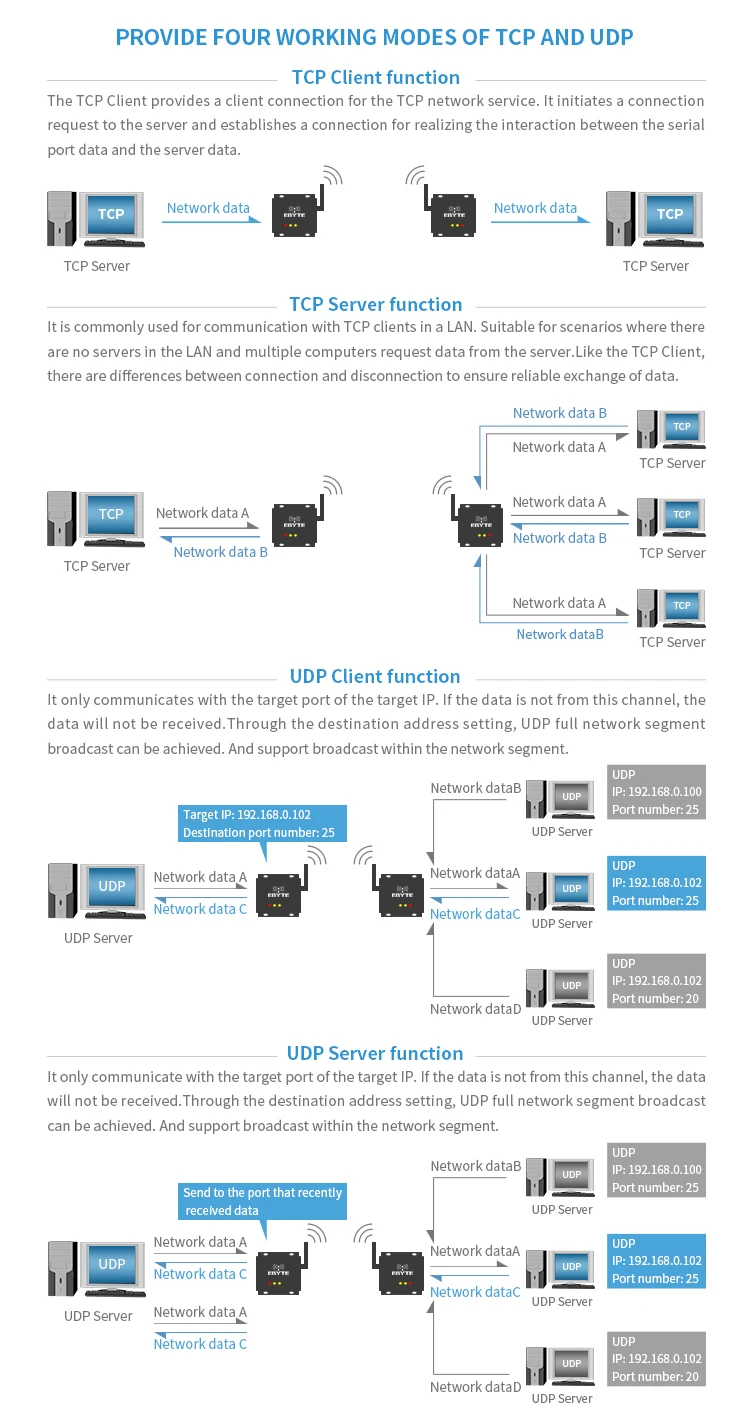

Simple transparent transmission

TCP Server,TCP Client,UDP Server,UDP Client,Cloud transparent transmission

5

TCP Server connection

Max of 6 channel TCP connection

6

IP acquisition method

Static IP, DHCP

7

DNS

Available

8

Configured by user

Web page configuration

9

Antenna interface

SMA

10

Operating temperature

-40 ~ +85℃

11

Operating humility

10% ~ 90%,Relative humidity, no condensation

12

Size

82*84*25 (mm)

13

Average weight

130g±5g

14

Storage temperature

-40～+125℃

15

Frequency(MHz)

220.125~236.125,ISM band

16

TX current(mA)

270.2mA@12V,Instant power consumption

17

RX current(mA)

70.4mA@12V

18

Receiving sensitivity(dBm)

-148,Air data rate 0.3 kbps

19

Air data rate(bps)

0.3k~15.6k,Configured by user

20

Distance

10000m,In open and clear air,antenna gain 5dBi,at height of 2.5 m,air data rate 2.4 kbps

21

Transmission length

240 Btye,Can be set as 32/64/128/240 bytes each packet

22

Receiving length

1000 Btye

23

Modulation method

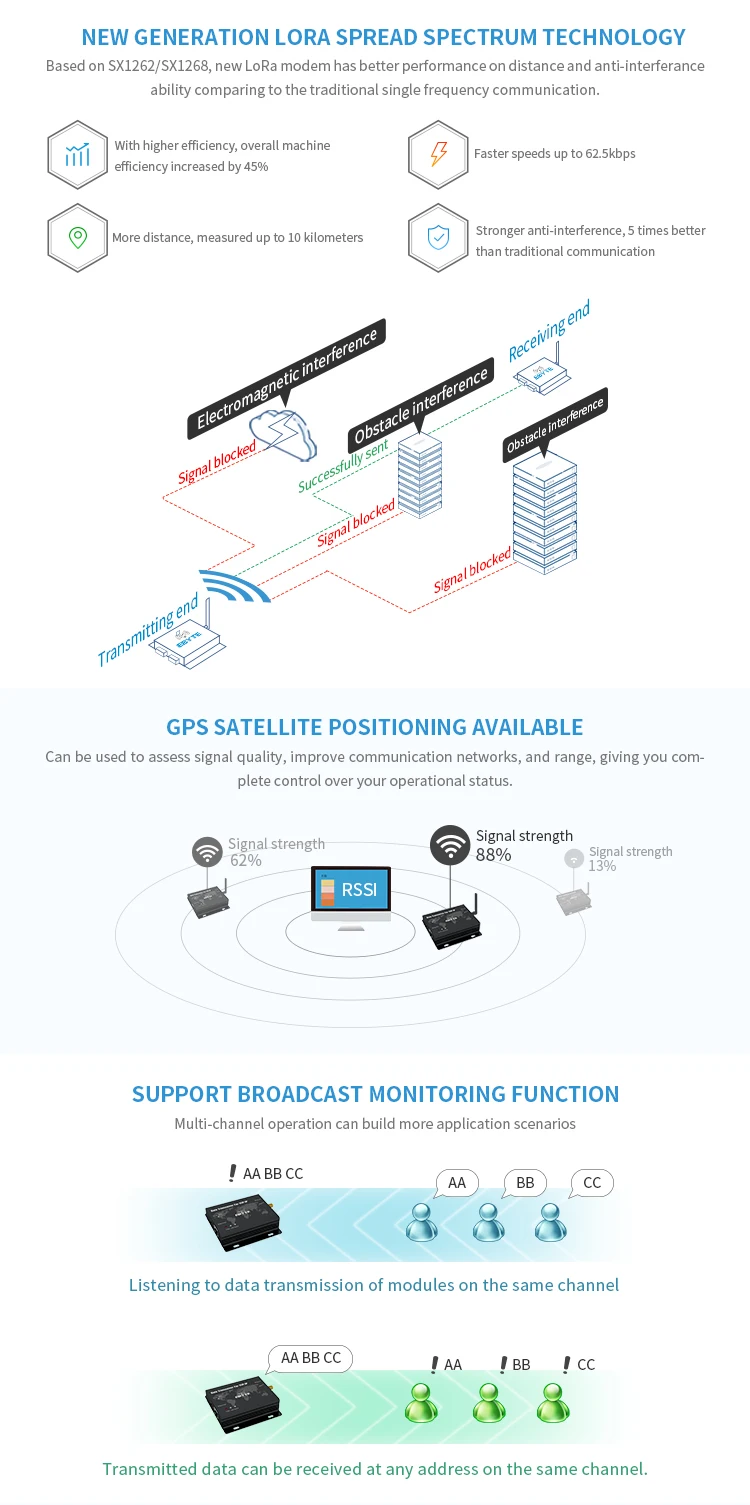

New generation LoRa
