ACS CCID ISO7816 EMV Certified Contact PC/SC IC Chip Smart Card Reader ACR39U
994 in stock
$17.12
994 in stock
- Model Number: ACR39U-U1
- Brand Name: HCCTG
- Origin: Mainland China
- Certification: CE,FCC
- Support cards: Conatct IC Card
- Certification: EMV L1
- Protocol: USB CCID Standard Type A
- OS: Window s/Linux/Mac/Android
- Function: Smart Card Reader Writer Encoder
- Application: Banking/Payment/Access Control/Information Input
- Support: PC/SC; CCID; CT-API
- Interface Support: ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards
- Supply Voltage: Regulated 5 V DC
EMV Certified ISO7816 USB Smart Contact IC Chip Card Reader And Writer For Window OS ACR39U-U1
Our product price is not included Buyers' Local Customs Clearance Fee!
Low Cost iso 7816 USB Acr38 EMV IC Chip Smart Card Reader/writer ACR39U-U1
General
ACR39U-UF This palm-sized reader features a USB Type C connector. The USB Type C Connector features reversible plug orientation and cable direction to fit mobile to device product designs for future smart card applications.
ACR39U-UF uses the same core as the ACR39U Series. It supports ISO 7816 smart cards and various memory cards, as well as microprocessor cards with T=0, T=1 protocols.
Unlike an older USB cable, it doesn’t matter which side is up with a Type-C plug; you can insert it either way. It complies with PC/SC and CCID standards, keeping the device compatible with current applications under USB specifications. ACR39U Smart Card Reader can easily be integrated to a computer-based and mobile device-based environment. Its drivers are compatible with operating systems such as Windows®, Solaris, Linux®, and Mac OS®. In addition, ACR39U-UF may be used on mobile devices running on Android™ versions 3.1 and later.
Features
Ø USB 2.0 Full Speed Interface
Ø USB Type C Connector
Ø Plug and Play – CCID support brings utmost mobility
Ø Smart Card Reader:
n Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
n Supports CAC
n Supports SIPRNET Card
n Supports J-LIS Card
n Supports microprocessor cards with T=0 or T=1 protocol
n Supports memory cards
n Supports PPS (Protocol and Parameters Selection)
n Features Short-Circuit Protection
Ø Application Programming Interface:
n Supports PC/SC
n Supports CT-API CT-API (through wrapper on top of PC/SC)
Ø Supports Android™ 3.1 and later
Specification
|
Dimensions |
72.2 mm (L) × 69.0 mm (W) × 14.0 mm (H) |
|
Contact Smart Card Interface |
Number of Slots: 1 Full-sized Card Slot Standard: ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) Protocol: T=0; T=1; Memory Card Support Others: CAC, PIV, SIPRNET, J-LIS Smart Cards |
|
Compliance / Certifications |
EN 60950/IEC 60950, ISO 7816, USB Full Speed, PC/SC, CCID, EMV Level 1 (Contact), TAA (US), J-LIS (Japan), VCCI (Japan), PBOC (China), CE, FCC, WEEE, RoHS 2, REACH Microsoft® WHQL |
|
Operating System Support |
Windows® Linux® Mac OS® Android™ Solaris |
FAQ
1.Are you manufacturer?
Yes, we are manufacturers, We have been in POS/PC/Moblie Payment product & Solution for Eight Years.We can provide OEM/ODM customized sevice according to our customers ' various applicatons and demands.
2. Would you provide SKD for me?
Yes, we offer free SKD if you order sample. All the contents in a CD ROM with sample together.
3.What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local sevice.
4.What is the minimun order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5.Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price,they can order the sample firstly for the testing and evaluation.
When they place the mass order, we can return the sample cost to the customers.
6.Do you accept Paypal?
Yes, we accept Paypal. Beside, we accept Western Union, T/T,L/C, Secure payment(Escrow service from Alibaba) and soon on.
7.What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express:DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight,
Or pick up by the customers.

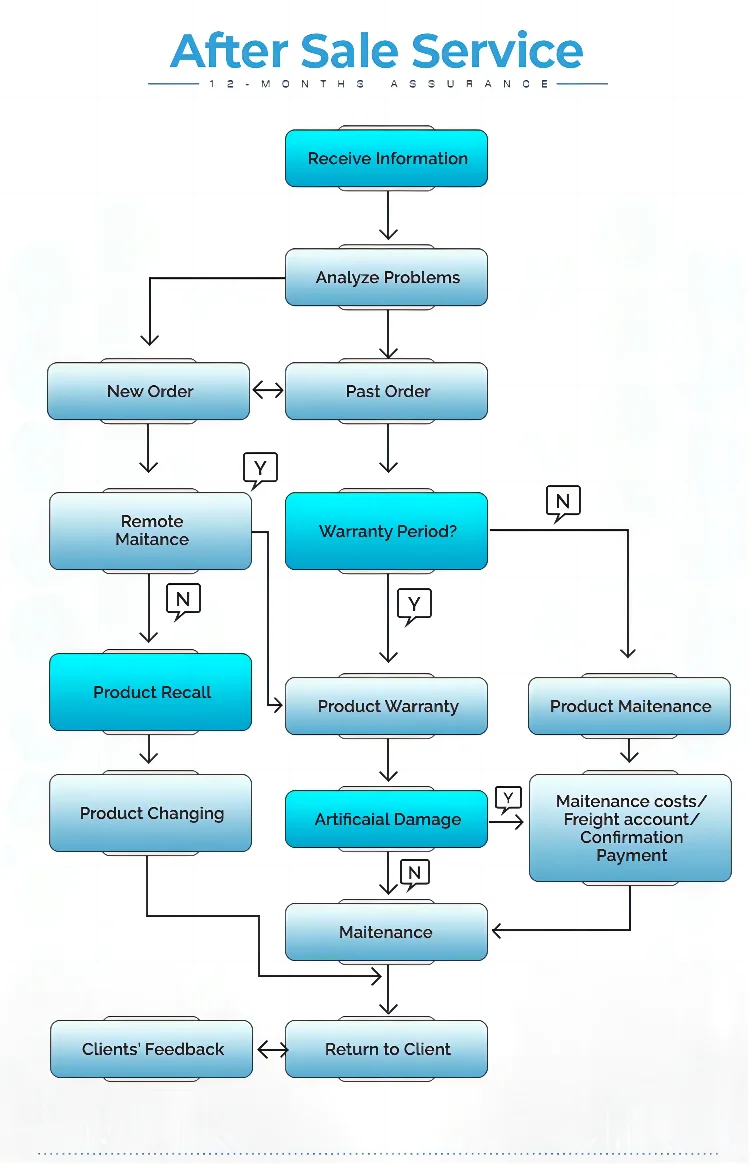

9. What the after sale service?
a. Our all products will provide 12 months warranty.
b. Enough stock spare parts for guarantee.
c.Professional engineers provide 7*24 online service; If required ,our engineers can.
