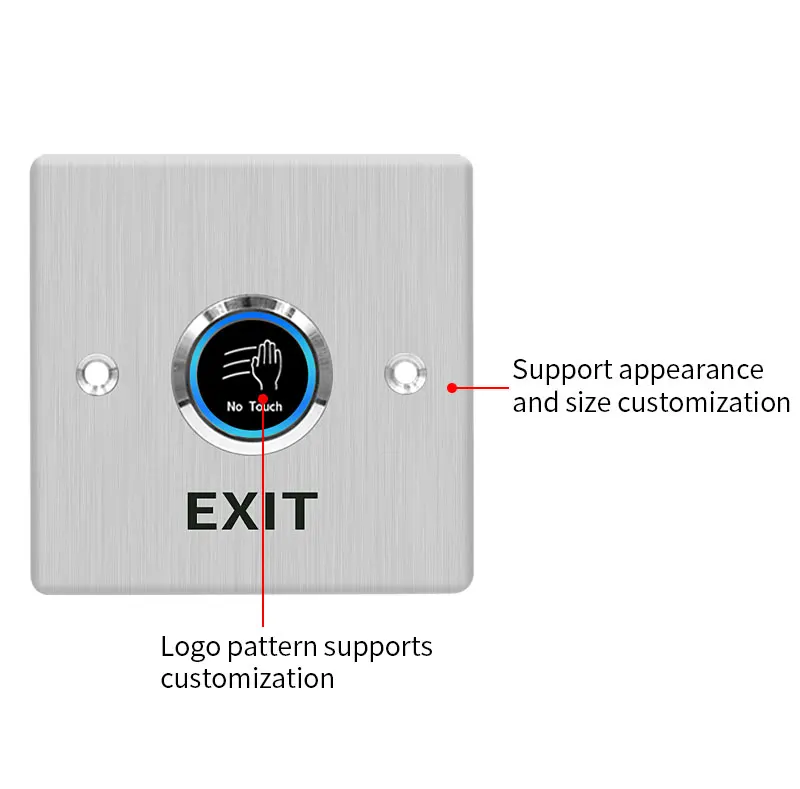

Contactless Infrared No Touch Exit Button IR Door Lock Release Switch Metal Button for Access Control System Outdoor Waterproof
3228 in stock
$24.20
- Hign-concerned Chemical: None

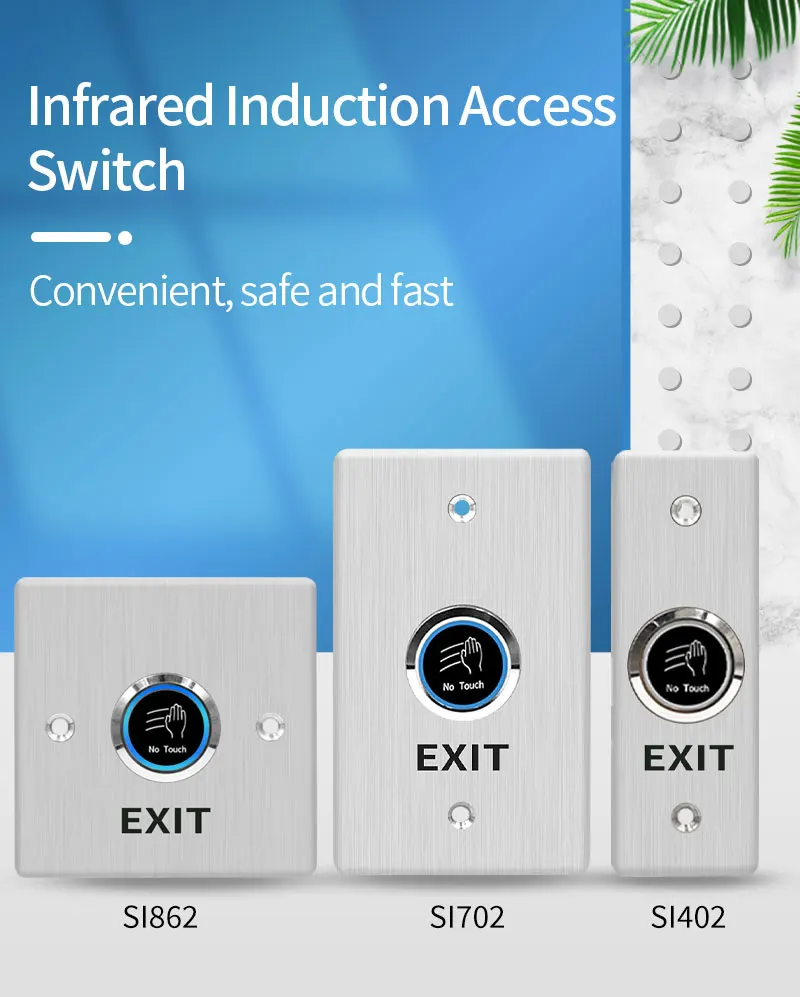

- Model Number: SI502 SI862 SI702
- Brand Name: LUCKING DOOR
- Origin: Mainland China
- Smart home platform: other
- Product model: stainless steel infrared sensor switch

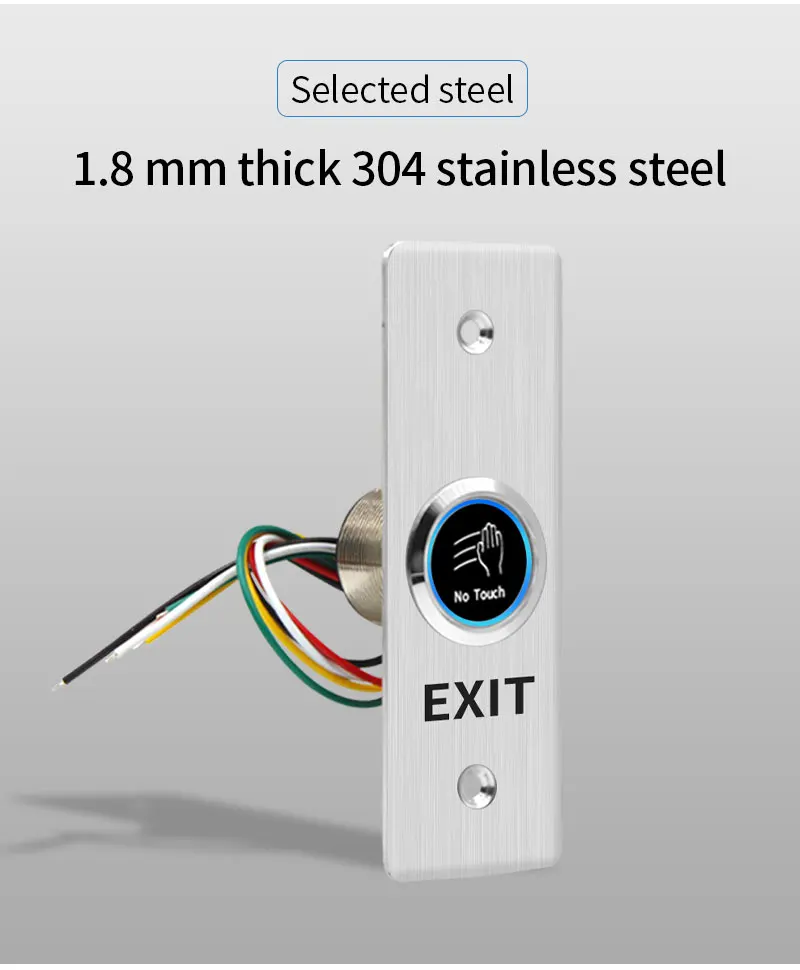

- Product material: 1.8 mm thick 304 stainless steel brushed panel

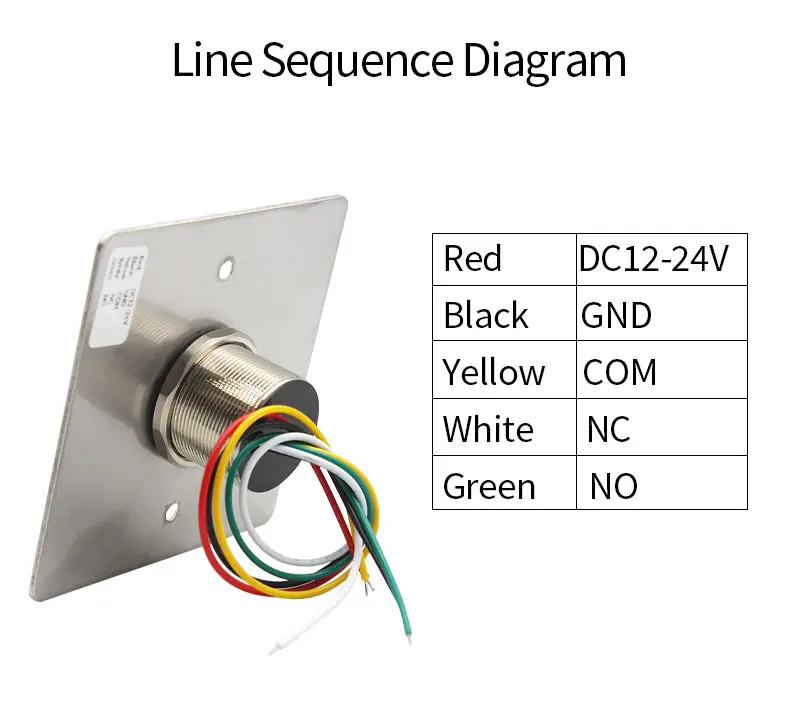

- Output: NO/ NC / COM
- LED lights: blue (to be determined),green (inductive)
- Electrical performance: 3A @ 12VDC
- Indicating pattern: English text pattern
- Weight: 0.15kg

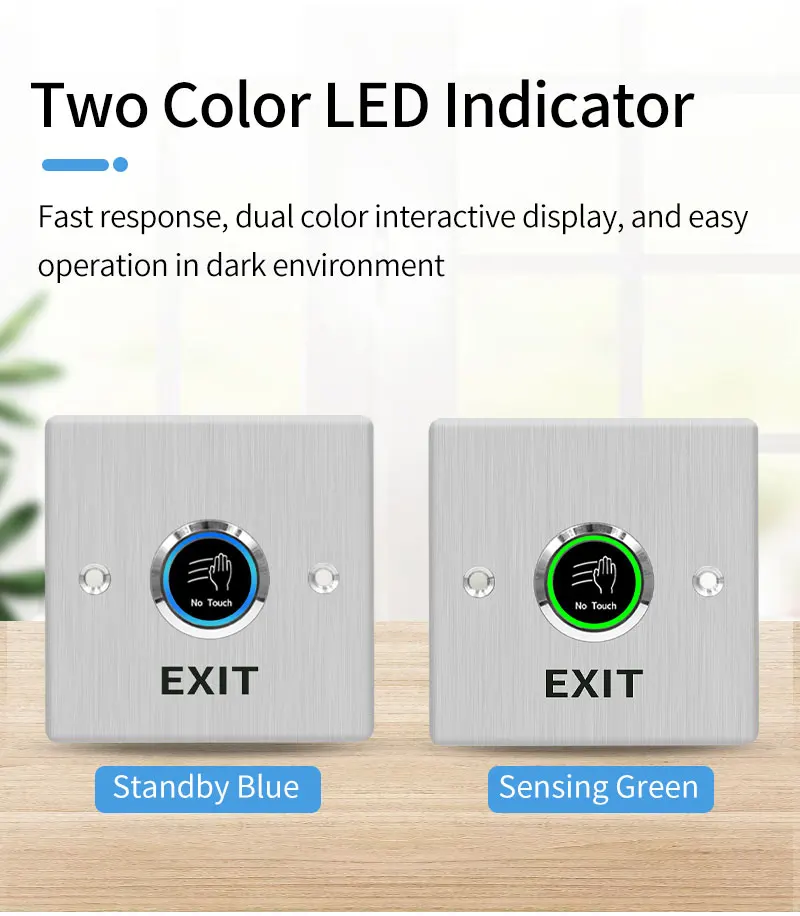

- LED Indicator: Standby blue, response green
Contactless Infrared No Touch Exit Button IR Door Lock Release Switch Metal Button for Access Control System Outdoor Waterproof

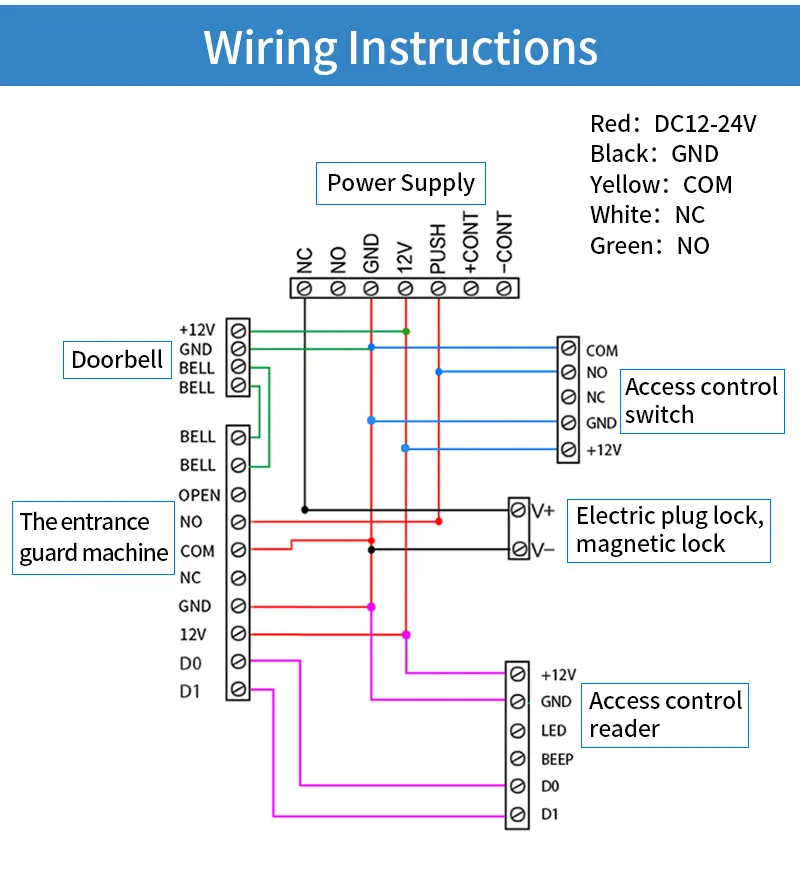

How the Exit Push button works?
When the button is pressed,the inner contactes are combined,forming circuirt connected,causing the power controller to be short-circuited,thereby driving the electric lock to unlock.
after releasing the button,the power supply is energized during the set time to achieve the entire door opening andclosing process

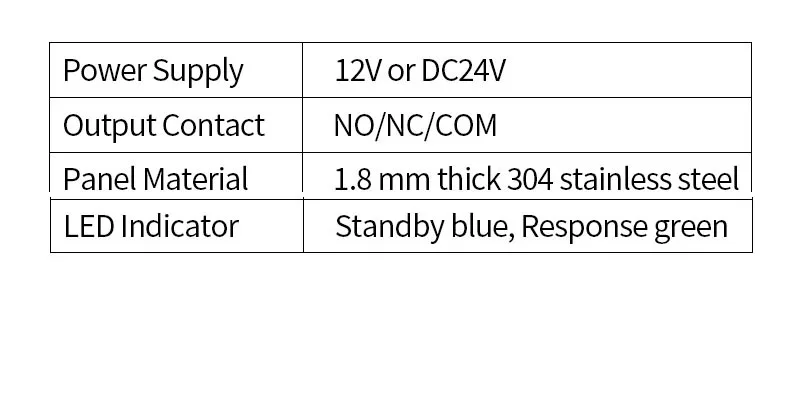

Features
Product model: stainless steel infrared sensor switch
Product material: 1.8 mm thick 304 stainless steel brushed panel
Output: NO/ NC / COM
LED lights: blue (to be determined )，green (inductive )
Electrical performance: 3A @ 12VDC
Indicating pattern: English text pattern
Weight: 0.15kg
LED Indicator： Standby blue, response green
