13.56MHz RFID ID Controler Access Control System & Keyfob Electric Strike Lock Be the first to write a review.

Details:

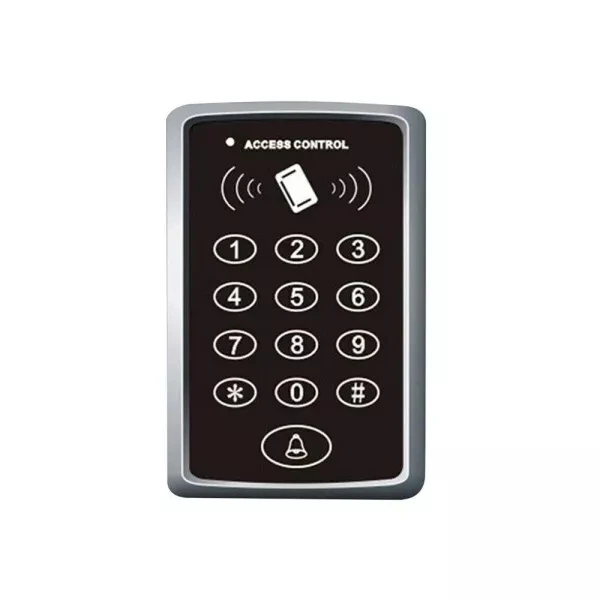

One-door Access Control:

· Support one-door

· Can be used as a stand alone keypad

· Dual units can be interconnected and interlocked

· 1000 users, supports Card, PIN, Card + PIN

· Card Type: RFID card

· Frequency: 125Khz

· Read Speed: <0.2s

· Reading range: 2-10mm

· Wiring connections: Electric Lock, Exit Button, External Alarm

· Input Voltage:DC 12V

· Operating current: <100mA

· Weight: 110g

· Application: Car parking, security access control, person / item tracking

· Doesn't need to connect on the computer, can works alone

Special Power Supply:

• With both NC / NO outputs, can control various types of electric locks

• Based delay control circuit, lock time can be in 0-15 seconds

• The circuit board has remote control port.

• Input Voltage: AC 110~240V 50~60Hz

• Output Voltage: DC 12V 3A

• Outer Dimensions: 120x 95x 38mm

Electric Strike Door Lock:

Model：15AO

• Lock Size: 150Lmmx39.5Wmmx28Hmm

• Bolt structure: Stainless Steel

• Voltage: DC12V

• Current: 450mA(CEN-15AO)

• Feature: Fail Secure,

• NO mode (Locked when power is removed)

• Suitable Temperature: -10~+25℃(14-131F)

• Suitable Humidity: 0~95%(non-comdensing)

• Weight: 0.3kg

Exit button:

• Performance Testing: 1000000 times aging test

• Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc.

• Working voltage: DC12V

• Working current: 3A

• Face plate Size: 86mm x 86mm

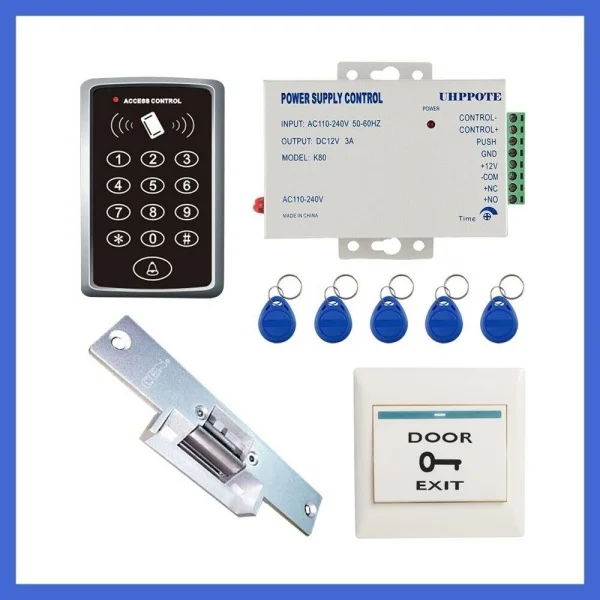

Package:

• 1 x Access control

• 1 x Electric Strike lock

• 1 x Power supply controller

• 1 x Exit button

• 5 x RFID Keyfobs (Color: Blue)

• 1 x User Manual
