Luckfox Pico Core1106 RV1106 Linux Rockchip Core Board

【First-level Authorized Agency Certificate】

【Overview】

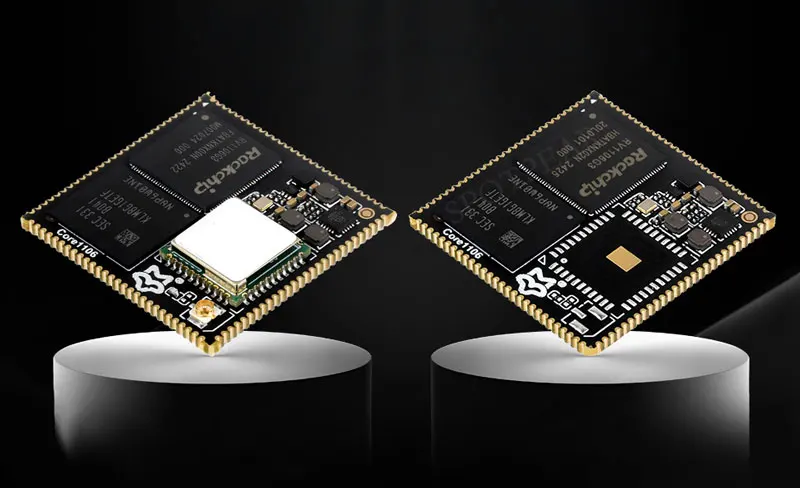

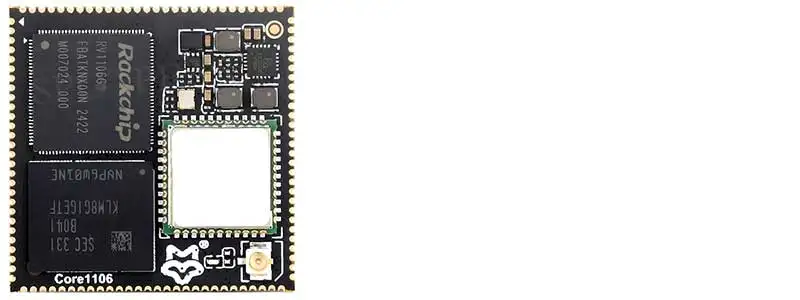

[] Core1106

[] Based on Rockchip RV1106 chip

[] This product is a high-performance and highly scalable core board based on Rockchip RV1106 series chips. It is designed to provide developers with convenience for independent hardware design, and can quickly verify the design scheme or directly apply it to the product, shortening the R&D cycle. The core board leads to multiple interfaces such as MIPI CSI, RGB LCD, GPIO, UART, SPI, I2C, USB, Ethernet and SDIO through stamp hole connection, which is suitable for a variety of application scenarios. Wireless modules are optional, and two core options, RV1106G2 and RV1106G3, are provided to meet different needs.

【Version selection】

【Highly integrated, powerful performance】

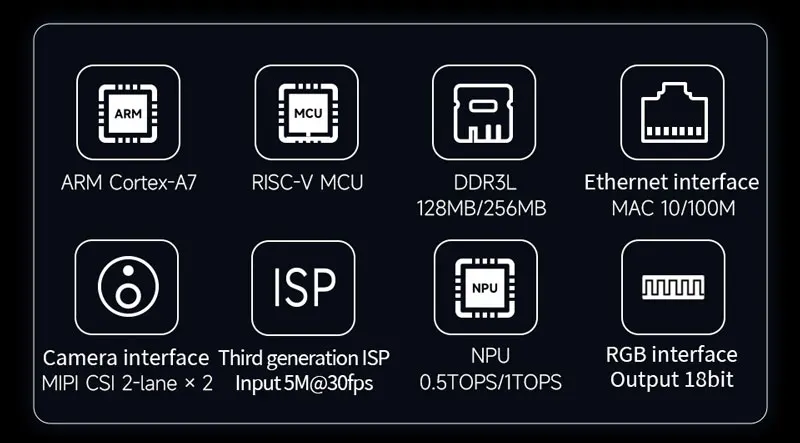

[] SOC integrates CPU, NPU, ISP and other processors

[] Single-core ARM Cortex-A7 32-bit core, integrated with NEON and FPU

[] Built-in Rockchip's self-developed 4th generation NPU, high computing precision, supports int4, int8, int16 mixed quantization, RV1106G3 int8 computing power is 1TOPS, RV1106G2 int8 computing power is 0.5TOPS

[] Built-in Rockchip's self-developed 3rd generation ISP3.2, supports 5 million pixels, supports HDR, WDR, multi-level noise reduction and other image enhancement and correction algorithms

[] With powerful encoding performance, supports intelligent encoding, adaptively saves bitstream according to the scene, saves more than 50% bitrate compared to conventional CBR mode, and efficiently utilizes storage space while achieving high-definition image quality

[] Built-in 16-bit DRAM DDR3L, which can meet demanding memory bandwidth requirements

【Wi-Fi 6 and Bluetooth modules】

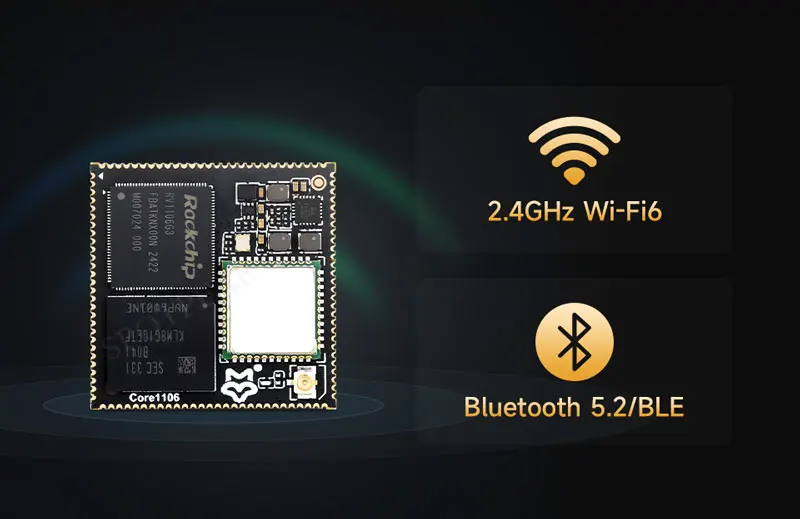

[] Onboard 2.4 GHz Wi-Fi 6 and Bluetooth 5.2/BLE modules

[] Stable connection, efficient transmission

【Typical application areas】

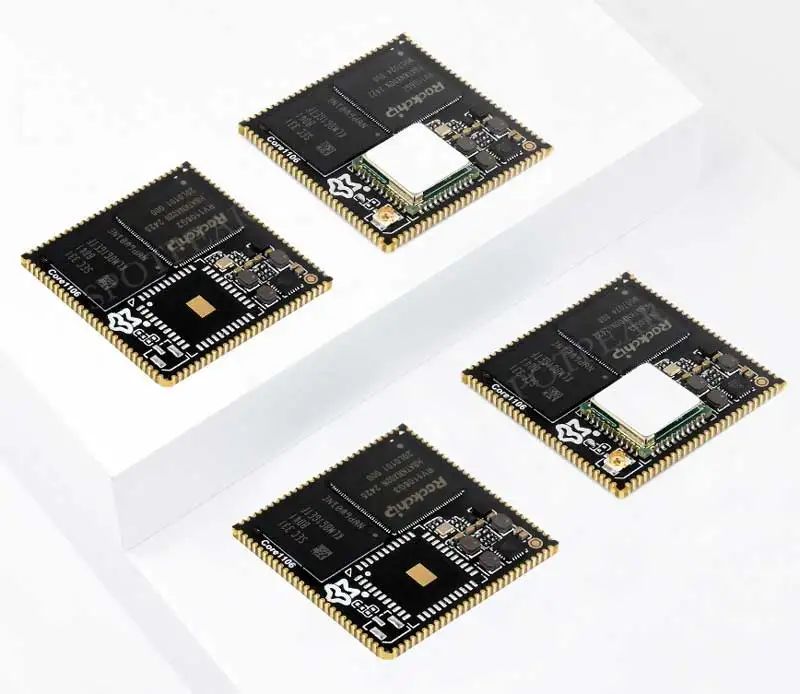

【Product display】

【Development information provided】

[] Complete software and hardware information and active community to facilitate secondary development

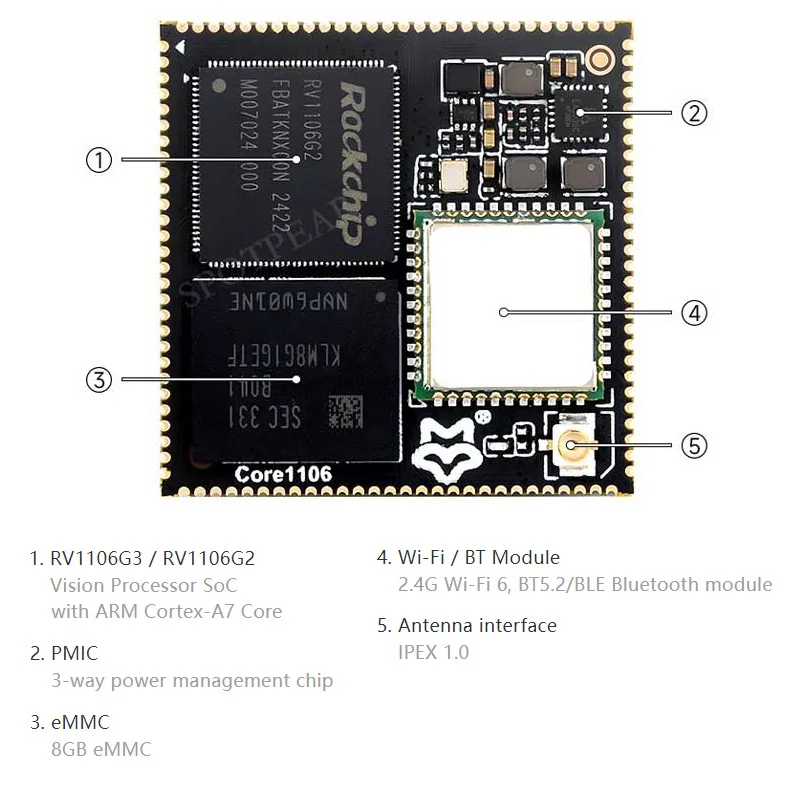

【Resource Overview】

Hardware Resource Table

Model	Core11060208	Core11061208	Core11060408	Core11061408
CPU	RV1106G2		RV1106G3
Processor	Cortex A7 @1.2GHz
NPU	0.5TOPS, supports int4, int8, int16		1TOPS, support int4, int8, int16
ISP	Support input 5M @30fps
Video Encoding	Hardware encoding, support MJPEG, H264, H265
RAM	128MB DDR3L		256MB DDR3L
Display Interface	Parallel RGB 18-bit × 1
Camera interface	MIPI CSI 2-lane × 2 Or MIPI CSI 4-lane × 1
Microphone interface	Analog differential MIC interface × 2
Audio output interface	LINEOUT × 1
USB interface	USB 2.0 Host/Device
Wi-Fi/Bluetooth	/	2.4 GHz Wi-Fi 6/ Bluetooth 5.2/BLE	/	2.4 GHz Wi-Fi 6/ Bluetooth 5.2/BLE
Ethernet interface	10/100M Ethernet controller and embedded PHY
Default storage medium	eMMC5.1 (8GB)
Additional Resources	I2S × 3，I2C × 5，SPI × 2，SDIO × 2， ADC × 2， UART × 6， PWM × 12

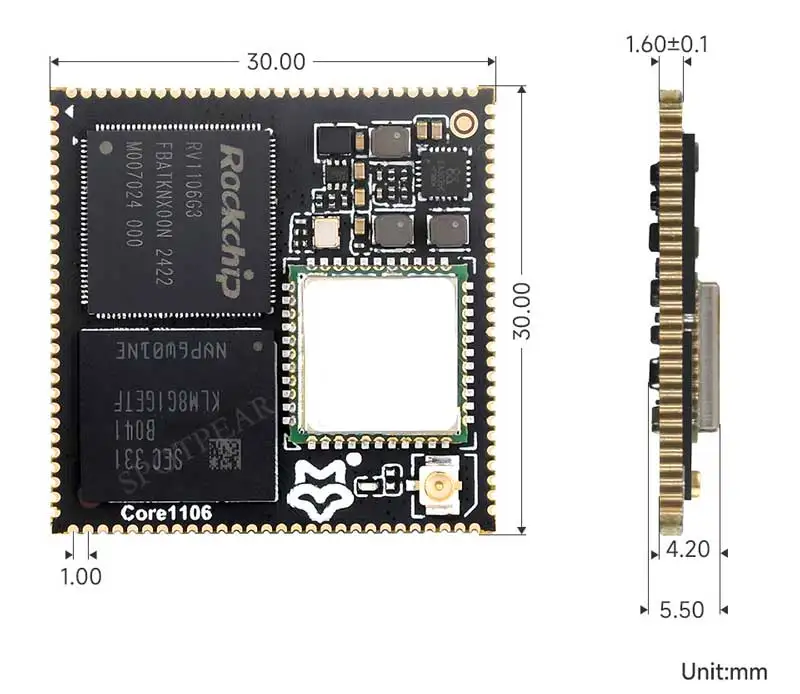

Core board size	30 × 30 (mm)
Stamp Holes	112 Pin

Some pin resources are reused. For pin definitions, see wiki

【Product size】

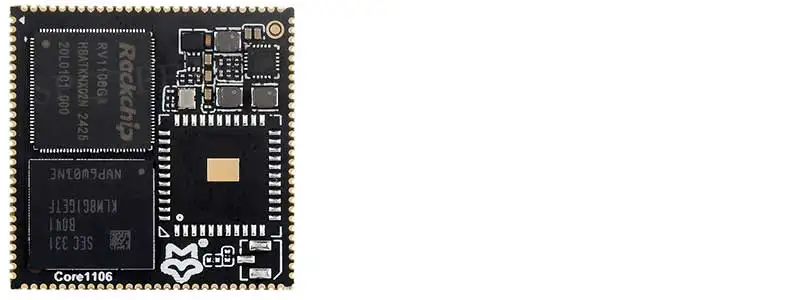

[] Core11060【RAM128/256-No Wifi】

[] Core11061【RAM128/256-With Wifi】
