Luckfox Pico WebBee RV1103 Linux Development Board With Case and Flash RJ45 Ethernet PHY Cortex A7 RISC-V 64MB

【Luckfox Pico Recommend】

【Luckfox Pico WebBee】

[] Cost-effective micro Linux development board based on Rockchip RV1103 chip

【Product Features】

[] This product is a cost-effective micro Linux development board based on Rockchip RV1103 chip, which aims to provide developers with a simple and convenient development platform.

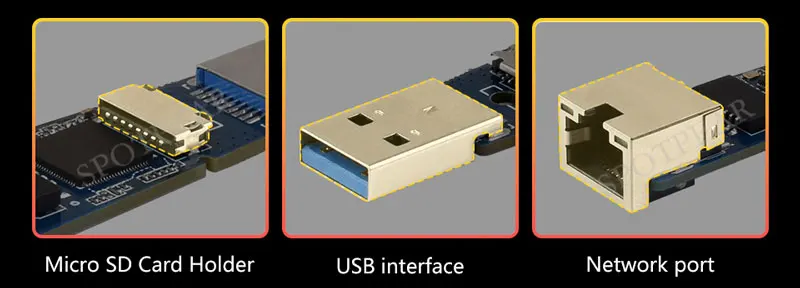

[] Onboard USB Type-A interface, easy to connect to the computer, plug and play, help developers quickly develop and debug

[] Equipped with a 10/100Mbps Ethernet interface to ensure stable and smooth network connection and meet the daily network needs of developers

[] Customized protective shell, strong and durable, adaptable to a variety of application scenarios, helping developers meet their diverse project needs

【Product Parameters】

[] CPU : RV1103 G1

[] Processor : Cortex-A7 1.2GHz + RISC-V

[] RAM : 64MB DDR2

[] USB : USB 2.0 Host/Device

[] Network port : 10/100M Ethernet controller and embedded PHY

[] Default storage medium : SPI NAND FLASH (128MB)

[] Storage Expansion : Supports Micro SD card for booting or storage expansion

【Highly integrated, powerful performance】

[] Integrated CPU, PHY, DDR

[]Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU

[]Built-in 16-bit DRAM DDR2 to sustain demanding memory bandwidth

[]Built-in MAC 10/100M Ethernet controller and PHY to meet daily application scenarios

【Shell protection makes development easier and safer】

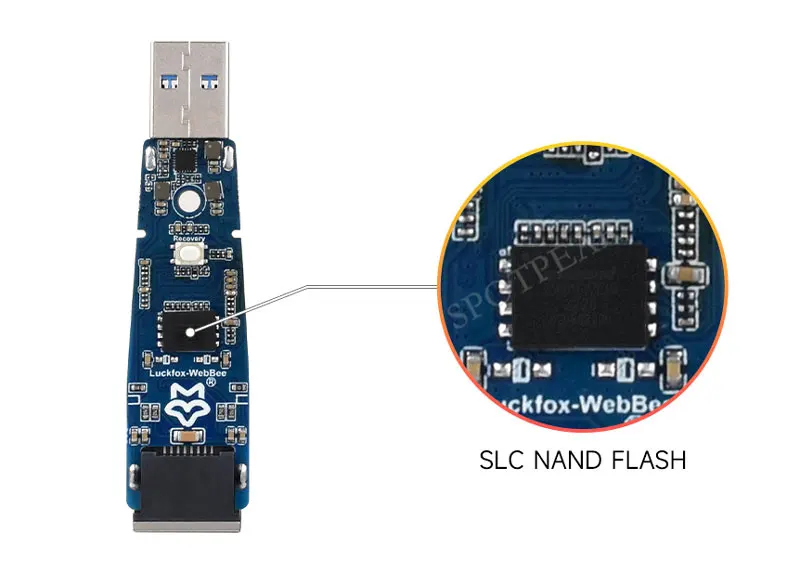

【SLC NAND FLASH】

[] Provide you with a better user experience

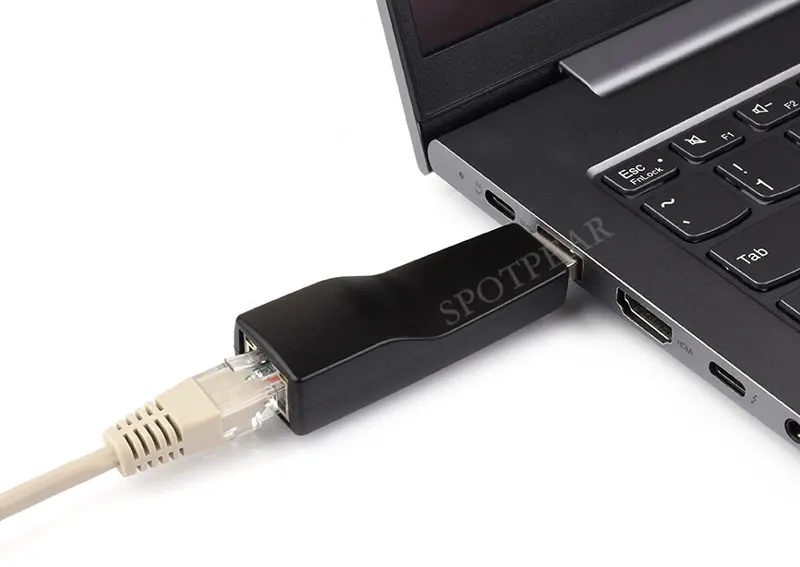

【Usage Examples】

[] The pictures are for reference only. Please refer to the configuration list for detailed configuration.

【Typical application areas】

【Development information provided】

[] Complete software and hardware information and active community to facilitate secondary development

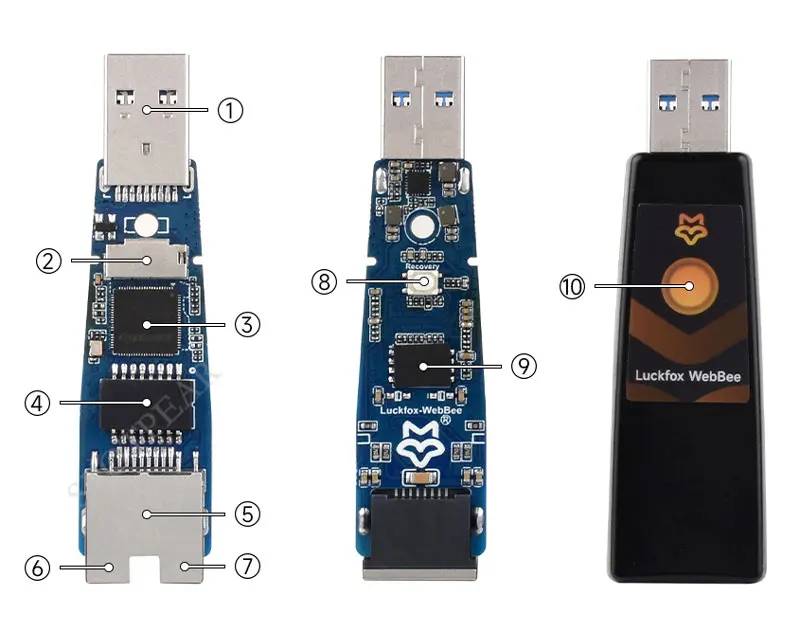

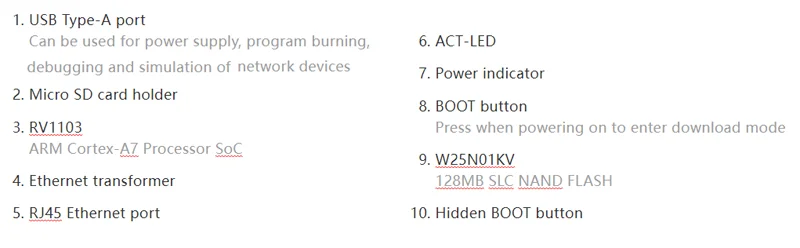

【Resource Overview】

【Product size】

[] Luckfox-WebBee x1
