Waveshare ESP32-S3 2inch Capacitive Touch Display IPS 240×320 Camera Touch Option Supports WiFi Bluetooth Development Board

【Note】

[] Not include All，Just ship as what you choose

【Overview】

[] ESP32-S3 2inch Capacitive Touch Display Development Board, 240×320 Pixels, IPS Panel, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, Onboard Camera Interface, ESP32 With Display

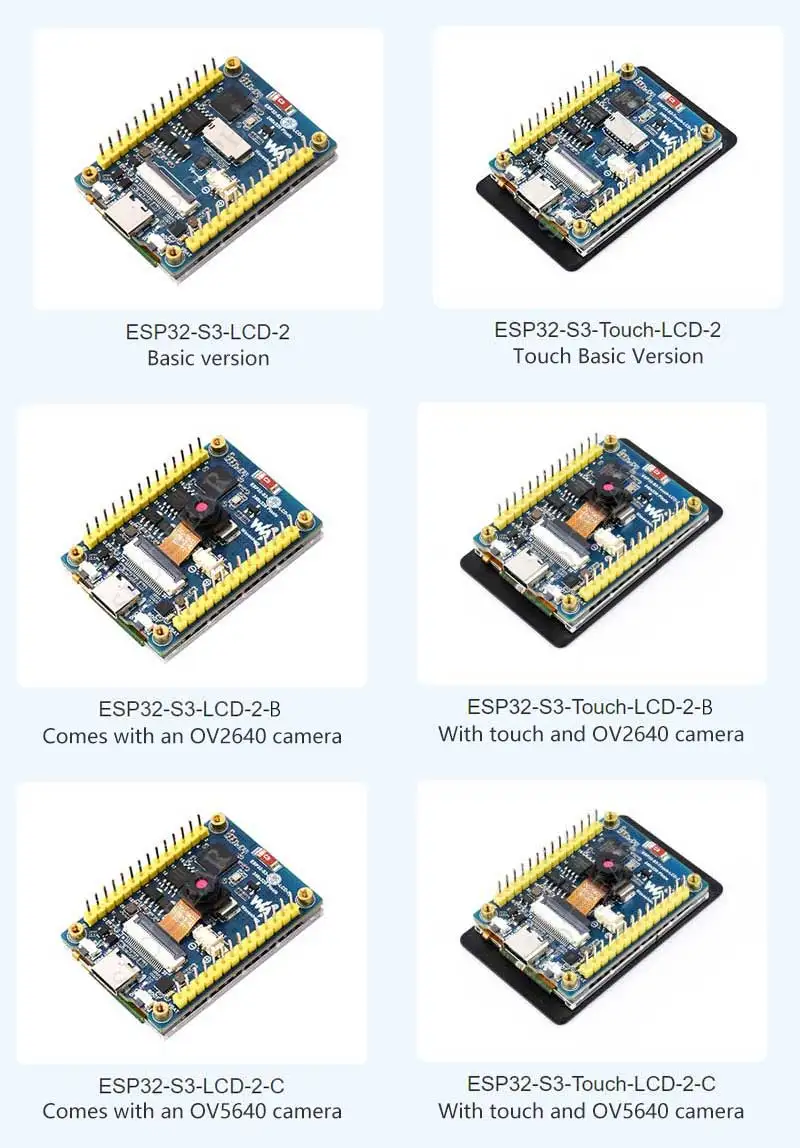

【Version Options】

【Features】

[] ESP32-S3-Touch-LCD-2 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 2inch capacitive touch LCD, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into the products quickly.

[] Key features include:

[] Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

[] Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

[] Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory

[] Type-C connector, improving device compatibility, easier to use

[] Onboard 2inch capacitive touch display for clear color picture display, 240 × 320 resolution, 262K color

[] Built-in ST7789T3 display driver and CST816D capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources

[] Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)

[] Onboard 3.7V MX1.25 Lithium battery recharge/discharge header

[] Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use

[] Onboard TF card slot for external TF card storage of pictures or files

[] Adapting 22 × GPIO pins for flexible configuration of pin function

[] Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640 for image and video acquisition

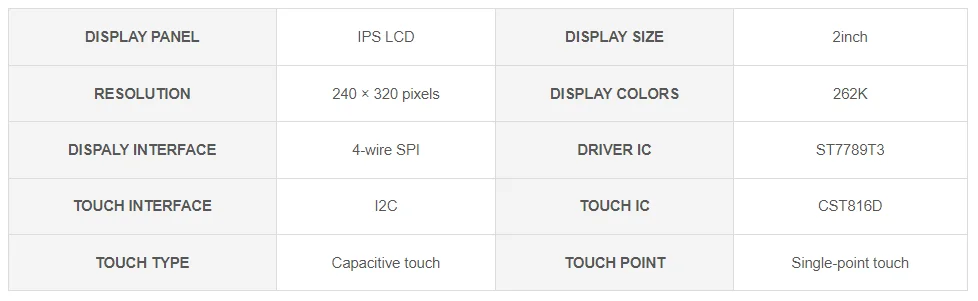

【LCD Parameters】

【Supports ESP-IDF, Arduino IDE】

[] Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started

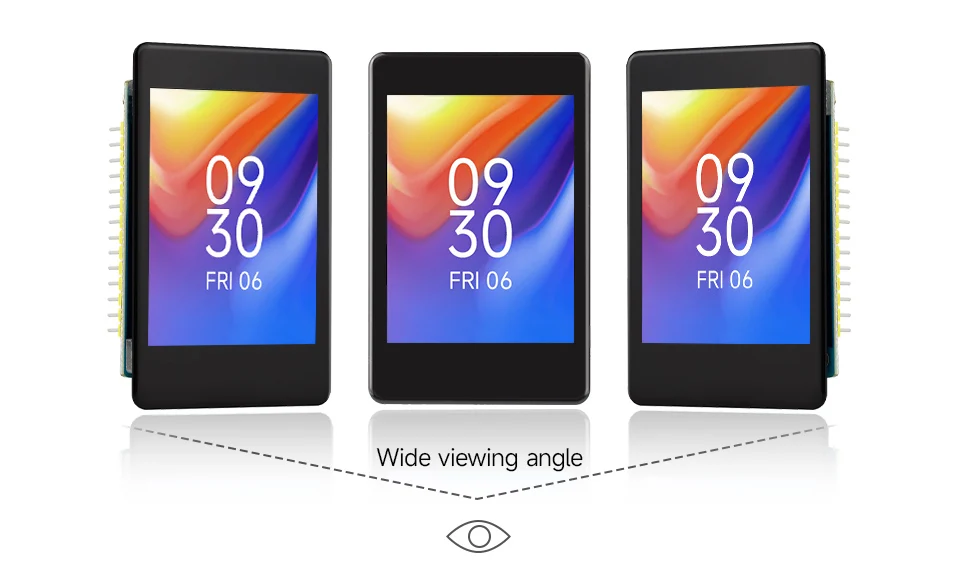

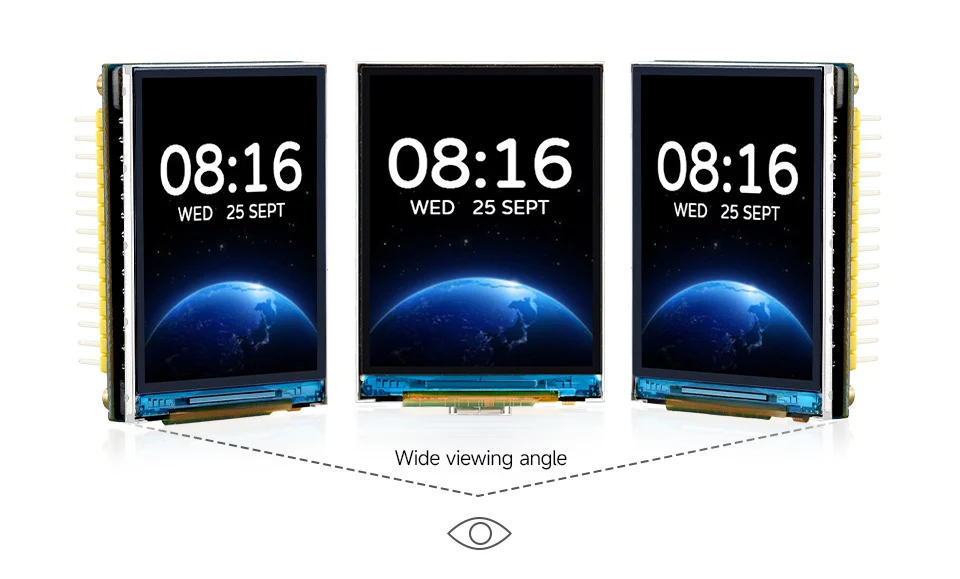

【IPS Display Panel】

[] Excellent Display Performance, 262K Color, Wide Viewing Angle

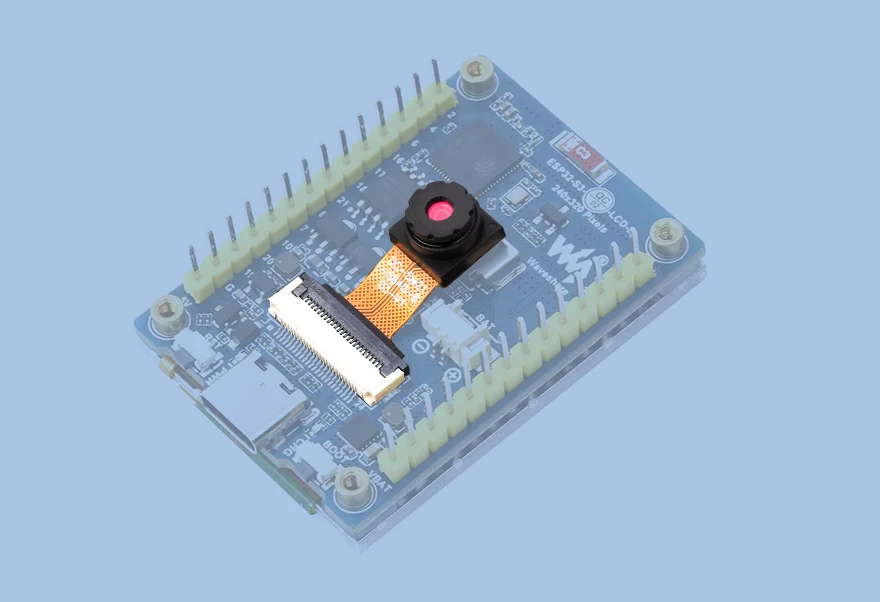

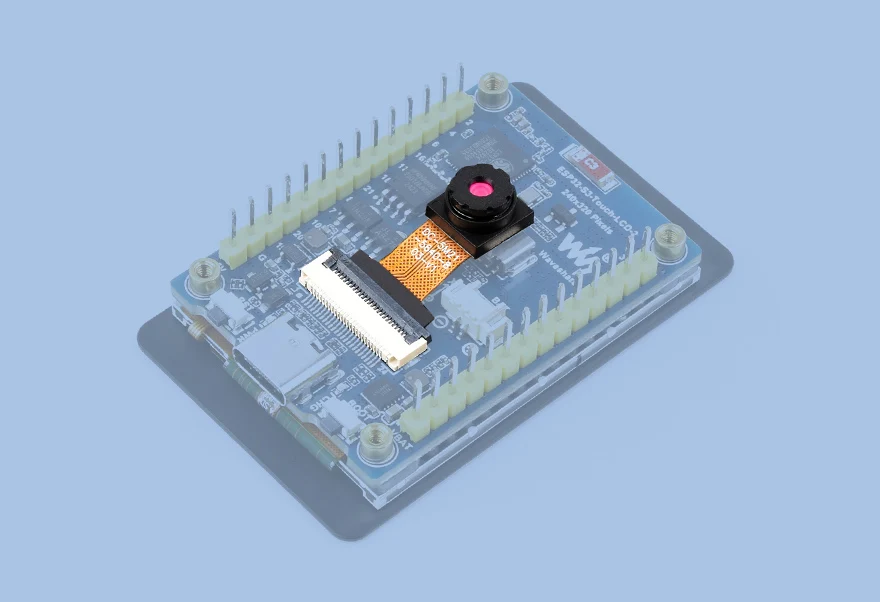

【Supports OV2640 / 0V5640 And Other Mainstream Cameras】

[] Optional For OV5640 5MP Camera Module, Suitable For Image Capture, Video Monitoring And Other Applications To Meet Different Needs

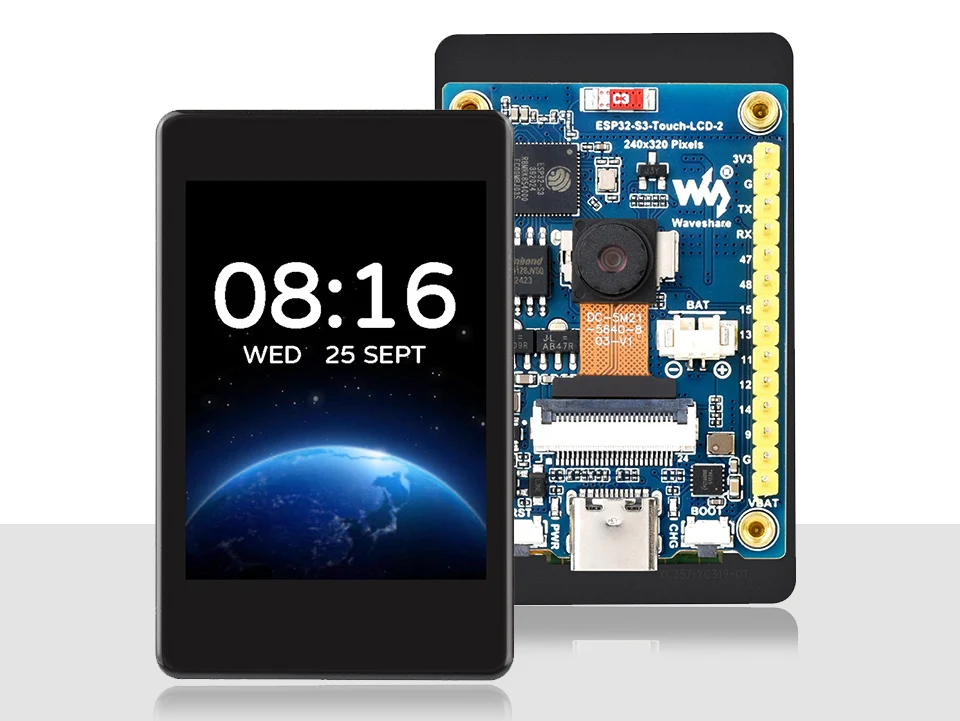

【Usage Example】

[] * Note: the OV5640 camera is optional.

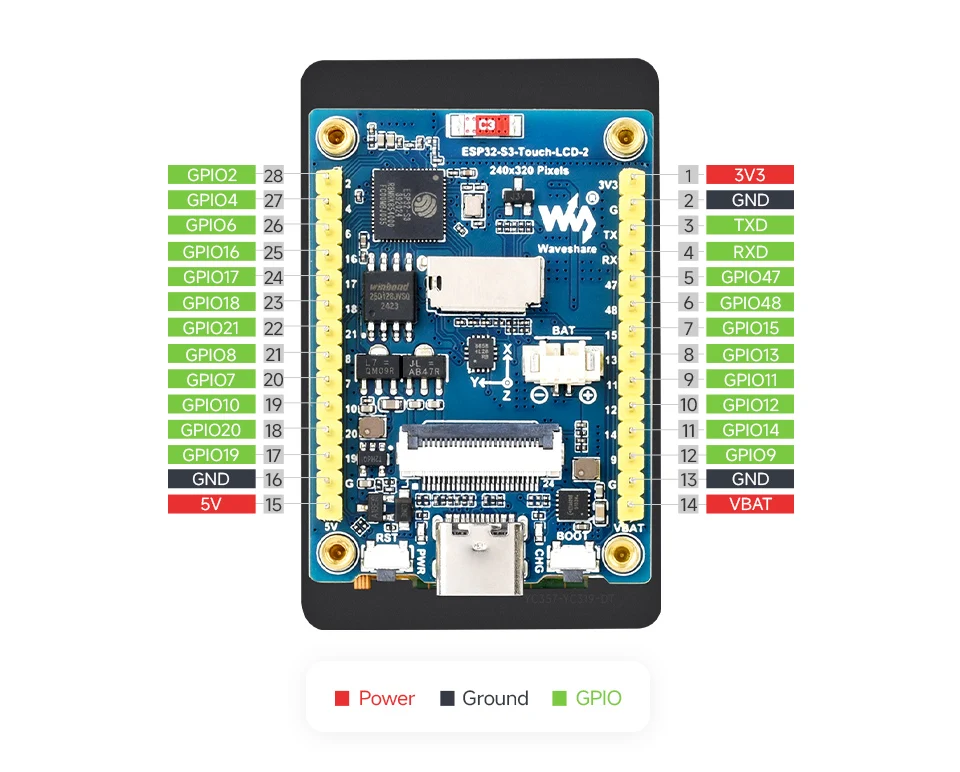

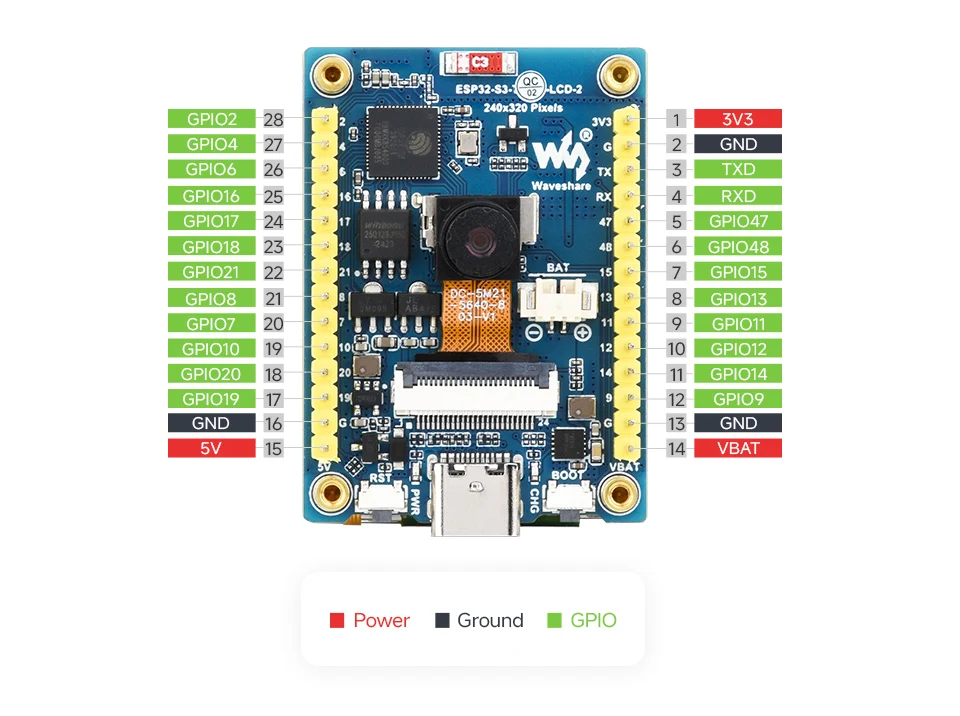

【Pin Definition】

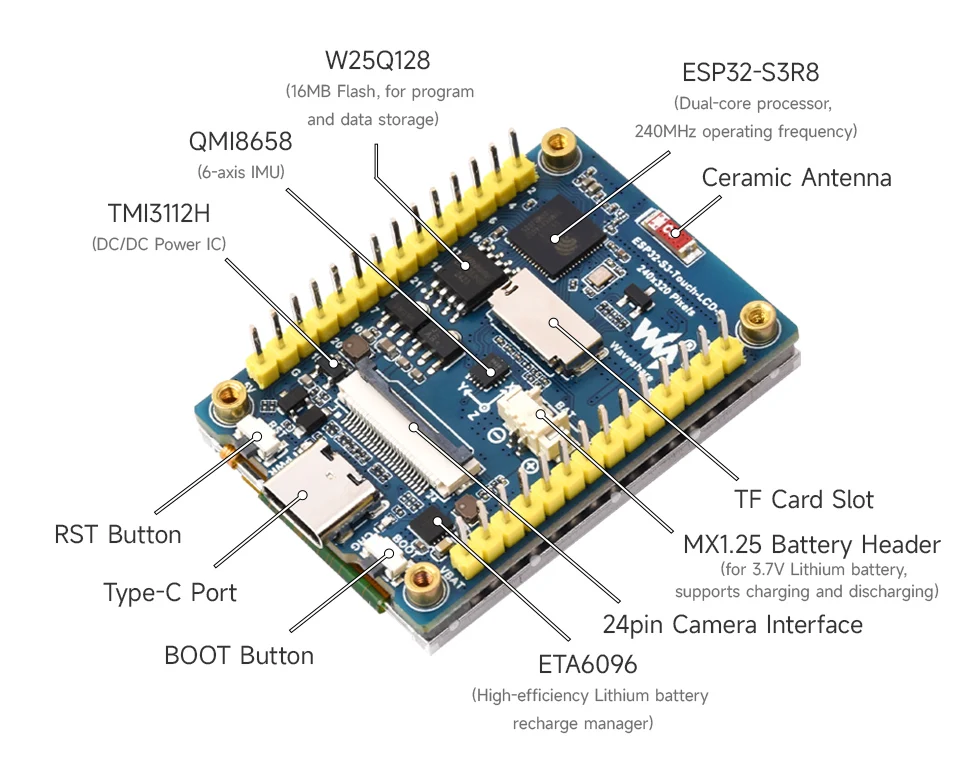

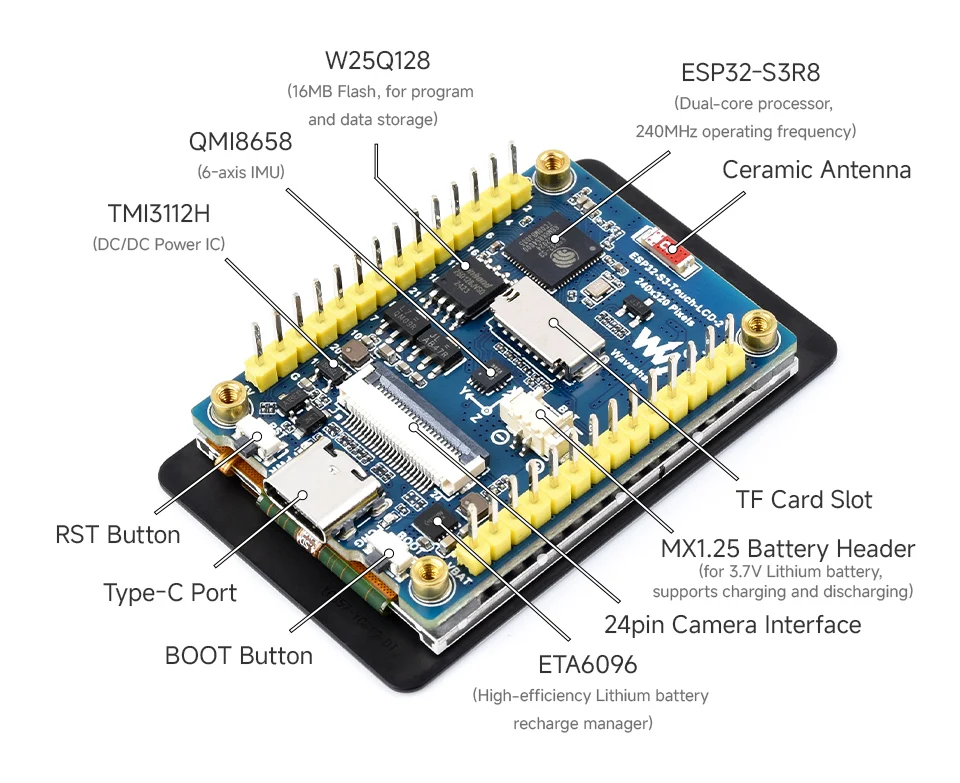

【What's On Board】

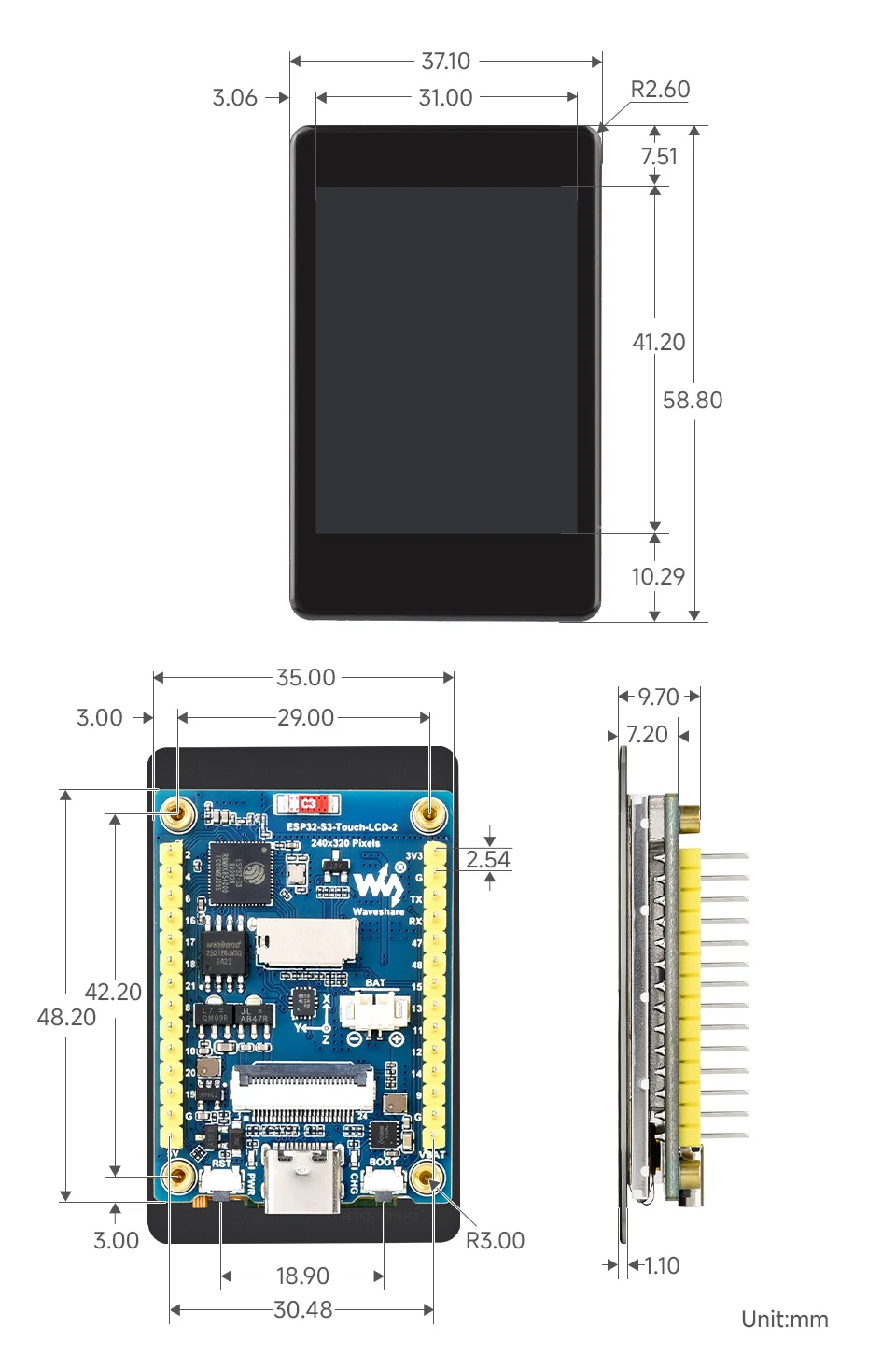

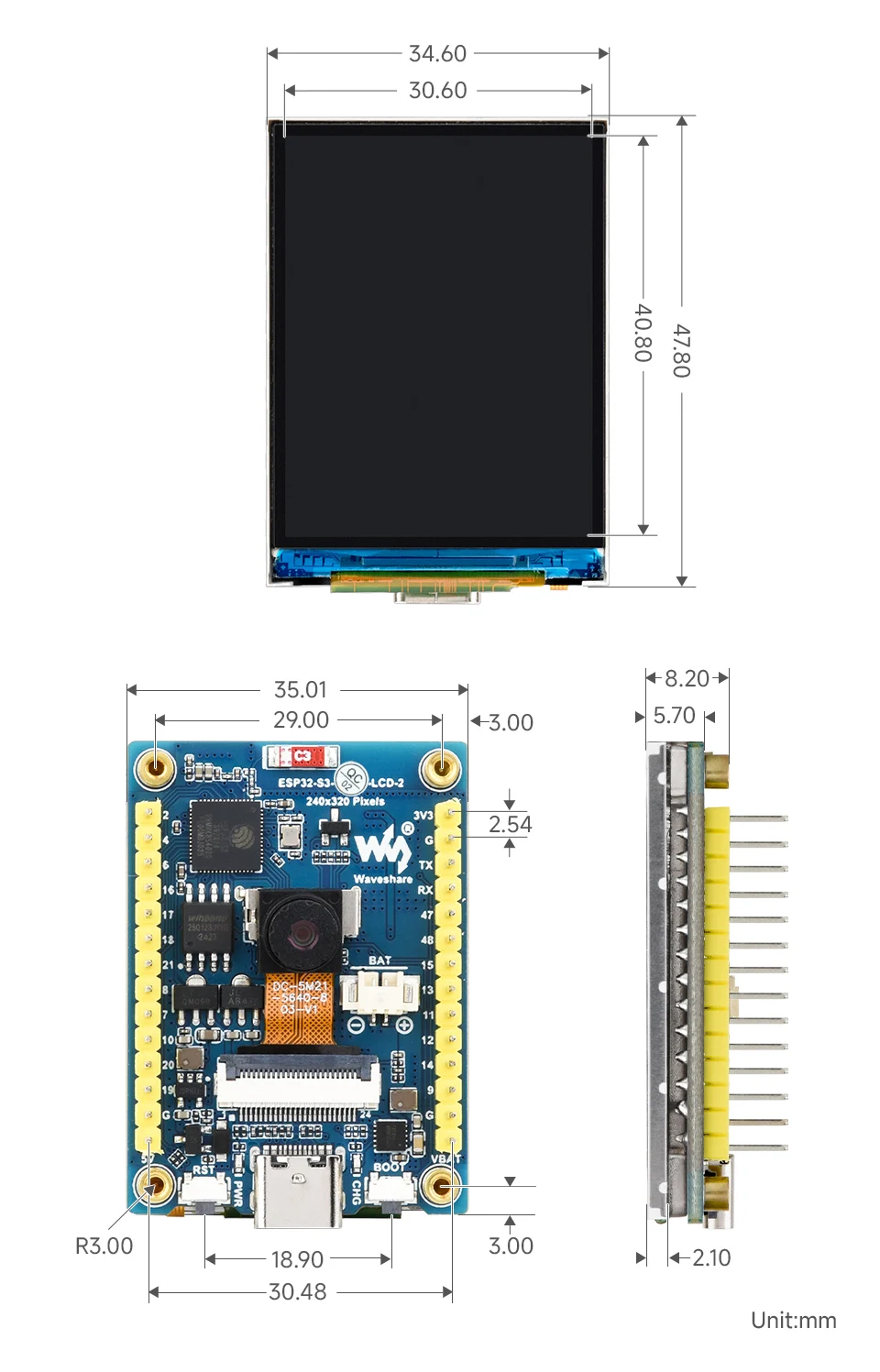

【Outline Dimensions】
