Raspberry Pi Pico 7inch DVI LCD Module10.1inch Display Module Screen Resolution IPS 1024×600 Pixel

【Note】

[] Do not include Raspberry Pi Pico

【Overview】

[] 7/10.1 Inch DVI Display Module For Raspberry Pi Pico, IPS Panel, 1024×600 Pixel, DVI Interface Communication

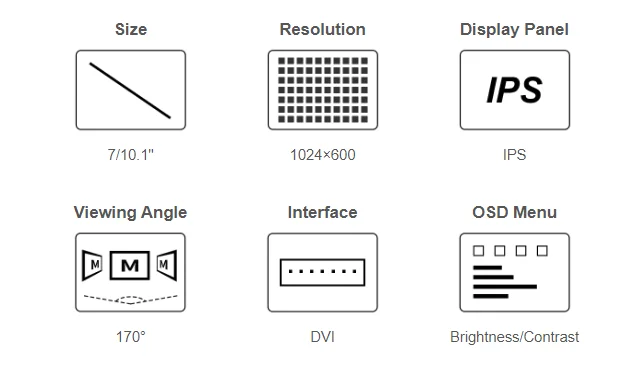

【Features At A Glance】

[] Adopts IPS panel, 1024×600 resolution*, with 170° viewing angle

[] Adopts DVI interface for higher communication speed

[] Based on the Raspberry Pi Pico with onboard 40PIN header

[] Built in OSD menu for brightness/contrast adjustment

[] Available in 7inch and 10.1inch display sizes

[] Suitable for advertisement picture display and other application scenarios

[] Comes with online development resources and manual (examples for Raspberry Pi Pico C/C++)

[] *Due to the memory limitation of RP2040, the picture resolution (Max) will be 400×240 if the color format is RGB565.

【Specifications】

[] OPERATING VOLTAGE : 5V

[] RESOLUTION : 1024×600 pixels

[] COMMUNICATION INTERFACE : DVI

[] DISPLAY PANEL : IPS

[] DISPLAY SIZE : 7inch: 154.21×85.92mm

[] 10.1inch: 222.72×125.28mm

[] PIXEL SIZE : 7inch: 0.1506×0.1432mm

[] 10.1inch: 0.2175×0.2088mm

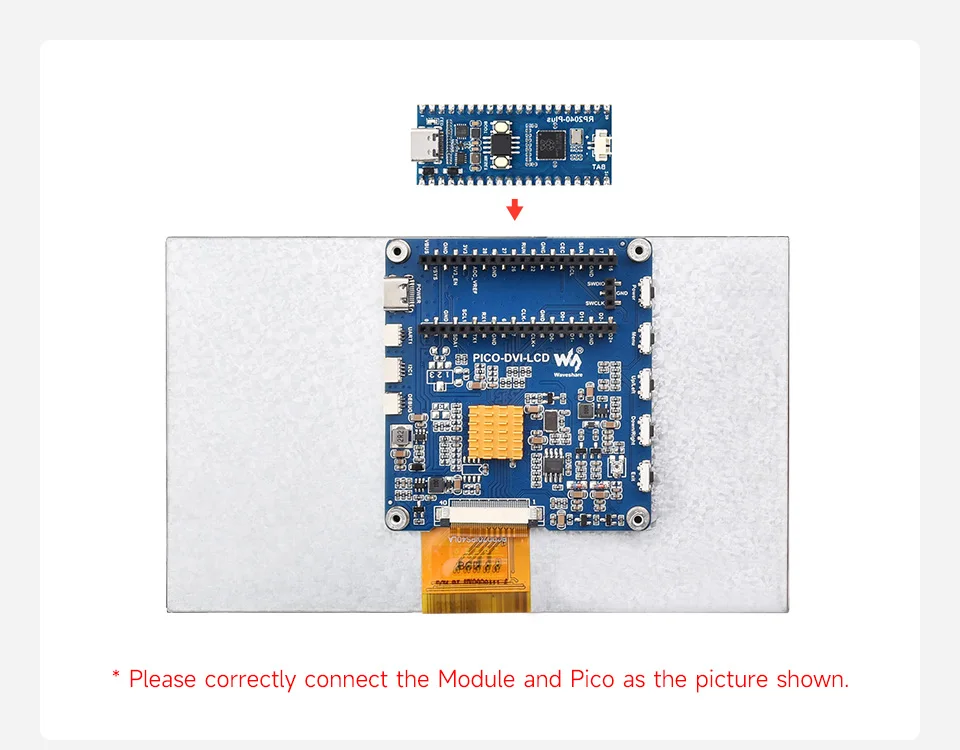

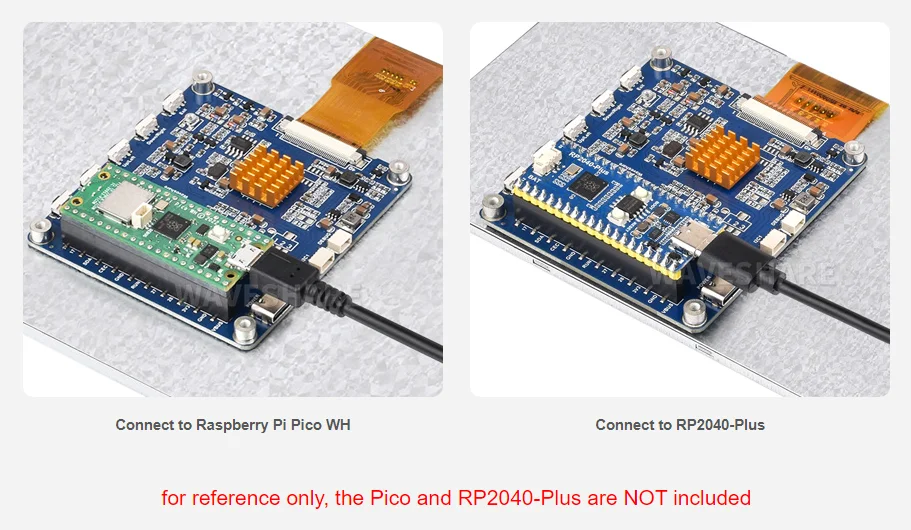

【Raspberry Pi Pico Header Compatibility】

[] Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

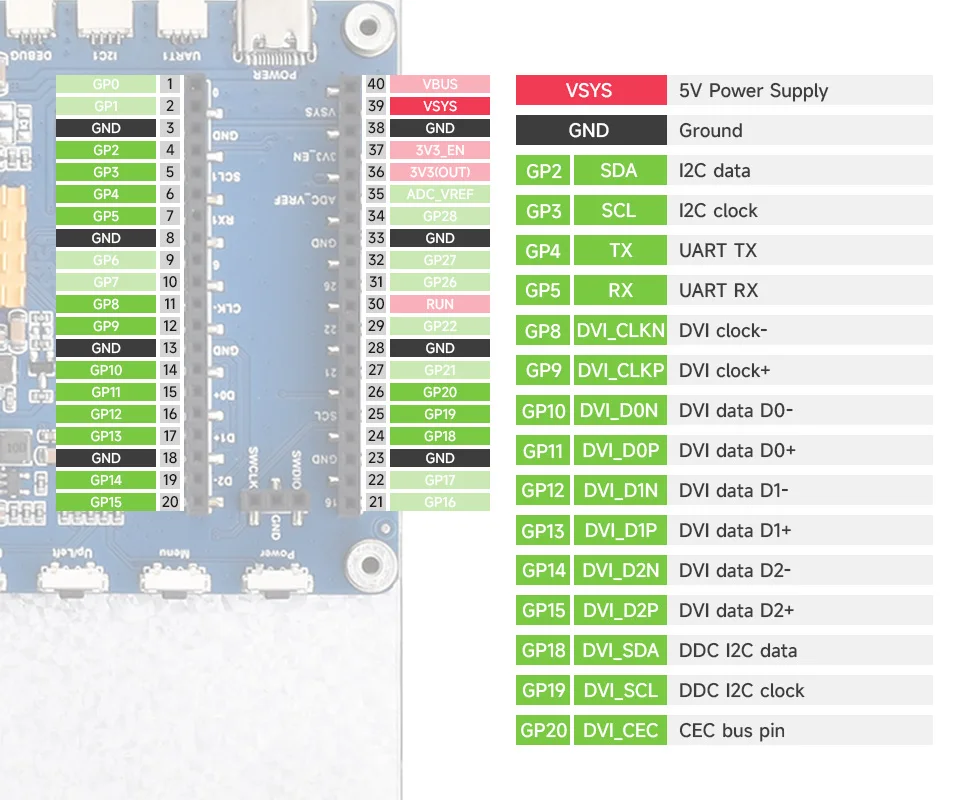

【Pin Definition】

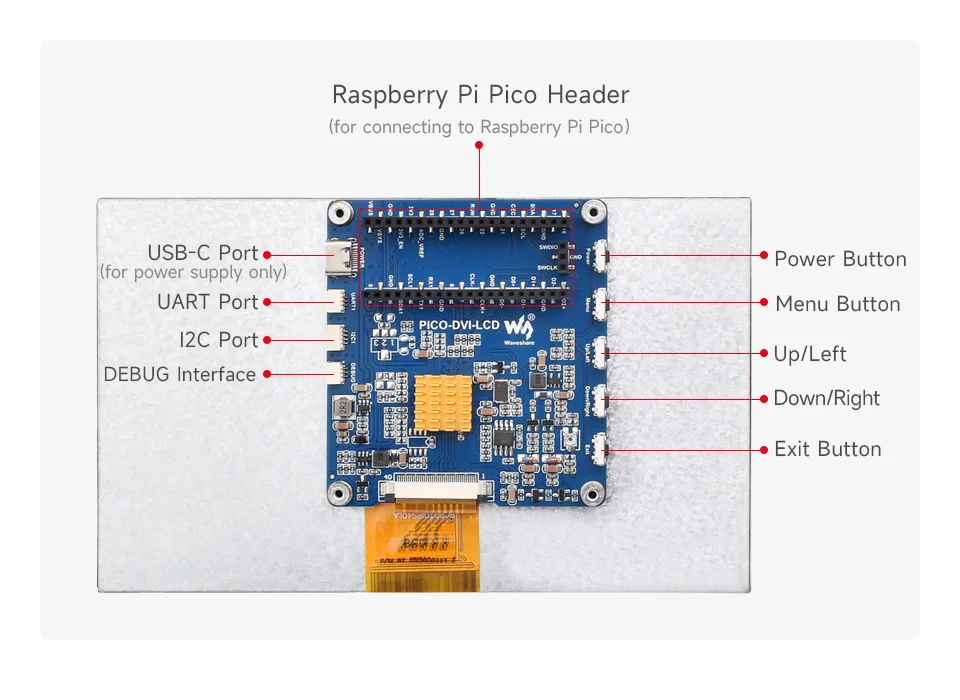

【Interface Introduction】

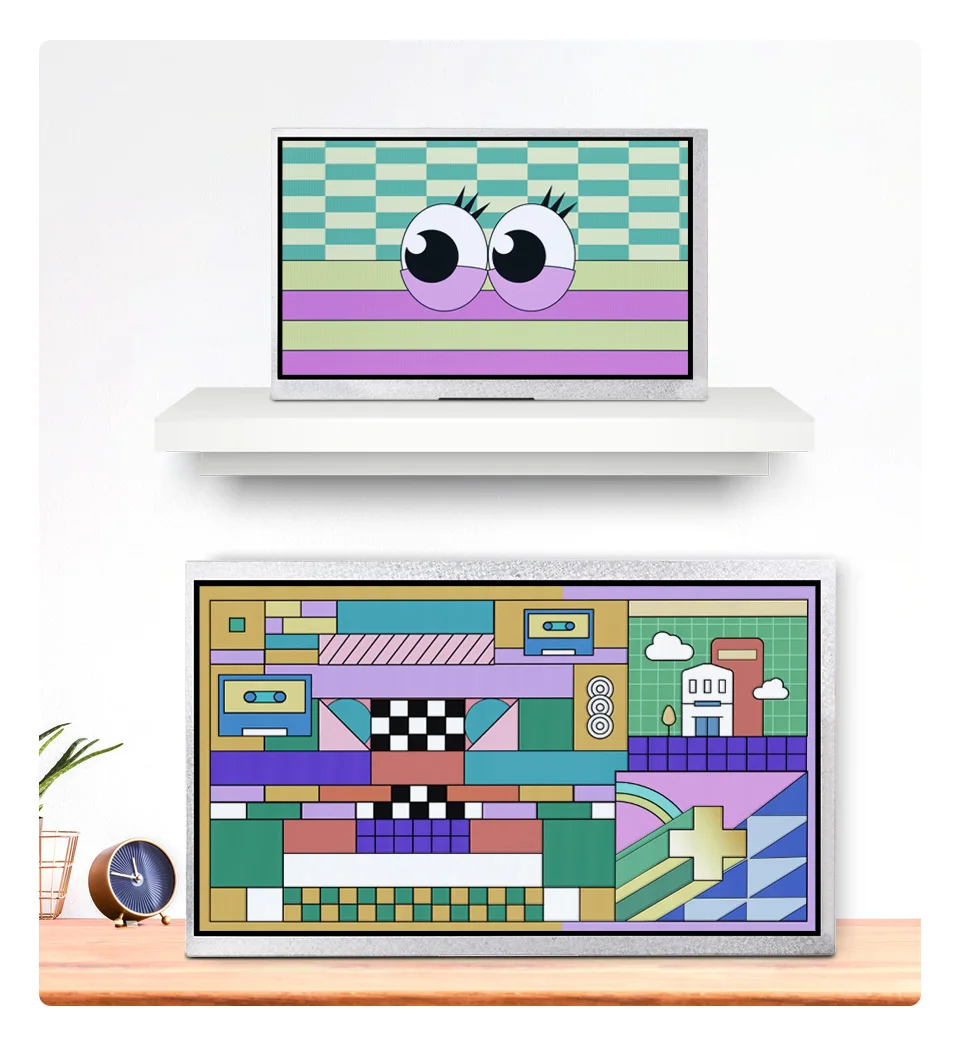

【Product Show】

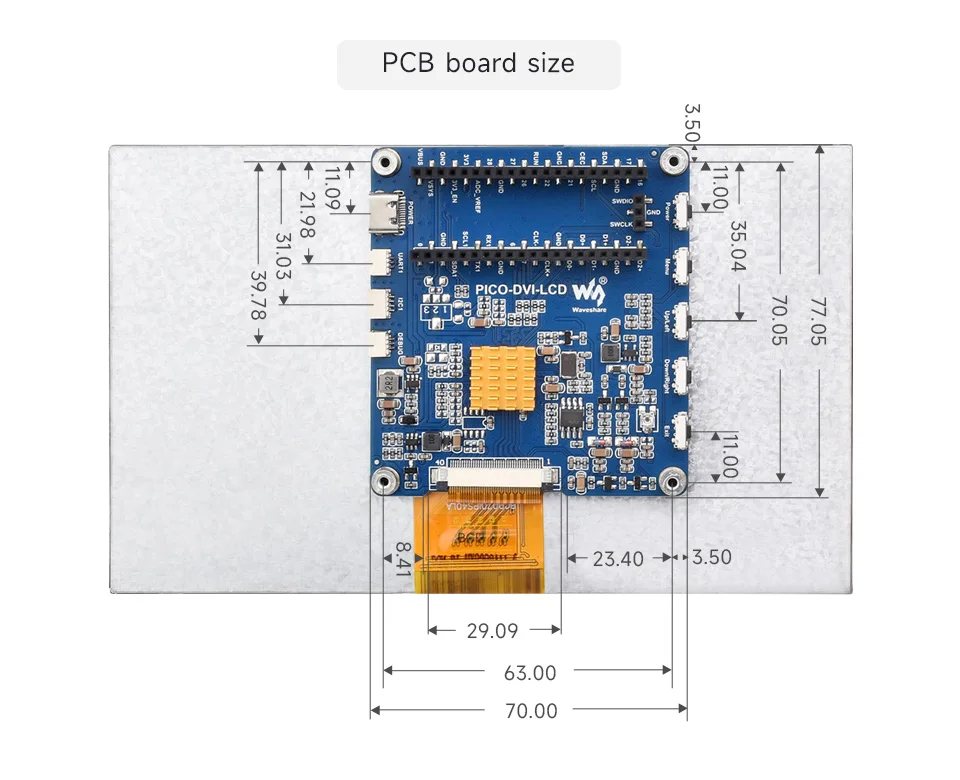

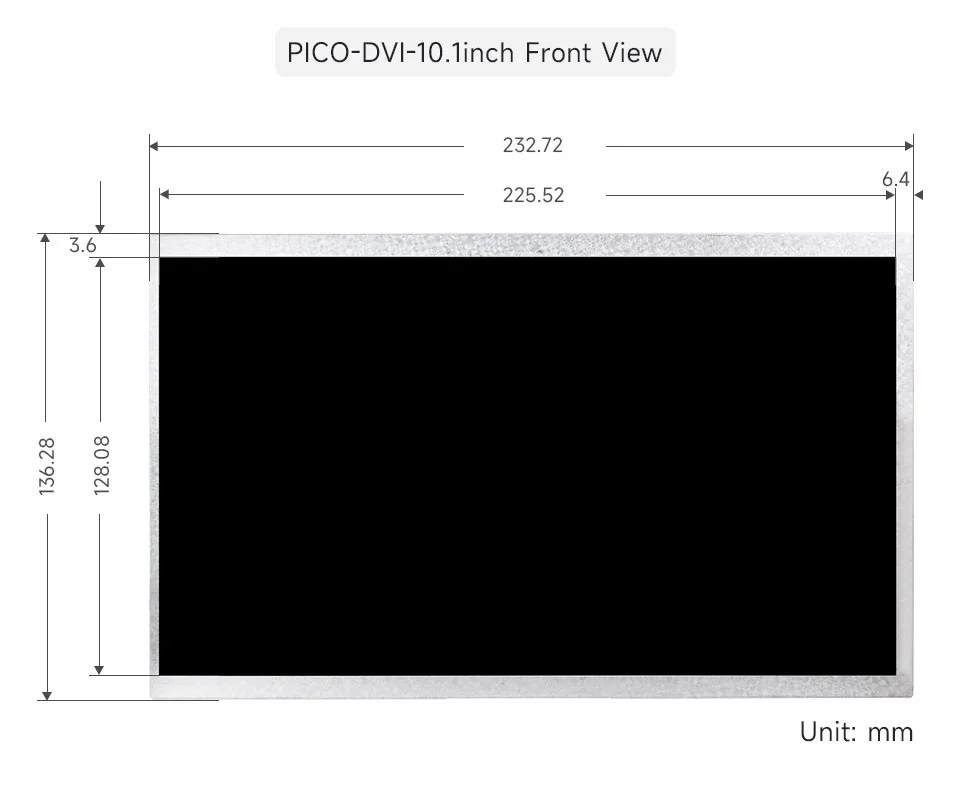

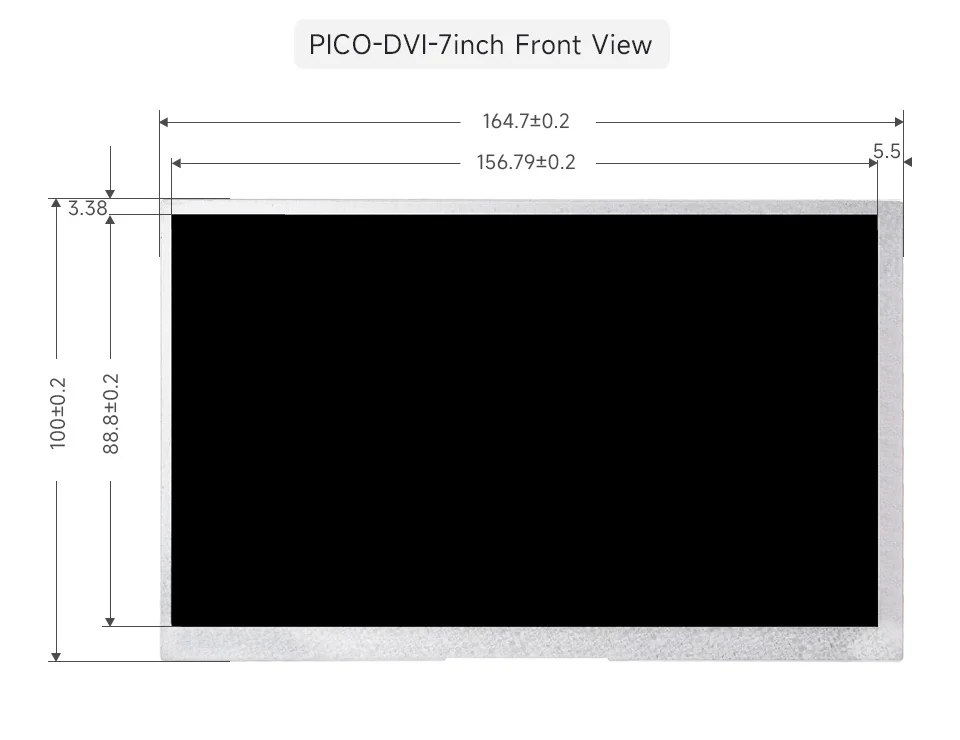

【Outline Dimensions】
