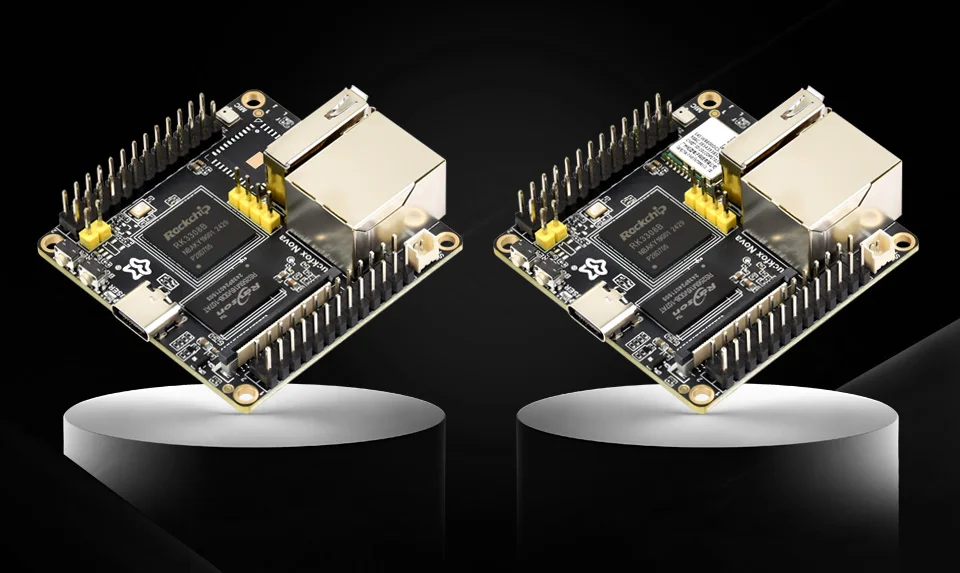

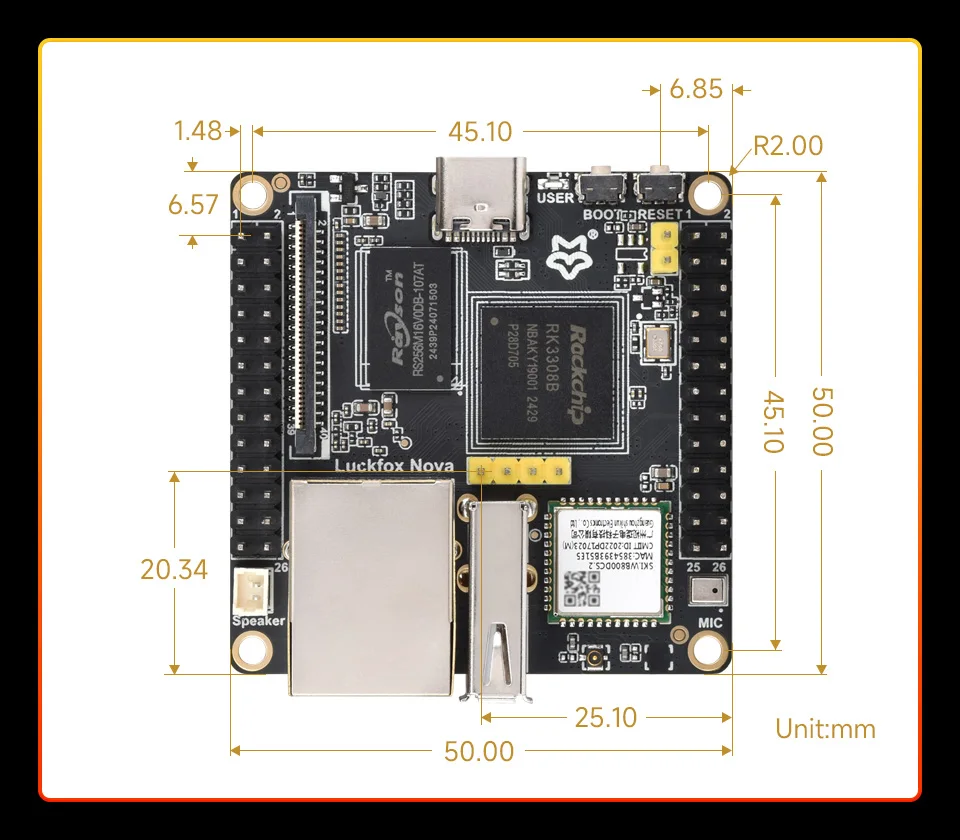

Luckfox Nova
The Luckfox Nova is an embedded development board based on the Rockchip RK3308B chip. The Rockchip RK3308B is a high-performance processor designed for smart voice interaction, audio input/output processing, and digital multimedia applications. Its core architecture adopts 64-bit quad-core ARM Cortex-A35, with a maximum clock speed of 1.3GHz, providing powerful computing capability to handle complex embedded tasks with ease.

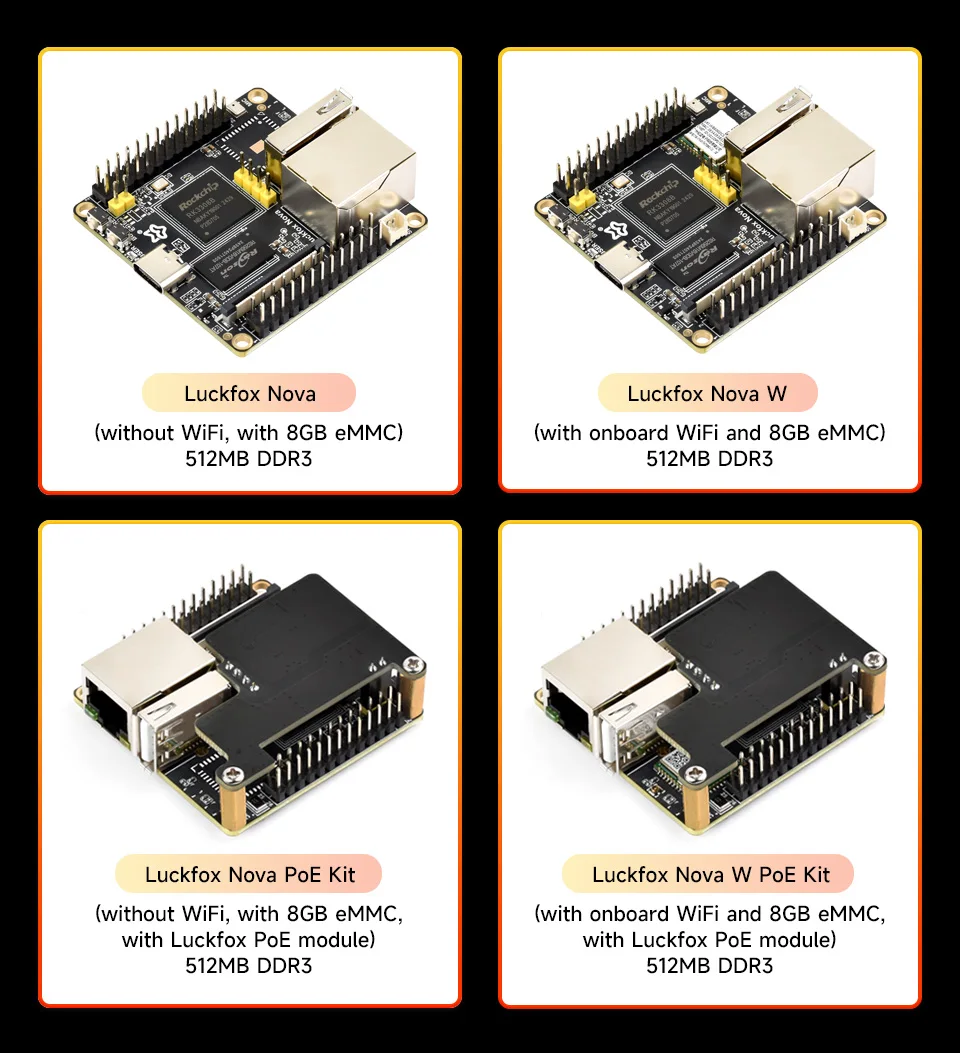

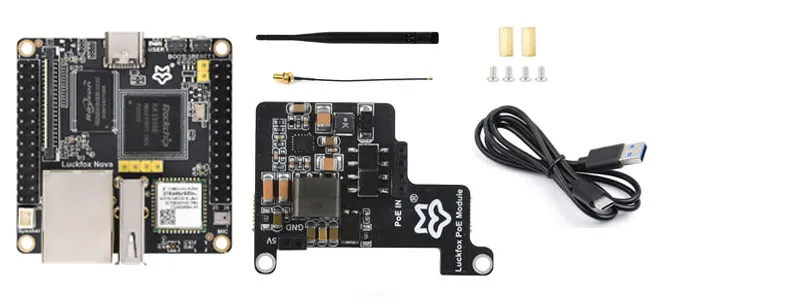

Development Board Versions

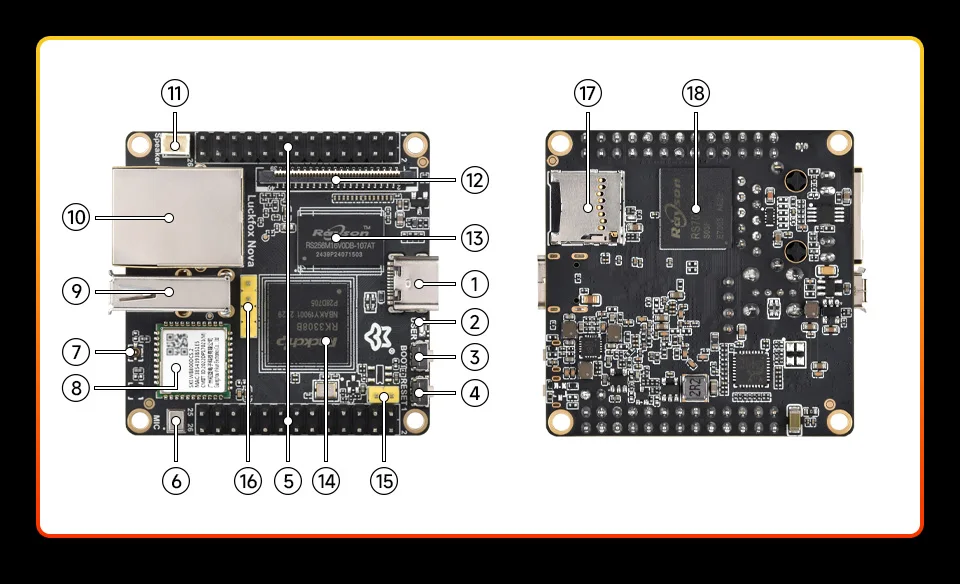

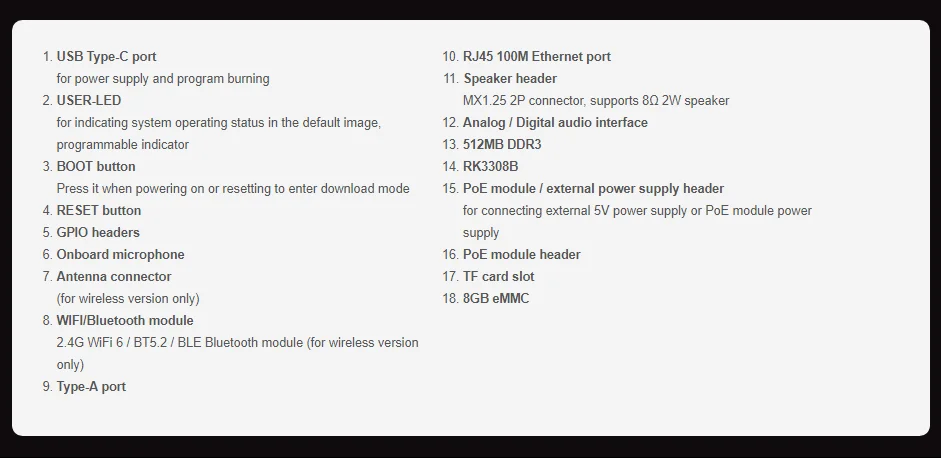

Board Introduction
-
ARM quad-core 64-bit Cortex-A35 at 1.3GHz, with integrated high-performance Audio Codec and Voice Activity Detection (VAD) modules
-
Built-in Audio Codec with up to 8-channel microphone inputs for easy development of multi-microphone array applications
-

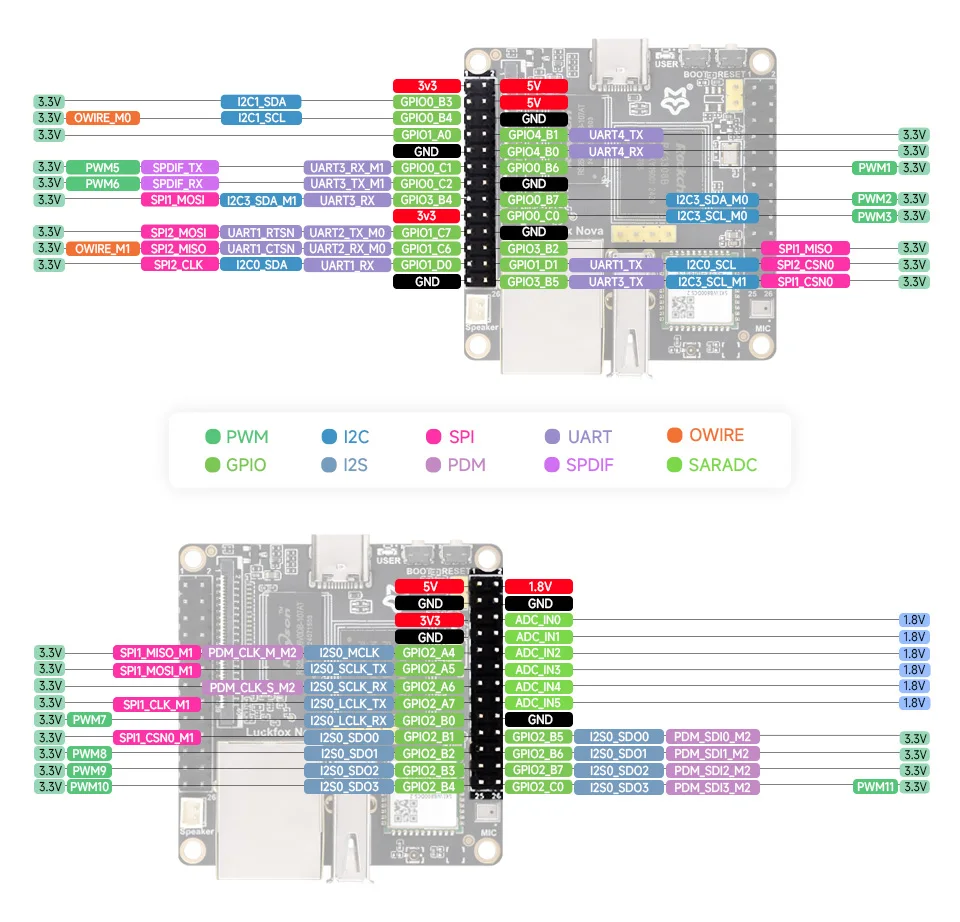

Adapting 2 × 26PIN GPIO headers, supports UART, SPI, I2C and other peripheral controls
-
Onboard 8GB eMMC + TF card expansion (supports SDIO 3.0 protocol), to meet the needs of large-capacity data storage
-
Onboard 512MB DDR3 memory for smooth multi-tasking operation

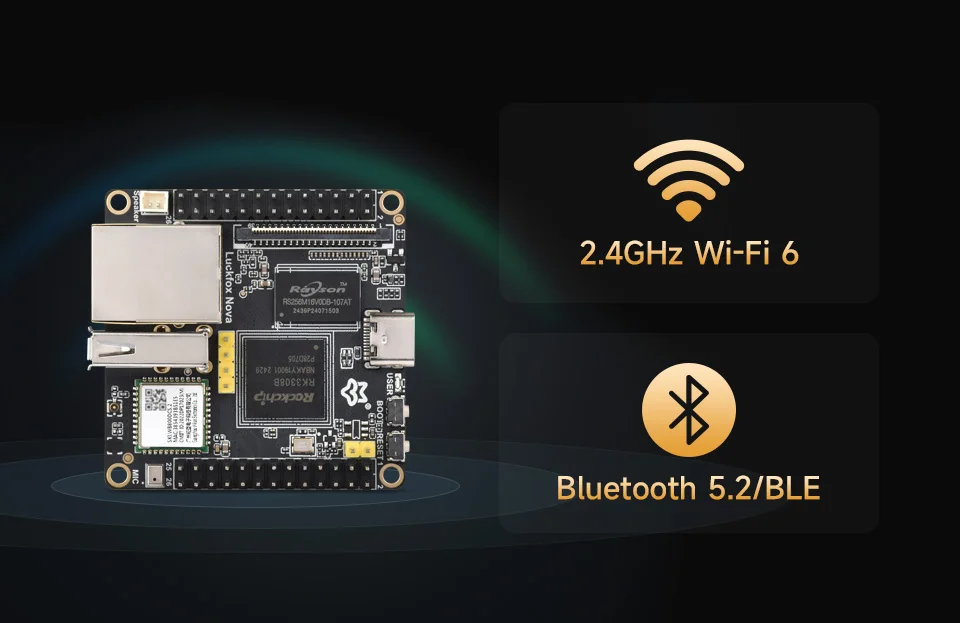

Wi-Fi 6 And Bluetooth Module
Onboard 2.4GHz Wi-Fi 6 And Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission

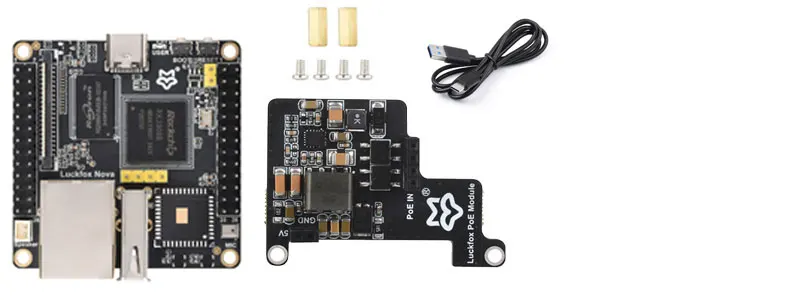

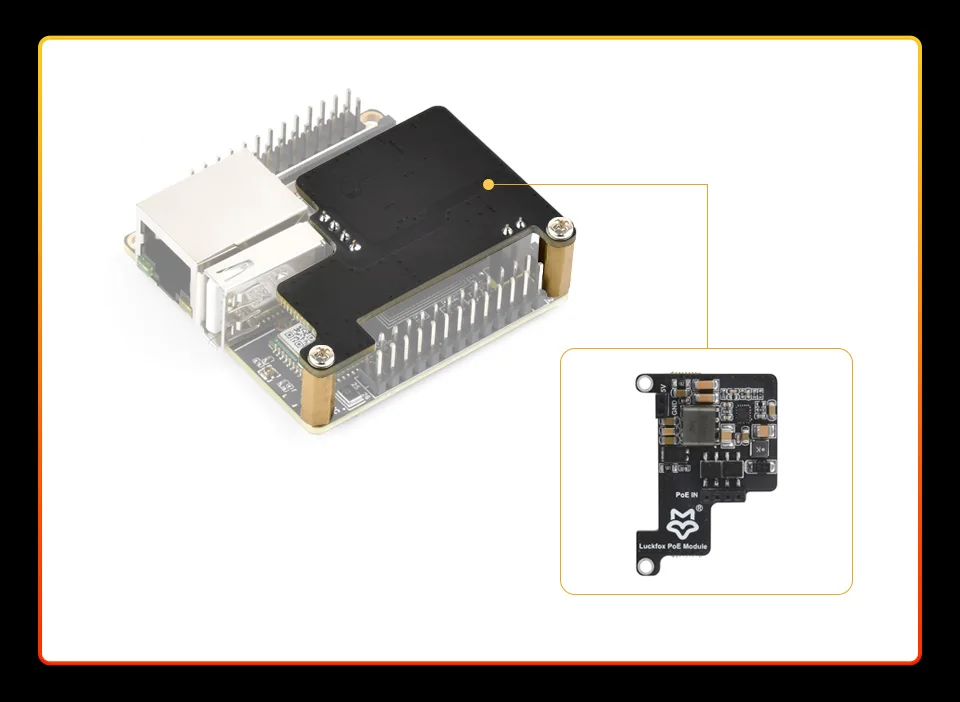

Reserved PoE Module Header
More Flexible For Power Supply

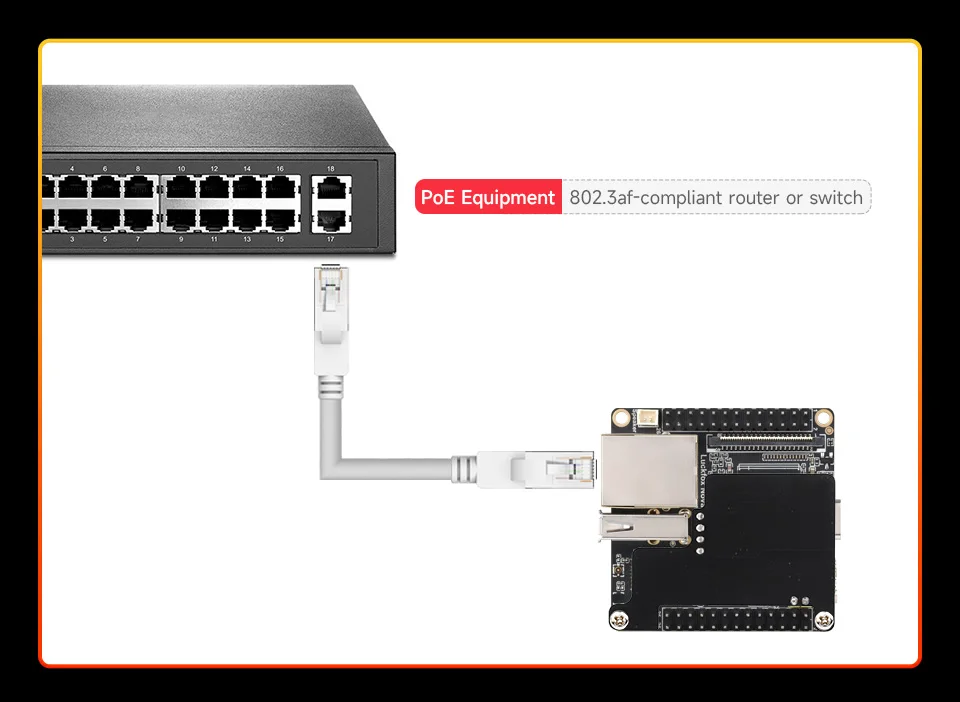

Optional For PoE Module, Supports PoE Power Supply
Provides Both Network Connection And Power Supply For Luckfox Nova Board In Only One Ethernet Cable
* the PoE module is optional, and the switch in the picture above is NOT included.

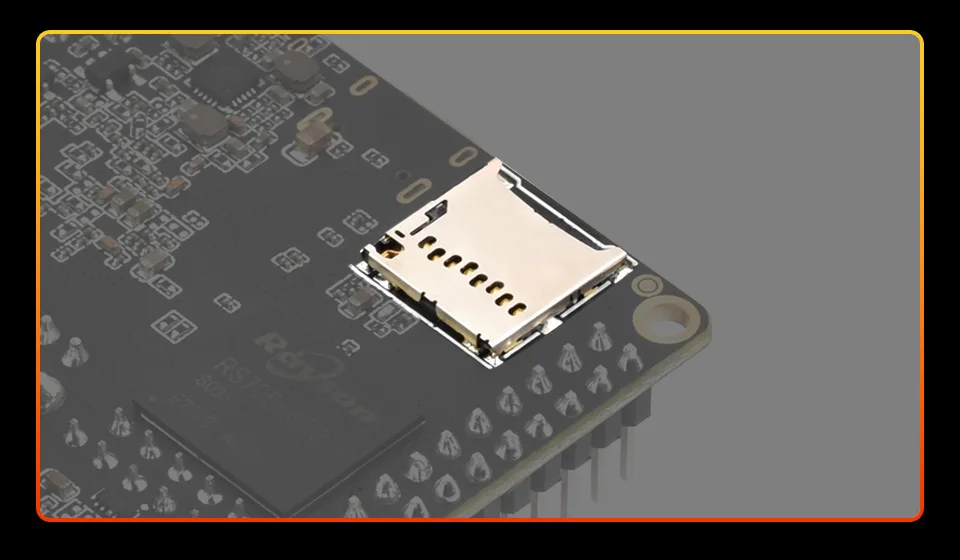

Onboard TF Card Slot
Allows Storage Expansion Via TF Card

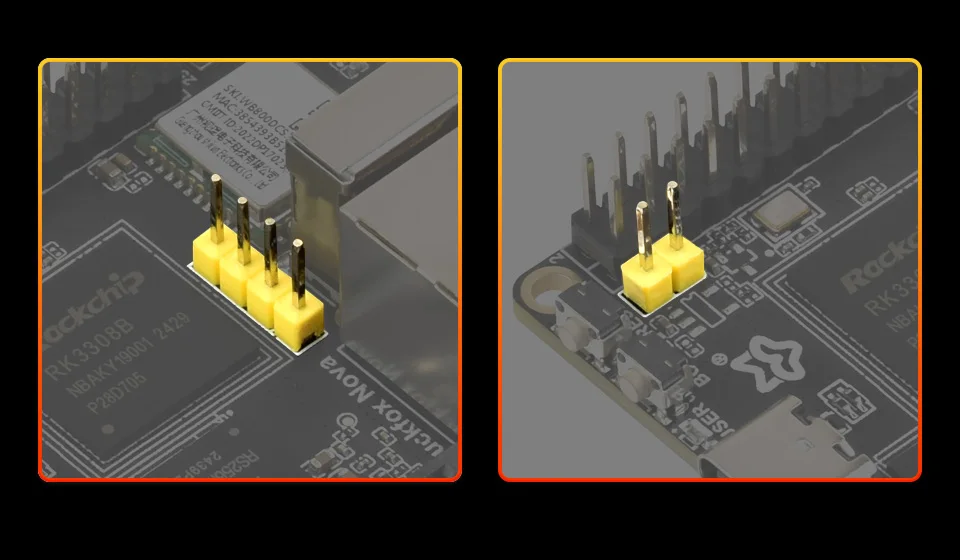

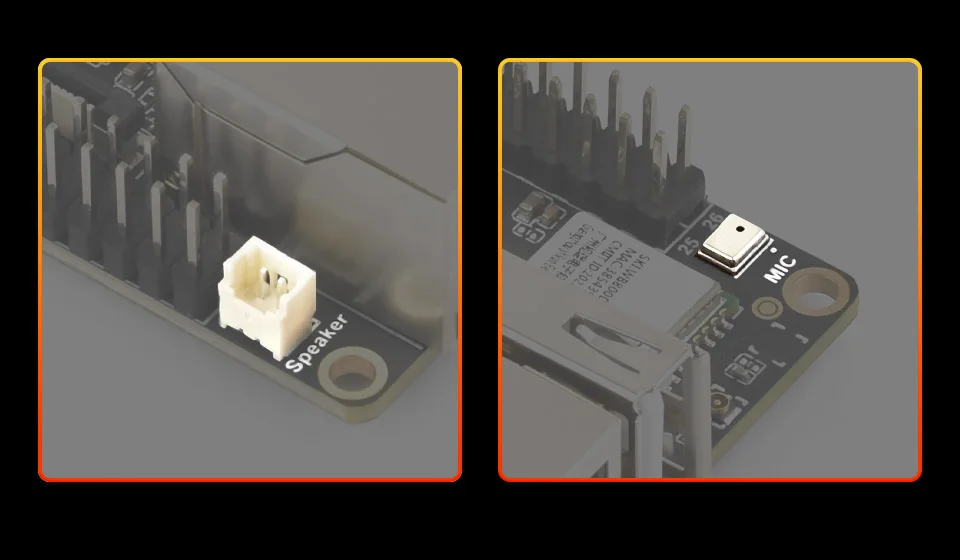

Audio Input And Output Interfaces
Onboard Microphone + Speaker Header
