Low-Profile CPU Cooling Fan with Aluminum Alloy Bracket for Raspberry Pi

【Note】

[] Do not include Raspberry Pi

【Overview】

[] Low-Profile CPU Cooling Fan for Raspberry Pi 4B/3B+/3B, with Aluminum Alloy Bracket

【Specifications】

[] SUPPORTED PI : Raspberry Pi 4B/3B+/3B

[] POWER SUPPLY : DC 5V input (can be powered from Raspberry Pi)

[] STRUCTURE : Low-profile, aluminum alloy heat-sinking bracket, optional GPIO adapter

[] RATED POWER : 1W (5V, 0.2±0.02A)

[] CABLE LENGTH : 45±10mm

[] FAN : 3007 fan, 8000±10%RPM

【Setup Example】

[]Raspberry Pi and other HATs are NOT included.

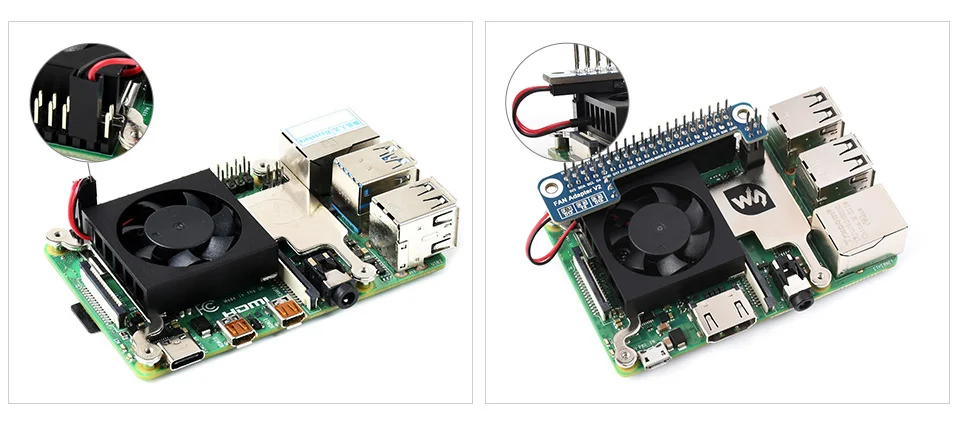

[] Cooling The Raspberry Pi 4B (Left) And Raspberry Pi 3B+/3B With GPIO Adapter (Right)

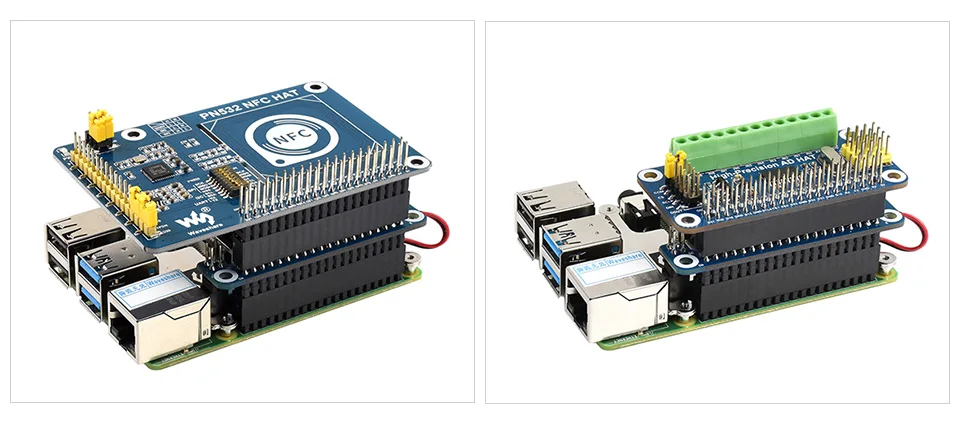

[] Attaching Other Raspberry Pi HATs Via The GPIO Adapter

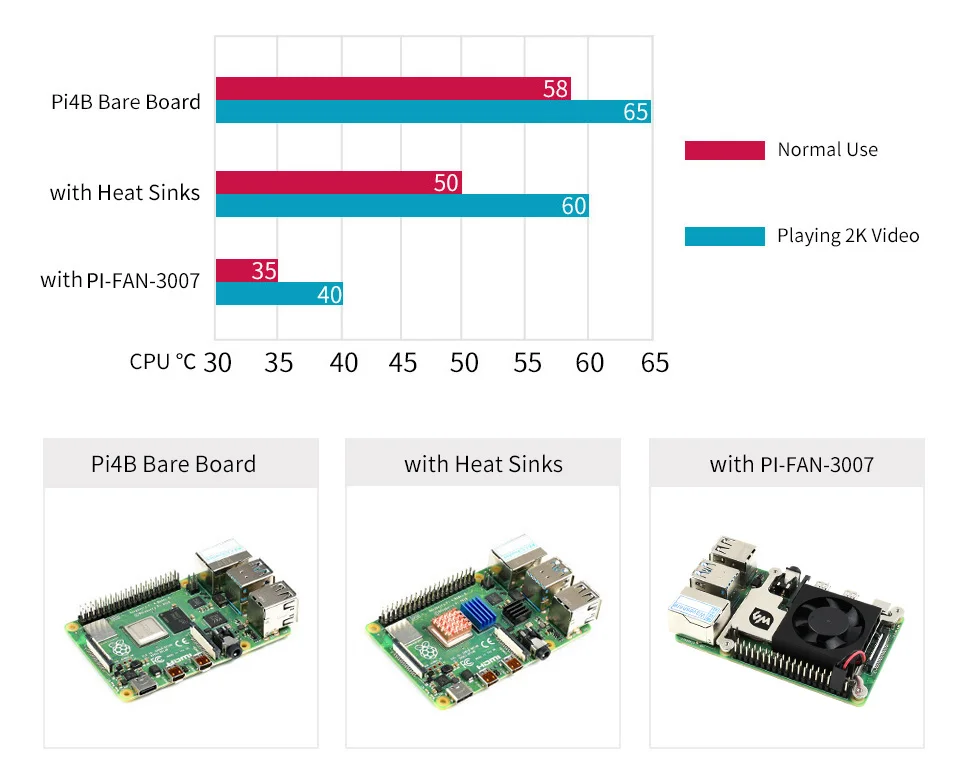

【Raspberry Pi 4B Cooling Solution Comparing】

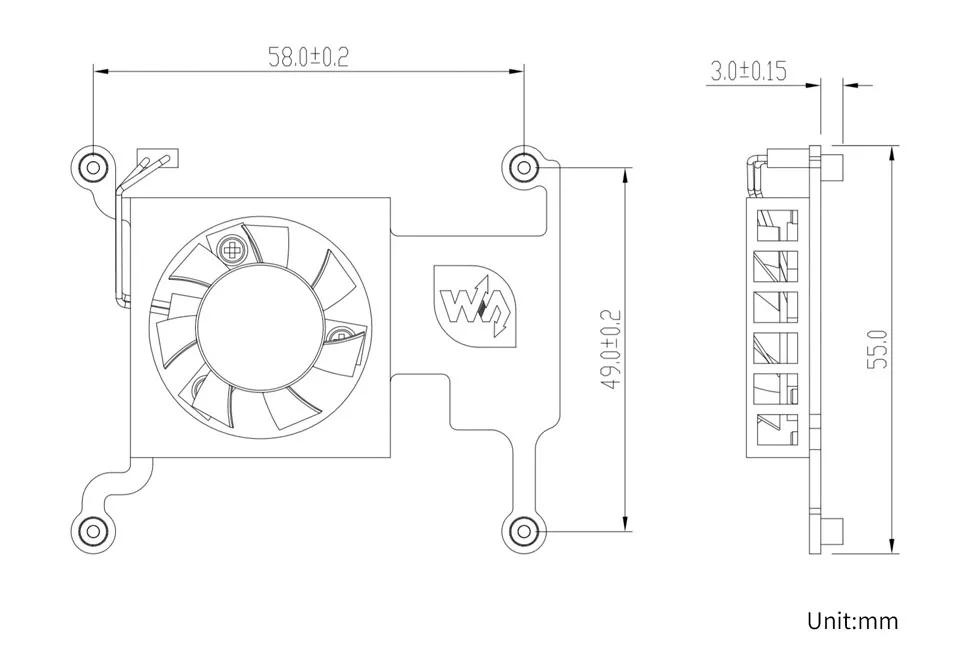

【Outline Dimensions】

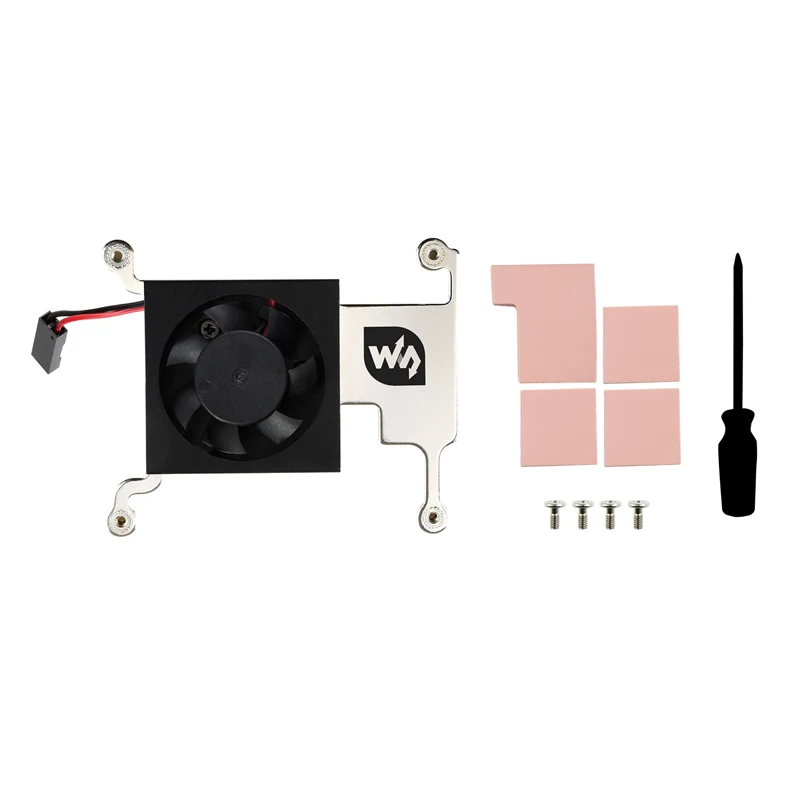

[] PI-FAN-3007 x1
